Row Height and text VerticalAlignment in WordsProcessing Table Cells

[Patgat]

Hi,

first sorry for the general tag selected as I didn't find any specificone  about Document Processing.

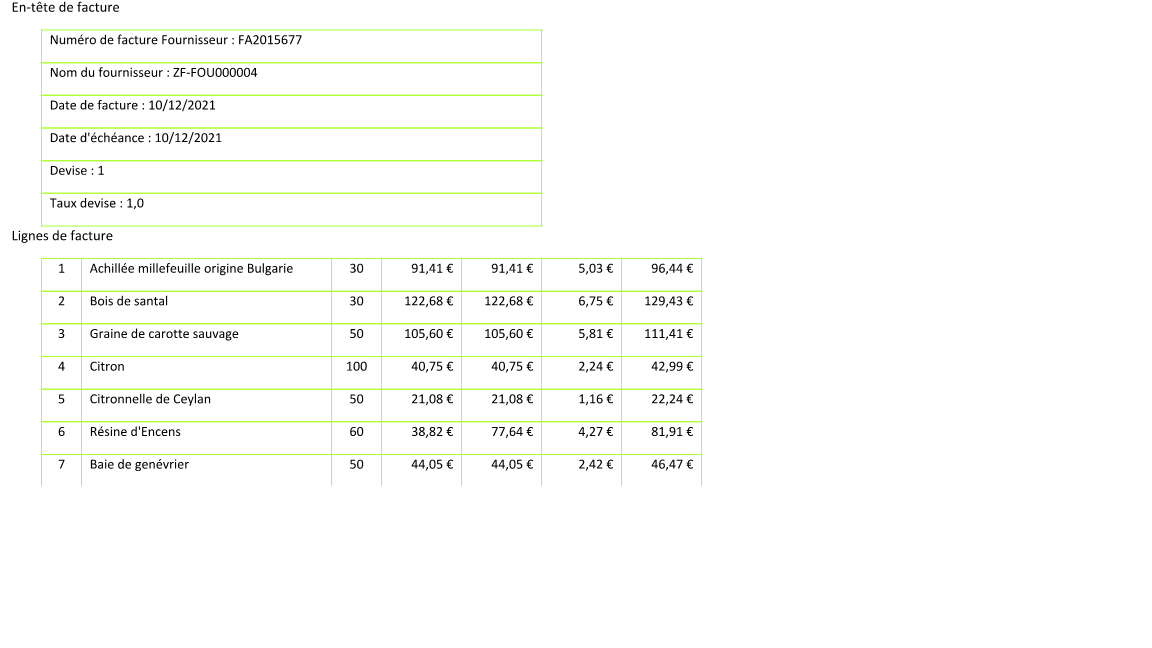

I am creating a simple document mostly made up of tables  using the following code where neither the row.height, nor the VerticalAlignment are working (see attached screenshot).

I  would like much narrower cells and the text vertically centered.

How to achieve this ?

thanks

Patrick



RadFlowDocument document = new RadFlowDocument();
RadFlowDocumentEditor editor = new RadFlowDocumentEditor(document);

Section section = new Telerik.Windows.Documents.Flow.Model.Section(document);
document.Sections.Add(section);

section.PageMargins = new Telerik.Windows.Documents.Primitives.Padding(40, 10, 40, 10);
section.PageSize = PaperTypeConverter.ToSize(PaperTypes.A4);

Table FactTable = section.Blocks.AddTable();

        for (int i = 0; i < datas.GetLength(0); i++)
        {
            TableRow row = new TableRow(document);
            row.Height = new TableRowHeight(HeightType.Exact, 14);
            PiedFactTable.Rows.Add(row);
            {
                TableCell cell = row.Cells.AddTableCell();
                cell.VerticalAlignment = VerticalAlignment.Center;
                Run run= cell.Blocks.AddParagraph().Inlines.AddRun(datas[i]);
            }
        }

[Dimitar]

Hi Patgat,

I have tested your code and it works on my side. I wanted to ask you what is the format you are saving to?

[Patgat]

Hi Dimitar,

I am saving this in pdf format :

        Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider provider = new();
        RadFixedDocument PdfDocument = provider.ExportToFixedDocument(document);

[Patgat]

Hi again,

effectively when saving as Docx it looks fine, while saving as Pdf has multiple incorrect rendering. See attached docs.

formatting is done with the following very standard code :

 IFormatProvider<RadFlowDocument> formatProvider = null;
        switch (selectedFromat)
        {
            case "Docx":
                formatProvider = new DocxFormatProvider();
                break;

            case "Pdf":
                formatProvider = new PdfFormatProvider();
                break;
        }

     using (var stream = dialog.OpenFile())
             {
                    formatProvider.Export(document, stream);
              }

[Dimitar]

Hi Patgat,

Thank you for clarifying this. I was able to reproduce the case where the height is not respected. I have logged this issue on your behalf. You can track its progress, subscribe to status changes, and add your comment to it here: WordsProcessing: The Row Height is not respected when converting to pdf. I have updated your Telerik points for this report.

I am afraid I cannot suggest a workaround for this.

The default paragraph spacing is affecting the alignment. You can set it to zero in order for this to work:

 var p = cell.Blocks.AddParagraph();
 p.Spacing.SpacingAfter = 0;

 Run run = p.Inlines.AddRun("Test " + i);

Let me know if I can assist you further.

Regards,
Dimitar
Progress Telerik
