RadWindow as MainWindow - RadWindow doesn't show up

[Anson]

 <telerik:RadWindow
                x:Class="Testing.MainWindow"
                xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
                xmlns:navigation="clr-namespace:Telerik.Windows.Controls.Navigation;assembly=Telerik.Windows.Controls.Navigation"
                    navigation:RadWindowInteropHelper.ShowInTaskbar="True"
                Header="RadWindow" Height="1000.098" Width="1315.286"
    >

This is the MainWindow.xaml



- I have removed the StartUrl in app.xaml

- I have changed MainWindow: Window To MainWindow: RadWindow

protected override void OnStartup(StartupEventArgs e)
{
    new MainWindow().Show();
    base.OnStartup(e);
}

I have added this to app.xaml.cs

 *------

When I run the wpf, a exe is running( as i can see in task manager), but nothing show up.



This is driving me crazy. Any help would be appreciated

[Nasko]

Hi Anson,

If you are using Implicit Styles in order to style your application and apply some theme for it, please notice that the newly created user control (MainWindow that inherits RadWindow in your case) will not receive the default Style of RadWindow - that will cause the observed by you behavior of RadWindow.

So, in order to fix that you need to add the following Style after the merged dictionaries:

<Application.Resources>
    <ResourceDictionary>
        <ResourceDictionary.MergedDictionaries>
            <ResourceDictionary Source="Themes/System.Windows.xaml" />
            <ResourceDictionary Source="Themes/Telerik.Windows.Controls.xaml" />
            <ResourceDictionary Source="Themes/Telerik.Windows.Controls.Navigation.xaml" />

        </ResourceDictionary.MergedDictionaries>
<-- the TargetType should be your UserControl (MainWindow) that contains and inherits RadWindow -->
        <Style TargetType="local:MainWindow" BasedOn="{StaticResource RadWindowStyle}" />

    </ResourceDictionary>
</Application.Resources>

We suggest you to check the following article from our help documentation that provides detailed information how to use RadWindow as UserControl:
http://docs.telerik.com/devtools/wpf/controls/radwindow/how-to/use-radwindow-as-user-control

Please, give a try to the proposed above approach and let us know if it worked for you.

Hope this helps.

Regards,
Nasko
Telerik

[Alex]

When i am trying to open the window nothing is opening

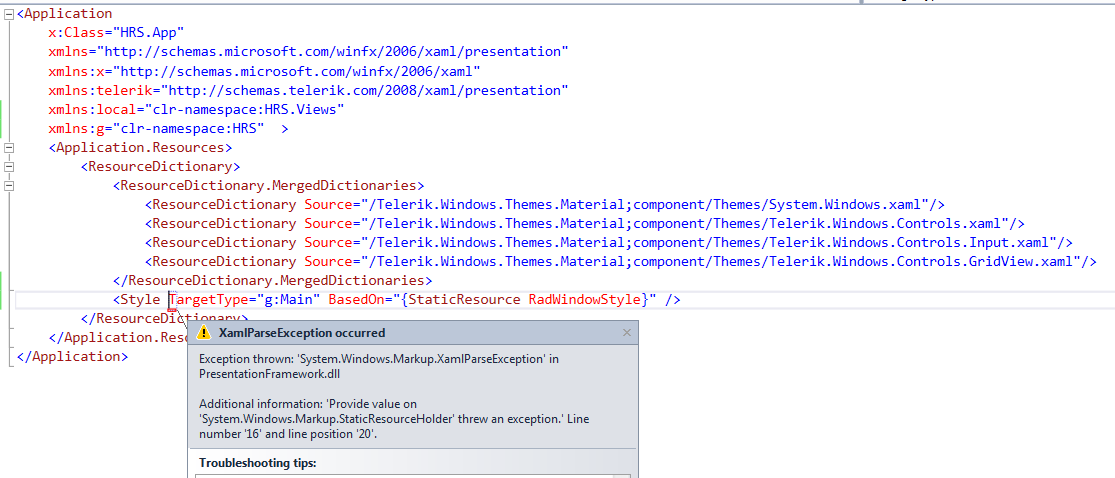

I have followed you above steps its shows this error message .

Cannot find resource named 'RadWindowStyle'. Resource names are case sensitive.





[Alex]

Hi Nasko,



In App.xaml.cs i am loading the page like this

  protected override void OnStartup(StartupEventArgs e)
        {
            new Main().Show();
            base.OnStartup(e);
        }

Please help with this issue.

[Martin]

Hi,

You are receiving the xaml parse exception because you need to merge the Telerik.Windows.Controls.Navigation.xaml resource dictionary as well. Furthermore, after that you should remove the StartupUri from the App.xaml. You can check this article for more detailed steps (which  do not include the merging of the theme resources). I hope that this would solve the issue.

Regards,
Martin
Progress Telerik
