RadScheduler Custom TimeScale of 5 minutes

2 posts, 0 answers
  1. John
    John avatar
    1 posts
    Member since:
    Sep 2014

    Posted 05 Sep 2014 Link to this post


    I am evaluating the RadScheduler using the Timeline view to display a 24 hour range.
    All the scheduled activities occur in 5 minute increments (00:00, 00:05, 00:10, 00:15 etc).

    Right now the RadScheduler shows 15 minutes as the minimum timescale for display.

    Can I create a custom timescale that would get me down to 5 minutes?


  2. Dess | Tech Support Engineer, Sr.
    Dess | Tech Support Engineer, Sr.  avatar
    3568 posts

    Posted 10 Sep 2014 Link to this post

    Hello John,

    Thank you for writing.

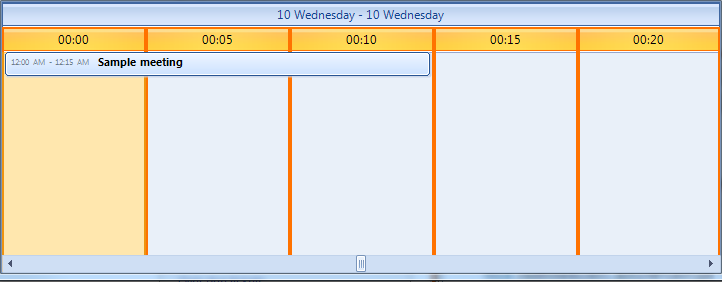

    You can create a derivative of the MinutesTimescale and override its ScalingFactor property to five minutes. Here is a sample implementation:
    public Form1()
        this.radScheduler1.ActiveViewType = Telerik.WinControls.UI.SchedulerViewType.Timeline;
        SchedulerTimelineView timelineView = this.radScheduler1.GetTimelineView();
        FiveMinutesTimescale fiveMinutes = new FiveMinutesTimescale();
        fiveMinutes.Visible = true;
    public class FiveMinutesTimescale : MinutesTimescale
        public override int ScalingFactor
                return 5;

    I hope this information helps. Should you have further questions, I would be glad to help.
