I am developing a page contains RadPieChart inside a RadSlideView. When i deploy the application on either iOS 12.1 or Android 8.1 RadPieChart doesn't display and other control works fine.
I am using Xamarin Forms 3.1 and Telerik.UI.For.Xamarin 2018.3.1018.1

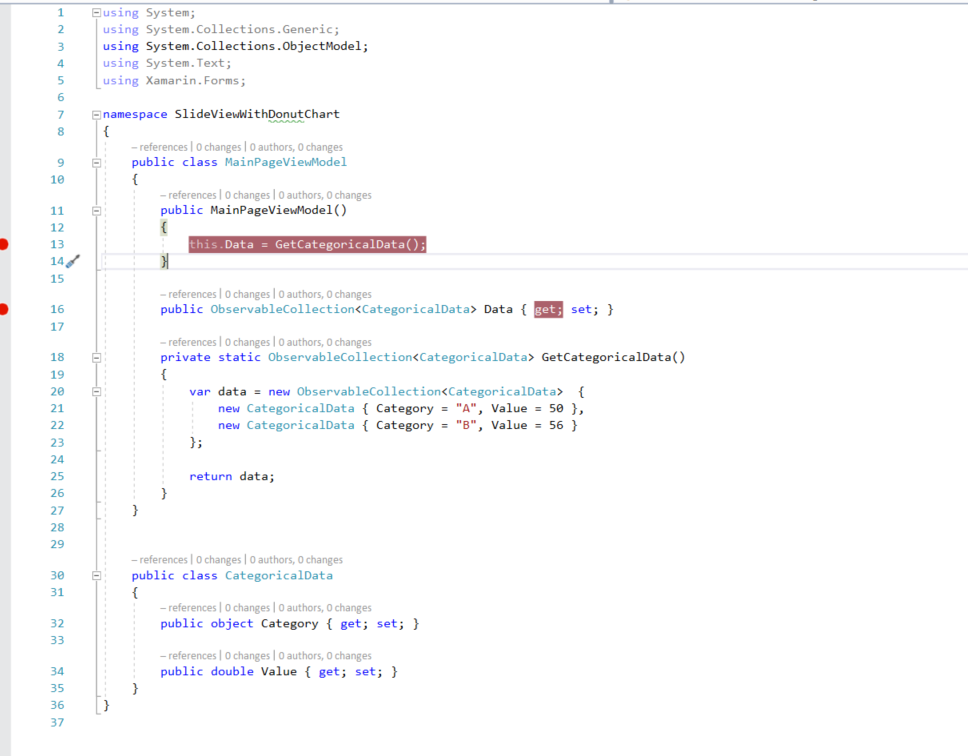

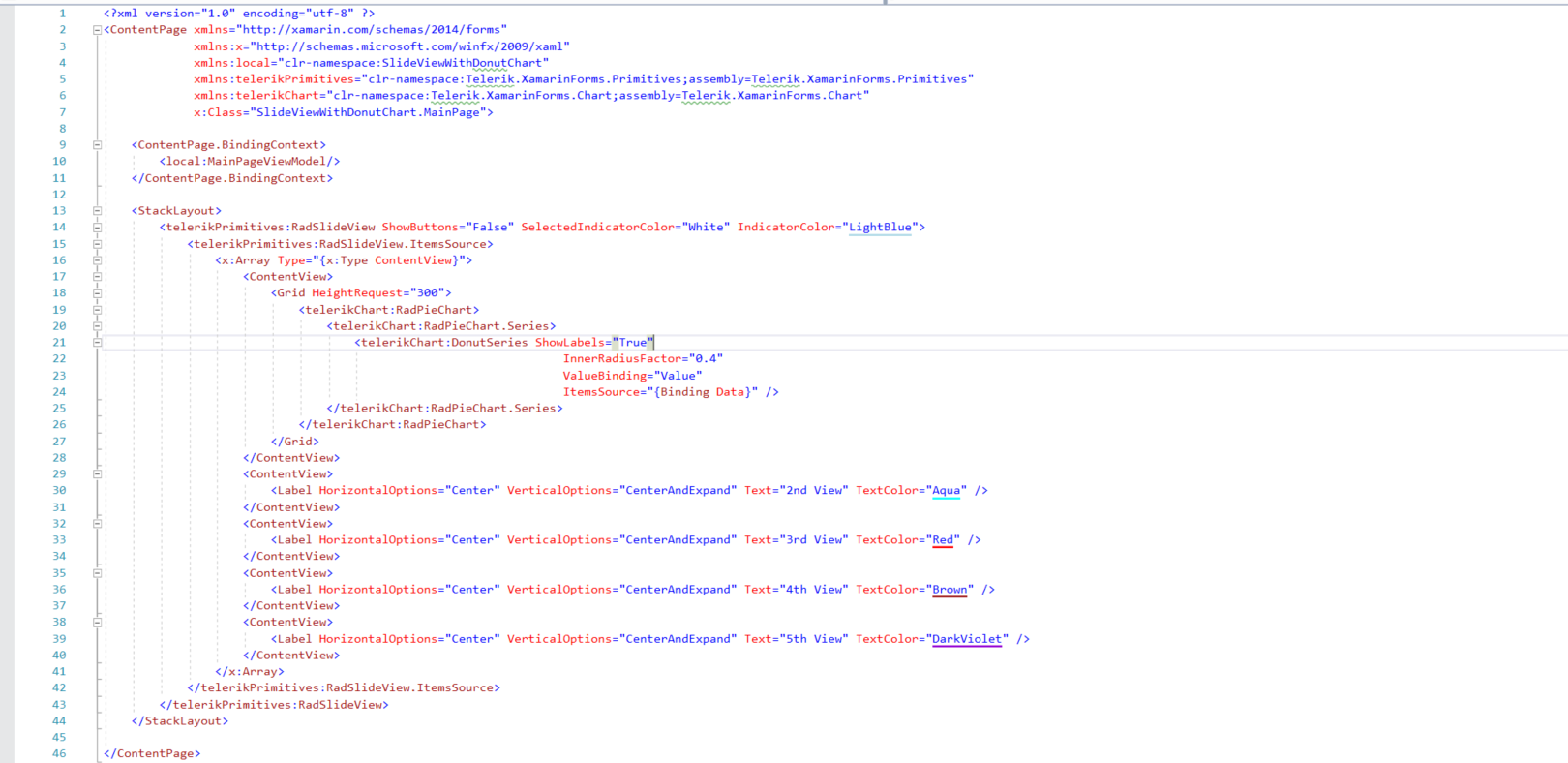

i attached the Xaml code and ViewModel Code
3 Answers, 1 is accepted
0
Accepted
Hello Hady,
This is happening because the PieChart has a data bound ItemsSource. It's important to understand that when you use the RadSlideView with ContentViews as the ItemsSource, the BindingContext is that ContentVie. The ContentView's content cannot inherit BindingContext from the page.
To be specific in your case, the BindingContext of the RadPieChart is not MainPageViewModel. Thus, the Data property is not visible to the chart and no items get rendered.
Data Binding Support
There is currently no way to pass the BindingContext down into the ContentView. However there is an approach you can use to facilitate this. Switch to using the ItemTemplate and provide a collection of objects (not Views) to the RadSlideView ItemsSource, see this RadSlideView documentation for an example.
To add to that example, if you want to provide an ItemsSource to the pie chart, then add a Data property to the Item class so that it's available to the DataTemplate:
Then you can use that BindingContext in the DataTemplate to set the ItemsSource of the series:
I've attached a full example of this approach, here are the slides at runtime:
Note:
If you want different items on different slides, then you can use an ItemTemplateSelector to change the DataTemplate, see the ItemTemplateSelector documentation for a tutorial example.
Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik
This is happening because the PieChart has a data bound ItemsSource. It's important to understand that when you use the RadSlideView with ContentViews as the ItemsSource, the BindingContext is that ContentVie. The ContentView's content cannot inherit BindingContext from the page.
To be specific in your case, the BindingContext of the RadPieChart is not MainPageViewModel. Thus, the Data property is not visible to the chart and no items get rendered.
Data Binding Support
There is currently no way to pass the BindingContext down into the ContentView. However there is an approach you can use to facilitate this. Switch to using the ItemTemplate and provide a collection of objects (not Views) to the RadSlideView ItemsSource, see this RadSlideView documentation for an example.
To add to that example, if you want to provide an ItemsSource to the pie chart, then add a Data property to the Item class so that it's available to the DataTemplate:
public
class
MyItem
{
public
string
Content {
get
;
set
; }
public
ObservableCollection<CategoricalData> Data {
get
;
set
; }
}
Then you can use that BindingContext in the DataTemplate to set the ItemsSource of the series:
<
primitives:RadSlideView
x:Name
=
"slideView"
ItemsSource
=
"{Binding MyItems}"
>
<
primitives:RadSlideView.ItemTemplate
>
<
DataTemplate
>
<
Grid
Padding
=
"10"
>
<
Grid.RowDefinitions
>
<
RowDefinition
Height
=
"Auto"
/>
<
RowDefinition
Height
=
"*"
/>
</
Grid.RowDefinitions
>
<
Label
Text
=
"{Binding Content}"
TextColor
=
"#007ACC"
HorizontalTextAlignment
=
"Center"
/>
<
chart:RadPieChart
x:Name
=
"pieChart"
Grid.Row
=
"1"
>
<
chart:RadPieChart.Series
>
<
chart:DonutSeries
ItemsSource
=
"{Binding Data}"
ShowLabels
=
"False"
ValueBinding
=
"Value"
/>
</
chart:RadPieChart.Series
>
</
chart:RadPieChart
>
</
Grid
>
</
DataTemplate
>
</
primitives:RadSlideView.ItemTemplate
>
</
primitives:RadSlideView
>

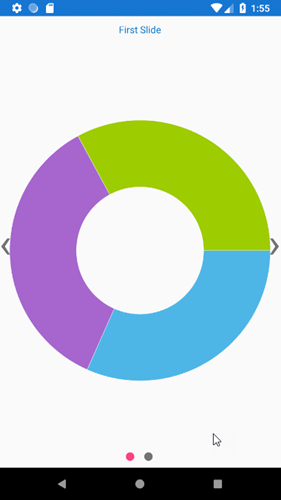

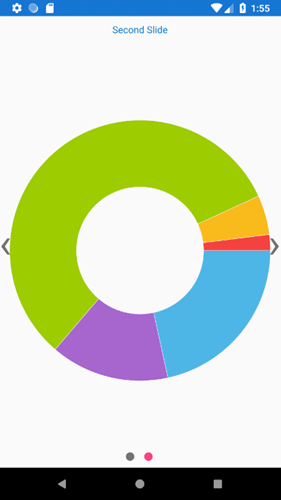

I've attached a full example of this approach, here are the slides at runtime:
Note:
If you want different items on different slides, then you can use an ItemTemplateSelector to change the DataTemplate, see the ItemTemplateSelector documentation for a tutorial example.
Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik
Do you want to have your say when we set our development plans?
Do you want to know when a feature you care about is added or when a bug fixed?
Explore the
Telerik Feedback Portal
and vote to affect the priority of the items
0
Hady
Top achievements
Rank 2
answered on 14 Nov 2018, 11:51 AM
Thank you so much for your help. It works fine with me now. But i have another concern, i have 5 Donut charts each one has different chart palette colors. can i do it using template selector?.
I tried to bind the color to FillColor property and i found that is not a Bindable property
I tried to bind the color to FillColor property and i found that is not a Bindable property
0
Hi Hady,
Correct, FillColor is not a bindable property. Instead, you can set a custom palette for each chart. See the Custom Palette documentation for more information.
It's up to you on how you want to set the palette; dynamic (using a property on the slide's data model) or declarative using TemplateSelector and different DataTemplates.
Here's an example of setting it declaratively:
If you have any trouble with this, please open a support ticket here so that you can get assistance directly from the chart development team.
Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik
Correct, FillColor is not a bindable property. Instead, you can set a custom palette for each chart. See the Custom Palette documentation for more information.
It's up to you on how you want to set the palette; dynamic (using a property on the slide's data model) or declarative using TemplateSelector and different DataTemplates.
Here's an example of setting it declaratively:
<
telerikChart:YourChartTypeGoesHere.Palette
>
<
telerikChart:ChartPalette
>
<
telerikChart:ChartPalette.Entries
>
<
telerikChart:PaletteEntry
FillColor
=
"Red"
StrokeColor
=
"Blue"
/>
<
telerikChart:PaletteEntry
FillColor
=
"Green"
StrokeColor
=
"Black"
/>
<
telerikChart:PaletteEntry
FillColor
=
"Blue"
StrokeColor
=
"Yellow"
/>
</
telerikChart:ChartPalette.Entries
>
</
telerikChart:ChartPalette
>
</
telerikChart:YourChartTypeGoesHere.Palette
>
If you have any trouble with this, please open a support ticket here so that you can get assistance directly from the chart development team.
Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik
