RadGrid / group / hierarchical relation.

[Vincent]

Hi !

excuse my speed message, it's end of job day.

i'm using designer to find the good solution before make it by codehind.

i've got a relation from 2 class (P(parent) C(child) by idP)

i want group parent by "programme" , hide group possibilities and panel.

Result wanted :

PROG 1

> P1-AA

>> a

>>aa

>> aaa

>P1-BB ....

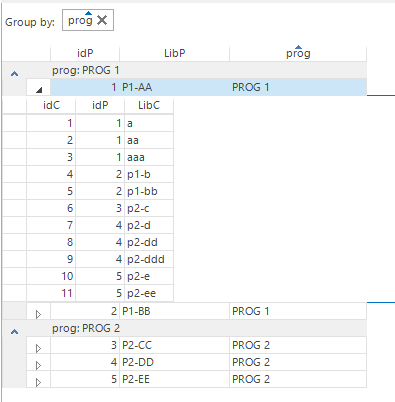

but i've got a bad result see attachment.



i've got 2 class for sample source:

 List<PClass> P = new List<PClass> { new PClass() {programme="PROG 1" , idP = 1, LibP = "P1-AA" },
                                                new PClass() {programme="PROG 1", idP = 2, LibP = "P1-BB" },
                                                new PClass() {programme="PROG 2", idP = 3, LibP = "P2-CC" },
                                                new PClass() {programme="PROG 2", idP = 4, LibP = "P2-DD" },
                                                new PClass() {programme="PROG 2", idP = 5, LibP = "P2-EE" }
                                              };



            List<Cclass> C = new List<Cclass> { new Cclass() { idC = 1, idP = 1, LibC = "a" },
                                                new Cclass() { idC = 2, idP = 1, LibC = "aa" },
                                                new Cclass() { idC = 3, idP = 1, LibC = "aaa" },
                                                new Cclass() { idC = 4, idP = 2, LibC = "p1-b" },
                                                new Cclass() { idC = 5, idP = 2, LibC = "p1-bb" },
                                                new Cclass() { idC = 6, idP = 3, LibC = "p2-c" },
                                                new Cclass() { idC = 7, idP = 4, LibC = "p2-d" },
                                                new Cclass() { idC = 8, idP = 4, LibC = "p2-dd" },
                                                new Cclass() { idC = 9, idP = 4, LibC = "p2-ddd" },
                                                new Cclass() { idC = 10, idP = 5, LibC = "p2-e" },
                                                new Cclass() { idC = 11, idP = 5, LibC = "p2-ee" }
                                                };

rg.DataSource = P;
gridViewTemplate1.DataSource = C;

Thanks for your help.

[Nadya | Tech Support Engineer]

Hello, Vincent,

If I understand you correctly you would like to have a hierarchy grid for two related data objects (P(parent) and C(child) related by a common idP property). Then, you want to group the grid by 'programme' in order to be able to see the results only applicable for the separate programme (Prog 1 and Prog 2).

In order to create a hierarchical view for two related data objects, you need to do is to set up a parent GridViewTemplate and a child GridViewTemplate. Then add the child GridViewTemplate in the parent GridViewTemplate.Templates collection. Then it is necessary to create a GridViewRelation specifying the parent/child template and add this relation in the RadGridView.Relations collection. Please refer to the following help article which is quite useful on this topic: https://docs.telerik.com/devtools/winforms/controls/gridview/hierarchical-grid/binding-to-hierarchical-data-programmatically

I am not familiar what is the exact set-up that you have on your end for the hierarchy grid but considering the picture, it seems there is something wrong. For your reference, I have prepared a sample project that illustrates the steps you should follow to achieve the desired result. Please refer to the following code snippet:

 public partial class RadForm1 : Telerik.WinControls.UI.RadForm
 {
     public RadForm1()
     {
         InitializeComponent();

         List<PClass> P = new List<PClass> { new PClass() {programme="PROG 1" , idP = 1, LibP = "P1-AA" },
                                             new PClass() {programme="PROG 1", idP = 2, LibP = "P1-BB" },
                                             new PClass() {programme="PROG 2", idP = 3, LibP = "P2-CC" },
                                             new PClass() {programme="PROG 2", idP = 4, LibP = "P2-DD" },
                                             new PClass() {programme="PROG 2", idP = 5, LibP = "P2-EE" }
                                           };

         List<Cclass> C = new List<Cclass> { new Cclass() { idC = 1, idP = 1, LibC = "a" },
                                             new Cclass() { idC = 2, idP = 1, LibC = "aa" },
                                             new Cclass() { idC = 3, idP = 1, LibC = "aaa" },
                                             new Cclass() { idC = 4, idP = 2, LibC = "p1-b" },
                                             new Cclass() { idC = 5, idP = 2, LibC = "p1-bb" },
                                             new Cclass() { idC = 6, idP = 3, LibC = "p2-c" },
                                             new Cclass() { idC = 7, idP = 4, LibC = "p2-d" },
                                             new Cclass() { idC = 8, idP = 4, LibC = "p2-dd" },
                                             new Cclass() { idC = 9, idP = 4, LibC = "p2-ddd" },
                                             new Cclass() { idC = 10, idP = 5, LibC = "p2-e" },
                                             new Cclass() { idC = 11, idP = 5, LibC = "p2-ee" }
                                             };

         this.radGridView1.DataSource = P;

         GridViewTemplate childTemplate = new GridViewTemplate();
         childTemplate.DataSource = C;
         radGridView1.Templates.Add(childTemplate);

         GridViewRelation relation = new GridViewRelation(radGridView1.MasterTemplate);
         relation.ChildTemplate = childTemplate;
         relation.RelationName = "MasterParent";
         relation.ParentColumnNames.Add("idP");
         relation.ChildColumnNames.Add("idP");
         radGridView1.Relations.Add(relation);

     }

 }
 public class PClass
 {
     public string programme { get; internal set; }
     public int idP { get; internal set; }
     public string LibP { get; internal set; }
 }

 public class Cclass
 {
     public int idC { get; internal set; }
     public int idP { get; internal set; }
     public string LibC { get; internal set; }
 }

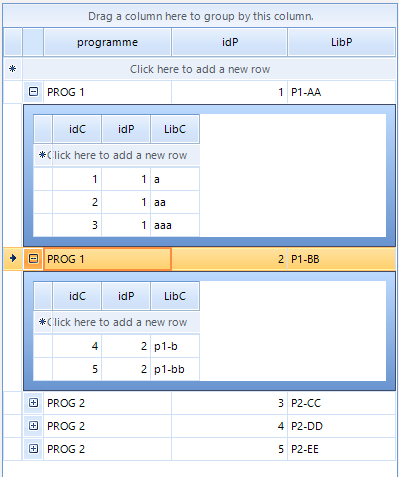

The hierarchy grid looks as the following picture:

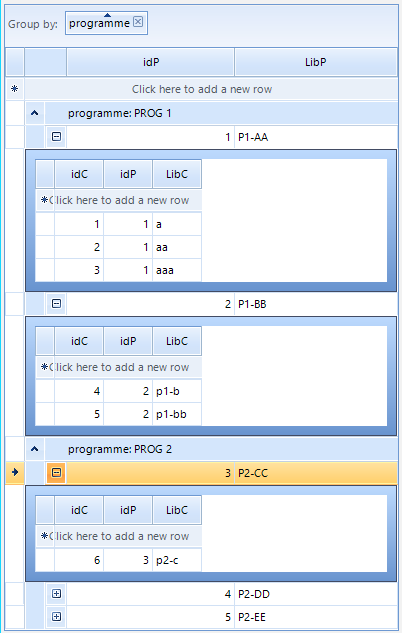

The following picture shows the results after the grid is grouped by 'programme' column:

I hope this helps. Should you have other questions do not hesitate to contact me.

Regards,
Nadya
