RadDiagram text and PDF

[Valentin]

Hello Telerik,



On my project, I have a RadDiagram with some shapes, and inside, text is defined.

I need to export this RadDiagram to a PDF File > I create a Bitmap Image from the RadDiagram, and insert this image in the PDF file.

However, texts in the PDF should be selectables. So, before the export, I hide all of texts, and I write them directly inside the PDF after it generation.



From a Textblock, I save primordial informations, and hide the text :

Dim ptb As New ParsedTextBlock(tb.Name, tb.Text, tb.ActualWidth, tb.ActualHeight, rotation, CType(tb.HorizontalAlignment, Windows.Forms.HorizontalAlignment),
                               tb.FontSize, tb.FontStyle, tb.FontFamily, tb.Foreground, tb.FontStretch, tb.FontWeight, tb.Background,
                               tb.TransformToAncestor(diag).Transform(New Windows.Point(0, 0)))

ParsedTextBlock is a custom class to store some properties.



After, I have some methods to export Textblock :

Public Sub ExportSummaryDiagTextBlocks(diag As RadDiagram, vector As Windows.Vector)
    Dim diagItems As List(Of RadDiagramItem) = diag.Items.Select(Function(i) diag.ContainerGenerator.ContainerFromItem(i)).OrderBy(Function(c) c.ZIndex).ToList()
    Dim diagShapes As List(Of RadDiagramShape) = diagItems.OfType(Of RadDiagramShape).ToList()
    Dim vectorFromPdfOrigin As New Windows.Vector(40, 70)  '40,70 is some fune tuning and should be modified if pageSize / layout is modified

    Dim w As Single = ReportPageSize.GetWidth
    Dim wRatioDiag As Single = WIDTH_RATIO_SUMMARY_FOR_DIAG_IMG
    Dim legacyRectRatio As Double = Rect_Summary.Width / Rect_Summary.Height
    Dim rectDiagSummary As New Geom.Rectangle(CSng(vectorFromPdfOrigin.X), CSng(vectorFromPdfOrigin.Y), CSng(w * wRatioDiag), CSng(w * wRatioDiag / legacyRectRatio))
    Dim windowsRectDiagSummary As New Windows.Rect(0, 0, CSng(w * wRatioDiag), CSng(w * wRatioDiag / legacyRectRatio))
    Dim wRatioNewRectVersLegRect As Double = rectDiagSummary.GetWidth / Rect_Summary.Width

    Me._ptb.ForEach(Sub(ptb) ExportTextBlock(ptb, diag, Rect_Summary, rectDiagSummary, vector, New Windows.Vector(40, 70)))
End Sub

Me._ptb is a list of ParsedTextBlock.



Private Sub ExportTextBlock(ptb As ParsedTextBlock, diag As RadDiagram, diagRect As Windows.Rect, pdfRect As Geom.Rectangle, transformVector As Windows.Vector, vectorFromPdfOrigin As Windows.Vector)
    Dim p As Windows.Point = CalculateCoordForExport(diag, ptb, diagRect, pdfRect, transformVector, vectorFromPdfOrigin)
    Dim font As PdfFont = PdfFontFactory.CreateRegisteredFont(ptb.FontFamily.ToString(), PdfEncodings.IDENTITY_H, True,
                                                              FontHelper.ConvertWeightToPdfStyleInteger(ptb.FontWeight, (ptb.FontStyle = Windows.FontStyles.Italic)))
    Dim para As Paragraph = New Paragraph(ptb.Text).SetFont(font)
    Dim wRatioNewRectVersLegRect As Double = pdfRect.GetWidth / diagRect.Width
    Dim fontSize As Single = CSng(Math.Round(ptb.FontSize * wRatioNewRectVersLegRect, 1))
    If fontSize < 3 Then fontSize = 3

    Dim w As Double = ptb.Width * wRatioNewRectVersLegRect
    para.SetPadding(0)
    para.SetMargin(0)
    para.SetFixedPosition(Convert.ToSingle(p.X), Convert.ToSingle(p.Y), CSng(w))
    para.SetFontSize(fontSize)
    'para.SetFontSize(CSng(ptb.FontSize))
    para.SetHorizontalAlignment(iText.Layout.Properties.HorizontalAlignment.CENTER)
    para.SetVerticalAlignment(VerticalAlignment.MIDDLE)
    para.SetBackgroundColor(ColorHelper.ConvertBrushToDeviceRgb(ptb.Background))

    Dim rot As Double = ptb.Rotation ' GetRotation(tb)
    If rot <> 0 Then
        'Dim rot_radian As Double = ((-rot + 360) Mod 360) * Math.PI / 180.0 ' I multiply because WPF is counterclockwise but PDF is clockwise
        Dim rot_radian As Double = -(rot * (Math.PI / 180))
        para.SetRotationAngle(rot_radian)
    End If

    _doc.Add(para)
End Sub



And :

Private Function CalculateCoordForExport(diag As RadDiagram, tb As ParsedTextBlock, diagRect As Windows.Rect, pdfRect As Geom.Rectangle, transformVector As Windows.Vector,
                                         vectorFromPdfOrigin As Windows.Vector) As Windows.Point
    Dim oldPoint As Windows.Point = tb.Coordinates ' tb.TransformToAncestor(diag).Transform(New Windows.Point(0, 0))
    oldPoint = New Windows.Point(oldPoint.X - transformVector.X, oldPoint.Y - transformVector.Y)

    '2 appliquer le crop
    Dim pointAfterCrop As Windows.Point = CoordinateHelper.ApplyCrop(oldPoint, New Windows.Point(Me.Rect_Summary.X, Me.Rect_Summary.Y))

    '3 appliquer le resizing
    Dim pointAfterResising As Windows.Point = CoordinateHelper.CalculatePointAfterResizing(pointAfterCrop, diagRect, pdfRect)

    '4 appliquer le Y reverse. car l'origine du raddiagram est en haut à gauche tandis que pour iText, c'est en bas à gauche
    Dim pointAfterReversingY As Windows.Point = New Windows.Point(pointAfterResising.X, pdfRect.GetHeight - pointAfterResising.Y)

    '5 appliquer decalage nouvel origine
    Dim pointAfterNewOrigin As Windows.Point = Windows.Vector.Add(vectorFromPdfOrigin, pointAfterReversingY)

    '6 soustraire à Y la Height de la shape car l'origine du raddiagram est en haut à gauche tandis que pour iText, c'est en bas à gauche
    Dim heightRatio As Double = pdfRect.GetHeight / diagRect.Height
    Dim pointAfterMinusHeight As New Windows.Point(pointAfterNewOrigin.X, pointAfterNewOrigin.Y - (tb.Height * heightRatio))

    Return pointAfterMinusHeight

End Function



With these methods, for a text not rotated, it's OK. But the problem is when the text is rotated.

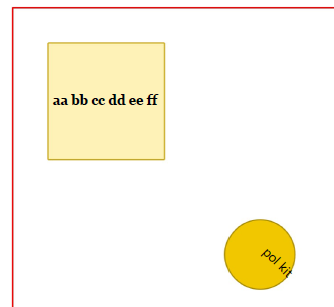

You can see the Origin screen, this one is the RadDiagram before exportation, and the Result screen, this one is the result inside the PDF.

And depending to the rotation angle, the result for rotated text is so bad.



My excpectation is that the position from the TextBlock is bad (calculation is false ?)...



I hope you can help me to write at the good place a rotated TextBlock.



Thank you.
