RadDataGrid throwing odd XAML binding errors

0 Answers 158 Views
DataGrid ListView
Stephen
Top achievements
Rank 1
Iron
Iron
Stephen asked on 18 Mar 2023, 04:08 PM | edited on 18 Mar 2023, 04:15 PM

I have just implemented a MAUI ContentPage with an completely empty RadDataGrid definition.  In my "using" section of the xaml page, I have this entry:

xmlns:dataGrid="http://schemas.telerik.com/2022/xaml/maui"

In the root grid, I have this entry:

<dataGrid:RadDataGrid
	Grid.Row="1">
</dataGrid:RadDataGrid>

When the application is run, I get the following XAML binding errors:

NotificationsViewModel	ActualWidth	RadBorder.MinimumWidthRequest	Double	'ActualWidth' property not found on 'MobyClient.ViewModels.NotificationsViewModel', target property: 'Telerik.Maui.Controls.RadBorder.MinimumWidthRequest'
NotificationsViewModel	HeaderText	Label.Text				String	'HeaderText' property not found on 'MobyClient.ViewModels.NotificationsViewModel', target property: 'Microsoft.Maui.Controls.Label.Text'

A key point is that when I added 'ActualWidth' and 'HeaderText' observable properties, the errors go away. In fact, when I run the Telerik MAUI code examples, I see the same errors in the examples "First Look" data grid example:

Telerik.Maui.Controls.Compatibility.DataControlsRenderer.UWP.ExtendedListViewItem	HandleIconPath	Microsoft.UI.Xaml.Controls.BitmapIcon.UriSource, Name='PART_ReorderHandle'	Uri	BindingExpression path error: 'HandleIconPath' property not found on 'Telerik.Maui.Controls.Compatibility.DataControlsRenderer.UWP.ExtendedListViewItem'
FirstLookViewModel	ActualWidth	RadBorder.MinimumWidthRequest	Double	'ActualWidth' property not found on 'QSF.Examples.DataGridControl.FirstLookExample.FirstLookViewModel', target property: 'Telerik.Maui.Controls.RadBorder.MinimumWidthRequest'
FirstLookViewModel	HeaderText	Label.Text				String	'HeaderText' property not found on 'QSF.Examples.DataGridControl.FirstLookExample.FirstLookViewModel', target property: 'Microsoft.Maui.Controls.Label.Text'
Obviously, I either missing something in the Telerik MAUI control setup or there is a bug. Is this a setup issue or a bug? I am also seeing similar binding errors in the RadListView. As a general rule, I do NOT like any binding errors, so this bugs me. Any ideas?
Maria
Telerik team
commented on 20 Mar 2023, 02:43 PM

Hеllo Stephen,

Thank you for the provided code snippets and additional information.

About the error for the RadListView control, there is logged item in our public feedback portal:ListView: BindingExpression path error in the output - HandleIconPath not found. Press the follow button, in order to receive a notification by email when there are status updates.

For the error with the RadDataGrid control, I tested it on my side with the provided code snippets, but I couldn't reproduce the unwanted behavior. I tested my sample project with Visual Studio 2022, .NET 7 version, and Telerik UI for .NET MAUI version 5.1.0 (latest). Could you please provide more information about which product version for Telerik UI .NET Maui you are using, and which .NET version? If you can send us a sample repro project, that could be of great help. Maybe I am missing something in the setup.

Regards,
Maria
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

Sowjanya
Top achievements
Rank 1
commented on 20 Mar 2023, 05:28 PM | edited

I am facing similar issue.



I am using vs2022 .Net 6 Telerik UI for .Ntt MAUI 5.1.0

Maria
Telerik team
commented on 21 Mar 2023, 12:34 PM

Hello,

Thank you for the additional information.

I made a sample project with .NET 6 version and Telerik UI for Maui 5.1.0 version and I am not received such an error. I attached my project. Please modify it and send it back to me. Maybe I am missing something in the setup.

Looking forward to your reply.

Stephen
Top achievements
Rank 1
Iron
Iron
commented on 28 Mar 2023, 04:46 PM

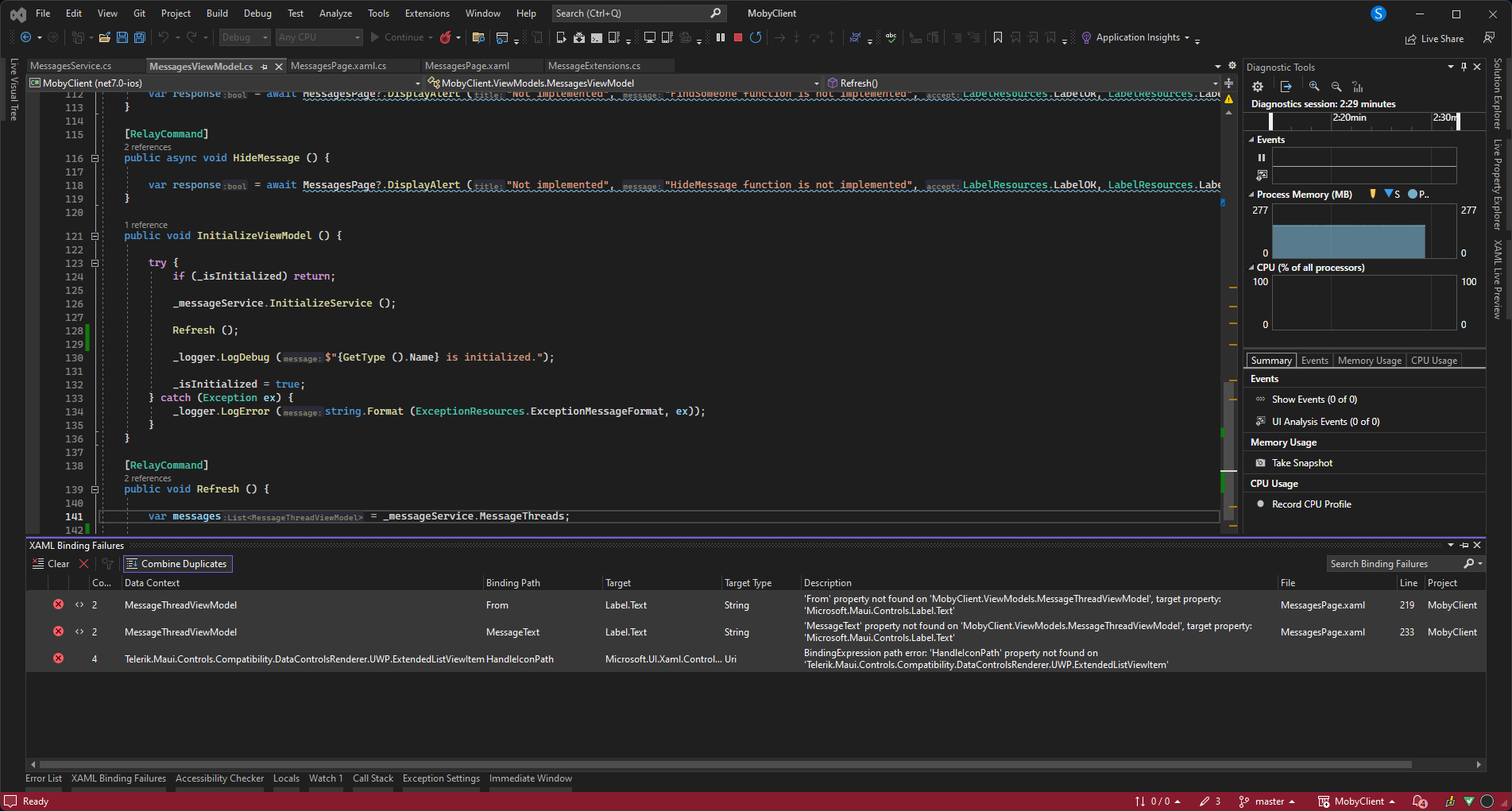

There is nothing special you need to do other than add a DataGrid that has auto columns turned off.  You get this:



oOf special interest is the data context and target:

Data Context: Telerik.Maui.Controls.Compatibility.DataControlsRenderer.UWP.ExtendedListViewItem

Property: HandleIconPath

Target: Microsoft.UI.Xaml.Controls.BitmapIcon.UriSource, Name='PART_ReorderHandle'

All of this is in your code and not mine so there is nothing other than using the control that propagates this error...



Thanks,

Steve

Didi
Telerik team
commented on 29 Mar 2023, 07:10 AM

Hi Steve,

The errors listed in the attached image are related to the ListView, not to the DataGrid. We have this logged here: https://feedback.telerik.com/maui/1600665-listview-bindingexpression-path-error-in-the-output-handleiconpath-not-found - follow the item to track its progress.

Note that those errors do not affect the development process of the application, the app builds and runs as expected. The errors are XAML binding errors, more details can be found here: https://learn.microsoft.com/en-us/visualstudio/xaml-tools/xaml-data-binding-diagnostics?view=vs-2022

I hope this explanation will be of help.

Stephen
Top achievements
Rank 1
Iron
Iron
commented on 01 Apr 2023, 12:33 AM

Greetings!

I stand corrected! You are correct in stating the issue is in the ListView. And, I also concur that it is not preventing me from doing any development.

Thanks for logging the issue as you have!

Cheers, Steve

Paul
Top achievements
Rank 1
commented on 14 Feb 2024, 10:34 PM | edited

Is there any resolution to these xaml binding errors?  I'm still seeing the errors:
ActualWidth -> Telerik.Maui.Controls.RadBorder.MinimumWidthRequest
and
HeaderText -> Microsoft.Maui.Controls.Label.Text

I don't even have a Telerik.Maui.Controls.RadBorder in any of my entire project's xaml

Telerik.UI.for.Maui (6.7.0), Visual Studio 17.9, .net SKD 8.0.200, .net 8.0.2, Windows


Didi
Telerik team
commented on 15 Feb 2024, 06:51 AM

Hi Paul,

The behavior you described is logged here: https://feedback.telerik.com/maui/1604592-sdk-browser-winui-xaml-binding-errors-in-datagrid-examples - The status is Unplanned, so I cannot commit a time-frame when this will be resolved.

In general, these errors are not real errors. These errors do not prevent the app working and running process.

No answers yet. Maybe you can help?
