radchartview. stacking bar charts aren't showing correct data. What am I doing wrong?

1 Answer 44 Views
ChartView
Czeshirecat
Top achievements
Rank 2
Iron
Iron
Czeshirecat asked on 23 Feb 2022, 08:31 AM

Hi. Winforms. telerik Version=2022.1.118.40.

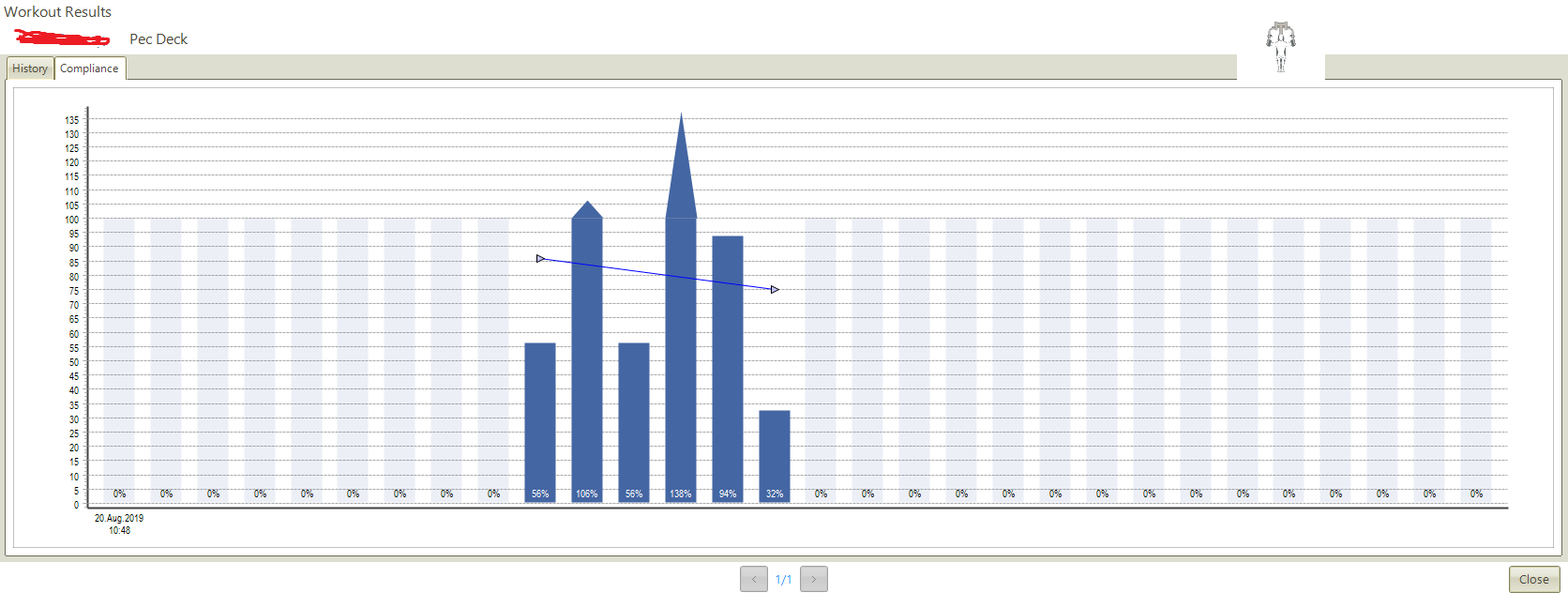

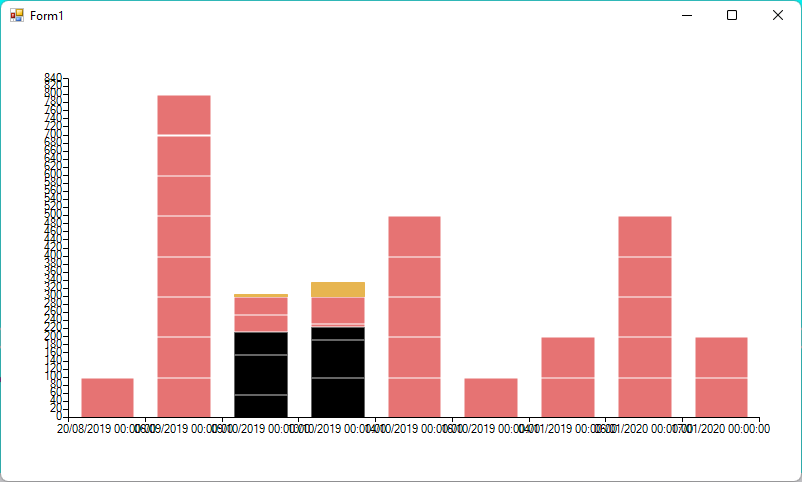

I'm trying to migrate an old TeeChart across to radchartview as part of moving 3rd party components to support 64 bit. Ive included the teechart and radchartview screen shots and a small app I extracted from my main solution. The data used to produce each chart is in the app although I stripped out the trend line. Mad colours used to highlight the zones. I've not worked on telerik version very much until I can see something that looks correct.

Chart is supposed to represent performance/compliance in exercising. Under + Normal should add up to 100%. Over represents over performance. I use "under" as the chart needs to highlight zero as a valid column.
I can't understand the mad chart I'm seeing.



Czeshirecat
Top achievements
Rank 2
Iron
Iron
commented on 23 Feb 2022, 09:15 AM

Please ignore all of this. Its something to do with category being the same datetime value for several readings. I've added a counter column for the category. (its amazing how trying to get help fixes the problems and makes the questioner look like an idiot :) )

1 Answer, 1 is accepted

Sort by
0
Dess | Tech Support Engineer, Principal
Telerik team
answered on 24 Feb 2022, 11:46 AM
Hello, Claire,

I am glad that you have found a suitable solution for your case. However, I would like to recommend several articles that would be useful for your scenario:

BarSeries could be customized bys the CombineMode property. A common property for all categorical series, which introduces a mechanism for combining data points that reside in different series but have the same category. The combine mode can be None, Cluster, Stack and Stack100.
https://docs.telerik.com/devtools/winforms/controls/chartview/series-types/bar

RadChartView supports empty values in the series:
https://docs.telerik.com/devtools/winforms/controls/chartview/null-values-support-

The LabelFitMode property of the axis determines how the axis labels will be laid out when they overlap so you can get better:
https://docs.telerik.com/devtools/winforms/controls/chartview/axes/axes

I hope this information helps. If you need any further assistance please don't hesitate to contact me.
