RadChartView legend formatting

19 posts, 0 answers
  1. Mathias
    Mathias avatar
    4 posts
    Member since:
    Apr 2013

    Posted 17 Apr 2015 Link to this post

    Hello,

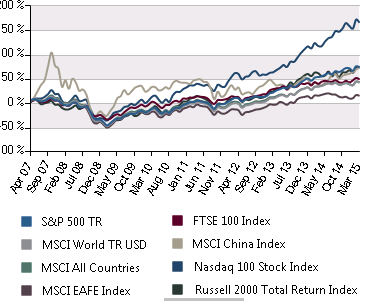

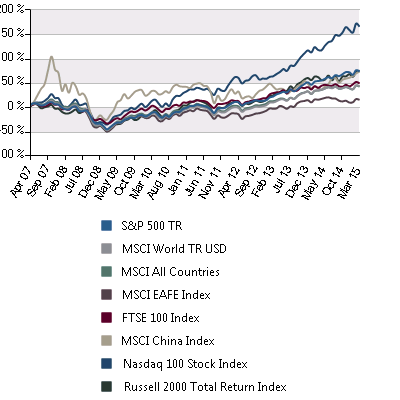

     I have 2 issues with the attached chart legend:

    1) I would like the legend items to be displayed on 2 adjacent columns (see chart legend expected.png). Is that possible?

    2) I don't know if you noticed but item legend texts are not perfectly left aligned. Do you have a fix for that?



    Best,

    Mathias

  2. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3899 posts

    Posted 22 Apr 2015 Link to this post

    Hello Mathias,

    Thank you for writing.

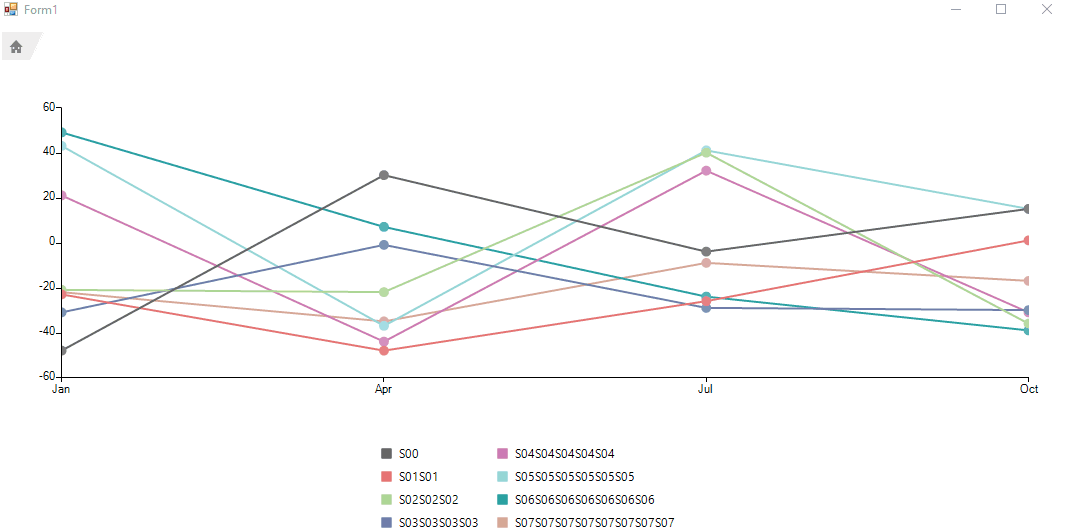

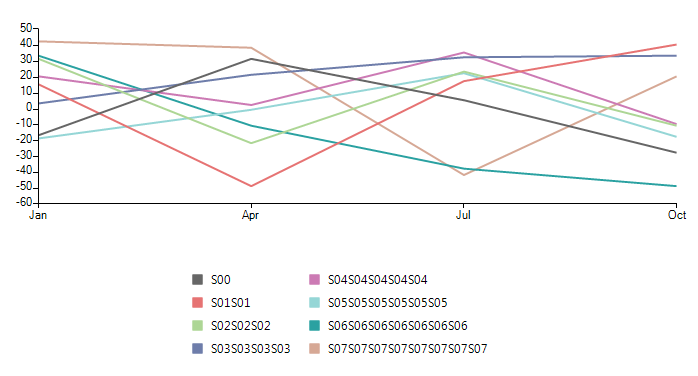

    The ChartLegendElement displays the legend items in a StackLayoutElement which can be vertical or horizontal. In order to display the legend items in two columns, you can use two additional vertical StackLayoutElement. Here is a sample code snippet, which result is illustrated on the attached screenshot:
    public Form1()
    {
        InitializeComponent();

        Random rand = new Random();
        StringBuilder sb = new StringBuilder();
        for (int i = 0; i < 8; i++)
        {
            LineSeries lineSeries = new LineSeries();
            sb = new StringBuilder();
            for (int j = 0; j < i + 1; j++)
            {
                sb.Append("S0" + i);
            }
            lineSeries.LegendTitle = sb.ToString();
            lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Jan"));
            lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Apr"));
            lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Jul"));
            lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Oct"));
            this.radChartView1.Series.Add(lineSeries);
        }

        this.radChartView1.ShowLegend = true;
        this.radChartView1.ChartElement.LegendPosition = LegendPosition.Bottom;
    }

    class MyChart : RadChartView
    {
        protected override RadChartElement CreateChartElement()
        {
            return new MyChartElement();
        }
    }

    class MyChartElement : RadChartElement
    {
        protected override ChartLegendElement CreateChartLegendElement()
        {
            return new MyLegendElement(this);
        }

        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(RadChartElement);
            }
        }
    }

    class MyLegendElement : ChartLegendElement
    {
        StackLayoutElement leftPanel = new StackLayoutElement();
        StackLayoutElement rightPanel = new StackLayoutElement();

        public MyLegendElement(RadChartElement chartElement) : base(chartElement)
        {
        }

        protected override void CreateChildElements()
        {
            base.CreateChildElements();
            this.StackElement.Orientation = System.Windows.Forms.Orientation.Horizontal;
        }

        protected override void OnLegendInfosCollectionChanged(Telerik.WinControls.Data.NotifyCollectionChangedEventArgs e, bool providerChange)
        {
            if (!this.StackElement.Children.Contains(leftPanel))
            {
                this.StackElement.Children.Add(leftPanel);
                leftPanel.Orientation = System.Windows.Forms.Orientation.Vertical;
            }
            if (!this.StackElement.Children.Contains(rightPanel))
            {
                this.StackElement.Children.Add(rightPanel);
                rightPanel.Orientation = System.Windows.Forms.Orientation.Vertical;
            }

            leftPanel.Children.Clear();
            rightPanel.Children.Clear();
            for (int i = 0; i < this.Provider.LegendInfos.Count; i++)
            {
                LegendItemElement element = this.OnVisualItemCreating(this.Provider.LegendInfos[i]);

                if (i < this.Provider.LegendInfos.Count / 2)
                {
                    leftPanel.Children.Add(element);
                }
                else
                {
                    rightPanel.Children.Add(element);
                }
            }
        }

        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(ChartLegendElement);
            }
        }
    }

    As to the question about text alignment of the items in the LegendElement, I was unable to reproduce it on my end with the specified version 2015.1 331. I have attached my sample project. Could you please have a look into it and specify how it differs from your real setup? Thus, we would be able to investigate the precise case and assist you further. Thank you in advance.

    I am looking forward to your reply.

    Regards,
    Dess
    Telerik


    See What's Next in App Development. Register for TelerikNEXT.


  3. Saulo
    Saulo avatar
    3 posts
    Member since:
    Jul 2017

    Posted 14 Sep 2017 Link to this post

    BUEN DÍA ESTOY REALIZANDO UNAS GRAFICAS, TENGO UNA DUDA, CON EL TIPO DE SERIE TYPE Line LA LEGENDA SE VISUALIZA, PERO CON EL TYPE  ScatterLine LA S LEYENDAS NO SE VISUALIZAN, E VISTO EL docs.telerik  Y LOS EJEMPLOS MOSTRADOS NO TIENEN VISUALIZADOS LA LEYENDA, ¿HAY ALGUNA FORMA QUE SE VISUALICEN?

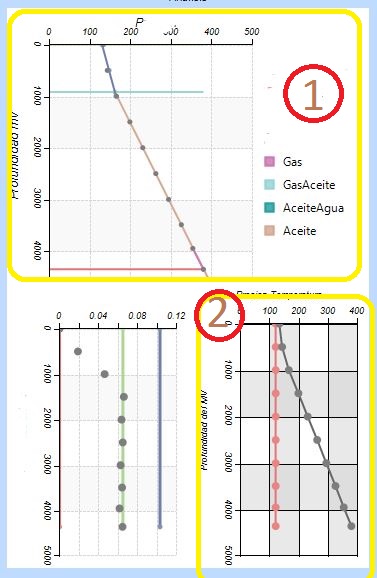

    ADJUNTO MI PANTALLA

  4. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3899 posts

    Posted 15 Sep 2017 Link to this post

    Hello Saulo,

    Thank you for writing back.

    I would like to note that the official language for communication in the Telerik forums is English. If you have any questions related to the Telerik UI for WinForms product, feel free to use the appropriate language and the community will gladly assist you.

    Thank you for your understanding.

     Regards,
    Dess
    Progress Telerik
    Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  5. Mansi
    Mansi avatar
    8 posts
    Member since:
    Aug 2018

    Posted 16 Aug 2018 Link to this post

    Hello,

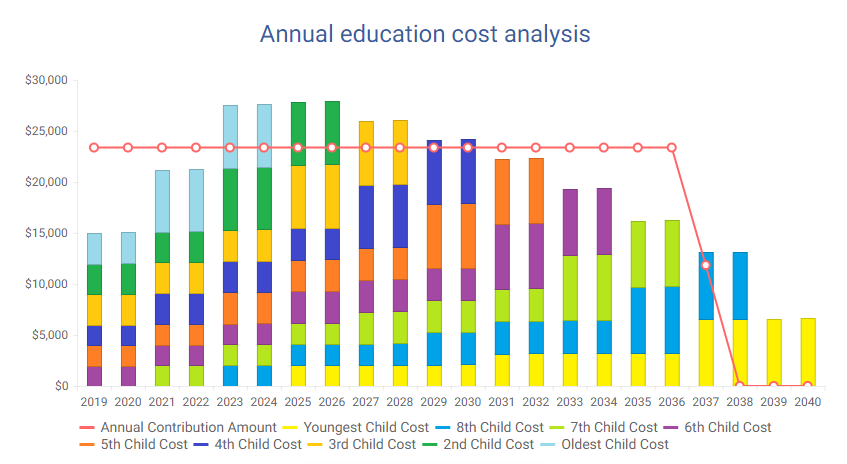

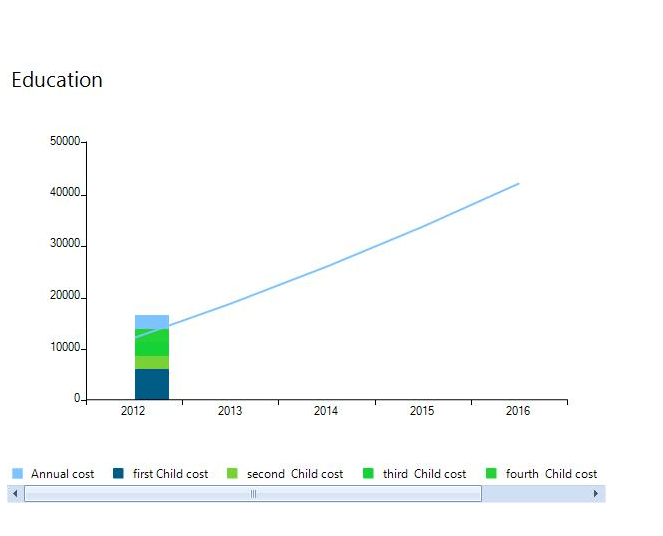

    I am creating stacked bar series using Telerik Win forms in my server side in Vb. I am not able to display legends at the bottom in multiple  lines. I am attaching both actual and expended chart.

  6. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3899 posts

    Posted 17 Aug 2018 Link to this post

    Hello, Mansi,

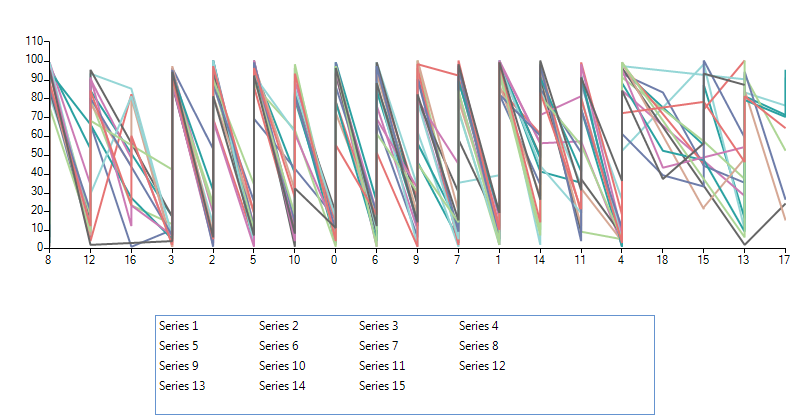

    Since Q1 2015 when there are many items in the chart legend a scroll bar will appear so users can scroll through the items. The legend items are not wrapped indeed

    I have prepared a sample code snippet which achieves a similar custom scenario. The obtained result is illustrated in the below screenshot:

    Sub New()

        InitializeComponent()

        Dim rand As New Random
        Dim list As New List(Of LineSeries)
        For index = 1 To 15
            Dim ls As New LineSeries
            ls.LegendTitle = "Series " & index
            list.Add(ls)
        Next

        For index = 1 To 100
            For Each s As LineSeries In list
                s.DataPoints.Add(New CategoricalDataPoint(index, rand.Next(0, rand.Next(5, 20))))
            Next
        Next
        Me.RadChartView1.Series.AddRange(list.ToArray())
        Me.RadChartView1.ShowLegend = True
        Me.RadChartView1.ChartElement.LegendPosition = LegendPosition.Bottom
    End Sub

    Friend Class MyChart
    Inherits RadChartView

        Protected Overrides Function CreateChartElement() As RadChartElement
            Return New MyChartElement()
        End Function
    End Class

    Friend Class MyChartElement
    Inherits RadChartElement

        Protected Overrides Function CreateChartLegendElement() As ChartLegendElement
            Return New MyLegendElement(Me)
        End Function
        Protected Overrides ReadOnly Property ThemeEffectiveType() As Type
            Get
                Return GetType(RadChartElement)
            End Get
        End Property
    End Class

    Friend Class MyLegendElement
    Inherits ChartLegendElement

        Private panel As RadListViewElement
        Public Sub New(chartElement As RadChartElement)
            MyBase.New(chartElement)

        End Sub

        Protected Overrides Sub OnLegendInfosCollectionChanged(e As Telerik.WinControls.Data.NotifyCollectionChangedEventArgs, providerChange As Boolean)
            MyBase.OnLegendInfosCollectionChanged(e, providerChange)
            If e.Action = Telerik.WinControls.Data.NotifyCollectionChangedAction.Add Then
                Dim li As LegendItem = TryCast(e.NewItems(0), LegendItem)
                panel.Items.Add(li.Title)
            End If

        End Sub

        Protected Overrides Sub CreateChildElements()
            MyBase.CreateChildElements()
            panel = New RadListViewElement()
            panel.StretchHorizontally = True
            panel.StretchVertically = False
            panel.ViewType = ListViewType.IconsView
            panel.ItemSize = New Drawing.Size(100, 20)
            panel.ShouldHandleMouseInput = True
            panel.NotifyParentOnMouseInput = False
            panel.MaxSize = New Drawing.Size(500, 100)
            Me.StackElement.Visibility = Telerik.WinControls.ElementVisibility.Collapsed
            Me.Children.Add(panel)
        End Sub
        Protected Overrides ReadOnly Property ThemeEffectiveType() As Type
            Get
                Return GetType(ChartLegendElement)
            End Get
        End Property
    End Class

    Note that this is just a sample approach and it may not handle all possible cases. Feel free to modify it in a way which suits your requirement best.



    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  7. Mansi
    Mansi avatar
    8 posts
    Member since:
    Aug 2018

    Posted 22 Aug 2018 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Hi Dess,

    Thank you for your reply. I am still getting the scroll in my chart.



    Regards,

    Manasa



  8. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3899 posts

    Posted 23 Aug 2018 Link to this post

    Hello, Mansi,

    It is normal to obtain a scrollbar if the RadListViewElement which hosts the legend items doesn't fit the available space below the chart. You can specify the MinSize property to a specific size that fits all items in the CreateChildElements method. However, if you shrink the chart and RadListViewElement respectively, the scrollbars won't be shown and the items will be clipped.

    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  9. Mansi
    Mansi avatar
    8 posts
    Member since:
    Aug 2018

    Posted 24 Aug 2018 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Hi Dess,

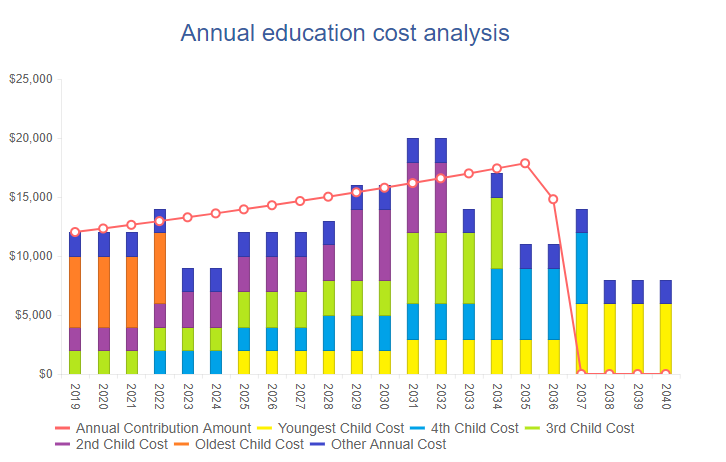

    I am creating chart in server side and exporting it as an image.  Below is my  code. I am using MyChart which inherits Telerik.WinControls.UI.RadChartView.

     Dim radChartView = New MyChart
            radChartView.ShowLegend = True
            radChartView.ShowTitle = True
            radChartView.Title = "Annual education cost analysis"
            radChartView.ChartElement.TitleElement.TextAlignment = ContentAlignment.TopCenter
            radChartView.ChartElement.LegendElement.TitleElement.Font = New Font(FontType, 15.0F, FontStyle.Regular)
            radChartView.ChartElement.LegendElement.TitlePosition = Telerik.WinControls.UI.TitlePosition.Top
            radChartView.ChartElement.LegendElement.TitleElement.ForeColor = Color.FromArgb(51, 51, 51)
            radChartView.ChartElement.LegendPosition = Telerik.WinControls.UI.LegendPosition.Float
            radChartView.ChartElement.LegendElement.StackElement.Orientation = System.Windows.Forms.Orientation.Horizontal
            radChartView.ChartElement.LegendOffset = New Point(100, radChartView.Size.Height + 10)
            radChartView.Area.View.Palette = CustomTelerikPalette
            radChartView.Size = New System.Drawing.Size(600, 400)
            Dim annualContributionLineSeries = New Telerik.WinControls.UI.LineSeries()
            annualContributionLineSeries.PointSize = New SizeF(10, 10)
            annualContributionLineSeries.LegendTitle = "Annual Contribution Amount"
            annualContributionLineSeries.BorderWidth = 2
            annualContributionLineSeries.DataSource = chartData.AnnualContributionAmount
            annualContributionLineSeries.ValueMember = "Balance"
            annualContributionLineSeries.CategoryMember = "FinanceYear"
            annualContributionLineSeries.BackColor = Color.Red
            radChartView.Series.Add(annualContributionLineSeries)
            Dim chartTitle = LegendTitle(calculatorOutput)
            Dim barSeriesList As New List(Of Telerik.WinControls.UI.BarSeries)
            For index = 0 To calculatorOutput.CostList.individualCost.Count - 1
                Dim barSeries = New Telerik.WinControls.UI.BarSeries
                barSeries.LegendTitle = chartTitle(index)
                barSeries.CombineMode = Telerik.Charting.ChartSeriesCombineMode.Stack
                barSeriesList.Add(barSeries)
            Next
            Dim startYear = chartData.AnnualContributionAmount(0).FinanceYear
            Dim eachChildren = 0
            For Each item In barSeriesList
                For i = 0 To calculatorOutput.CostList.individualCost(0).Count - 1
                    item.DataPoints.Add(New Telerik.Charting.CategoricalDataPoint(calculatorOutput.CostList.individualCost(eachChildren)(i), startYear + i))
                Next
                eachChildren += 1
            Next
            radChartView.Series.AddRange(barSeriesList.ToArray())
            Dim yAxis As Telerik.WinControls.UI.LinearAxis = TryCast(radChartView.Axes(1), Telerik.WinControls.UI.LinearAxis)
            yAxis.LabelFormat = "{0:c0}"

            Dim xAxis As Telerik.WinControls.UI.CategoricalAxis = TryCast(radChartView.Axes(0), Telerik.WinControls.UI.CategoricalAxis)
            xAxis.LabelFitMode = Telerik.Charting.AxisLabelFitMode.Rotate
            xAxis.LabelRotationAngle = 90
            Dim ms = New MemoryStream()
            radChartView.ExportToImage(ms, radChartView.Size, System.Drawing.Imaging.ImageFormat.Jpeg)
            ms.Seek(0, SeekOrigin.Begin)
            Return ms
        End Function

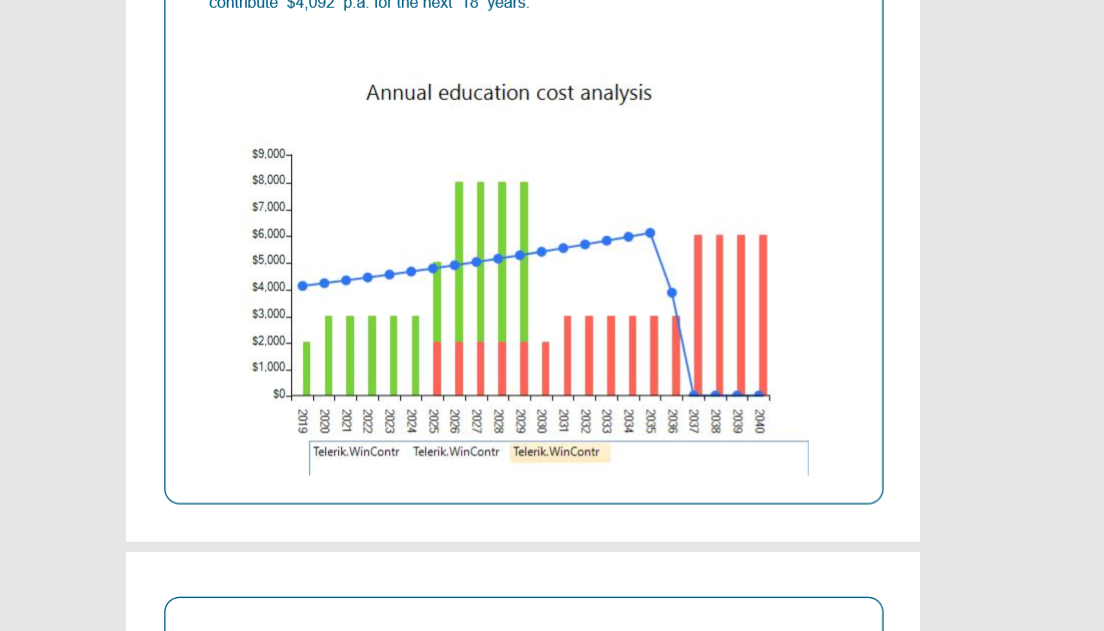

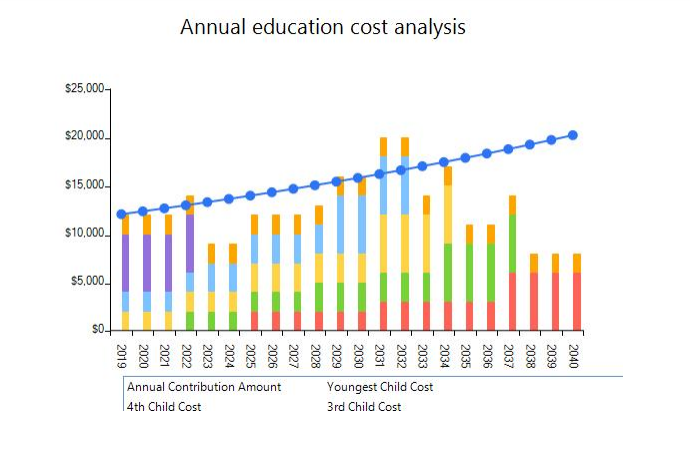

    I am attaching my output which is an image.

  10. Mansi
    Mansi avatar
    8 posts
    Member since:
    Aug 2018

    Posted 26 Aug 2018 in reply to Mansi Link to this post

    Hi Dess,

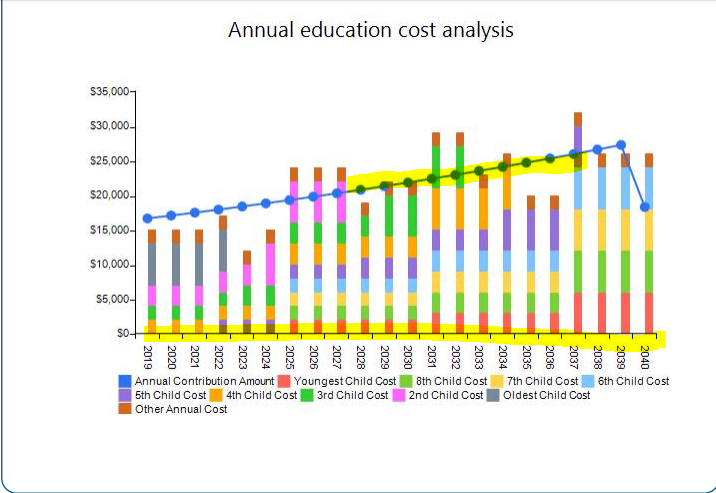

    Thank you for your help. I am able to display legends in 2 lines. But the marker is not visible in the legend of chart. I have uploaded both actual and expected legend markers.



    Regards,

    Manasa

  11. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3899 posts

    Posted 28 Aug 2018 Link to this post

    Hello, Mansi,

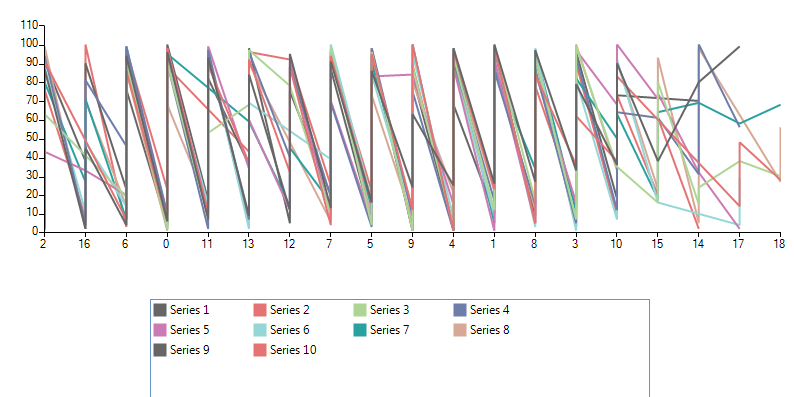

    You can show the check-boxes in the RadListViewElement which is used for the legend items and color the check-boxes n the color of the series. Here is demonstrates a sample code snippet which result is illustrated in the below screenshot:
    Friend Class MyLegendElement
    Inherits ChartLegendElement

        Private panel As RadListViewElement
        Public Sub New(chartElement As RadChartElement)
            MyBase.New(chartElement)

        End Sub

        Protected Overrides Sub OnLegendInfosCollectionChanged(e As Telerik.WinControls.Data.NotifyCollectionChangedEventArgs, providerChange As Boolean)
            MyBase.OnLegendInfosCollectionChanged(e, providerChange)
            If e.Action = Telerik.WinControls.Data.NotifyCollectionChangedAction.Add Then
                Dim li As LegendItem = TryCast(e.NewItems(0), LegendItem)
                panel.Items.Add(li.Title)
                panel.Items.Last().Tag = li.Element
            End If
            panel.SelectedIndex = -1
        End Sub

        Protected Overrides Sub CreateChildElements()
            MyBase.CreateChildElements()
            panel = New RadListViewElement()
            AddHandler panel.VisualItemFormatting, AddressOf ListView_VisualItemFormatting
            panel.ShowCheckBoxes = True
            panel.StretchHorizontally = True
            panel.StretchVertically = False
            panel.ViewType = ListViewType.IconsView
            panel.ItemSize = New Drawing.Size(100, 20)
            panel.ShouldHandleMouseInput = True
            panel.NotifyParentOnMouseInput = False
            panel.MaxSize = New Drawing.Size(500, 100)
            panel.MinSize = New Drawing.Size(420, 100)
            Me.StackElement.Visibility = Telerik.WinControls.ElementVisibility.Collapsed

            Me.Children.Add(panel)
        End Sub
        Protected Overrides ReadOnly Property ThemeEffectiveType() As Type
            Get
                Return GetType(ChartLegendElement)
            End Get
        End Property

        Private Sub ListView_VisualItemFormatting(sender As Object, e As ListViewVisualItemEventArgs)
            Dim checkBox As ListViewItemCheckbox = TryCast(e.VisualItem.ToggleElement, ListViewItemCheckbox)
            If checkBox IsNot Nothing Then

                e.VisualItem.ToggleElement.ShouldHandleMouseInput = False
                e.VisualItem.ToggleElement.NotifyParentOnMouseInput = False
                checkBox.CheckMarkPrimitive.Fill.BackColor = DirectCast(e.VisualItem.Data.Tag, LineSeries).BorderColor
                checkBox.CheckMarkPrimitive.Fill.GradientStyle = Telerik.WinControls.GradientStyles.Solid
                checkBox.CheckMarkPrimitive.Border.Visibility = Telerik.WinControls.ElementVisibility.Collapsed
            End If
        End Sub
    End Class




    Regards,
    Dess
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  12. Mansi
    Mansi avatar
    8 posts
    Member since:
    Aug 2018

    Posted 28 Aug 2018 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Hello Dess,

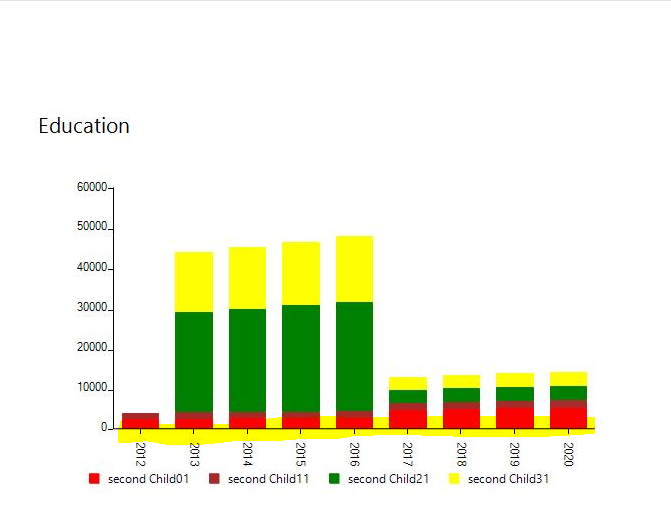

    Thank you very much for the solution, it worked. I have a last question, I observed when I am adding bar and line series in a chart, the line series point  is not in the middle of the bar. I am attaching the screenshots and have highlighted in yellow. I am also attaching stacked bar chart, size of bar is bigger and is in between the marker ticks. I have used horizontalAxis.PlotMode = Telerik.Charting.AxisPlotMode.OnTicksPadded

    Regards,

    Manasa

  13. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3899 posts

    Posted 29 Aug 2018 Link to this post

    Hello, Mansi,

    In order to place the points of the LineSeries you should set the LineSeries.CombineMode property to ChartSeriesCombineMode.None:


    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  14. Mansi
    Mansi avatar
    8 posts
    Member since:
    Aug 2018

    Posted 30 Aug 2018 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Hello Dess,

    Thank you very much for the solution.

    Regards,

    Manasa

  15. Mansi
    Mansi avatar
    8 posts
    Member since:
    Aug 2018

    Posted 14 Sep 2018 Link to this post

    Hello Dess,

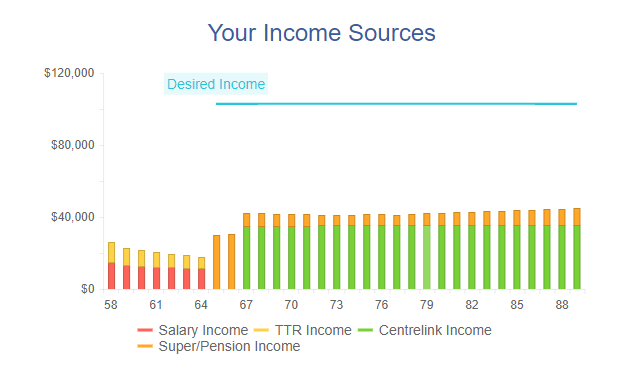

    I am trying to display the series title like a label in the chart. Could you please help me with that?

    I am attaching my expected chart.

    Regards,

    Mansi



  16. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3899 posts

    Posted 17 Sep 2018 Link to this post

    Hello, Mansi,

    Grid line annotations may be suitable for achieving your goal. Please refer to the following help article: https://docs.telerik.com/devtools/winforms/chartview/features/annotations/grid-line

    Should you have further questions please let me know.

    Regards,
    Dess
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  17. Xavier
    Xavier avatar
    2 posts
    Member since:
    Jul 2019

    Posted 19 Aug 2019 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Hi, The solution you provided is not working if the chart has drill down. any work around?
  18. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3899 posts

    Posted 19 Aug 2019 Link to this post

    Hello, Xavier,

    If you want to use the drill-down functionality in RadChartView, it is necessary to extend the previously provided code snippet and create a custom ChartWrapper. Then, override its DrillDown and DrillToIndex methods in order to reset the legend element and fill the left/right panels with the respective items.

    public Form1()
    {
        InitializeComponent();

        Random rand = new Random();
        StringBuilder sb = new StringBuilder();
        for (int i = 0; i < 8; i++)
        {
            LineSeries lineSeries = new LineSeries();
            sb = new StringBuilder();
            for (int j = 0; j < i + 1; j++)
            {
                sb.Append("S0" + i);
            }
            lineSeries.PointSize = new SizeF(10, 10);
            lineSeries.LegendTitle = sb.ToString();
            lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Jan"));
            lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Apr"));
            lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Jul"));
            lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Oct"));
            this.radChartView1.Series.Add(lineSeries);
        }

        this.radChartView1.ShowLegend = true;
        this.radChartView1.ChartElement.LegendPosition = LegendPosition.Bottom;

        DrillDownController drillControler = new DrillDownController();
        this.radChartView1.Controllers.Add(drillControler);

        radChartView1.Views.AddNew("Revenue by Month");
        this.radChartView1.Drill += RadChartView1_Drill;
        this.radChartView1.ShowDrillNavigation = true;
    }

    private void RadChartView1_Drill(object sender, DrillEventArgs e)
    {

        e.View.Series.Clear();
        e.View.Axes.Clear();

        Random rand = new Random();
        switch (e.Level)
        {
            case 0:

                for (int i = 0; i < 8; i++)
                {

                    LineSeries lineSeries = new LineSeries();
                    StringBuilder sb = new StringBuilder();
                    sb = new StringBuilder();
                    for (int j = 0; j < i + 1; j++)
                    {
                        sb.Append("S0" + i);
                    }
                    lineSeries.PointSize = new SizeF(10, 10);
                    lineSeries.LegendTitle = sb.ToString();
                    lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Jan"));
                    lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Apr"));
                    lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Jul"));
                    lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Oct"));
                    e.View.Series.Add(lineSeries);
                }
                break;
            case 1:
                if (e.SelectedPoint != null)

                    for (int i = 0; i < 8; i++)
                    {

                        LineSeries lineSeries = new LineSeries();
                        StringBuilder sb = new StringBuilder();
                        sb = new StringBuilder();
                        for (int j = 0; j < i + 1; j++)
                        {
                            sb.Append("S0" + i + DateTime.Now.ToLongTimeString());
                        }
                        lineSeries.PointSize = new SizeF(10, 10);
                        lineSeries.LegendTitle = sb.ToString();
                        lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Jan"));
                        lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Apr"));
                        lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Jul"));
                        lineSeries.DataPoints.Add(new CategoricalDataPoint(rand.Next(-50, 50), "Oct"));
                        e.View.Series.Add(lineSeries);
                    }
                break;

        }
    }

    class MyChart : RadChartView
    {
        protected override RadChartElement CreateChartElement()
        {
            return new MyChartElement();
        }
    }

    class MyChartElement : RadChartElement
    {
        protected override ChartLegendElement CreateChartLegendElement()
        {
            return new MyLegendElement(this);
        }

        protected override ChartWrapper CreateChartWrapperElement()
        {
            return new CustomChartWrapper();
        }
        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(RadChartElement);
            }
        }
    }
    public class CustomChartWrapper : ChartWrapper
    {
        public override bool DrillDown(DataPoint point)
        {
            bool result = base.DrillDown(point);
            ((MyLegendElement)((RadChartView)this.ElementTree.Control).ChartElement.LegendElement).ResetLegend();


            return result;
        }

        public override bool DrillUp()
        {
            bool result = base.DrillUp();
            ((MyLegendElement)((RadChartView)this.ElementTree.Control).ChartElement.LegendElement).ResetLegend();
            return result;
        }

        public override bool DrillToIndex(int viewIndex)
        {
            bool result= base.DrillToIndex(viewIndex);
            ((MyLegendElement)((RadChartView)this.ElementTree.Control).ChartElement.LegendElement).ResetLegend();
            return result;
        }
    }


    class MyLegendElement : ChartLegendElement
    {
        StackLayoutElement leftPanel = new StackLayoutElement();
        StackLayoutElement rightPanel = new StackLayoutElement();

        public MyLegendElement(RadChartElement chartElement) : base(chartElement)
        {
        }

        protected override void CreateChildElements()
        {
            base.CreateChildElements();
            this.StackElement.Orientation = System.Windows.Forms.Orientation.Horizontal;
        }

        protected override void OnLegendInfosCollectionChanged(Telerik.WinControls.Data.NotifyCollectionChangedEventArgs e, bool providerChange)
        {
            ResetLegend();
        }
        public void ResetLegend()
        {
            this.StackElement.Children.Clear();
            if (!this.StackElement.Children.Contains(leftPanel))
            {
                this.StackElement.Children.Add(leftPanel);
                leftPanel.Orientation = System.Windows.Forms.Orientation.Vertical;
            }
            if (!this.StackElement.Children.Contains(rightPanel))
            {
                this.StackElement.Children.Add(rightPanel);
                rightPanel.Orientation = System.Windows.Forms.Orientation.Vertical;
            }

            leftPanel.Children.Clear();
            rightPanel.Children.Clear();
            for (int i = 0; i < this.Provider.LegendInfos.Count; i++)
            {
                LegendItemElement element = this.OnVisualItemCreating(this.Provider.LegendInfos[i]);

                if (i < this.Provider.LegendInfos.Count / 2)
                {
                    leftPanel.Children.Add(element);
                }
                else
                {
                    rightPanel.Children.Add(element);
                }
            }
        }


        protected override Type ThemeEffectiveType
        {
            get
            {
                return typeof(ChartLegendElement);
            }
        }
    }

    I hope this information helps.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  19. Xavier
    Xavier avatar
    2 posts
    Member since:
    Jul 2019

    Posted 20 Aug 2019 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    thanks. it worked
Back to Top
