Property

4 posts, 0 answers
  1. MaiK
    MaiK avatar
    22 posts
    Member since:
    Mar 2018

    Posted 15 May 2018 Link to this post

    Hi,



    Im working with PropertyGrid, and one of my properties is Enum. I want use the description of enum value as DisplayMember and value as ValueMember

    It worked me on winform combobox, but I try it in EditorRequired event, and nothing happends.

    editor = New PropertyGridDropDownListEditor
    element = CType(editor.EditorElement, BaseDropDownListEditorElement)
    element.ValueMember = "Value"
    element.DisplayMember = "Description"
    element.DataSource = Tools.GetEnumValueDescription(Of MyEnum)()
    e.Editor = editor

    When I click in that enum property, values I can select are the same as I dont use that code.



    What I am doing wrong?



    Thank you!



  2. Hristo
    Admin
    Hristo avatar
    1508 posts

    Posted 16 May 2018 Link to this post

    Hello Mikel,

    Thank you for writing.

    I can suggest handling the EditorInitialized event of the control for the enum item. Then in the event handler, you can subscribe the editor element to the VisualItemFormatting event and change the text of the items displayed in the popup. Please check the following documentation for additional information: https://docs.telerik.com/devtools/winforms/propertygrid/editors/handling-editors'-events.

    I hope this helps. Let me know if you have other questions.

    Regards,
    Hristo
    Progress Telerik
    Try our brand new, jQuery-free Angular components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  3. MaiK
    MaiK avatar
    22 posts
    Member since:
    Mar 2018

    Posted 17 May 2018 in reply to Hristo Link to this post

    Hello Hristo,



    I have been trying with VisualItemFormmating but I dont know how to do. I explain my case.

    That is my enum

    Public Enum TestEnum
            <Description("A")> a
            <Description("B")> b
            <Description("C")> c
            <Description("D")> d
    End Enum

    I have this class for wrap enum value and description

    Public Class EnumValueDescription

    #Region "Propiedades"

    #Region "Value"

        Private _Value As [Enum]

        Public Property Value() As [Enum]
            Get
                Return _Value
            End Get
            Set(ByVal value As [Enum])
                _Value = value
            End Set
        End Property

    #End Region

    #Region "Description"

        Private _Description As String

        Public Property Description() As String
            Get
                Return _Description
            End Get
            Set(ByVal value As String)
                _Description = value
            End Set
        End Property

    #End Region

    #End Region

    End Class

    This code converts enum to that list of objects:

    Public Function GetEnumValueDescription(Of T)() As List(Of EnumValueDescription)
            Try
                'Checekea si el enum es correcto
                If (Not GetType(T).IsEnum) Then
                    Throw New ArgumentException("T debe ser un enumerador")
                End If

                'Obtiene los valores y descripciones del enum
                Return [Enum].GetValues(GetType(T)).Cast(Of [Enum])().Select(Function(value) New EnumValueDescription With {.Value = value,
                                                                                                                      .Description = CType(Attribute.GetCustomAttribute(value.GetType().GetField(value.ToString()), GetType(DescriptionAttribute)), DescriptionAttribute).Description}).ToList()

            Catch ex As Exception
                Throw New Exception(String.Format("Error obteniendo los valores del enum '{0}'.{1}{2}", GetType(T).Name, vbNewLine, ex.Message), ex)
            End Try

        End Function



    Doing it in winform combobox I just do that:

    combobox.ValueMember = "Value"
    combobox.DisplayMember = "Description"
    combobox.DataSource = Tools.GetEnumValueDescription(Of TestEnum)()



    Using EditorRequired event, with properties that are not enums my aproach works good with seting list(of myobj) and setting valuemember and displaymember, but doesnt work with enum properties. I try with EditorInitialized and doesnt works :/.

    Can you give me and example of code please?



    Thank you very much!







  4. Hristo
    Admin
    Hristo avatar
    1508 posts

    Posted 18 May 2018 Link to this post

    Hello Mikel,

    In the VisualItemFormatting event of the editor element, you have access to the items displayed in the list and you can alter their text. The code snippet you have provided demonstrates better your local setup and actually a similar to your initial approach could work. Instead of handling the EditorRequired event you will need to handle the EditorInitialized event where you can change the data source of the existing editor. It will be also necessary to sync the currently selected index. I am assuming that you will also need to change the text of the value element so you will also need to handle the ItemFormatting event of the property grid. Please check my code snippet below:
    Public Class RadForm1
        Sub New()

            InitializeComponent()

            Me.ComboBox1.ValueMember = "Value"
            Me.ComboBox1.DisplayMember = "Description"
            Me.ComboBox1.DataSource = Me.GetEnumValueDescription(Of TestEnum)()

            Me.RadDropDownList1.ValueMember = "Value"
            Me.RadDropDownList1.DisplayMember = "Description"
            Me.RadDropDownList1.DataSource = Me.GetEnumValueDescription(Of TestEnum)()

            Me.RadPropertyGrid1.SelectedObject = New PropertyGridDataModel With {
                .Id = 1,
                .Name = "John Doe",
                .TestEnum = TestEnum.A
            }

            AddHandler Me.RadPropertyGrid1.EditorInitialized, AddressOf RadPropertyGrid1_EditorInitialized
            AddHandler Me.RadPropertyGrid1.ItemFormatting, AddressOf RadPropertyGrid1_ItemFormatting

        End Sub

        Private Sub RadPropertyGrid1_ItemFormatting(sender As Object, e As PropertyGridItemFormattingEventArgs)
            If TypeOf (TryCast(e.Item, PropertyGridItem)).Value Is TestEnum Then
                Dim value = DirectCast(TryCast(e.Item, PropertyGridItem).Value, TestEnum)
                DirectCast(e.VisualElement, PropertyGridItemElement).ValueElement.Text = Me.GetSingleEnumValueDescription(value)
            Else
                e.VisualElement.ResetValue(LightVisualElement.TextProperty, Telerik.WinControls.ValueResetFlags.Local)
            End If

        End Sub

        Private Sub RadPropertyGrid1_EditorInitialized(sender As Object, e As PropertyGridItemEditorInitializedEventArgs)
            If TypeOf (TryCast(e.Item, PropertyGridItem)).Value Is TestEnum Then
                Dim editor = CType(e.Editor, PropertyGridDropDownListEditor)
                Dim element = CType(editor.EditorElement, BaseDropDownListEditorElement)
                Dim index = element.SelectedIndex

                element.DataSource = Nothing
                element.ValueMember = "Value"
                element.DisplayMember = "Description"
                element.DataSource = Me.GetEnumValueDescription(Of TestEnum)()
                element.SelectedIndex = index
            End If
        End Sub

        Public Function GetEnumValueDescription(Of T)() As List(Of EnumValueDescription)
            Try
                'Checekea si el enum es correcto
                If (Not GetType(T).IsEnum) Then
                    Throw New ArgumentException("T debe ser un enumerador")
                End If

                'Obtiene los valores y descripciones del enum
                Return [Enum].GetValues(GetType(T)).Cast(Of [Enum])().Select(Function(value) New EnumValueDescription With {.Value = value,
                                                                                                                      .Description = CType(Attribute.GetCustomAttribute(value.GetType().GetField(value.ToString()),
                                                                                                                                                                        GetType(DescriptionAttribute)), DescriptionAttribute).Description}).ToList()

            Catch ex As Exception
                Throw New Exception(String.Format("Error obteniendo los valores del enum '{0}'.{1}{2}", GetType(T).Name, vbNewLine, ex.Message), ex)
            End Try

        End Function

        Public Function GetSingleEnumValueDescription(value As TestEnum) As String
            Try
                Dim attributes As DescriptionAttribute() = CType(value.GetType().GetField(value.ToString()).GetCustomAttributes(GetType(DescriptionAttribute), False), DescriptionAttribute())
                Return attributes(0).Description

            Catch ex As Exception
                Throw New Exception(String.Format("Error obteniendo los valores del enum '{0}'.{1}{2}", GetType(TestEnum).Name, vbNewLine, ex.Message), ex)
            End Try

        End Function
    End Class

    Public Class EnumValueDescription


    #Region "Value"

        Private _Value As [Enum]

        Public Property Value() As [Enum]
            Get
                Return _Value
            End Get
            Set(ByVal value As [Enum])
                _Value = value
            End Set
        End Property

    #End Region

    #Region "Description"

        Private _Description As String

        Public Property Description() As String
            Get
                Return _Description
            End Get
            Set(ByVal value As String)
                _Description = value
            End Set
        End Property

    #End Region

    End Class

    Public Enum TestEnum
        <Description("A Desc")> A
        <Description("B Desc")> B
        <Description("C Desc")> C
        <Description("D Desc")> D
    End Enum

    Public Class PropertyGridDataModel
        Public Property Id As Integer
        Public Property Name As String
        Public Property TestEnum As TestEnum
    End Class

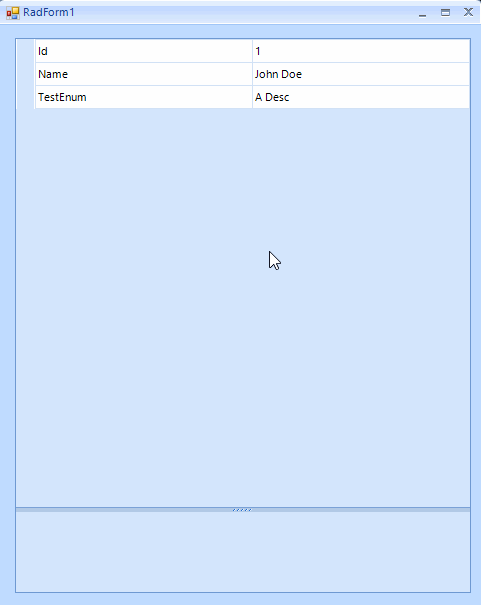

    I am also attaching a short video showing the result on my end.

    Regards,
    Hristo
