Tim Carmichael
Top achievements
Rank 1
Tim Carmichael
asked on 25 Nov 2010, 12:59 PM
i'd like to display two values with the Telerik WinForm Progress bar; one value being the progress of a single action, and the second being the progress of all actions. For example, we're sending 5 emails, and performing an operation on each...one value is the progress of the operation of the individual email and the second is the overall progress.
Is this possible? Is there sample code available? I've looked at the documentation and demo app, but need more info.
Thanks in advance,
Gene
Is this possible? Is there sample code available? I've looked at the documentation and demo app, but need more info.
Thanks in advance,
Gene
15 Answers, 1 is accepted
0
Accepted

Richard Slade
Top achievements
Rank 2
answered on 25 Nov 2010, 01:36 PM
hello Tim,
I've prepared a small sample for you (just a RadProgressbar on a form) which sets the value1 for each of 4 tasks, and value 2 to be the overall progress.
Hope this helps but let me know if you have any questions.
Richard
I've prepared a small sample for you (just a RadProgressbar on a form) which sets the value1 for each of 4 tasks, and value 2 to be the overall progress.
Hope this helps but let me know if you have any questions.
Richard
Imports
System
Imports
System.ComponentModel
Imports
Telerik.WinControls
Imports
Telerik.WinControls.UI
Public
Class
Form1
Private
WithEvents
m_BackgroundWorker1
As
New
BackgroundWorker()
Private
WithEvents
m_BackgroundWorker2
As
New
BackgroundWorker()
Private
WithEvents
m_BackgroundWorker3
As
New
BackgroundWorker()
Private
WithEvents
m_BackgroundWorker4
As
New
BackgroundWorker()
Private
Sub
Form1_Load(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.EventArgs)
Handles
MyBase
.Load
m_BackgroundWorker1.WorkerReportsProgress =
True
m_BackgroundWorker2.WorkerReportsProgress =
True
m_BackgroundWorker3.WorkerReportsProgress =
True
m_BackgroundWorker4.WorkerReportsProgress =
True
m_BackgroundWorker1.RunWorkerAsync()
End
Sub
' background 1
Private
Sub
BackgroundWorker1_DoWork(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.DoWorkEventArgs)
Handles
m_BackgroundWorker1.DoWork
For
counter = 1
To
250
If
counter
Mod
10 = 0
Then
Me
.m_BackgroundWorker1.ReportProgress(
Me
.RadProgressBar1.Value1 + 1)
System.Threading.Thread.Sleep(100)
End
If
Next
counter
End
Sub
Private
Sub
BackgroundWorker1_ProgressChanged(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.ProgressChangedEventArgs)
Handles
m_BackgroundWorker1.ProgressChanged
Me
.RadProgressBar1.Value2 = 25
Me
.RadProgressBar1.Value1 =
Me
.RadProgressBar1.Value1 + 1
End
Sub
Private
Sub
BackgroundWorker1_RunWorkerCompleted(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.RunWorkerCompletedEventArgs)
Handles
m_BackgroundWorker1.RunWorkerCompleted
Me
.m_BackgroundWorker2.RunWorkerAsync()
End
Sub
' background 2
Private
Sub
BackgroundWorker2_DoWork(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.DoWorkEventArgs)
Handles
m_BackgroundWorker2.DoWork
For
counter = 1
To
250
If
counter
Mod
10 = 0
Then
Me
.m_BackgroundWorker2.ReportProgress(0)
System.Threading.Thread.Sleep(100)
End
If
Next
counter
End
Sub
Private
Sub
BackgroundWorker2_ProgressChanged(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.ProgressChangedEventArgs)
Handles
m_BackgroundWorker2.ProgressChanged
Me
.RadProgressBar1.Value2 = 50
Me
.RadProgressBar1.Value1 =
Me
.RadProgressBar1.Value1 + 1
End
Sub
Private
Sub
BackgroundWorker2_RunWorkerCompleted(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.RunWorkerCompletedEventArgs)
Handles
m_BackgroundWorker2.RunWorkerCompleted
Me
.m_BackgroundWorker3.RunWorkerAsync()
End
Sub
' background 3
Private
Sub
BackgroundWorker3_DoWork(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.DoWorkEventArgs)
Handles
m_BackgroundWorker3.DoWork
For
counter = 1
To
250
If
counter
Mod
10 = 0
Then
Me
.m_BackgroundWorker3.ReportProgress(0)
System.Threading.Thread.Sleep(100)
End
If
Next
counter
End
Sub
Private
Sub
BackgroundWorker3_ProgressChanged(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.ProgressChangedEventArgs)
Handles
m_BackgroundWorker3.ProgressChanged
Me
.RadProgressBar1.Value2 = 75
Me
.RadProgressBar1.Value1 =
Me
.RadProgressBar1.Value1 + 1
End
Sub
Private
Sub
BackgroundWorker3_RunWorkerCompleted(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.RunWorkerCompletedEventArgs)
Handles
m_BackgroundWorker3.RunWorkerCompleted
Me
.m_BackgroundWorker4.RunWorkerAsync()
Me
.RadProgressBar1.Value2 = 100
End
Sub
' background 4
Private
Sub
BackgroundWorker4_DoWork(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.DoWorkEventArgs)
Handles
m_BackgroundWorker4.DoWork
For
counter = 1
To
250
If
counter
Mod
10 = 0
Then
Me
.m_BackgroundWorker4.ReportProgress(0)
System.Threading.Thread.Sleep(100)
End
If
Next
counter
End
Sub
Private
Sub
BackgroundWorker4_ProgressChanged(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.ProgressChangedEventArgs)
Handles
m_BackgroundWorker4.ProgressChanged
Me
.RadProgressBar1.Value1 =
Me
.RadProgressBar1.Value1 + 1
End
Sub
Private
Sub
BackgroundWorker4_RunWorkerCompleted(
ByVal
sender
As
System.
Object
,
ByVal
e
As
System.ComponentModel.RunWorkerCompletedEventArgs)
Handles
m_BackgroundWorker4.RunWorkerCompleted
RadMessageBox.Show(
"All Complete"
,
"Done"
, MessageBoxButtons.OK, RadMessageIcon.Info)
End
Sub
End
Class
0

Tim Carmichael
Top achievements
Rank 1
answered on 25 Nov 2010, 02:28 PM
Thank you Richard,
I created a new VB project and pasted your code in after adding the Telerik Progress bar, but when I run it I only see a single progess value (no lighter or darker shade). Is there a property that I need to set on the control?
Regards
I created a new VB project and pasted your code in after adding the Telerik Progress bar, but when I run it I only see a single progess value (no lighter or darker shade). Is there a property that I need to set on the control?
Regards
0

Richard Slade
Top achievements
Rank 2
answered on 25 Nov 2010, 02:41 PM
Hello,
No, there's nothing else to set, but to be fair, the Value2 is not that easy to see on the default theme. Set the background colour of the FillPrimitive to white to see it a little better. Please can you add this to the end of the load event and you'll see it.
Let me know if you need more help
Richard
No, there's nothing else to set, but to be fair, the Value2 is not that easy to see on the default theme. Set the background colour of the FillPrimitive to white to see it a little better. Please can you add this to the end of the load event and you'll see it.
Dim
prim
As
Telerik.WinControls.Primitives.FillPrimitive =
CType
(
Me
.RadProgressBar1.ProgressBarElement.Children(0), Telerik.WinControls.Primitives.FillPrimitive)
prim.BackColor = Color.White
prim.GradientStyle = GradientStyles.Solid
Let me know if you need more help
Richard
0

Tim Carmichael
Top achievements
Rank 1
answered on 25 Nov 2010, 02:57 PM
Richard,
Ah...Thank you very much- that was the issue. A '"ittle hard to see?"- thats an understatement! With the white background its a 'little hard to see'! I expect I have to create a custom theme to change the secondary color? I'm new to Telerik controls, so any documentation you could point me to would be appreciated- I lost a day just because I couldnt see value2 changing.
Regards
Ah...Thank you very much- that was the issue. A '"ittle hard to see?"- thats an understatement! With the white background its a 'little hard to see'! I expect I have to create a custom theme to change the secondary color? I'm new to Telerik controls, so any documentation you could point me to would be appreciated- I lost a day just because I couldnt see value2 changing.
Regards
0

Richard Slade
Top achievements
Rank 2
answered on 25 Nov 2010, 03:03 PM
Hi Tim,
I'd suggest making your own theme for the radProgressBar if you intend to use a lot of them. Have a look at this link about the Visual Style Builder.
If you just want to change one or two colours on one RadProgressBar, then let me know what colours you want to change and I'll point you in the right direction.
Regards,
Richard
I'd suggest making your own theme for the radProgressBar if you intend to use a lot of them. Have a look at this link about the Visual Style Builder.
If you just want to change one or two colours on one RadProgressBar, then let me know what colours you want to change and I'll point you in the right direction.
Regards,
Richard
0

Tim Carmichael
Top achievements
Rank 1
answered on 25 Nov 2010, 03:14 PM
Thanks so much Richard,
I haven't used the Visual Style Builder yet so your help is greatly appreciated. For now I'd like to just use two shades of Blue, a medium and a darker blue for the progress indicator values. Visual Style Builder looks pretty good, but for now I need to show it working. The default Green and very light gray obviously doesnt work for me.
I haven't used the Visual Style Builder yet so your help is greatly appreciated. For now I'd like to just use two shades of Blue, a medium and a darker blue for the progress indicator values. Visual Style Builder looks pretty good, but for now I need to show it working. The default Green and very light gray obviously doesnt work for me.
0

Richard Slade
Top achievements
Rank 2
answered on 25 Nov 2010, 03:19 PM
You're welcome Tim,
may I ask that you mark as answer all suggestions that you find have helped.
There may be a quick way, but I'm not sure how well this would suit your requirements.
1: Drop a BreezeExtended theme onto the form from the toolbox
2: Change the ThemeName of the radProgressbar to BreezeExtended
3: Maintain the white back colour.
have a look and let me know if that's ok.
Richard
may I ask that you mark as answer all suggestions that you find have helped.
There may be a quick way, but I'm not sure how well this would suit your requirements.
1: Drop a BreezeExtended theme onto the form from the toolbox
2: Change the ThemeName of the radProgressbar to BreezeExtended
3: Maintain the white back colour.
have a look and let me know if that's ok.
Richard
0
Accepted

Richard Slade
Top achievements
Rank 2
answered on 25 Nov 2010, 03:24 PM
Here you go Tim,
This should be better.
Richard
This should be better.
Me
.RadProgressBar1.ThemeName =
"BreezeExtended"
Dim
prim
As
Telerik.WinControls.Primitives.FillPrimitive =
CType
(
Me
.RadProgressBar1.ProgressBarElement.Children(0), Telerik.WinControls.Primitives.FillPrimitive)
prim.BackColor = Color.White
prim.GradientStyle = GradientStyles.Solid
Dim
progressBarPrim
As
Telerik.WinControls.Primitives.ProgressBarPrimitive =
CType
(
Me
.RadProgressBar1.ProgressBarElement.Children(1), Telerik.WinControls.Primitives.ProgressBarPrimitive)
progressBarPrim.BackColor = Color.Blue
progressBarPrim.BackColor2 = Color.Blue
progressBarPrim.GradientStyle = GradientStyles.Solid
Richard
0

Tim Carmichael
Top achievements
Rank 1
answered on 25 Nov 2010, 03:25 PM
Richard,
The darker blue is great, but the light blue is still much too light.
Regards
The darker blue is great, but the light blue is still much too light.
Regards
0

Richard Slade
Top achievements
Rank 2
answered on 25 Nov 2010, 03:28 PM

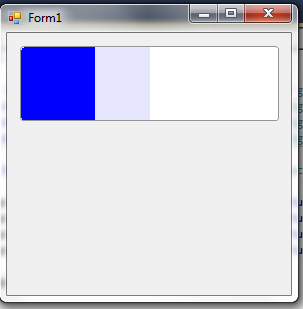

Have you tried the one above tim? Screenshot attached
0

Tim Carmichael
Top achievements
Rank 1
answered on 25 Nov 2010, 03:30 PM
Richard,
Thats much better. A shame to have lost the highlighting on the value1 progress, but I assume I can restore that by working with the visual Style builder. Thanks again,
Regards
Thats much better. A shame to have lost the highlighting on the value1 progress, but I assume I can restore that by working with the visual Style builder. Thanks again,
Regards
0

Richard Slade
Top achievements
Rank 2
answered on 25 Nov 2010, 03:33 PM
You're welcome Tim. Glad to have been able to help.
Please remember to mark as answer.
Richard
Please remember to mark as answer.
Richard
0

Richard Slade
Top achievements
Rank 2
answered on 25 Nov 2010, 03:35 PM
Tim
to get the linear look back set
Richard
to get the linear look back set
Dim
progressBarPrim
As
Telerik.WinControls.Primitives.ProgressBarPrimitive =
CType
(
Me
.RadProgressBar1.ProgressBarElement.Children(1), Telerik.WinControls.Primitives.ProgressBarPrimitive)
progressBarPrim.BackColor = Color.Blue
progressBarPrim.BackColor2 = Color.Blue
progressBarPrim.GradientStyle = GradientStyles.Linear
0

Tim Carmichael
Top achievements
Rank 1
answered on 25 Nov 2010, 03:41 PM
Thats great. The odd thing is the 'highlight' lighter shade on the value1 bar is now on the bottom of the bar. But you've shown me plenty- I'm sure I can sort the rest. Much appreciated.
0
Accepted

Richard Slade
Top achievements
Rank 2
answered on 25 Nov 2010, 04:04 PM
