Problems with remote binding a datasource to a stacked bar chart

2 Answers 41 Views
Charts
This is a migrated thread and some comments may be shown as answers.
Dominik
Top achievements
Rank 1
Dominik asked on 26 Mar 2020, 09:31 AM

Hello,

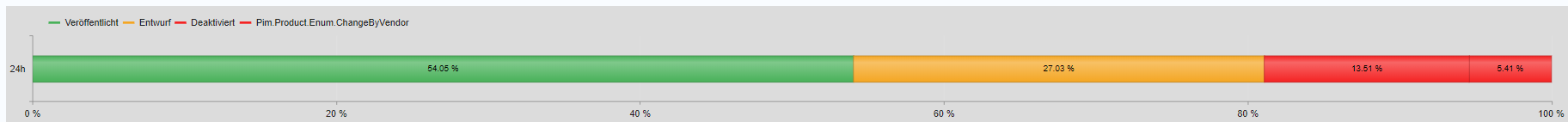

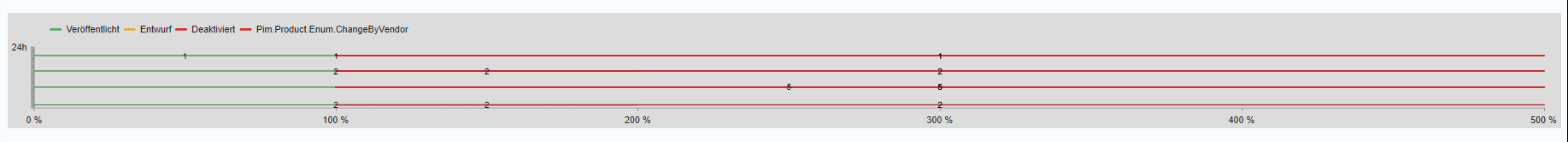

I have a problem when I'm trying to bind my data to a datasource with remote. If I bind it inline everything is fine and my chart looks like the first attached file. But with remote I get something like the second attached file.

The data I'm using for inline binding is this: var data = [{"Draft": 100, "Published": 200,"Deactivated": 50,"ChangeByVendor": 20}];

And the Data I receive from my endpoint with remote binding is following: "{\"Draft\": 100, \"Published\": 200,\"Deactivated\": 50,\"ChangeByVendor\": 20}"

The series field in my chart looks like this:

series: [{
                name: "@T("Pim.Product.Enum.Published")",
                field: "Published",
                color: "#48b159",
                labels: {
                    visible: true,
                    background: "",
                    position: "center",
                    template: '#if (value > 0) {# #=kendo.format("{0:p}", percentage)# #}#'
                }
            }, {
                name: "@T("Pim.Product.Enum.Draft")",
                field: "Draft",
                color: "#f4a623",
                labels: {
                    visible: true,
                    background: "",
                    position: "center",
                    template: '#if (value > 0) {# #=kendo.format("{0:p}", percentage)# #}#'
                }
            }, {
                name: "@T("Pim.Product.Enum.Deactivated")",
                field: "Deactivated",
                color: "#f42323",
                labels: {
                    visible: true,
                    background: "",
                    position: "center",
                        template: '#if (value > 0) {# #=kendo.format("{0:p}", percentage)# #}#'
                }
                }, {
                name: "@T("Pim.Product.Enum.ChangeByVendor")",
                field: "ChangeByVendor",
                color: "#f42323",
                labels: {
                    visible: true,
                    background: "",
                    position: "center",
                    template: '#if (value > 0) {# #=kendo.format("{0:p}", percentage)# #}#'
                    }
            }],



For me, I don't understand why i get two so different result with inline and remote. What am I missing here? I would love to get the chart to look like the inline result but with a remote binding. I hope you can help me with that.

Best regards,

Dominik

2 Answers, 1 is accepted

Sort by
0
Dominik
Top achievements
Rank 1
answered on 26 Mar 2020, 11:19 AM
Okey, I found my mistake. The problem was in my testdata from my endpoint. I used a simple string to create the json response. After I changed it to an array with an anonymous object in it my problem was solved.
0
Nikolay
Telerik team
answered on 30 Mar 2020, 07:07 AM

Hello Dominik,

I am happy to hear you managed to resolve the situation and thank you for sharing it with us. I believe this will be helpful to others facing the same problem.

Let us know in case anything further arises.

Regards,
Nikolay
