Possible Bug In ChartView (BarChart)

3 posts, 0 answers
  1. Martin Hamilton
    Martin Hamilton avatar
    36 posts
    Member since:
    Aug 2009

    Posted 26 Nov 2019 Link to this post

    I think I have discovered a bug in the ChartView below is the designer and code for the user control

    If you create a user control and past the code into it you should be able to replicate this;

    Note: to load the chart - double-click on the chart

    The first time it loads properly

    The second time you double-click it - you will see that it loses its formatting.

    Maybe (it's possible) that I have some conflicting line(s) of code causing this but I cannot find any conflicting code... perhaps you can test out and let me know what you think?



    Here's the UserControl.vb Code

    Imports Telerik.Charting
    Imports Telerik.WinControls
    Imports Telerik.WinControls.UI
    Imports TelerikHelper

    Public Class ucChartTest
        Private Sub ucChartTest_Load(sender As Object, e As EventArgs) Handles MyBase.Load
            populateCustomers()
            populateQ1()
            populateQ2()
            populateQ3()
            populateQ4()
        End Sub

    #Region " ENUMS "
        Private Enum GridFields
            CustomerRefFullName = 0
            Q1 = 1
            Q2 = 2
            Q3 = 3
            Q4 = 4
            Total = 5
        End Enum
    #End Region

    #Region " ArrayLists "
        Private _arrCustomers As New ArrayList
        Private Sub populateCustomers()
            _arrCustomers.Clear()
            _arrCustomers.Add("Customer 1")
            _arrCustomers.Add("Customer 2")
            _arrCustomers.Add("Customer 3")
            _arrCustomers.Add("Customer 4")
            _arrCustomers.Add("Customer 5")
            _arrCustomers.Add("Customer 6")
            _arrCustomers.Add("Customer 7")
            _arrCustomers.Add("Customer 8")
            _arrCustomers.Add("Customer 9")
            _arrCustomers.Add("Customer 10")
        End Sub

        Private _arrQ1 As New ArrayList
        Private Sub populateQ1()
            _arrQ1.Clear()
            _arrQ1.Add(73)
            _arrQ1.Add(69)
            _arrQ1.Add(50)
            _arrQ1.Add(32)
            _arrQ1.Add(34)
            _arrQ1.Add(19)
            _arrQ1.Add(27)
            _arrQ1.Add(24)
            _arrQ1.Add(27)
            _arrQ1.Add(30)
        End Sub

        Private _arrQ2 As New ArrayList
        Private Sub populateQ2()
            _arrQ2.Clear()
            _arrQ2.Add(40)
            _arrQ2.Add(82)
            _arrQ2.Add(47)
            _arrQ2.Add(46)
            _arrQ2.Add(32)
            _arrQ2.Add(21)
            _arrQ2.Add(39)
            _arrQ2.Add(45)
            _arrQ2.Add(29)
            _arrQ2.Add(33)
        End Sub

        Private _arrQ3 As New ArrayList
        Private Sub populateQ3()
            _arrQ3.Clear()
            _arrQ3.Add(93)
            _arrQ3.Add(76)
            _arrQ3.Add(58)
            _arrQ3.Add(41)
            _arrQ3.Add(41)
            _arrQ3.Add(37)
            _arrQ3.Add(35)
            _arrQ3.Add(22)
            _arrQ3.Add(39)
            _arrQ3.Add(21)
        End Sub

        Private _arrQ4 As New ArrayList
        Private Sub populateQ4()
            _arrQ4.Clear()
            _arrQ4.Add(75)
            _arrQ4.Add(39)
            _arrQ4.Add(31)
            _arrQ4.Add(27)
            _arrQ4.Add(30)
            _arrQ4.Add(51)
            _arrQ4.Add(10)
            _arrQ4.Add(13)
            _arrQ4.Add(6)
            _arrQ4.Add(16)
        End Sub
    #End Region

    #Region " Quarterly Sales Distribution "
        Private Sub BuildQuarterlySalesDistribution()
            Try
                RadChartView2.Series.Clear()

                RadChartView2.ShowLegend = True
                RadChartView2.ShowTitle = False
                RadChartView2.ShowSmartLabels = True
                RadChartView2.ShowGrid = True

                RadChartView2.Area.View.Palette = KnownPalette.Warm

                RadChartView2.ChartElement.LegendElement.TitlePosition = TitlePosition.Top
                RadChartView2.ChartElement.LegendPosition = LegendPosition.Top
                RadChartView2.ChartElement.LegendElement.StackElement.Orientation = Orientation.Horizontal

                AddHandler RadChartView2.ChartElement.LegendElement.VisualItemCreating, AddressOf LegendElement_VisualItemCreating

                Dim barSeriesQ1 As New Telerik.WinControls.UI.BarSeries("Q1", "Customer")
                For i As Integer = 0 To _arrQ1.Count - 1
                    barSeriesQ1.DataPoints.Add(New CategoricalDataPoint(CDbl(_arrQ1(i)), _arrCustomers(i)))
                Next
                barSeriesQ1.ShowLabels = False
                barSeriesQ1.LegendTitle = "Q1"
                barSeriesQ1.CombineMode = ChartSeriesCombineMode.Stack
                RadChartView2.Series.Add(barSeriesQ1)

                Dim barSeriesQ2 As New Telerik.WinControls.UI.BarSeries("Q2", "Customer")
                For i As Integer = 0 To _arrQ2.Count - 1
                    barSeriesQ2.DataPoints.Add(New CategoricalDataPoint(CDbl(_arrQ2(i)), _arrCustomers(i)))
                Next
                barSeriesQ2.ShowLabels = False
                barSeriesQ2.LegendTitle = "Q2"
                barSeriesQ2.CombineMode = ChartSeriesCombineMode.Stack
                RadChartView2.Series.Add(barSeriesQ2)

                Dim barSeriesQ3 As New Telerik.WinControls.UI.BarSeries("Q3", "Customer")
                For i As Integer = 0 To _arrQ3.Count - 1
                    barSeriesQ3.DataPoints.Add(New CategoricalDataPoint(CDbl(_arrQ3(i)), _arrCustomers(i)))
                Next
                barSeriesQ3.ShowLabels = False
                barSeriesQ3.LegendTitle = "Q3"
                barSeriesQ3.CombineMode = ChartSeriesCombineMode.Stack
                RadChartView2.Series.Add(barSeriesQ3)

                Dim barSeriesQ4 As New Telerik.WinControls.UI.BarSeries("Q4", "Customer")
                For i As Integer = 0 To _arrQ4.Count - 1
                    barSeriesQ4.DataPoints.Add(New CategoricalDataPoint(CDbl(_arrQ4(i)), _arrCustomers(i)))
                Next
                barSeriesQ4.ShowLabels = False
                barSeriesQ4.LegendTitle = "Q4"
                barSeriesQ4.CombineMode = ChartSeriesCombineMode.Stack
                RadChartView2.Series.Add(barSeriesQ4)


                RadChartView2.GetArea(Of CartesianArea)().Orientation = Orientation.Horizontal
                Application.DoEvents()
            Catch ex As Exception

            End Try
        End Sub

        Private Sub LegendElement_VisualItemCreating(sender As Object, e As LegendItemElementCreatingEventArgs)
            e.ItemElement = New CustomLegendItemElement(e.LegendItem)
        End Sub

        Private Sub RadChartView2_LegendElement_VisualItemCreating(sender As Object, e As LegendItemElementCreatingEventArgs)
            e.ItemElement = New CustomLegendItemElement(e.LegendItem)
        End Sub

        Private Sub RadChartView2_DoubleClick(sender As Object, e As EventArgs) Handles RadChartView2.DoubleClick
            BuildQuarterlySalesDistribution()
        End Sub

        Private Sub RadChartView2_LabelFormatting(sender As Object, e As ChartViewLabelFormattingEventArgs) Handles RadChartView2.LabelFormatting
            Try
                e.LabelElement.Font = FontSegio
                e.LabelElement.BorderColor = Color.Black
                e.LabelElement.BackColor = Color.White
                e.Series.LabelRotationAngle = 45
                Dim series As BarSeries = TryCast(e.Series, BarSeries)
                Dim dblBarChartDataPoint As Double = GetBarChartDataPointValue(RadChartView2, e)
            Catch ex As Exception

            End Try
        End Sub
    #End Region

    End Class




    Here's the Designer Code

    <Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()>
    Partial Class ucChartTest
        Inherits System.Windows.Forms.UserControl

        'UserControl overrides dispose to clean up the component list.
        <System.Diagnostics.DebuggerNonUserCode()>
        Protected Overrides Sub Dispose(ByVal disposing As Boolean)
            Try
                If disposing AndAlso components IsNot Nothing Then
                    components.Dispose()
                End If
            Finally
                MyBase.Dispose(disposing)
            End Try
        End Sub

        'Required by the Windows Form Designer
        Private components As System.ComponentModel.IContainer

        'NOTE: The following procedure is required by the Windows Form Designer
        'It can be modified using the Windows Form Designer.
        'Do not modify it using the code editor.
        <System.Diagnostics.DebuggerStepThrough()>
        Private Sub InitializeComponent()
            Dim CartesianArea1 As Telerik.WinControls.UI.CartesianArea = New Telerik.WinControls.UI.CartesianArea()
            Me.TableLayoutPanel1 = New System.Windows.Forms.TableLayoutPanel()
            Me.RadLabel4 = New Telerik.WinControls.UI.RadLabel()
            Me.RadChartView2 = New Telerik.WinControls.UI.RadChartView()
            Me.TableLayoutPanel1.SuspendLayout()
            CType(Me.RadLabel4, System.ComponentModel.ISupportInitialize).BeginInit()
            CType(Me.RadChartView2, System.ComponentModel.ISupportInitialize).BeginInit()
            Me.SuspendLayout()
            '
            'TableLayoutPanel1
            '
            Me.TableLayoutPanel1.BackColor = System.Drawing.Color.White
            Me.TableLayoutPanel1.ColumnCount = 1
            Me.TableLayoutPanel1.ColumnStyles.Add(New System.Windows.Forms.ColumnStyle(System.Windows.Forms.SizeType.Percent, 100.0!))
            Me.TableLayoutPanel1.ColumnStyles.Add(New System.Windows.Forms.ColumnStyle(System.Windows.Forms.SizeType.Absolute, 20.0!))
            Me.TableLayoutPanel1.ColumnStyles.Add(New System.Windows.Forms.ColumnStyle(System.Windows.Forms.SizeType.Absolute, 20.0!))
            Me.TableLayoutPanel1.Controls.Add(Me.RadLabel4, 0, 1)
            Me.TableLayoutPanel1.Controls.Add(Me.RadChartView2, 0, 2)
            Me.TableLayoutPanel1.Dock = System.Windows.Forms.DockStyle.Fill
            Me.TableLayoutPanel1.Location = New System.Drawing.Point(0, 0)
            Me.TableLayoutPanel1.Margin = New System.Windows.Forms.Padding(0)
            Me.TableLayoutPanel1.Name = "TableLayoutPanel1"
            Me.TableLayoutPanel1.RowCount = 3
            Me.TableLayoutPanel1.RowStyles.Add(New System.Windows.Forms.RowStyle(System.Windows.Forms.SizeType.Absolute, 28.0!))
            Me.TableLayoutPanel1.RowStyles.Add(New System.Windows.Forms.RowStyle(System.Windows.Forms.SizeType.Absolute, 28.0!))
            Me.TableLayoutPanel1.RowStyles.Add(New System.Windows.Forms.RowStyle(System.Windows.Forms.SizeType.Percent, 100.0!))
            Me.TableLayoutPanel1.Size = New System.Drawing.Size(370, 374)
            Me.TableLayoutPanel1.TabIndex = 0
            '
            'RadLabel4
            '
            Me.RadLabel4.AutoSize = False
            Me.RadLabel4.Dock = System.Windows.Forms.DockStyle.Fill
            Me.RadLabel4.Font = New System.Drawing.Font("Segoe UI Semilight", 11.25!, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, CType(0, Byte))
            Me.RadLabel4.Location = New System.Drawing.Point(0, 28)
            Me.RadLabel4.Margin = New System.Windows.Forms.Padding(0)
            Me.RadLabel4.Name = "RadLabel4"
            Me.RadLabel4.Size = New System.Drawing.Size(370, 28)
            Me.RadLabel4.TabIndex = 3
            Me.RadLabel4.Text = "QUARTERLY SALES DISTRIBUTION"
            '
            'RadChartView2
            '
            Me.RadChartView2.AreaDesign = CartesianArea1
            Me.RadChartView2.Dock = System.Windows.Forms.DockStyle.Fill
            Me.RadChartView2.Location = New System.Drawing.Point(3, 59)
            Me.RadChartView2.Name = "RadChartView2"
            Me.RadChartView2.ShowGrid = False
            Me.RadChartView2.Size = New System.Drawing.Size(364, 312)
            Me.RadChartView2.TabIndex = 8
            '
            'ucChartTest
            '
            Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
            Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
            Me.Controls.Add(Me.TableLayoutPanel1)
            Me.Margin = New System.Windows.Forms.Padding(0)
            Me.Name = "ucChartTest"
            Me.Size = New System.Drawing.Size(370, 374)
            Me.TableLayoutPanel1.ResumeLayout(False)
            CType(Me.RadLabel4, System.ComponentModel.ISupportInitialize).EndInit()
            CType(Me.RadChartView2, System.ComponentModel.ISupportInitialize).EndInit()
            Me.ResumeLayout(False)

        End Sub

        Friend WithEvents TableLayoutPanel1 As TableLayoutPanel
        Friend WithEvents RadLabel4 As Telerik.WinControls.UI.RadLabel
        Friend WithEvents RadChartView2 As Telerik.WinControls.UI.RadChartView
    End Class














  2. Martin Hamilton
    Martin Hamilton avatar
    36 posts
    Member since:
    Aug 2009

    Posted 26 Nov 2019 Link to this post

    Note: The formatting is not lost when the bars are vertical - only when the orientation is horizontal
  3. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3991 posts

    Posted 27 Nov 2019 Link to this post

    Hello, Martin,

    Following the provided code snippet, I have prepared a sample project and observed the described behavior.

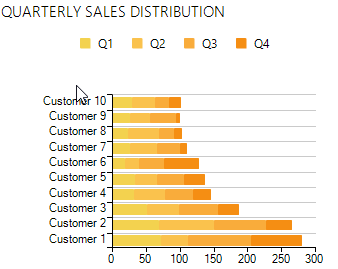

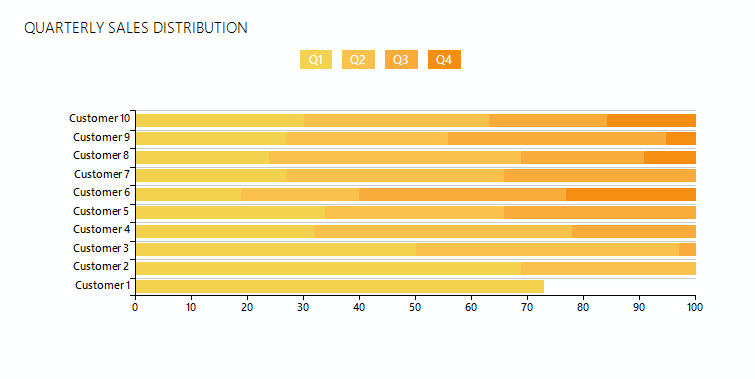

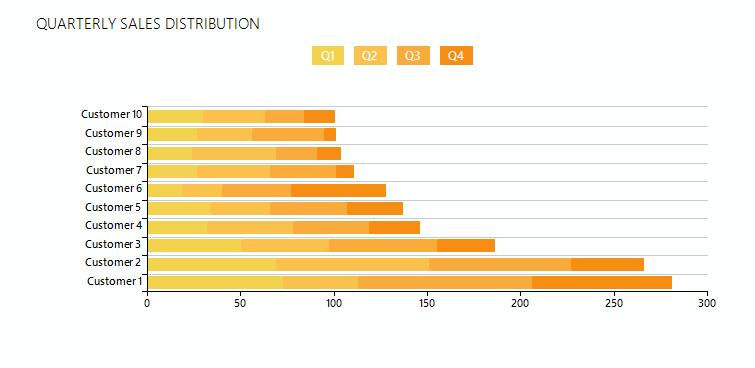

    According to the screenshots, it seems that the horizontal axis' range is change from [0-300] to [0-100]. The possible solution that I can suggest is after repopulating the RadChart with new BarSeries and data points, specify the LinearAxis' range. Thus, it would be always fixed:
                RadChartView1.GetArea(Of CartesianArea)().Orientation = Orientation.Horizontal
                Dim horizontalAxis As LinearAxis = TryCast(RadChartView1.Axes(1), LinearAxis)
                horizontalAxis.Minimum = 0
                horizontalAxis.Maximum = 300
                Application.DoEvents()


    I hope this information helps. If you need any further assistance please don't hesitate to contact me.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik
