PopUp Editor with scrollable window and keeping update/cancel buttons visible

10 posts, 0 answers
  1. Jelly Master
    Jelly Master avatar
    39 posts
    Member since:
    Oct 2010

    Posted 15 Oct 2013 Link to this post

    I am still finding my feet with the Kendo UI controls so please bare with me if this is a simple fix.

    I am using the MVC grid helper to display my grid with a pop up editor. The grid is showing a subset of fields but the editor shows all the fields which forces the popup editor to be scrollable.

    Is there a way to keep the update/cancel button always visible on the screen.

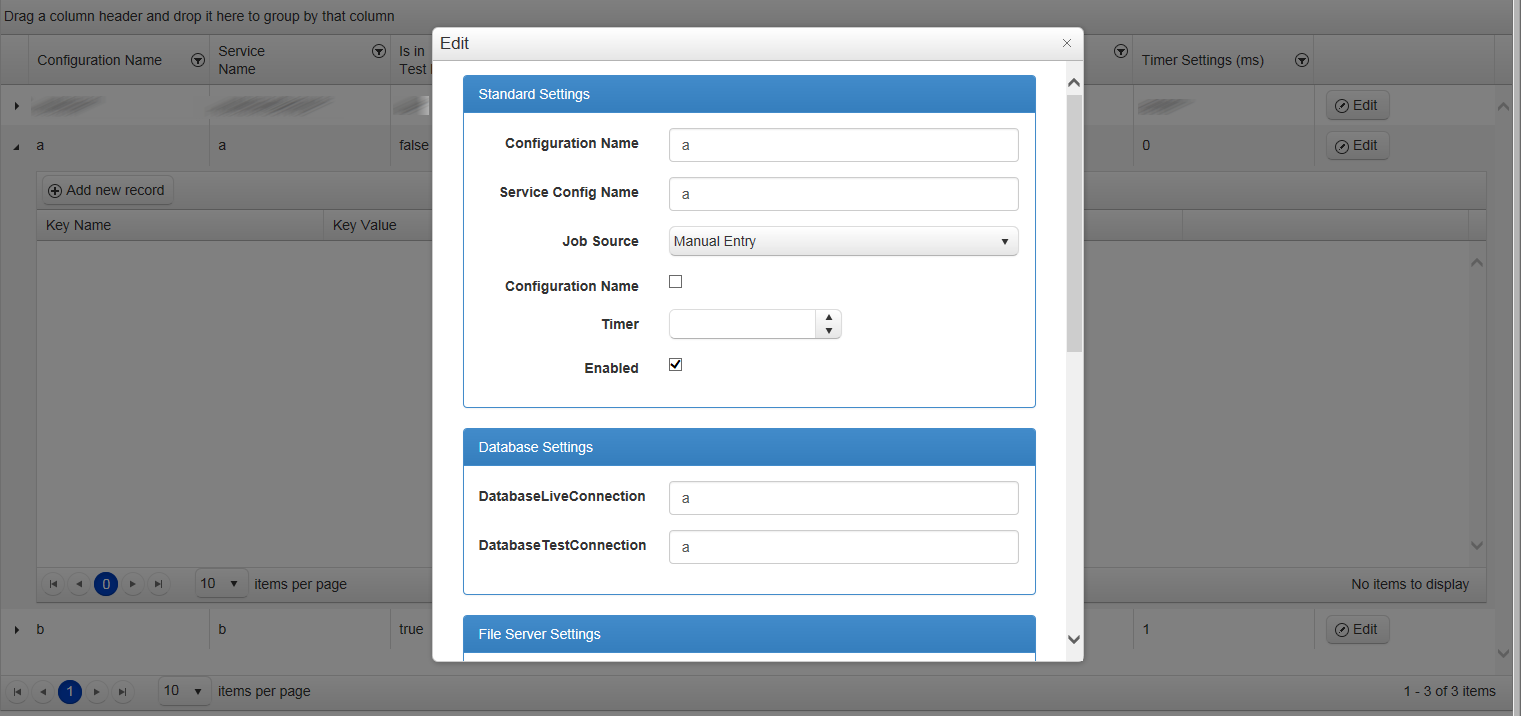

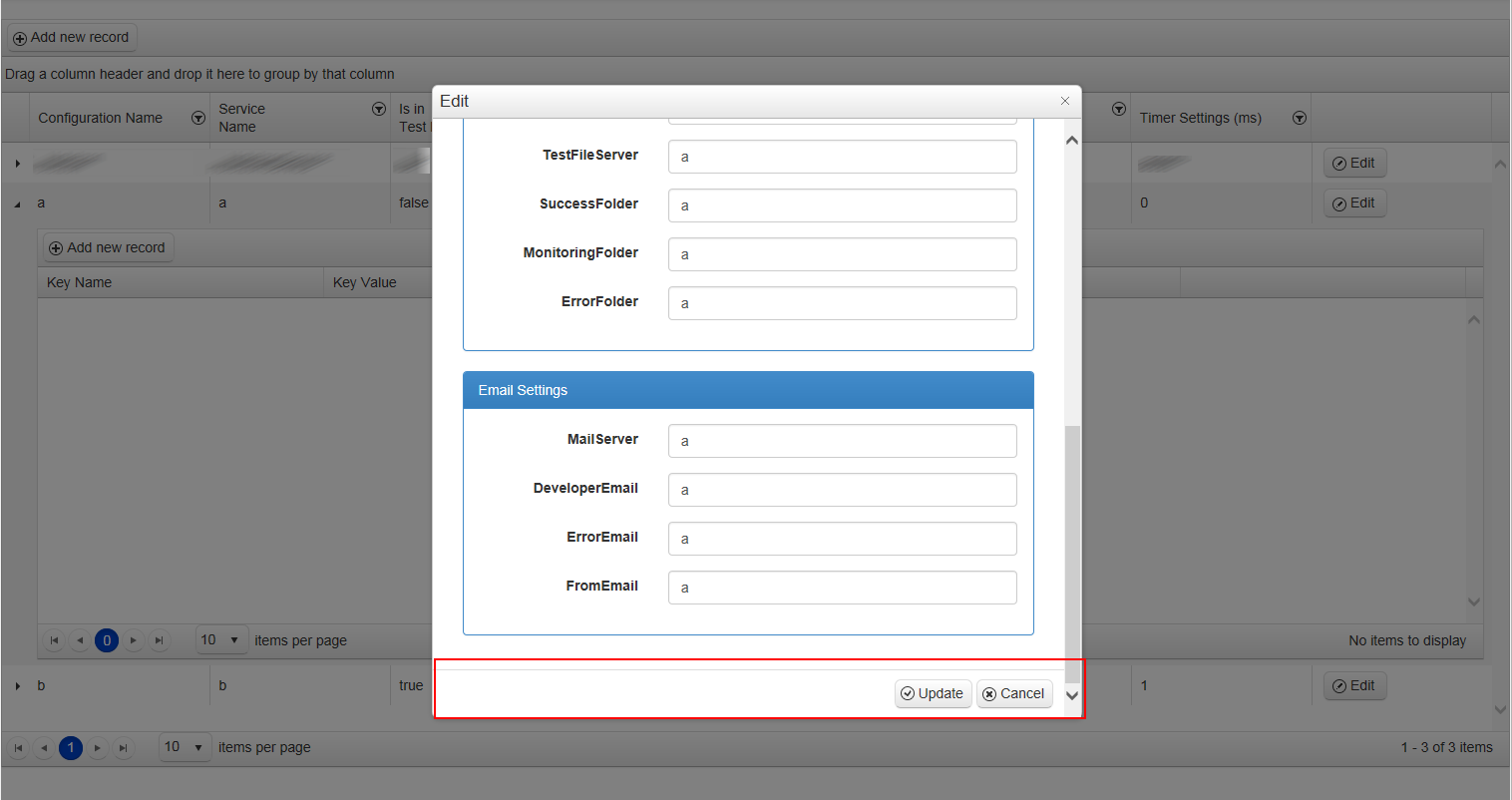

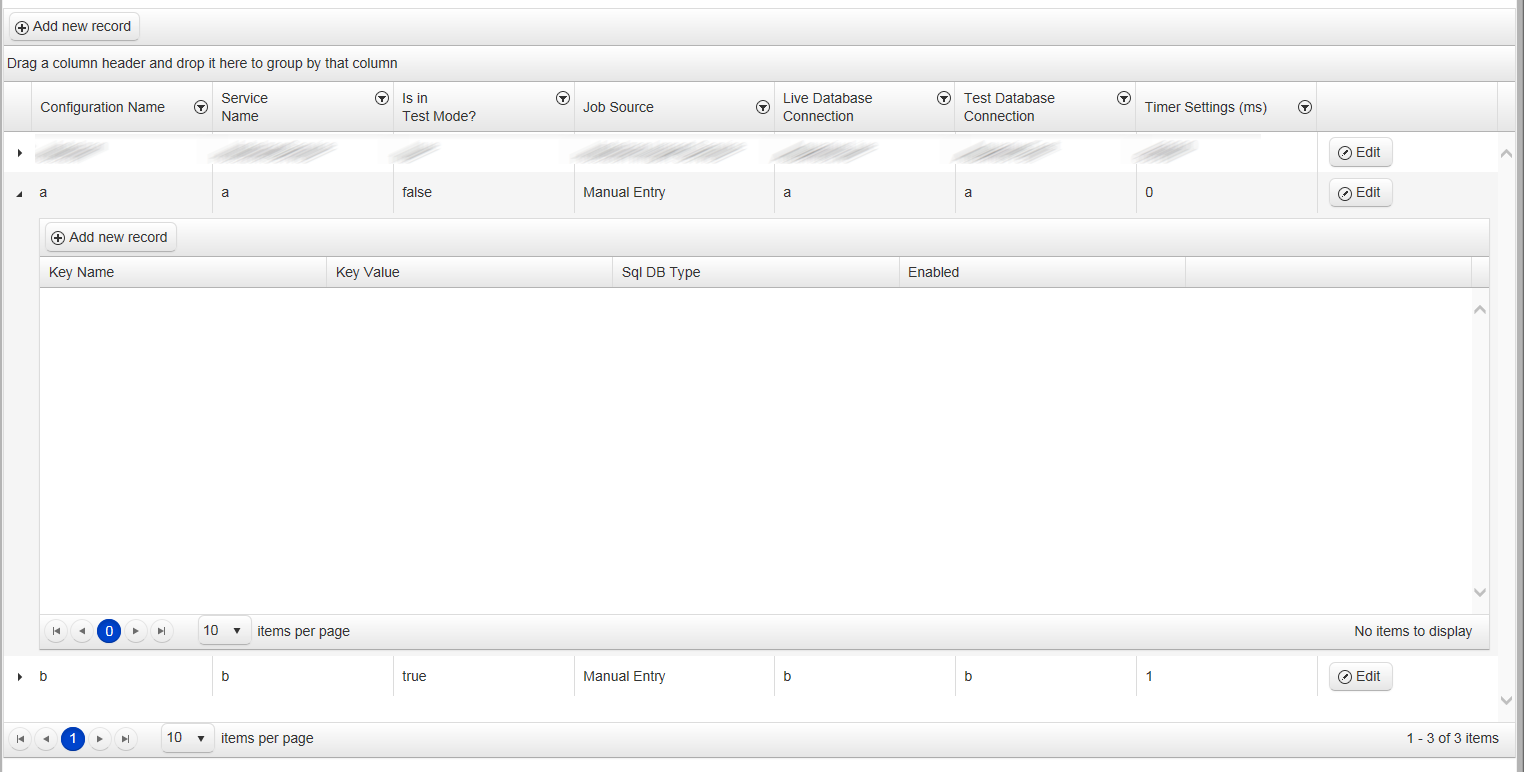

    Please see the attached images for an explanation of what I am trying to achieve.

    Thanks in advance for any help.



  2. Vladimir Iliev
    Admin
    Vladimir Iliev avatar
    2192 posts

    Posted 16 Oct 2013 Link to this post

    Hi David,


    I tried to reproduce the same behavior on your side, however the Window widget doesn't overflow with scrolling as demonstrated in the provided screenshots (most probably custom CSS styles are applied to the widget?). With the default settings you can enable the desired behavior by wrapping the current PopUp editor content in a "div" element with CSS overflow set to "scroll":

    <div style="overflow:scroll; height: 400px">

    .... More data

    </div>

    Kind Regards,
    Vladimir Iliev
    Telerik
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
  3. Jelly Master
    Jelly Master avatar
    39 posts
    Member since:
    Oct 2010

    Posted 16 Oct 2013 Link to this post

    Hopefully this will show you what I am trying to do.

    Index.cshtml


    @(Html.Kendo().Grid<Project.ViewModels.ConfigurationSetting>()
           .Name("Grid")
           .Columns(columns =>
               {

                   columns.Bound(a => a.Name);
                   columns.Bound(a => a.ServiceName).Title("Service<br/>Name");
                   columns.Bound(a => a.TestMode).Title("Is in<br/>Test Mode?");
                   columns.Bound(a => a.JobSourceItem).Title("Job Source").ClientTemplate("#=JobSourceItem.JobSourceName#").Width(200);
                   columns.Bound(a => a.DatabaseLiveConnection).Title("Live Database<br/>Connection");
                   columns.Bound(a => a.DatabaseTestConnection).Title("Test Database<br/>Connection");
                   columns.Bound(a => a.Timer).Title("Timer Settings (ms)");
                   columns.Command(command => command.Edit());
               })
            .Editable(edit =>
                                edit.Mode(GridEditMode.PopUp)
                                    .Window(window =>
                                                window.Animation(true)
                                                      .Scrollable(true)
                                                      .Resizable(resize => resize.Enabled(true))
                                                      .Width(650)
                                                      .Height(600)
                                           )
                                   .TemplateName("ConfigurationSettingEditor")
                      )

            .Pageable()
            .Pageable(c => c.PageSizes(new int[] { 10, 20, 50, 100 }))
            .Sortable()
            .HtmlAttributes(new { style = "height:600px;" })
            .Events(events => events.DataBound("onDataBound"))
            .Scrollable()
            .Resizable(c => c.Columns(true))

            .ClientDetailTemplateId("template")
            .Events(e => e.Edit("onEdit"))
            .ToolBar(toolBar =>
            {

                toolBar.Create();
            })
            .DataSource(dataSource => dataSource
                        .Ajax()
                        .Read(read => read.Action("ConfigurationSetting_Read", "Home"))
                        .Update(update => update.Action("ConfigurationSetting_Update", "Home"))
                        .Create(create => create.Action("ConfigurationSetting_Create", "Home"))
                        .Events(events => events.Error("error_handler"))
                        .Model(model =>
                            {
                                model.Id(a => a.ConfigurationSettingID);
                                model.Field(a => a.JobSourceItem).DefaultValue(new Project.ViewModels.JobSourceSetting());

                            })
                        )

        )




    <script id="template" type="text/kendo-tmpl">
        @(Html.Kendo().Grid<Project.ViewModels.ConfigurationSettingItem>()
            .Name("Grid_#=ConfigurationSettingID#")
            .Columns(columns =>
                                {
                                    columns.Bound(b => b.KeyName);
                                    columns.Bound(b => b.KeyValue).HtmlAttributes(new { style = "overflow: hidden;text-overflow: ellipsis;white-space:nowrap;" }).EditorTemplateName("ConfigurationSettingItemEditor");
                                    columns.Bound(b => b.SqlDBType);
                                    columns.Bound(b => b.Enabled);
                                    columns.Command(command =>
                                        {
                                            command.Edit();
                                        });
                                }
                    )
            .Sortable()
            .Pageable(c => c.PageSizes(new int[] { 10, 20, 50, 100 }))
            .Scrollable()
            .ToolBar(toolBar =>
                                {

                                    toolBar.Create();
                                }
                    )

            .Editable(edit =>
                                {
                                    edit.Mode(GridEditMode.InLine);

                                    edit.Enabled(true);


                                }
                     )

            .HtmlAttributes(new { style = "height:430px;" })
            .DataSource(datasource => datasource
                        .Ajax()
                        .PageSize(10)
                        .ServerOperation(true)
                        .Read(read => read.Action("ConfigurationItem_Read", "Home", new { configurationSettingID = "#=ConfigurationSettingID#" }))
                        .Update(update => update.Action("ConfigurationItem_Update", "Home"))
                        .Create(create => create.Action("ConfigurationItem_Create", "Home", new { configurationSettingID = "#=ConfigurationSettingID#" }))
                        .Events(events => events.Error("error_handler"))
                        .Model(model =>
                                {
                                    model.Id(q => q.ID);
                                    model.Field(q => q.KeyValue).Editable(true);
                                    model.Field(q => q.Enabled).DefaultValue(true);

                                })
                        )
            .ToClientTemplate()




        )

    </script>




    <script type="text/javascript">



        function error_handler(e) {
            if (e.errors) {
                var message = "Errors:\n";
                $.each(e.errors, function (key, value) {
                    if ('errors' in value) {
                        $.each(value.errors, function () {
                            message += this + "\n";
                        });
                    }
                });
                alert(message);
            }
        }


        function onEdit(e) {
            //attach validator to the PopUp window
            $("[data-role=window]").kendoValidator();
        }

        function onDataBound() {
            this.expandRow(this.tbody.find("tr.k-master-row").first());

        }


        function resizeGrid() {
            var gridElement = $("#Grid");
            var dataArea = gridElement.find(".k-grid-content");

            var newGridHeight = $(document).height() - 200;
            var newDataAreaHeight = newGridHeight - 85;



            dataArea.height(newDataAreaHeight);
            gridElement.height(newGridHeight);


            $("#Grid").data("kendoGrid").refresh();

        }


        $(document).ready(function () {
            resizeGrid();
        });


    </script>



    -----------------------------------------------------------

    ConfigurationSettingEditor.cshtml

    @model Project.ViewModels.ConfigurationSetting



    @Html.HiddenFor(cs => cs.ConfigurationSettingID)

    <div class="container">
        <div class="col-xs-12 col-sm-12 col-md-12 col-lg-12">
            <div class="form-horizontal">
                <div class="panel panel-primary">
                    <div class="panel-heading">Standard Settings</div>
                    <div class="panel-body">
                        <div class="form-group">



                            @Html.LabelFor(m => m.Name, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label " })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.Name, new { @class = "form-control" })

                            </div>
                        </div>


                        <div class="form-group">

                            @Html.LabelFor(m => m.ServiceName, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.ServiceName, new { @class = "form-control" })

                            </div>
                        </div>

                        <div class="form-group">
                            @Html.LabelFor(m => m.JobSourceItem, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })


                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8">
                                @(
     Html.Kendo().DropDownListFor(m => m.JobSourceItem)

                                                    .DataValueField("JobSourceSettingID")
                                                    .DataTextField("JobSourceName")
                                                    .HtmlAttributes(new { style = "width:100%;" })

                                                    .DataSource(
                                                     data => data.Read("Get_JobSources", "Home")

                                                    ).AutoBind(false)
                                                    .OptionLabel("Select Source Name....")


                                 )

                            </div>
                        </div>

                        <div class="form-group">

                            @Html.LabelFor(m => m.TestMode, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.CheckBoxFor(m => m.TestMode)

                            </div>
                        </div>

                         <div class="form-group">

                            @Html.LabelFor(m => m.Timer, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.Kendo().NumericTextBoxFor(m => m.Timer).Format("#").Step(10000).Min(60000)

                            </div>
                        </div>

                         <div class="form-group">

                            @Html.LabelFor(m => m.Enabled, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.CheckBoxFor(m => m.Enabled)

                            </div>
                        </div>
                    </div>
                </div>












                <div class="panel panel-primary">
                    <div class="panel-heading">Database Settings</div>
                    <div class="panel-body">

                        <div class="form-group">

                            @Html.LabelFor(m => m.DatabaseLiveConnection, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.DatabaseLiveConnection, new { @class = "form-control" })

                            </div>
                        </div>

                        <div class="form-group">

                            @Html.LabelFor(m => m.DatabaseTestConnection, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.DatabaseTestConnection, new { @class = "form-control" })

                            </div>
                        </div>

                    </div>


                </div>

                <div class="panel panel-primary">
                    <div class="panel-heading">File Server Settings</div>
                    <div class="panel-body">
                        <div class="form-group">

                            @Html.LabelFor(m => m.LiveFileServer, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.LiveFileServer, new { @class = "form-control" })
                            </div>
                        </div>

                        <div class="form-group">

                            @Html.LabelFor(m => m.TestFileServer, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.TestFileServer, new { @class = "form-control" })
                            </div>
                        </div>

                        <div class="form-group">

                            @Html.LabelFor(m => m.SuccessFolder, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.SuccessFolder, new { @class = "form-control" })
                            </div>
                        </div>

                        <div class="form-group">

                            @Html.LabelFor(m => m.MonitoringFolder, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.MonitoringFolder, new { @class = "form-control" })
                            </div>
                        </div>

                        <div class="form-group">

                            @Html.LabelFor(m => m.ErrorFolder, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.ErrorFolder, new { @class = "form-control" })
                            </div>
                        </div>


                    </div>
                </div>



                <div class="panel panel-primary">
                    <div class="panel-heading">Email Settings</div>
                    <div class="panel-body">
                        <div class="form-group">

                            @Html.LabelFor(m => m.MailServer, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.MailServer, new { @class = "form-control" })

                            </div>
                        </div>


                        <div class="form-group">

                            @Html.LabelFor(m => m.DeveloperEmail, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.DeveloperEmail, new { @class = "form-control" })

                            </div>
                        </div>

                          <div class="form-group">

                            @Html.LabelFor(m => m.ErrorEmail, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.ErrorEmail, new { @class = "form-control" })

                            </div>
                        </div>

                         <div class="form-group">

                            @Html.LabelFor(m => m.FromEmail, new { @class = " col-xs-4 col-sm-4 col-md-4 col-lg-4 control-label" })

                            <div class="col-xs-8 col-sm-8 col-md-8 col-lg-8 ">
                                @Html.TextBoxFor(m => m.FromEmail, new { @class = "form-control" })

                            </div>
                        </div>

                    </div>
                </div>


            </div>

        </div>
    </div>

  4. Vladimir Iliev
    Admin
    Vladimir Iliev avatar
    2192 posts

    Posted 18 Oct 2013 Link to this post

    Hi David,


    I would suggest to disable the Window "Scrollable" option, remove the "Height" option  and wrap the content of the editor template in a "div" element with CSS "oveflow" style set to "scroll". That way the content will be scrollable and the "Update" / "Cancel" buttons will be always visible.

    e.g.:

    .Window(window =>
        window.Animation(true)
                .Resizable(resize => resize.Enabled(true))
                .Width(650)
    ))


    <div style="overflow: scroll;  height: 600px" >
      content of the EditorTemplate
    </div>
    Regards,
    Vladimir Iliev
    Telerik
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
  5. Jelly Master
    Jelly Master avatar
    39 posts
    Member since:
    Oct 2010

    Posted 21 Oct 2013 Link to this post

    Thanks that worked perfectly.

    On another issue. Is there a way to force the nested grid to display a pop up window for editing rather than in cell.

    I would like to keep this control consistent and have all editing done within the pop up windows rather than having pop-window for the main grid and then in line editing for the nested grid.

  6. Vladimir Iliev
    Admin
    Vladimir Iliev avatar
    2192 posts

    Posted 22 Oct 2013 Link to this post

    Hi David,


    You can change the edit mode to PopUp the same way you change the edit mode of the parent Grid. If you experience difficulties changing the edit mode of the nested Grid I would suggest to open a new support ticket/form post and provide your current Grid setup.

    Kind Regards,
    Vladimir Iliev
    Telerik
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
  7. Jelly Master
    Jelly Master avatar
    39 posts
    Member since:
    Oct 2010

    Posted 22 Oct 2013 Link to this post

    I have changed the mode to popup but nothing happens.

    It is using the same code above.

    No JS error or anything else happen. The system just does nothing with the update/ add button on the child grids.

  8. Vladimir Iliev
    Admin
    Vladimir Iliev avatar
    2192 posts

    Posted 23 Oct 2013 Link to this post

    Hi David,


    From the provided information it's not clear for us what is the exact reason for current behavior. Could you please download this demo from our CodeLibrary and check if adding the following code to all Grids enables the PopUp editing (please check this screencast):

    .Editable(e => e.Mode(GridEditMode.PopUp))

    Then if you able to reproduce the issue in this project you can send it to us in order to investigate further what is the exact reason for this behavior.

    Kind Regards,
    Vladimir Iliev
    Telerik
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
  9. Jelly Master
    Jelly Master avatar
    39 posts
    Member since:
    Oct 2010

    Posted 23 Oct 2013 Link to this post

    So I have been digging further into this issue and it seems that the details grid is throwing an invalid template JS error.
    Uncaught Error: Invalid template:'<div class="editor-label"><label for="Enabled">Enabled</label></div><div class="editor-field"><input checked="checked" class="check-box" data-val="true" data-val-required="The Enabled field is required." id="Enabled" name="Enabled" type="checkbox" value="true" /><input name="Enabled" type="hidden" value="false" /> <span class="field-validation-valid" data-valmsg-for="Enabled" data-valmsg-replace="true"></span></div><div class="editor-label"><label for="KeyName">Setting Name</label></div><div class="editor-field"><input class="k-textbox form-control" data-val="true" data-val-required="The Setting Name field is required." id="KeyName" name="KeyName" type="text" value="" /> <span class="field-validation-valid" data-valmsg-for="KeyName" data-valmsg-replace="true"></span></div><div class="editor-label"><label for="KeyValue">Setting Value</label></div><div class="editor-field"><textarea class="text-box multi-line" data-val="true" data-val-required="The Setting Value field is required." id="KeyValue" name="KeyValue"></textarea> <span class="field-validation-valid" data-valmsg-for="KeyValue" data-valmsg-replace="true"></span></div><div class="editor-label"><label for="SqlDBType">SQL Data Type </label></div><div class="editor-field"><input class="k-textbox form-control" data-val="true" data-val-required="The SQL Data Type field is required." id="SqlDBType" name="SqlDBType" type="text" value="" /> <span class="field-validation-valid" data-valmsg-for="SqlDBType" data-valmsg-replace="true"></span></div>' Generated code:'var o,e=kendo.htmlEncode;with(data){o='<div class="editor-label"><label for="Enabled">Enabled</label></div><div class="editor-field"><input checked="checked" class="check-box" data-val="true" data-val-required="The&';32;Enabled&;o+='32;field&';32;is&;o+='32;required." id="Enabled" name="Enabled" type="checkbox" value="true" /><input name="Enabled" type="hidden" value="false" /> <span class="field-validation-valid" data-valmsg-for="Enabled" data-valmsg-replace="true"></span></div><div class="editor-label"><label for="KeyName">Setting Name</label></div><div class="editor-field"><input class="k-textbox&';32;form-control" data-val="true" data-val-required="The&;o+='32;Setting&';32;Name&;o+='32;field&';32;is&;o+='32;required." id="KeyName" name="KeyName" type="text" value="" /> <span class="field-validation-valid" data-valmsg-for="KeyName" data-valmsg-replace="true"></span></div><div class="editor-label"><label for="KeyValue">Setting Value</label></div><div class="editor-field"><textarea class="text-box&';32;multi-line" data-val="true" data-val-required="The&;o+='32;Setting&';32;Value&;o+='32;field&';32;is&;o+='32;required." id="KeyValue" name="KeyValue"></textarea> <span class="field-validation-valid" data-valmsg-for="KeyValue" data-valmsg-replace="true"></span></div><div class="editor-label"><label for="SqlDBType">SQL Data Type </label></div><div class="editor-field"><input class="k-textbox&';32;form-control" data-val="true" data-val-required="The&;o+='32;SQL&';32;Data&;o+='32;Type&';32;&;o+='32;field&';32;is&;o+='32;required." id="SqlDBType" name="SqlDBType" type="text" value="" /> <span class="field-validation-valid" data-valmsg-for="SqlDBType" data-valmsg-replace="true"></span></div>';}return o;'

    It would seem that others have had this same issue as well.

    http://www.kendoui.com/forums/kendo-ui-complete-for-asp-net-mvc/grid/hierarchical-grid-example-invalid-template-error.aspx#boENQq6aG2OF1P8AAFTdxQ

    https://gist.github.com/advancedrei/5724537

    Although I haven't got this bit of code working.

    making the following change to the webconfig has helped as a temporary fix:

    <system.web>
       <compilation debug="true" targetFramework="4.5">
         <assemblies>
           <add assembly="System.Web.Mvc, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
         </assemblies>
       </compilation>
       <!--<httpRuntime targetFramework="4.5" encoderType="System.Web.Security.AntiXss.AntiXssEncoder, System.Web, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" />-->
       <httpRuntime targetFramework="4.5"  />
    I noticed this issue also seemed to be affecting the menu control as well with some of the styling's throwing an error.

    If you need more info please let me know.





  10. Vladimir Iliev
    Admin
    Vladimir Iliev avatar
    2192 posts

    Posted 23 Oct 2013 Link to this post

    Hi David,


    Please note that issues related to AntiXssEncoder are not directly related to KendoUI as we cannot prevent encoding of the template output. I can only suggest to either turn-off the encoder or try to implement the linked solution in Github.

    Kind Regards,
    Vladimir Iliev
    Telerik
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
Back to Top
