Pivotgridv2 measure is not slicing the data by the second attribute when expanding

1 Answer 11 Views

Data Source PivotGridV2

mark asked on 13 May 2025, 01:36 AM



When there is a second item in a row and both are expanded the value is no longer sliced(filtered?) by the first item. My users are used to this with excel etc and really want this functionality how can I achieve it?

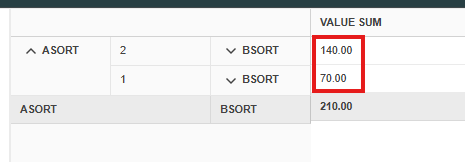

Value sum is correct (sliced) for all rows

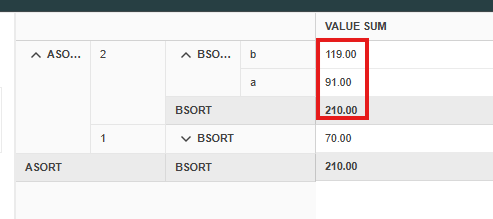

where second row is expanded and not correct(sliced?).

Here is a simplified version of my code showing the unwanted behavior

<!DOCTYPE html>
<html lang="en">
<head>
  <link href="../content/shared/styles/examples-offline.css" rel="stylesheet">
  <link href="../../styles/default-ocean-blue.css" rel="stylesheet">
  <script src="https://code.jquery.com/jquery-3.7.0.min.js"></script>
  <script src="https://unpkg.com/jszip/dist/jszip.min.js"></script>
  <script src="../../js/kendo.all.min.js"></script>
  <script src="../content/shared/js/console.js"></script>
</head>
<body>
  <div id="container">
    <div id="pivotgrid"></div>
    <div id="configurator"></div>
    <div id="pivotbutton"></div>
  </div>
  <script>
    var dataSource = new kendo.data.PivotDataSourceV2({
      "data": [
        { "Value": 77, "ASort": 2, "BSort": "b" },
        { "Value": 28, "ASort": 1, "BSort": "a" },
        { "Value": 63, "ASort": 2, "BSort": "a" },
        { "Value": 42, "ASort": 1, "BSort": "b" }
      ],
      rows: [
        { name: "ASort", expand: true },
        { name: "BSort", expand: true }
      ],
      "schema": {
        "model": {
          "fields": {
            "Value": { "type": "number" },
            "ASort": { "type": "number" },
            "BSort": { "type": "string" }
          }
        },
        "cube": {
          "dimensions": {
            "ASort": { "caption": "ASort" },
            "BSort": { "caption": "BSort" }
          },
          "measures": {
            "Value sum": {
              "field": "Value",
              "format": "{0:n}",
              "aggregate": "sum"
            }
          }
        }
      }
    });


    $(document).ready(function () {
      window.pivotgrid = $("#pivotgrid").kendoPivotGridV2({
        height: $(window).height() - 2,
        dataSource: dataSource

      }).data("kendoPivotGridV2");

      $("#configurator").kendoPivotConfiguratorV2({
        dataSource: pivotgrid.dataSource,
        filterable: true,
        sortable: true
      });

      $("#pivotbutton").kendoPivotConfiguratorButton({
        configurator: "configurator"
      });

      $("#container").kendoPivotContainer({
        configuratorPosition: "left"
      });
    });
  </script>

</body>
</html>

mark

commented on 14 May 2025, 03:59 AM

Pivotgrid (version 1) does not have this issue and keeps the subtotal line intact when expanded

Pivotgridv2 measure is not slicing the data by the second attribute when expanding

1 Answer, 1 is accepted
