Hello Charles,
Thank you for contacting Telerik Support.

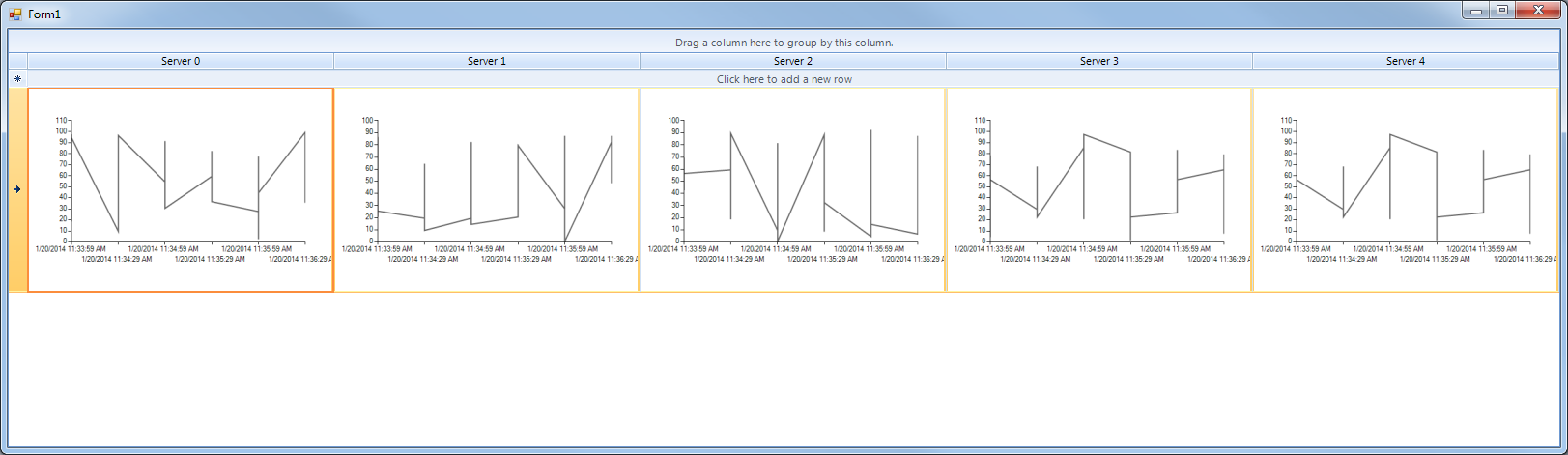

In order to display a
RadChartView in
RadGridView's cell, you may use the following approach.
public
Form1()
{
InitializeComponent();
GridServer.AutoSizeRows =
true
;
for
(
int
i = 0; i < 5; i++)
{
GridViewImageColumn imageColumn =
new
GridViewImageColumn(
"Server "
+ i);
imageColumn.ImageLayout = ImageLayout.Zoom;
GridServer.Columns.Add(imageColumn);
}
}
protected
override
void
OnLoad(EventArgs e)
{
base
.OnLoad(e);
GridViewRowInfo newRow = GridServer.Rows.NewRow();
foreach
(GridViewColumn column
in
GridServer.Columns)
{
RadChartView chart =
new
RadChartView();
LineSeries lineSeria =
new
LineSeries();
chart.Series.Add(lineSeria);
lineSeria.HorizontalAxis.LabelFitMode = Telerik.Charting.AxisLabelFitMode.MultiLine;
lineSeria.ValueMember =
"Value"
;
lineSeria.CategoryMember =
"DateTime"
;
lineSeria.DataSource = GetChartData();
chart.LoadElementTree();
Bitmap bmp =
new
Bitmap(chart.Width, chart.Height, PixelFormat.Format32bppArgb);
chart.DrawToBitmap(bmp,
new
Rectangle(0, 0, chart.Width, chart.Height));
newRow.Cells[column.Name].Value = bmp;
}
GridServer.Rows.Add(newRow);
}
private
DataTable GetChartData()
{
Random r =
new
Random();
DataTable table =
new
DataTable();
table.Columns.Add(
"DateTime"
,
typeof
(DateTime));
table.Columns.Add(
"Value"
,
typeof
(
double
));
for
(
int
i = 1; i <= 5; i++)
{
table.Rows.Add(DateTime.Now, r.Next(100));
table.Rows.Add(DateTime.Now.AddSeconds(30), r.Next(100));
table.Rows.Add(DateTime.Now.AddSeconds(60), r.Next(100));
table.Rows.Add(DateTime.Now.AddSeconds(90), r.Next(100));
table.Rows.Add(DateTime.Now.AddSeconds(120), r.Next(100));
table.Rows.Add(DateTime.Now.AddSeconds(150), r.Next(100));
}
return
table;
}
I hope this information helps. Should you have further questions, I would be glad to help.
Regards,
Desislava
