Multiple Axes Mode when LineSeries Datasource is Datatable

[George C.]

Greetings,

I have 2 data tables. Both of them have 2 columns. The first column is in common which is " Name" column. The second column is "Numerical Values" (each data table has its own different values in the second column). I need to make comparison between these two data tables via RadChartView and LineSeries. So the horizontal axes should represent the common column (Names), and the vertical axes should represent 2 LineSeries Diagram, each corresponding to a data table.

I use the code below to draw diagram of one data table :

Dim lineSeria As New LineSeries()
lineSeria.DataSource = dataTable1
lineSeria.ValueMember = "Values"
lineSeria.CategoryMember = "Names"
ChartView.Series.Add(lineSeria) 'ChartView is a RadChartView



How can I use RadchartView's Multiple axes mode to draw the second diagram along with the first one together for making a comparison ?

P.S I've read about Multi Axes mode in documentations. But my case is different as I use a data table as LineSeries datasource.



Thanks in advance.



[Nadya | Tech Support Engineer]

Hello, George,

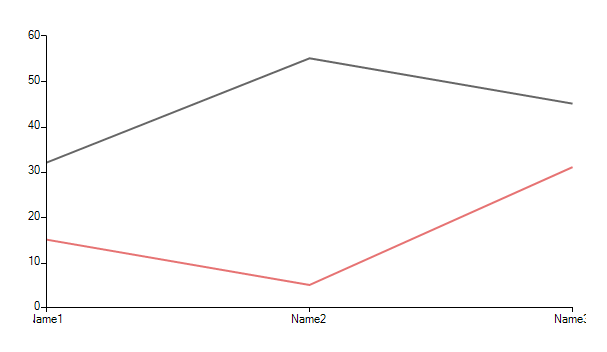

If I understand you correctly you would like to plot two LineSeries with equal names and different values in the RadChartView. In order to achieve this, you can add LineSeries and bind each of them to the desired data source. I prepared a sample example with two LineSeries that are bound to two different DataTables as per your requirement:

 public RadForm1()
 {
     InitializeComponent();

     //Table 1
     DataTable table1 = new DataTable();
     table1.Columns.Add("Name", typeof(string));
     table1.Columns.Add("Values", typeof(int));
     table1.Rows.Add("Name1", 32);
     table1.Rows.Add("Name2", 55);
     table1.Rows.Add("Name3", 45);
     LineSeries lineSeria = new LineSeries();
     lineSeria.ValueMember = "Values";
     lineSeria.CategoryMember = "Name";
     lineSeria.DataSource = table1;
     radChartView1.Series.Add(lineSeria);

     // Table 2
     DataTable table2 = new DataTable();
     table2.Columns.Add("Name", typeof(string));
     table2.Columns.Add("Values", typeof(int));
     table2.Rows.Add("Name1", 15);
     table2.Rows.Add("Name2", 5);
     table2.Rows.Add("Name3", 31);
     LineSeries lineSeria2 = new LineSeries();
     lineSeria2.ValueMember = "Values";
     lineSeria2.CategoryMember = "Name";
     lineSeria2.DataSource = table2;
     radChartView1.Series.Add(lineSeria2);

 }



Could you please give us some more details on how exactly you want to use multiple axes?

I hope this helps. Should you have other questions do not hesitate to contact me.

Regards,
Nadya
Progress Telerik

[George C.]

Exactly what I was looking for! Thanks
