Move bar drawing on gridview

3 posts, 1 answers
  1. Lek
    Lek avatar
    2 posts
    Member since:
    Oct 2013

    Posted 18 Oct 2013 Link to this post

    from

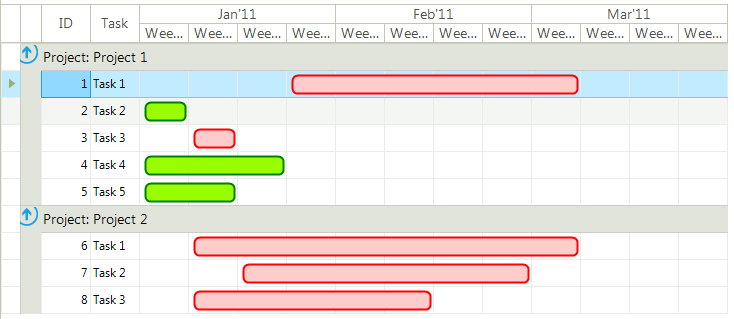

    Demo Application - RadControls for WinForms.
    Gridview -> Custom Painting.

    I want to move the drawing image in grid view.
    - change cursor on mouse over
    - drag and drop drawing
    - show image moving

    please help me...
  2. Answer
    George
    Admin
    George avatar
    500 posts

    Posted 23 Oct 2013 Link to this post

    Hello Lek,

    Thank you for contacting us.

    There is a lot of information in internet about how to drag-drop a drawn shapes. Please, refer to some of the articles I found:
    1. http://stackoverflow.com/questions/2442105/drag-and-drop-rectangle-in-c-sharp
    2. http://stackoverflow.com/questions/5307938/drag-and-drop-function-with-drawing-rectangle-c-sharp-net-forms
    3. http://social.msdn.microsoft.com/forums/wpapps/en-us/26c21f6d-ef4f-4e66-817e-7145d8f57e66/adding-dragdropresizable-selection-rectangle-to-image-editor

    You can also try the code below, which enables you to create rectangles on the form and drag-drop them. I used a plain Form for simplicity. The case with RadGridView will be no different.
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
            this.DoubleBuffered = true;
        }

        Rectangle rec = new Rectangle(0, 0, 0, 0);
        List<Figure> figures = new List<Figure>();
        bool moveFigure;
        Figure currentFigure;
        Figure tempFigure;

        protected override void OnPaint(PaintEventArgs e)
        {
            foreach (Figure figure in figures)
            {
                figure.Draw(e.Graphics);
            }

            if (this.tempFigure != null)
            {
                this.tempFigure.Draw(e.Graphics);
            }
        }

        protected override void OnMouseDown(MouseEventArgs e)
        {
            if (e.Button == MouseButtons.Left)
            {
                rec = new Rectangle(e.X, e.Y, 0, 0);
                foreach (var figure in this.figures)
                {
                    if (figure.Bounds.Contains(rec))
                    {
                        currentFigure = figure;
                        moveFigure = true;
                        break;
                    }
                }

                Invalidate();
            }
        }

        protected override void OnMouseMove(MouseEventArgs e)
        {
            if (e.Button == MouseButtons.Left)
            {
                if (this.moveFigure)
                {
                    this.currentFigure.Bounds = new Rectangle(e.Location.X, e.Location.Y
                        , this.currentFigure.Bounds.Width, this.currentFigure.Bounds.Height);
                }
                else
                {
                    rec.Width = e.X - rec.X;
                    rec.Height = e.Y - rec.Y;
                }

                this.tempFigure = new Figure
                {
                    Bounds = rec,
                };

                Invalidate();
            }

            if (this.moveFigure)
            {
                this.Cursor = Cursors.Hand;
            }
            else
            {
                this.Cursor = Cursors.Default;
            }

        }

        protected override void OnMouseUp(MouseEventArgs e)
        {
            base.OnMouseUp(e);

            this.moveFigure = false;
            this.currentFigure = null;

            figures.Add(this.tempFigure);
        }
    }

    public class Figure
    {
        private Rectangle bounds;
        private Color fill = Color.Blue;

        public Rectangle Bounds
        {
            get { return this.bounds; }
            set { this.bounds = value; }
        }

        public Color Fill
        {
            get { return this.fill; }
            set { this.fill = value; }
        }

        public void Draw(Graphics g)
        {
            g.FillRectangle(new SolidBrush(this.Fill), this.bounds);
        }

        public void Clear(Graphics g, Color color)
        {
            g.Clear(color);
        }
    }

    I hope this helps.

    Regards,
    George
    Telerik
