    Is it possible to have rows size dynamically based on their content and to set a minimum height?
  2. Lance | Manager Technical Support
    Admin
    Lance | Manager Technical Support avatar
    1168 posts

    Posted 17 Sep 2018 Link to this post

    Hi Ian,

    Currently there isn't a property available in the Telerik API or RadListView API (i.e. ListViewLayoutDefinition) that sets a minimum height, yet still allows for expansion. I've submitted a Feature Request: ListView: LayoutDefinition MinimumItemLength property

    Unnecessary Feature

    You don't need to wait for such a feature to be implemented, because the minimum height is the amount determined by your custom content.

    For example, here's a demo where there are three Labels. One of the labels is hidden or shown depending on a boolean value.

    <listView:ListViewTemplateCell>
        <StackLayout>
             <Label Text="{Binding Title}" />
             <Label Text="{Binding Author}" />
             <Label Text="Is Favorite!"
                  IsVisible="{Binding IsFavorite}" />
        </StackLayout>
    </listView:ListViewTemplateCell>

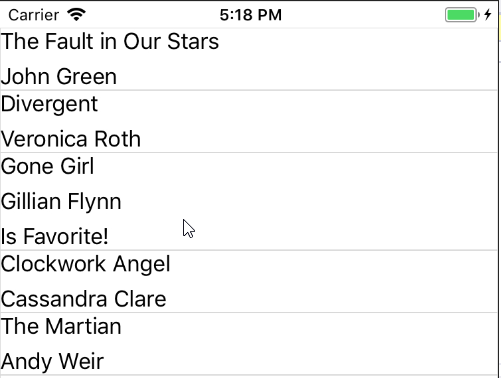

    The cells always take up the minimum amount of space defined by the template.



    This means your custom content can determine the minimum height and you don't need an API from the RadListView to achieve the goal. You'll just need to consider what needs to be the minimum height for your content and set it accordingly.

    For example, here's the same code from above, but I've stated that I don't want the two labels to be smaller than 200px:

    <listView:ListViewTemplateCell>
        <StackLayout>
            <StackLayout HeightRequest="200">
                <Label Text="{Binding Title}" />
                <Label Text="{Binding Author}" />
            </StackLayout>
            <Label Text="Is Favorite!"
                   IsVisible="{Binding IsFavorite}" />
        </StackLayout>
    </listView:ListViewTemplateCell>

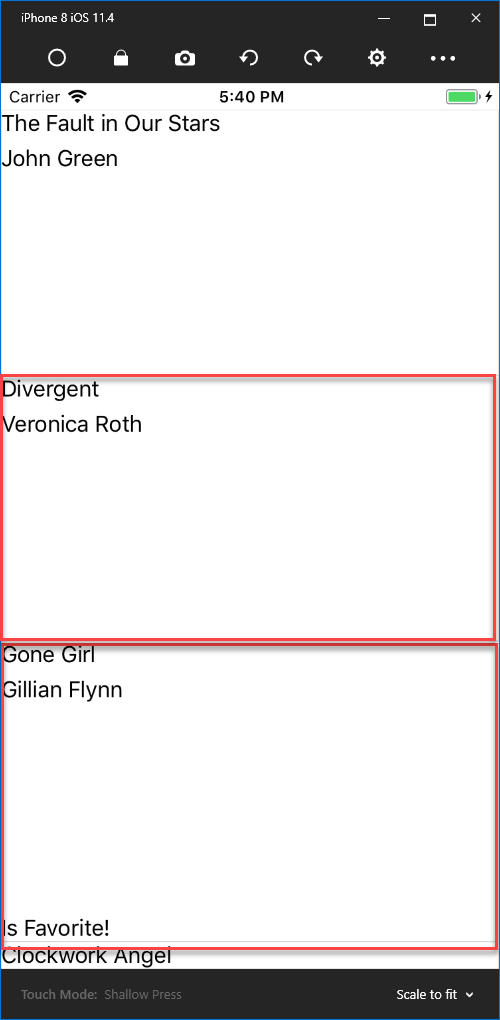

    Here's the result at runtime, you can clearly see that the IsFavorite cell is larger than the other cells that have a minimum of 200px:




    I hope this clarifies the case. I've still submitted the feature request because I think it will be useful for edge cases where you can't change the height values of the content.

    Regards,
    Lance | Tech Support Engineer, Sr.
    Progress Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. Ian
    Ian avatar
    68 posts
    Member since:
    Jul 2017

    Posted 18 Sep 2018 Link to this post

    This strategy works. I thought I'd already tried it but I must have made a mistake.
