asked on 05 Aug 2010, 11:04 AM
Hi,
I've just recently started using the Telerik tools and I'm rapidly becoming a fan.
I have one feature request though;

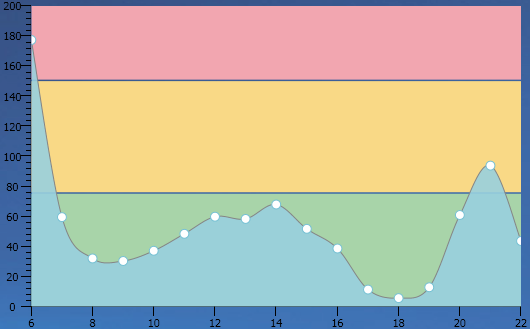

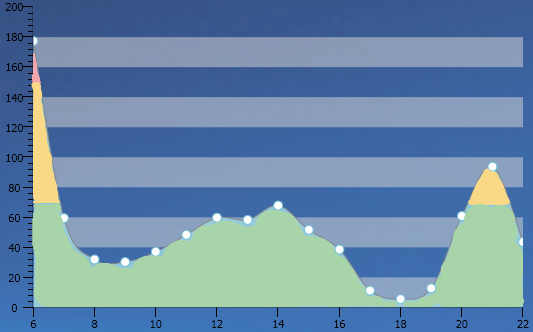

I have a chart which can be seen in the attached file, currentgraph.png. As you can see, I'm using the Marked Zones feature - which is great - but what I would really like to see, is the option of doing what I've done in the other attached file, newgraph.png (made in Paint, but I'm sure you get the idea).
This way, I don't have to stare at the ugly red block of background all the time, and when something red appears on my chart, I know it needs my attention.
Is there a feature that I don't know or is there any hope of seeing this feature in a future release?
I've just recently started using the Telerik tools and I'm rapidly becoming a fan.
I have one feature request though;
I have a chart which can be seen in the attached file, currentgraph.png. As you can see, I'm using the Marked Zones feature - which is great - but what I would really like to see, is the option of doing what I've done in the other attached file, newgraph.png (made in Paint, but I'm sure you get the idea).
This way, I don't have to stare at the ugly red block of background all the time, and when something red appears on my chart, I know it needs my attention.
Is there a feature that I don't know or is there any hope of seeing this feature in a future release?
5 Answers, 1 is accepted
0
Hello Clement,
One possible option in this case would be to use a gradient brush for the series. You can find additional information on the subject in the following article:
http://www.telerik.com/help/wpf/radchart-styling-and-appearance-styling-chart-series.html
The code may look something like this:
This would allow you to not use the marked zones, and achieve an effect which is less obtrusive.
I hope this information helps.
Greetings,
Yavor
the Telerik team
One possible option in this case would be to use a gradient brush for the series. You can find additional information on the subject in the following article:
http://www.telerik.com/help/wpf/radchart-styling-and-appearance-styling-chart-series.html
The code may look something like this:
public MainPage()
{
InitializeComponent();
List<
Manufacturer
> data = new List<
Manufacturer
>();
data.Add(new Manufacturer("Monday", "Dave", 14, 111));
data.Add(new Manufacturer("Tuesday", "Dave", 1, 122));
data.Add(new Manufacturer("Wednesday", "Dave", 3, 155));
this.telerikChart.ItemsSource = data;
LinearGradientBrush brush1 = new LinearGradientBrush();
GradientStop stop1 = new GradientStop();
stop1.Offset = 0.2;
stop1.Color = Colors.Red;
GradientStop stop2 = new GradientStop();
stop2.Offset = 0.5;
stop2.Color = Colors.Blue;
brush1.GradientStops.Add(stop1);
brush1.GradientStops.Add(stop2);
brush1.StartPoint = new Point(0.5, 0);
brush1.EndPoint = new Point(0.5,1);
telerikChart.DefaultView.ChartArea.PaletteBrushes.Add(brush1);
}
This would allow you to not use the marked zones, and achieve an effect which is less obtrusive.
I hope this information helps.
Greetings,
Yavor
the Telerik team
