Making radgridview column as GridViewMultiComboBoxColumn

[neha]

hello all

Please guide me,how can i first bind the radgridview with datatable and then making one of its column as GridViewMultiComboBoxColumn.

Warm regards
Neha

[Stefan]

Hi neha,

Thank you for writing.

For detailed information on how to bind RadGridView to a DataTable, please refer to the following help article.

Then, in order to make one of its columns GridViewMultiComboBoxColumn you should:

• remove the column that you want to change
• add a new GridViewMultiComboBoxColumn
• set the new GridViewMultiComboBoxColumn.FieldName to the FieldName value of the removed column (which will restore the data mapping and fill it with data)

Refer to the next snippet for a code representation of the above explanation:

radGridView1.Columns.Remove("CategoryName");
GridViewMultiComboBoxColumn column = new GridViewMultiComboBoxColumn();
column.FieldName = "CategoryName";
radGridView1.Columns.Add(column);

In case you need to bind this GridViewMultiComboBoxColumn, please refer to this help article.

Best wishes,
Stefan
the Telerik team

[Victoria F]

Hello guys ,

I have a question : how can I set a width of columns in GridViewMultiComboBoxColumn.
Now I have a GridVIew with GridViewMultiComboBoxColumn that when open DropDown shows 2 columns. Those columns have default width. I want to increase it.
Please , help.

Thank you,
Victoria.

[Martin Vasilev]

Hello Victoria F,

Thank you for your question.

In CellEditorInitialized event you can access the embedded RadGridView in RadMultiColumnComboBox editor and configure it to your needs. Please consider the following code:

void radGridView1_CellEditorInitialized(object sender, GridViewCellEventArgs e)
{
    RadMultiColumnComboBoxElement multiComboElement = this.radGridView1.ActiveEditor as RadMultiColumnComboBoxElement;
    if (multiComboElement != null)
    {
        multiComboElement.EditorControl.Columns[0].Width = 200;
    }
}

I hope this helps. Let me know if you have any other questions.

Regards,
Martin Vasilev
the Telerik team

[Victoria F]

Hello Stefan ,

Lets see If column "CategoryName" is the first column ,
So , first I'm writing :

radGridView1.DataSource  = dtDataTable;

after this line goes code:

radGridView1.Columns.Remove("CategoryName");
GridViewMultiComboBoxColumn column = new GridViewMultiComboBoxColumn();
column.FieldName = "CategoryName";
radGridView1.Columns.Add(column);

the new column appears at the end , so I have to move it at the right place:



radGridView1.Columns.Move(radGridView1.Columns.Count - 1, 0);

But what happened with retrieved values of this column?
The column is empty.
So do I have to loop through and copy all the values from the removed column and assign them to the new one or there is a solution that all originally retrieved values are reflected in a new MultiComboBoxColumn?

Thank you ,
Victoria.

[Martin Vasilev]

Hello Victoria F,

Thank you for getting back to us.

You can achieve the described requirement using the Insert method when adding the new column:

GridViewMultiComboBoxColumn column = new GridViewMultiComboBoxColumn();
column.FieldName = "CategoryName";
radGridView1.Columns.Insert(0, column);

Please give it a try and let me know if you still experience any issues.

Best wishes,
Martin Vasilev
the Telerik team

[Victoria F]

Thank you Martin,

It's really works and inserts the column in the right place. But it still has the same problem with values.
The column in the gridview is empty. All other columns are populated from the datasource exept this one...

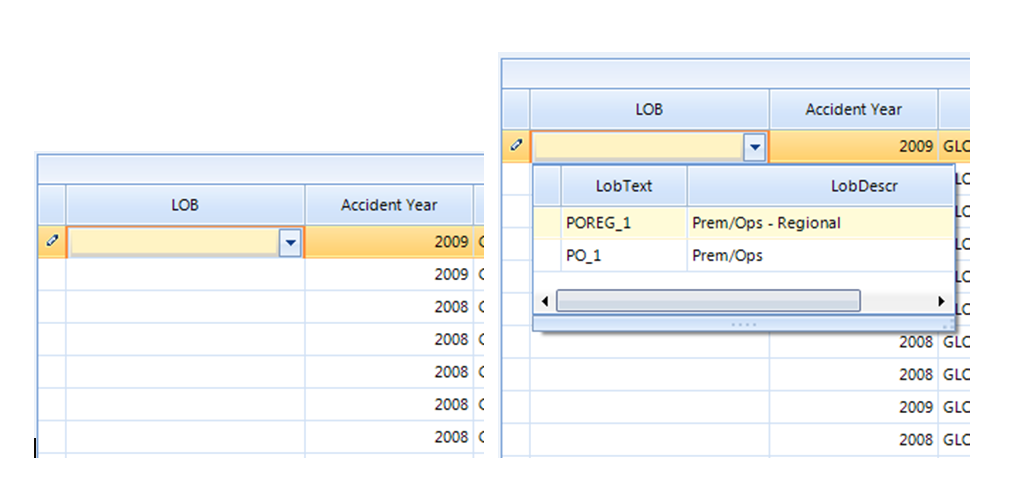

Please , see the picture attached...
The values are in the GridViewMultiComboBoxColumn. So when I open dropdown box the values are there.
 In debugger I see that the column #3 HAS values, but why those values are not displayed in the gridview?

radGridView1.Rows[i].Cells[3].Value  = "PO_1", but on the screen it's empty...?????


Thank you,
Victoria.

[Richard Slade]

Hello Victoria,

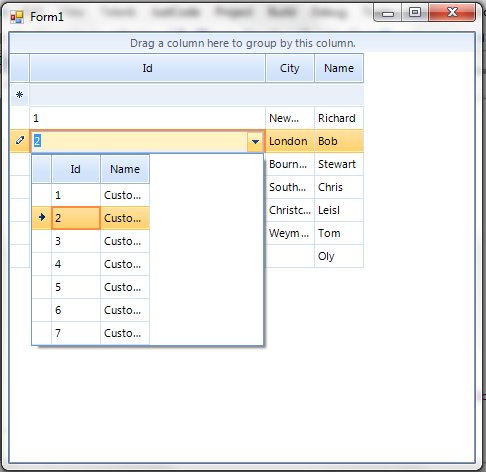

I have tried this out and have everything working fine in a very simple exmaple.
1: I have bound a radGridView to a simple list based datasource that contains an Id column, plus a few others
2: I have removed that column
3: Then added in a GridViewmultiComboBoxColumn, specifying a new datasource for it, along with a DisplayMember and ValueMember
4: I then moved this column to the first column index in the RadGridView.

I think this is what you are trying to achieve here. is that correct?
If so, please try this sample and let me know if that works for you.

using Telerik.WinControls;
using Telerik.WinControls.UI;
using Telerik.WinControls.Data;
using Telerik.WinControls.UI.Grid;

public class Form1
{


    private void Form1_Load(System.Object sender, System.EventArgs e)
    {
        // Make a data source for the grid
        List<person> list = new List<person>();
        list.Add(new person("Richard", 1, "New Milton"));
        list.Add(new person("Bob", 2, "London"));
        list.Add(new person("Stewart", 3, "Bournemouth"));
        list.Add(new person("Chris", 4, "Southampton"));
        list.Add(new person("Leisl", 1, "Christcurch"));
        list.Add(new person("Tom", 5, "Weymouth"));
        list.Add(new person("Oly", 6, null));
        // assign the data source of the grid
        this.RadGridView1.DataSource = list;

        // Make a data source for the multi column combo
        List<Customer> customers = new List<Customer>();
        customers.Add(new Customer(1, "Customer 1"));
        customers.Add(new Customer(2, "Customer 2"));
        customers.Add(new Customer(3, "Customer 3"));
        customers.Add(new Customer(4, "Customer 4"));
        customers.Add(new Customer(5, "Customer 5"));
        customers.Add(new Customer(6, "Customer 6"));
        customers.Add(new Customer(7, "Customer 7"));

        // remove the bound id column
        this.RadGridView1.Columns.Remove("Id");

        // Make a new multi combo column
        GridViewMultiComboBoxColumn column = new GridViewMultiComboBoxColumn();
        column.FieldName = "Id";
        column.DataSource = customers;
        column.DisplayMember = "Id";
        column.ValueMember = "Id";
        // Add the new column back in
        this.RadGridView1.Columns.Add(column);

        // move it to the start
        this.RadGridView1.Columns.Move(RadGridView1.Columns.Count - 1, 0);
    }

}

public class Customer
{
    private int m_CustomerId;

    private string m_ContactName;
    public Customer(int id, string name)
    {
        m_ContactName = name;
        m_CustomerId = id;
    }

    public string Name {
        get { return m_ContactName; }
    }

    public int Id {
        get { return m_CustomerId; }
    }
}

public class person
{
    private int m_Customer_Id;
    private string m_Name;

    private string m_City;
    public person()
    {
    }

    public person(string name, int id, string city)
    {
        m_Name = name;
        m_Customer_Id = id;
        m_City = city;
    }

    public string City {
        get { return m_City; }
        set { m_City = value; }
    }

    public string Name {
        get { return m_Name; }
        set { m_Name = value; }
    }

    public int Id {
        get { return m_Customer_Id; }
        set { m_Customer_Id = value; }
    }

}

and in it's original VB form

Imports Telerik.WinControls
Imports Telerik.WinControls.UI
Imports Telerik.WinControls.Data
Imports Telerik.WinControls.UI.Grid

Public Class Form1

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        ' Make a data source for the grid
        Dim list As New List(Of person)
        list.Add(New person("Richard", 1, "New Milton"))
        list.Add(New person("Bob", 2, "London"))
        list.Add(New person("Stewart", 3, "Bournemouth"))
        list.Add(New person("Chris", 4, "Southampton"))
        list.Add(New person("Leisl", 1, "Christcurch"))
        list.Add(New person("Tom", 5, "Weymouth"))
        list.Add(New person("Oly", 6, Nothing))
        ' assign the data source of the grid
        Me.RadGridView1.DataSource = list

        ' Make a data source for the multi column combo
        Dim customers As New List(Of Customer)
        customers.Add(New Customer(1, "Customer 1"))
        customers.Add(New Customer(2, "Customer 2"))
        customers.Add(New Customer(3, "Customer 3"))
        customers.Add(New Customer(4, "Customer 4"))
        customers.Add(New Customer(5, "Customer 5"))
        customers.Add(New Customer(6, "Customer 6"))
        customers.Add(New Customer(7, "Customer 7"))

        ' remove the bound id column
        Me.RadGridView1.Columns.Remove("Id")

        ' Make a new multi combo column
        Dim column As New GridViewMultiComboBoxColumn()
        column.FieldName = "Id"
        column.DataSource = customers
        column.DisplayMember = "Id"
        column.ValueMember = "Id"
        ' Add the new column back in
        Me.RadGridView1.Columns.Add(column)

        ' move it to the start
        Me.RadGridView1.Columns.Move(RadGridView1.Columns.Count - 1, 0)
    End Sub

End Class

Public Class Customer
    Private m_CustomerId As Integer
    Private m_ContactName As String

    Public Sub New(ByVal id As Integer, ByVal name As String)
        m_ContactName = name
        m_CustomerId = id
    End Sub

    Public ReadOnly Property Name() As String
        Get
            Return m_ContactName
        End Get
    End Property

    Public ReadOnly Property Id() As Integer
        Get
            Return m_CustomerId
        End Get
    End Property
End Class

Public Class person
    Private m_Customer_Id As Integer
    Private m_Name As String
    Private m_City As String

    Public Sub New()
    End Sub

    Public Sub New(ByVal name As String, ByVal id As Integer, ByVal city As String)
        m_Name = name
        m_Customer_Id = id
        m_City = city
    End Sub

    Public Property City() As String
        Get
            Return m_City
        End Get
        Set(ByVal value As String)
            m_City = value
        End Set
    End Property

    Public Property Name() As String
        Get
            Return m_Name
        End Get
        Set(ByVal value As String)
            m_Name = value
        End Set
    End Property

    Public Property Id() As Integer
        Get
            Return m_Customer_Id
        End Get
        Set(ByVal value As Integer)
            m_Customer_Id = value
        End Set
    End Property

End Class

regards,
Richard

[Victoria F]

Richard ,

I beleive this is a bug of the control..
I added to your code only this little piece

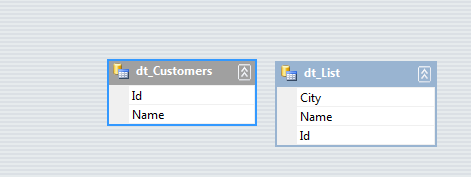

1. I created 2 datatable that have the same structure as your lists.
2. I fill those datatables with the values from your lists.
3. I assign as a DataSource for the main GridView and Dropdown column my new DataTables.

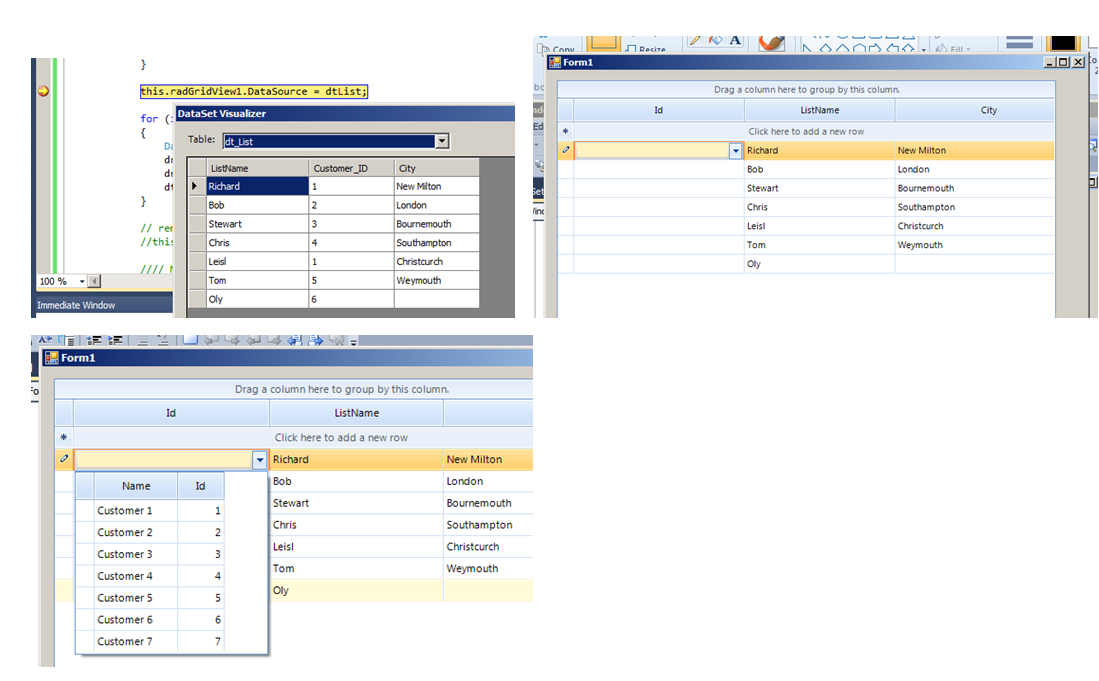

4. I get EMPTY column  !!!!!!!  See the picture.
5. I'll attach the full code..

// those lines are DataTables that have the same structure as your lists
            DataTable dtList = new WindowsFormsApplication1.DataSet1.dt_ListDataTable();
            DataTable dtCustomers = new WindowsFormsApplication1.DataSet1.dt_CustomersDataTable();

            //here I filled DataTables with values  see the picture attached
            for (int i = 0; i < list.Count; i++)
            {
                DataRow dr = dtList.NewRow();
                dr[0] = list[i].Name;
                dr[1] = list[i].Id;
                dr[2] = list[i].City;
                dtList.Rows.Add(dr);
            }
            // Here DataSource is a DataTable !!!!!!!!!!!!!!!!!!!!!
            this.radGridView1.DataSource = dtList;

            for (int i = 0; i < customers.Count; i++)
            {
                DataRow dr = dtCustomers.NewRow();
                dr[0] = customers[i].Name;
                dr[1] = customers[i].Id;
                dtCustomers.Rows.Add(dr);
            }

 :

private void Form1_Load(object sender, EventArgs e)
{
    // Make a data source for the grid
    List<person> list = new List<person>();
    list.Add(new person("Richard", 1, "New Milton"));
    list.Add(new person("Bob", 2, "London"));
    list.Add(new person("Stewart", 3, "Bournemouth"));
    list.Add(new person("Chris", 4, "Southampton"));
    list.Add(new person("Leisl", 1, "Christcurch"));
    list.Add(new person("Tom", 5, "Weymouth"));
    list.Add(new person("Oly", 6, null));
    // assign the data source of the grid
    //!!!!!! this line I commented out !!!!!!!
    //this.radGridView1.DataSource = list;
    // Make a data source for the multi column combo
    List<Customer> customers = new List<Customer>();
    customers.Add(new Customer(1, "Customer 1"));
    customers.Add(new Customer(2, "Customer 2"));
    customers.Add(new Customer(3, "Customer 3"));
    customers.Add(new Customer(4, "Customer 4"));
    customers.Add(new Customer(5, "Customer 5"));
    customers.Add(new Customer(6, "Customer 6"));
    customers.Add(new Customer(7, "Customer 7"));
    // those lines are DataTables that have the same structure as your lists
    DataTable dtList = new WindowsFormsApplication1.DataSet1.dt_ListDataTable();
    DataTable dtCustomers = new WindowsFormsApplication1.DataSet1.dt_CustomersDataTable();
    //here I filled DataTables with values  see the picture attached
    for (int i = 0; i < list.Count; i++)
    {
        DataRow dr = dtList.NewRow();
        dr[0] = list[i].Name;
        dr[1] = list[i].Id;
        dr[2] = list[i].City;
        dtList.Rows.Add(dr);
    }
    // Here DataSource is a DataTable !!!!!!!!!!!!!!!!!!!!!
    this.radGridView1.DataSource = dtList;
    for (int i = 0; i < customers.Count; i++)
    {
        DataRow dr = dtCustomers.NewRow();
        dr[0] = customers[i].Name;
        dr[1] = customers[i].Id;
        dtCustomers.Rows.Add(dr);
    }
    // remove the bound id column
    this.radGridView1.Columns.Remove("Customer_ID");
    // Make a new multi combo column
    GridViewMultiComboBoxColumn column = new GridViewMultiComboBoxColumn();
    column.FieldName = "Id";
    column.DataSource = customers;
    //column.DataSource = dtCustomers;
    column.DisplayMember = "Id";
    column.ValueMember = "Id";
    // Add the new column back in
    this.radGridView1.Columns.Insert(0, column);
    // move it to the start
    //this.radGridView1.Columns.Move(radGridView1.Columns.Count - 1, 0);
}

[Richard Slade]

Hello Victoria,

I have this working, but had to change around the order of the columns as they are described in the code for the data table.

Please have a look at this example (+ screenshot) and let me know if this works for you too.

using Telerik.WinControls;
using Telerik.WinControls.UI;
using Telerik.WinControls.Data;
using Telerik.WinControls.UI.Grid;

public class Form1
{


    private void Form1_Load(System.Object sender, System.EventArgs e)
    {

        // Make a data source for the grid
        List<person> list = new List<person>();
        list.Add(new person("Richard", 1, "New Milton"));
        list.Add(new person("Bob", 2, "London"));
        list.Add(new person("Stewart", 3, "Bournemouth"));
        list.Add(new person("Chris", 4, "Southampton"));
        list.Add(new person("Leisl", 1, "Christcurch"));
        list.Add(new person("Tom", 5, "Weymouth"));
        list.Add(new person("Oly", 6, null));
        // assign the data source of the grid
        this.RadGridView1.DataSource = list;

        // Make a data source for the multi column combo
        List<Customer> customers = new List<Customer>();
        customers.Add(new Customer(1, "Customer 1"));
        customers.Add(new Customer(2, "Customer 2"));
        customers.Add(new Customer(3, "Customer 3"));
        customers.Add(new Customer(4, "Customer 4"));
        customers.Add(new Customer(5, "Customer 5"));
        customers.Add(new Customer(6, "Customer 6"));
        customers.Add(new Customer(7, "Customer 7"));

        // those lines are DataTables that have the same structure as your lists
        DataTable dtList = new DataSet1.dt_ListDataTable();
        DataTable dtCustomers = new DataSet1.dt_CustomersDataTable();
        //here I filled DataTables with values  see the picture attached
        for (int i = 0; i <= list.Count - 1; i++) {
            DataRow dr = dtList.NewRow();
            dr(0) = list(i).City;
            dr(1) = list(i).Name;
            dr(2) = list(i).Id;
            dtList.Rows.Add(dr);
        }
        // Here DataSource is a DataTable !!!!!!!!!!!!!!!!!!!!!
        this.RadGridView1.DataSource = dtList;
        for (int i = 0; i <= customers.Count - 1; i++) {
            DataRow dr = dtCustomers.NewRow();
            dr(0) = customers(i).Id;
            dr(1) = customers(i).Name;
            dtCustomers.Rows.Add(dr);
        }

        // remove the bound id column
        this.RadGridView1.Columns.Remove("Id");

        // Make a new multi combo column
        GridViewMultiComboBoxColumn column = new GridViewMultiComboBoxColumn();
        column.FieldName = "Id";
        column.DataSource = dtCustomers;
        column.DisplayMember = "Id";
        column.ValueMember = "Id";
        // Add the new column back in
        this.RadGridView1.Columns.Add(column);

        // move it to the start
        this.RadGridView1.Columns.Move(RadGridView1.Columns.Count - 1, 0);

    }

}

public class Customer
{
    private int m_CustomerId;

    private string m_ContactName;
    public Customer(int id, string name)
    {
        m_ContactName = name;
        m_CustomerId = id;
    }

    public string Name {
        get { return m_ContactName; }
    }

    public int Id {
        get { return m_CustomerId; }
    }
}

public class person
{
    private int m_Customer_Id;
    private string m_Name;

    private string m_City;
    public person()
    {
    }

    public person(string name, int id, string city)
    {
        m_Name = name;
        m_Customer_Id = id;
        m_City = city;
    }

    public string City {
        get { return m_City; }
        set { m_City = value; }
    }

    public string Name {
        get { return m_Name; }
        set { m_Name = value; }
    }

    public int Id {
        get { return m_Customer_Id; }
        set { m_Customer_Id = value; }
    }

}

Regards,
Richard

[Victoria F]

Thank you ,
Richard .

Yes this start working. As I understand it will work only if ID column will be the last column. (Or any drop down box column must be the LAST column)
If I need a couple of those drop down columns?? What suppose to be an order in this case ?
So when you remove or add this column at the end it pick up it's values..?
Is this a bug or a feature?  Could it be fixed later to be used in any order just by column name?

Thank you for your help,
Victoria.

[Richard Slade]

Hello again Victoria,

I don't see any issue here. I have extended the sample above to include a second multicolumncombo and all is working fine. Please have a go with the code below.

using Telerik.WinControls;
using Telerik.WinControls.UI;
using Telerik.WinControls.Data;
using Telerik.WinControls.UI.Grid;

public class Form1
{


    private void Form1_Load(System.Object sender, System.EventArgs e)
    {

        // Make a data source for the grid
        List<person> list = new List<person>();
        list.Add(new person("Richard", 1, "New Milton"));
        list.Add(new person("Bob", 2, "London"));
        list.Add(new person("Stewart", 3, "Bournemouth"));
        list.Add(new person("Chris", 4, "Southampton"));
        list.Add(new person("Leisl", 1, "Christcurch"));
        list.Add(new person("Tom", 5, "Weymouth"));
        list.Add(new person("Oly", 6, null));

        // Make a data source for the  Id multi column combo
        List<Customer> customers = new List<Customer>();
        customers.Add(new Customer(1, "Customer 1"));
        customers.Add(new Customer(2, "Customer 2"));
        customers.Add(new Customer(3, "Customer 3"));
        customers.Add(new Customer(4, "Customer 4"));
        customers.Add(new Customer(5, "Customer 5"));
        customers.Add(new Customer(6, "Customer 6"));
        customers.Add(new Customer(7, "Customer 7"));

        // Make a data source for the  City multi column combo
        List<City> cities = new List<City>();
        cities.Add(new City("New Milton"));
        cities.Add(new City("London"));
        cities.Add(new City("Bournemouth"));
        cities.Add(new City("Southampton"));
        cities.Add(new City("Christcurch"));
        cities.Add(new City("Weymouth"));
        cities.Add(new City("Highcliffe"));

        // those lines are DataTables that have the same structure as your lists
        DataTable dtList = new DataSet1.dt_ListDataTable();
        DataTable dtCustomers = new DataSet1.dt_CustomersDataTable();
        DataTable dtCity = new DataSet1.dt_CityDataTable();
        //here I filled DataTables with values  see the picture attached
        for (int i = 0; i <= list.Count - 1; i++) {
            DataRow dr = dtList.NewRow();
            dr(0) = list(i).City;
            dr(1) = list(i).Id;
            dr(2) = list(i).Name;
            dtList.Rows.Add(dr);
        }
        // Here DataSource is a DataTable !!!!!!!!!!!!!!!!!!!!!
        this.RadGridView1.DataSource = dtList;
        for (int i = 0; i <= customers.Count - 1; i++) {
            DataRow dr = dtCustomers.NewRow();
            dr(0) = customers(i).Id;
            dr(1) = customers(i).Name;
            dtCustomers.Rows.Add(dr);
        }
        for (int i = 0; i <= cities.Count - 1; i++) {
            DataRow dr = dtCity.NewRow();
            dr(0) = cities(i).CityName;
            dtCity.Rows.Add(dr);
        }

        // remove the bound id column
        this.RadGridView1.Columns.Remove("Id");

        // Make a new multi combo column
        GridViewMultiComboBoxColumn column = new GridViewMultiComboBoxColumn();
        column.FieldName = "Id";
        column.DataSource = dtCustomers;
        column.DisplayMember = "Id";
        column.ValueMember = "Id";
        // Add the new column back in
        this.RadGridView1.Columns.Add(column);

        // remove the bound city column
        this.RadGridView1.Columns.Remove("City");

        // Make a new multi combo column
        GridViewMultiComboBoxColumn column2 = new GridViewMultiComboBoxColumn();
        column2.FieldName = "City";
        column2.DataSource = dtCity;
        column2.DisplayMember = "CityName";
        column2.ValueMember = "CityName";
        // Add the new column back in
        this.RadGridView1.Columns.Add(column2);

        // move it to the start
        //Me.RadGridView1.Columns.Move(RadGridView1.Columns.Count - 1, 0)

    }

}

public class City
{

    private string m_CityName;
    public City(string city)
    {
        m_CityName = city;
    }

    public string CityName {
        get { return m_CityName; }
    }
}

public class Customer
{
    private int m_CustomerId;

    private string m_ContactName;
    public Customer(int id, string name)
    {
        m_ContactName = name;
        m_CustomerId = id;
    }

    public string Name {
        get { return m_ContactName; }
    }

    public int Id {
        get { return m_CustomerId; }
    }
}

public class person
{
    private int m_Customer_Id;
    private string m_Name;

    private string m_City;
    public person()
    {
    }

    public person(string name, int id, string city)
    {
        m_Name = name;
        m_Customer_Id = id;
        m_City = city;
    }

    public string City {
        get { return m_City; }
        set { m_City = value; }
    }

    public string Name {
        get { return m_Name; }
        set { m_Name = value; }
    }

    public int Id {
        get { return m_Customer_Id; }
        set { m_Customer_Id = value; }
    }

}

Richard

[Victoria F]

Thank you,
It's working.

Victoria.
