Long task names on PDF Export

[Mariam]

Hi,

I have a task with long name and after exporting it to pdf, name is shown partially.

I tried to change width of the column before exporting and reset it after it:

let columns = $("#gantt").getKendoGantt().options.columns;
columns[3].width = 1500;
$("#gantt").getKendoGantt().setOptions({columns: columns});
outerThis.gantt.saveAsPDF();

but it broke my gantt chart, because I have other methods in databound and databinding which resets after setOptions.

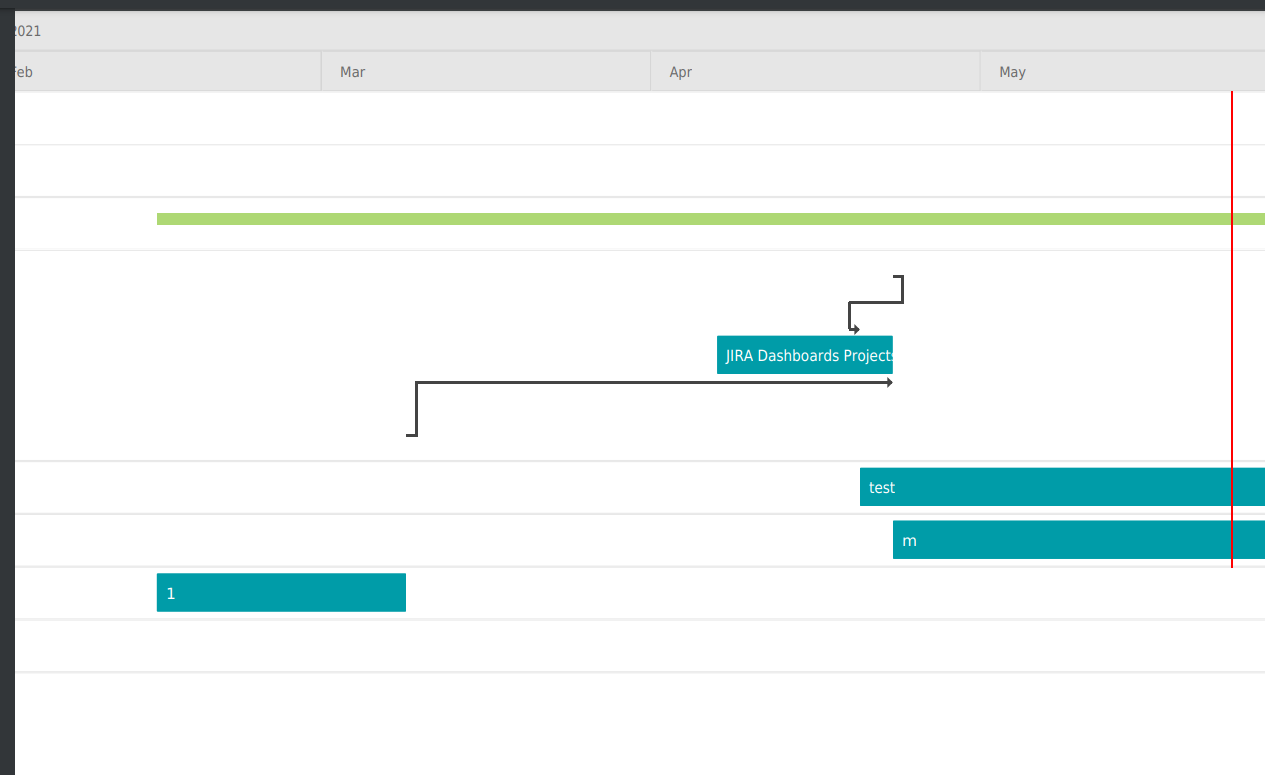

I also tried to change height of my rows, but it broke dependencies like shown in Screenshot(120).



How can I solve this problem? Is there any way to change only the width of the column without changing other things?


Thanks

[Ianko]

Hi Mariam,

You can accomplish that by utilizing the pdfExport event, preventing it during option changes and reverting the changes.

var _PREVENT = true;

var gantt = $("#gantt").kendoGantt({
              	pdfExport: function (ev) {
                  if(_PREVENT){
                    ev.preventDefault();
                    _PREVENT = false;
                    var gantt = ev.sender;
                    var columns = gantt.options.columns;
                    var originalWidth = columns[0].width;
										columns[0].width = 1500;
                    gantt.setOptions({columns: columns});
                		ev.sender.saveAsPDF().done(function(){
                      _PREVENT = true;
                      columns[0].width = originalWidth;
                      gantt.setOptions({columns: columns});
                    });
                  }
                },
...

Here you are a dojo example: https://dojo.telerik.com/@iankodj/IzIYUmuL/3.

Regards,
Ianko
Progress Telerik
