Loading Treeview control

3 posts, 0 answers
  1. Saloni
    Saloni avatar
    3 posts
    Member since:
    Aug 2016

    Posted 09 Aug 2016 Link to this post

    I am using angular1.0 and kendo UI controls and trying to populate the tree view all at once. Need help on loading the treeview control. I am struggling to load the child nodes. My api call returns this

    "[{\"Item\":\"National\",\"StationName\":[{\"Item\":\"A\"}]},{\"Item\":\"San Francisco\",\"StationName\":[{\"Item\":\"B\"},{\"Item\":\"C\"},{\"Item\":\"KCBS-AM\"}]},{\"Item\":\"Los Angeles\",\"StationName\":[{\"Item\":\"D\"},{\"Item\":\"E\"},{\"Item\":\"F\"},{\"Item\":\"G\"},{\"Item\":\"H\"}]},{\"Item\":\"Seattle\",\"StationName\":[{\"Item\":\"I\"},{\"Item\":\"J\"}]}]"

    This is on my js (controller) file

       $scope.treeData = new kendo.data.HierarchicalDataSource({
           transport: {
               read: {
                   url: 'api/stationdata/GetStationData',
                   dataType: "json",
               schema: {
                   model: {
                       id: "item",
                       children: "stationName"


    this is on my html

     <div kendo-tree-view="tree"

                             k-on-change="selectedItem = dataItem">
                            <span k-template>
                               {{dataItem.item}}{{dataItem.stationName}} <button class='k-button' ng-click='click(dataItem)'>Select</button>

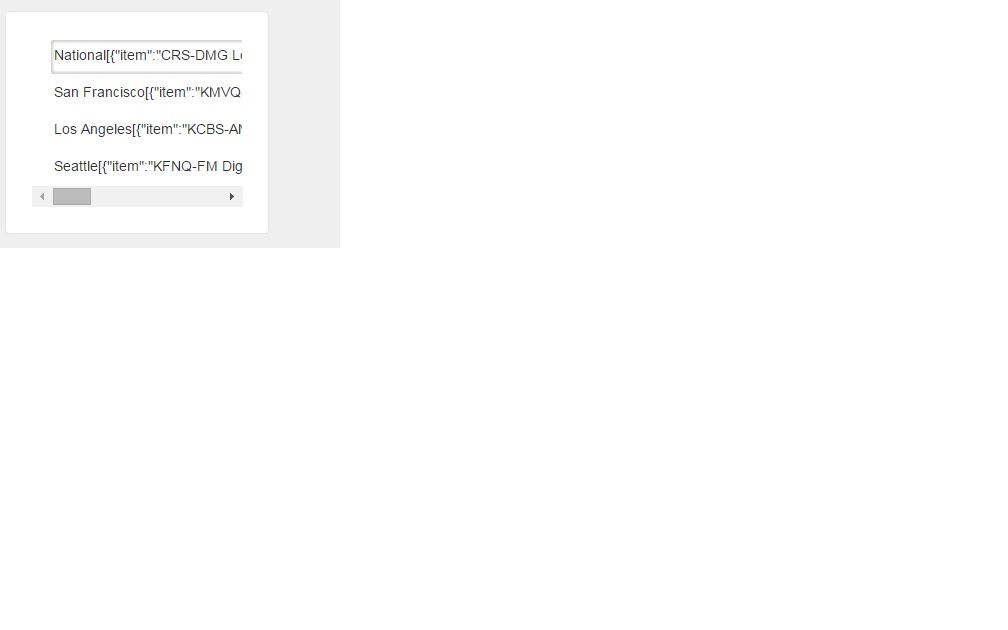

    Attacched is the screen shot of what I see. How do I get the child node to display ?


  2. Saloni
    Saloni avatar
    3 posts
    Member since:
    Aug 2016

    Posted 09 Aug 2016 Link to this post

    I want to add to the above question that this is what is returned from my api call

    <string xmlns="http://schemas.microsoft.com/2003/10/Serialization/">[{"Item":"National","StationName":[{"Item":"CRS-DMG Local Commerce"}],"HasStation":true},{"Item":"San Francisco","StationName":[{"Item":"KMVQ-FM Digital"},{"Item":"KMVQ-FM"},{"Item":"KCBS-AM"}],"HasStation":true},{"Item":"Los Angeles","StationName":[{"Item":"KCBS-AM Digital"},{"Item":"KROQ-FM Digital"},{"Item":"KNX-AM Digital"},{"Item":"KNX-AM"},{"Item":"KROQ-FM"}],"HasStation":true},{"Item":"Seattle","StationName":[{"Item":"KFNQ-FM Digital"},{"Item":"KFNQ-AM"}],"HasStation":true}]</string>


    Now, I get the error item.level is not a function. any help ?

  3. Stefan
    Stefan avatar
    3067 posts

    Posted 11 Aug 2016 Link to this post

    Hello Saloni,

    I noticed that the data is not returned in a valid JSON format. Please strip the data from the <string> tag. Also, I made small adjustments to the data in order to display it correctly in the TreeView. Check the following example demonstrating the result after the adjustments to the data:


    Also, I can suggest checking the information for the Kendo UI HierarchicalDataSource:


    Please modify the response from the server and advice if the issue still persists.
