Kendo UI charts are not being rendered(working) in IE8..How to fix this?

5 posts, 0 answers
  1. prabhakar
    prabhakar avatar
    11 posts
    Member since:
    Sep 2013

    Posted 07 Oct 2013 Link to this post

    Hi,

    Kendo UI charts are not being rendered(working)  in IE8..How to fix this?.This is vital for us ..Please help me in this regrad.


    Thanks,
    Prabhakar Manne
  2. Iliana Nikolova
    Admin
    Iliana Nikolova avatar
    2622 posts

    Posted 07 Oct 2013 Link to this post

    Hello Prabhakar,

    Most probably the default IE 8 security settings prevent the chart from rendering. For more detailed information and a solution please take a look at this troubleshooting topic.

    Regards,
    Iliana Nikolova
    Telerik
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
  3. prabhakar
    prabhakar avatar
    11 posts
    Member since:
    Sep 2013

    Posted 08 Oct 2013 Link to this post

    I have cross checked above mentioned setting in IE8 and everything seems to be correct with settings in IE.
    Still Charts are not being rendered. The same code is working fine with IE 9. Please help us .

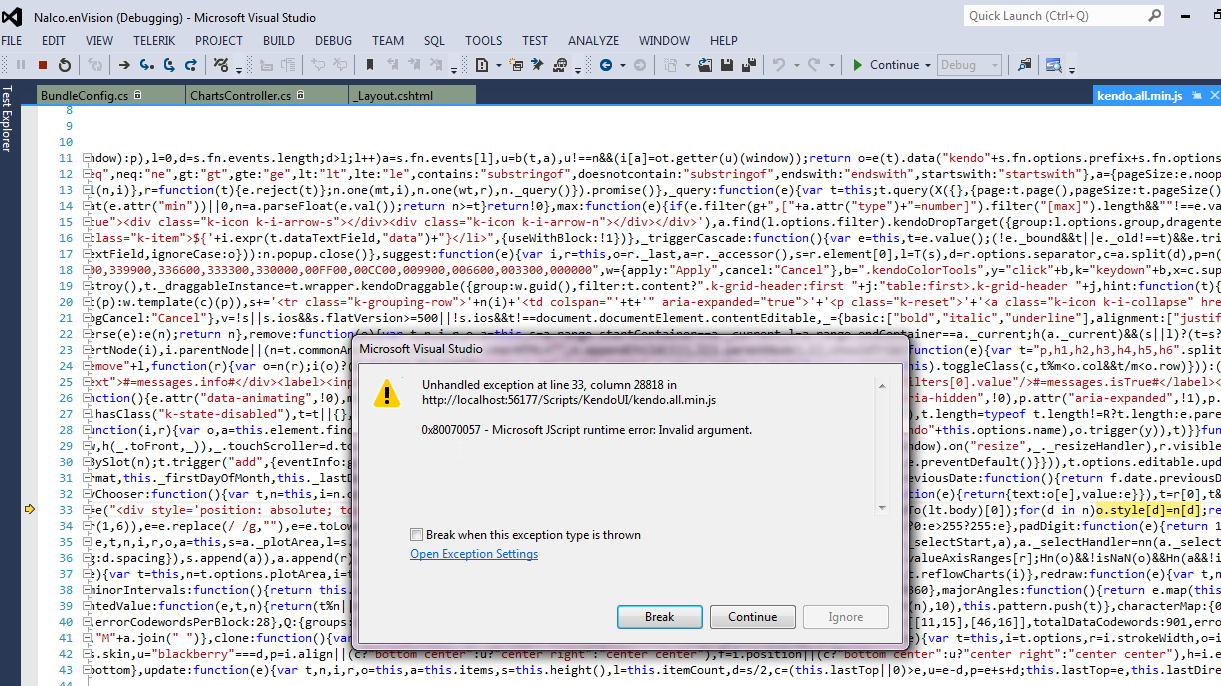

    I have attached error that is coming  in kendo.all.min.js  while running in IE 8.
  4. Iliana Nikolova
    Admin
    Iliana Nikolova avatar
    2622 posts

    Posted 09 Oct 2013 Link to this post

    Hello Prabhakar,

    I am not quite sure what causes the issue in your application. Is it possible to provide a small runnable example which demonstrates your Kendo UI Chart implementation and which I can test locally?

    Regards,
    Iliana Nikolova
    Telerik
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
  5. Iliana Nikolova
    Admin
    Iliana Nikolova avatar
    2622 posts

    Posted 10 Oct 2013 Link to this post

    Hi Prabhakar,

    Thank you so much for the provided project - it was forwarded to me. I examined it and observed that scale.labels.font definition is invalid - font-family definition is mandatory when the shorthand font property is used (link). Hence in order to get everything correctly rendered please try the following:

    @(Html.Kendo().RadialGauge()
      //....
      .Name(Model.GaugeChartId)
      .Scale(scale => scale
         //....
         .Labels(labels => labels
            //....
            .Font("5px Arial, Helvetica, sans-serif")
         )
      )
    )
      Regards,
    Iliana Nikolova
    Telerik
