Kendo Grid ForeignKey column with a DropDownList control is not triggering the onChange event

0 Answers 75 Views
DropDownList Grid GridLayout
Ronan
Top achievements
Rank 1
Ronan asked on 07 Aug 2024, 04:16 AM

After upgrading Kendo MVC from v2021.2.616 to v2024.2.514 (KendoUIProfessional), the dropdownlist "SeriesType" on the grid is not firing the onChange event anymore. I saw an error message in the browser console.

Can you guys suggest a migration solution for it? Thanks!

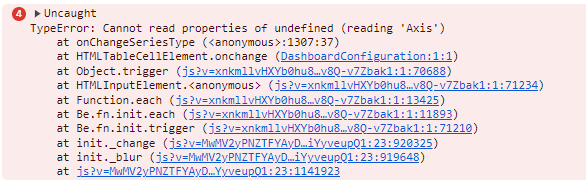

Browser console error:

cshtml

@(Html.Kendo().Grid<MySeriesModel>().Name("drpSeries")
              .Columns(column =>
              {
                  column.Bound(model => model.SeriesName).HtmlAttributes(new { style = "font-weight: bold" }).Title("No.").Width(40);
                  column.ForeignKey(c => c.SeriesType, (IEnumerable<SelectListItem>)ViewBag.LstSeriesType, "value", "text").HtmlAttributes(new { style = "text-align: left", onChange = "onChangeSeriesType('#=ID#'); setSerieXml();" }).Title("Series Type").MinScreenWidth(60);
                  column.Bound(model => model.SeriesTitle).Title("Series Title").HtmlAttributes(new { onChange = "setSerieXml();" }).MinScreenWidth(120).Encoded(false);
                  column.Bound(model => model.Axis).Title("Axis").ClientTemplate("#=getAxisActionLink(ID,Axis)#").MinScreenWidth(120);
                  column.ForeignKey(c => c.Y_Format, (IEnumerable<SelectListItem>)ViewBag.LstSeriesFormat, "value", "text").HtmlAttributes(new { style = "text-align: left", onChange = "onChangeFormat(this);" }).Title("Format").MinScreenWidth(150);
                  column.ForeignKey(c => c.Y_Axis, (IEnumerable<SelectListItem>)ViewBag.ListSerriesYAxis, "value", "text").HtmlAttributes(new { style = "text-align: left", onChange = "onChangeYAxis(this,'#=ID#');" }).Title("Y Axis Scale").Width(100);
                  column.Bound(x => x.ID).ClientTemplate("<button class= 'k-button' type='button' onclick=onRemoveSeries('#=ID#')>" + "Remove" + "</button>").HtmlAttributes(new { style = "text-align: center" }).Title("").Width(120);
              })
              .DataSource(dataSource => dataSource
                    .Ajax()
                    .ServerOperation(false)
                    .Model(model =>
                    {
                        model.Id(item => item.ID);
                        model.Field(item => item.ID).Editable(false);
                        model.Field(item => item.SeriesName).Editable(false);
                        model.Field(item => item.Axis).Editable(false);
                        model.Field(item => item.SeriesTitle).Editable(false);
                    })
                    .Read(read => read.Action("SeriesList_DataSource", "Dashboard").Data("getDataForDgdSeries_Read"))
               )
               .Events(e =>
               {
                   e.DataBound("onDataBoundDgdSeries");
               })
               .Resizable(x => x.Columns(true))
               .AutoBind(true)
               .Scrollable(x => x.Enabled(true))
               .Editable(editable => editable.Mode(GridEditMode.InCell))
               .Selectable(selectable => selectable.Mode(GridSelectionMode.Single))
               .HtmlAttributes(new { style = "overflow: auto; width:100%", @class = "form-group" })

)

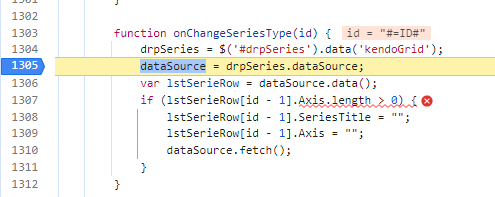

JS

function onChangeSeriesType(id) {
    drpSeries = $('#drpSeries').data('kendoGrid');
    dataSource = drpSeries.dataSource;
    var lstSerieRow = dataSource.data();
    if (lstSerieRow[id - 1].Axis.length > 0) {
        lstSerieRow[id - 1].SeriesTitle = "";
        lstSerieRow[id - 1].Axis = "";
        dataSource.fetch();
    }
}

Model

public class MySeriesModel
{
    public string ID { get; set; }

    public string SeriesName { get; set; }
    public string AxisName { get; set; }
    public string Axis { get; set; }
    [AllowHtml]
    [UIHint("GridDropDownList")]
    public string SeriesType { get; set; }

    public string SeriesTitle { get; set; }

    public string X_Ordinate { get; set; }

    public string X_Format { get; set; }

    [AllowHtml]
    [UIHint("GridDropDownList")]
    public string Y_Format { get; set; }

    [AllowHtml]
    [UIHint("GridDropDownList")]
    public string Y_Ordinate { get; set; }
    [AllowHtml]
    [UIHint("GridDropDownList")]
    public string Y_OrdinateTo { get; set; }
    public string TOOLTIP_FORMAT { get; set; }

    [AllowHtml]
    [UIHint("GridDropDownList")]
    public string Y_Axis { get; set; }
}

controller


public ActionResult RenderSeriesConfig(string viewName)
{
    List<SelectListItem> seriesType = GetDashboadChartStyleTypeList();
    string arrSeriesType = "";
    for (int i = 0; i < seriesType.Count; i++)
    {
        arrSeriesType += seriesType[i].Text.ToString() + "," + seriesType[i].Value.ToString() + ";";
    }
    ViewBag.LstSeriesType = seriesType;
    ViewBag.ArrSeriesType = arrSeriesType;
    ViewBag.LstSeriesAxis_Ordinate = GetLstFieldNamesSelectListItem(viewName);
    ViewBag.LstSeriesFormat = GetFormatShortList();
    ViewBag.ListSerriesYAxis = GetYAxisSettingList();
    return PartialView("_ChartDetail_Series");
}



No answers yet. Maybe you can help?
