Is there anyway to remove the margin between categoryAxis.labels/valueAxis.labels and plotArea

1 Answer 29 Views
Charts
This is a migrated thread and some comments may be shown as answers.
Robert
Top achievements
Rank 1
Robert asked on 24 Jan 2020, 11:06 AM

Hi,

We are trying to implement Bar/Line charts for our project. We have a specification to remove all extra margins/paddings between titles, labels and plotArea. So far, we could manage to remove for labels and titles but the plotArea still has margins/paddings.





var options = {
        valueAxis: {
               background: "red",
               title: { text: _getSeriesName(), font: chartFont, margin: 0, padding: 0, visible: IsTitlesVisible, background: "blue" },
               labels: { font: chartFont, margin: 0, padding: 0, background: "green" },
               line: { visible: false }
        },
        series: _getSeries(),
        categoryAxis: {
               background: "red",
               title: { text: _getCategoriesName(), font: chartFont, margin: 0, padding: 0, visible: IsTitlesVisible, background: "blue },
               labels: { font: chartFont, margin: 0, padding: 0, background: "green" },
               categories: _getCategories(),
               line: { visible: false }
        },
        plotArea: { margin: 0, padding: 0, background: "orange" }
};

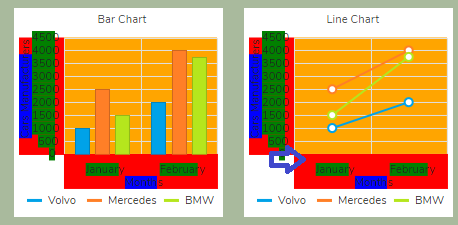

Please also see the attached file to visualization.
Thanks

1 Answer, 1 is accepted

Sort by
0
Vessy
Telerik team
answered on 28 Jan 2020, 08:56 AM

Hi Martin,

You can achieve the desired layout by passing negative values to the valueAxis.labels.margin.right and categoryAxis.labels.margin.top options. You can see a working sample demonstrating the suggested approach here:

https://dojo.telerik.com/oFAFonOD



Regards,
Vessy
Progress Telerik
