Incorrect order for Year and Month Columns

16 Answers 318 Views

PivotGrid

This is a migrated thread and some comments may be shown as answers.

16 Answers, 1 is accepted

answered on 27 Mar 2018, 10:51 AM

Hello Lee,

The behavior you describe could be observed if the underlying fields are type string. In that case the sorting will be applied based on the text values that are displayed. In order to have sort order work as expected please ensure that the underlying field is a DateTime. This would sort the values by the date and the order would be as expected.

In case the behavior persists please send us a runnable project or a dojo sample where it is replicated so we can examine it locally.

Regards,
Viktor Tachev
Progress Telerik

Try our brand new, jQuery-free Angular components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.

answered on 27 Mar 2018, 08:57 PM

Hi Victor,

Thanks for your reply.

I do have a DateTime filed, but i'm unsure how to get just the month or year to display.

Here's my class:

public class SaleView

{

public DateTime ForecastCloseDate { get; set; }

public string ForecastCloseDateYear { get; set; }

public string ForecastCloseDateMonth { get; set; }

}

Here's the columns part from the PivotGrid:

.Columns(columns =>

{

columns.Add("ForecastCloseDateYear").Expand(true);

columns.Add("ForecastCloseDateMonth").Expand(true);

})

As you can see i'm using the string versions of the ForecastCloseDate as i'm not sure how to use ForecastClaseDate and display just the Month and Year.

Thanks,
Lee.

answered on 29 Mar 2018, 01:01 PM

Hi Lee,

I have examined the snippets and it seems that ForecastCloseDateYear and ForecastCloseDateMonth fields are defined as string. If you would like the fields to be sorted as dates please make sure that they are defined as DateTime and then format the values as described in the article below:

https://docs.telerik.com/kendo-ui/controls/data-management/pivotgrid/how-to/appearance/format-dates

Regards,
Viktor Tachev
Progress Telerik

Try our brand new, jQuery-free Angular components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.

answered on 31 Mar 2018, 02:02 AM


Thanks Viktor.

I've tried modifying the sample you provide and made ForecastCloseDateYear and ForecastCloseDateMonth Date object.

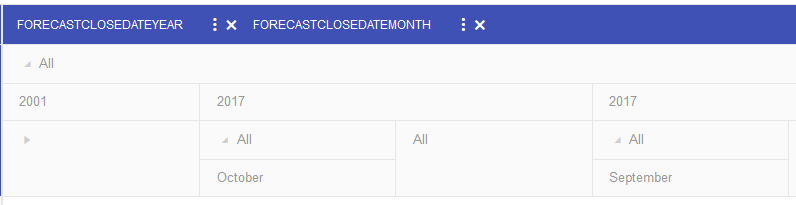

I'm now correctly getting the Year and Month from the DateTime object using the ColumnHeaderTemplateId, but they are not grouping together (attached image)

My Header Template:

<script id="headerTemplate" type="text/x-kendo-tmpl">

# if (!member.children.length) { #

# if (member.name.indexOf("ForecastCloseDateYear") === 0 && member.name !== "ForecastCloseDateYear") { #

#: kendo.toString(new Date(member.caption), "yyyy") #

# } else if (member.name.indexOf("ForecastCloseDateMonth") === 0 && member.name !== "ForecastCloseDateMonth") { #

#: kendo.toString(new Date(member.caption), "MMMM") #

# } #

# } else { #

#: member.caption #

# } #

</script>

My PivotGrid Columns:

.Columns(columns =>

{

columns.Add("ForecastCloseDateYear").Expand(true);

columns.Add("ForecastCloseDateMonth").Expand(true);

})

Many thanks,
Lee.

answered on 04 Apr 2018, 07:11 AM

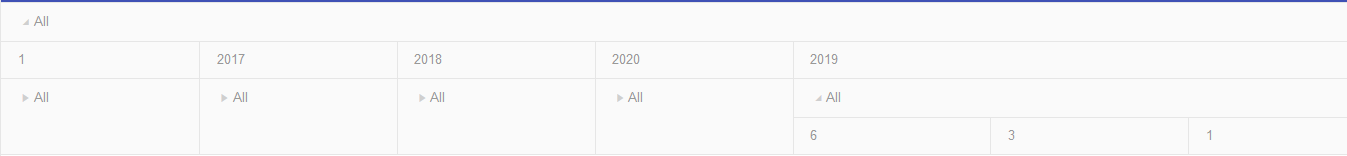

Ok, so i've changed them to int's and they still display wrong see attached photo.

Here's my class:

public class SaleView

{

[Key]

public Guid Id { get; set; }

public string Jobnumber { get; set; }

public string Tracking { get; set; }

public string TaskSalesPerson { get; set; }

public string ClientName { get; set; }

public string Task { get; set; }

public string TaskType { get; set; }

public DateTime QuoteCreatedDate { get; set; }

public DateTime NextFollowUp { get; set; }

public string Status { get; set; }

public string LeadType { get; set; }

public string SalesPhase { get; set; }

public double ForecastPercent { get; set; }

public DateTime ForecastCloseDate { get; set; }

// Calculated from ForecastCloseDate = Used for Pivot (need to be separate instances)

public int ForecastCloseDateYear { get; set; }

public int ForecastCloseDateMonth { get; set; }

public double Estimated { get; set; } // Estimated Value

public double QuoteTotalHours { get; set; }

// Calculated

public double ForecastSell { get; set; }

public double QuoteTotalEx { get; set; } // Quote Total Value

public DateTime ProjectStartDate { get; set; }

public int ProjectDurationMonths { get; set; }

}

Here's my Razor widget:

@(

Html.Kendo().PivotGrid<SaleView>()

//.ColumnHeaderTemplateId("headerTemplate")

.Name("pivotgrid")

.Excel(excel => excel

.FileName("Sales - Overall.xlsx")

.Filterable(true)

.ProxyURL(Url.Action("ExcelExportSave", "Kendo"))

)

.ColumnWidth(200)

.Height(580)

.HtmlAttributes(new { @class = "hidden-on-narrow" })

.Filterable(true)

//.Sortable()

.DataSource(dataSource => dataSource

.Ajax()

.Transport(transport => transport.Read("SaleListAjax", "Kendo", new { AssignedTo = ViewBag.Name }))

.Schema(schema => schema

.Cube(cube => cube

.Dimensions(dimensions =>

{

//dimensions.Add(model => model.LeadType).Caption("Lead Types");

//dimensions.Add(model => model.TaskSalesPerson).Caption("Sales Persons");

//dimensions.Add(model => model.SalesPhase).Caption("Sales Phase");

})

.Measures(measures => measures.Add("Forecast Sell").Field(model => model.ForecastSell).AggregateName("sum").Format("{0:C}"))

))

.Columns(columns =>

{

columns.Add("ForecastCloseDateYear").Expand(true);

columns.Add("ForecastCloseDateMonth").Expand(true);

})

.Rows(rows =>

{

rows.Add("LeadType").Expand(true);

rows.Add("TaskSalesPerson").Expand(true);

rows.Add("SalesPhase").Expand(true);

})

.Measures(measures => measures.Values("Forecast Sell"))

.Events(e =>

{

e.Error("onError");

e.RequestEnd("onRequestEnd");

})

)

Finally here's my Controller:

public ActionResult SaleListAjax([DataSourceRequest] DataSourceRequest request, string assignedTo = null)

{

var sales = AroFloService.GetQueryableSaleView();

if (assignedTo != null)

sales = sales.Where(x => x.TaskSalesPerson.Equals(assignedTo));

return Json(sales.ToDataSourceResult(request), JsonRequestBehavior.AllowGet);

}

I just can't figure out why they won't display in order.

answered on 06 Apr 2018, 05:14 AM

Hi Lee,

After further tests and consulting with our developers team it seems that with binding the PivotGrid to flat data it will not be possible to have initial sort over data as per your requirements and I apologize for the misleading information in the previous posts. Such sorting will be possible with OLAP binding only:

https://demos.telerik.com/aspnet-mvc/pivotgrid

Once again, please excuse us for any inconvenience caused by the information in the previous posts.

Regards,
Konstantin Dikov
Progress Telerik

Try our brand new, jQuery-free Angular components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.

answered on 09 Apr 2018, 01:00 PM

Hello Lee,

You could take a look at the following Kendo UI PivotGrid help topics for general information about OLAP cube. Note that the only difference with the MVC helper is the syntax of the PivotGrid configuration:

Hope this helps.

Regards,
Konstantin Dikov
Progress Telerik

Try our brand new, jQuery-free Angular components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.

answered on 19 May 2020, 02:12 PM

Hello, Heiko,

I am sorry that you are disappointed in the current situation with the Kendo UI PivotGrid. You are absolutely right about the existing solutions we have in the company and we have addressed this exact point in the team. There is a scheduled upcoming internal task that will explore this in depth.

The ongoing care to our children (components) in Telerik is tightly bound to the demand of our clients and their business needs. We gauge that via a number of different channels and one of them is our Feedback portal which features this request and I have already voted on your behalf:

https://feedback.telerik.com/kendo-jquery-ui/1360085-add-sorting-to-kendo-ui-pivotgrid

However, I wish to assure you that the PivotGrid is not a stepchild, it just has been one of the less popular kids on the block. The good news is that this has changed recently and this is why we have an internal task to review the PivotGrid engine I mentioned earlier. Hopefully, in the following quarter there might be some improvements in that regard.

As business needs change, so do our priorities so it is best to keep an eye out on our road map:

https://www.telerik.com/support/whats-new/kendo-ui

Regards,
Alex Hajigeorgieva
Progress Telerik
