[Solved] Icons dont show up at runtime

[Ben Hayat]

Hi;

I've followed the steps for showing icons on the panes headers, but none show up at runtime. Some show up at design time.

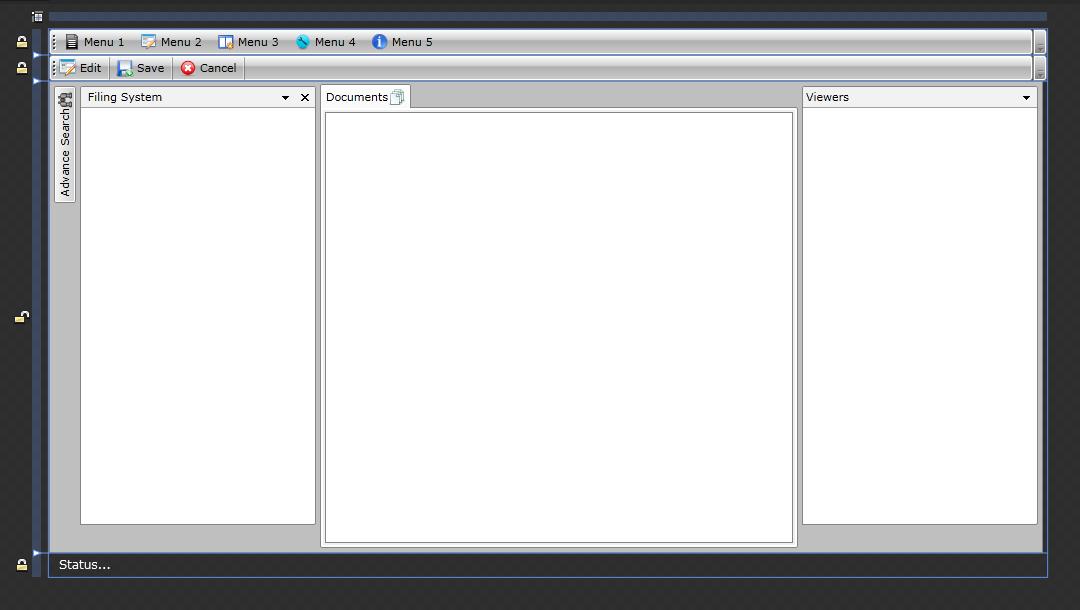

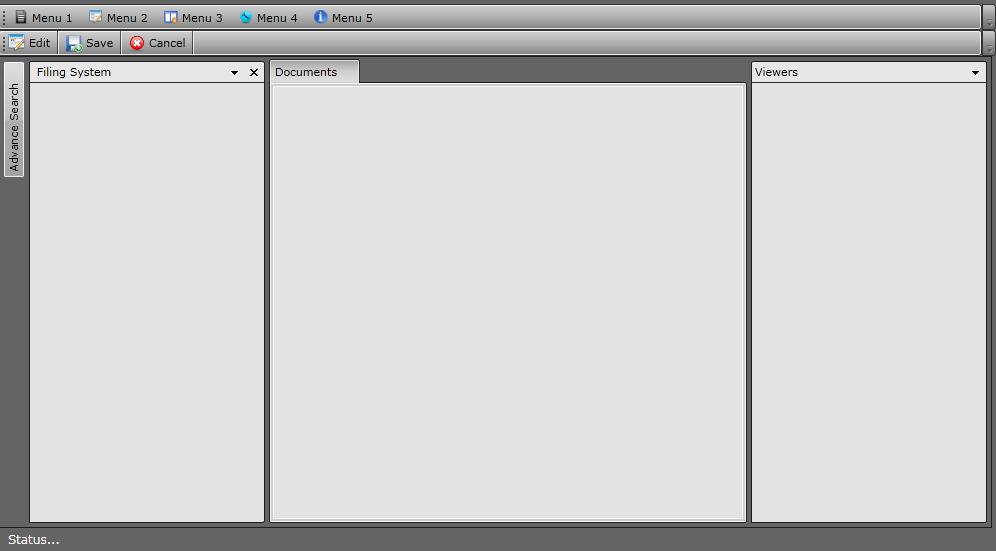

Here are two pictures showing design time and run time.

I have created proper Data Template as following:

<DataTemplate x:Key="DocumentTemplate">
    <StackPanel Orientation="Horizontal">
        <TextBlock Text="{Binding}"/>
        <Image Source="/Images/Icons/Documents-stack.png" Width="16" Height="16"/>
    </StackPanel>
</DataTemplate>

and attached the template as following:

<telerik:RadDocking.DocumentHost>
    <telerik:RadSplitContainer>
        <telerik:RadPaneGroup>
            <telerik:RadPane Header="Documents" CanFloat="False" CanUserClose="False" CanUserPin="False"
            CanDockInDocumentHost="False" HeaderTemplate="{StaticResource DocumentTemplate}"/>
        </telerik:RadPaneGroup>
    </telerik:RadSplitContainer>
</telerik:RadDocking.DocumentHost>

The second problem is that, for "Filing" & "viewer" pane, the icons don't show up at design time either.

Please advise!
Thanks!
..Ben

[Konstantina]

Hi Ben,

Please find attached a sample project in which I have tried to reproduce the issue that you are describing. The icon is displayed as expected. Also, to make it work for the Pane outside the DocumentHost, you will have to set its TitleTemplate, instead of HeaderTemplate.
Please feel free to modify the project in order to show the issue.

Hope this helps. Please let us know if you have further questions.

Greetings,
Konstantina
the Telerik team
