I need to use the click event of the PivotGrid and PivotFieldList buttons.

[SANDRO]

Hello,

I am working on the development of an application and I have some doubts in the handling of the PivotFieldList control.

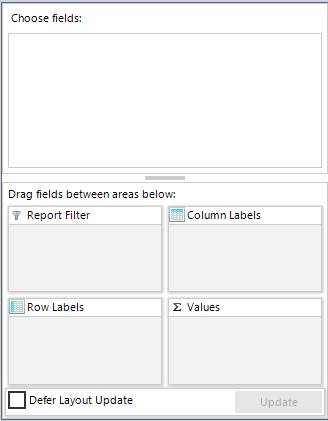

I would like to know how to enter the onclick event of the "Update" button of the PivotFieldList, I want to place some validations when clicking on that button.

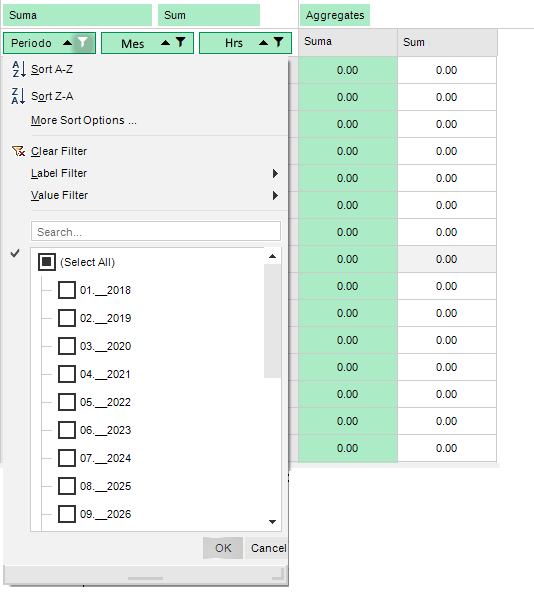

I would also like to know how to access the onclick event of the "OK" button that appears in each filter of the fields that are displayed in the PivotGrid, because I also want to add some validations when the button is clicked.

Thanks for the support.

[Dinko | Tech Support Engineer]

Hello SANDRO,

Thank you for the provided images.

To subscribe to the Update button in the RadPivotFieldList you can use the following code:

var button = (this.radPivotFieldList1.Controls[0] as RadSplitContainer).Controls[1].Controls[1].Controls[1] as RadButton;
button.Click += Button_Click;

private void Button_Click(object sender, EventArgs e)
{

}

To subscribe to the Ok button in the filter popup you can use the following code:

this.radPivotGrid1.PivotGridElement.GroupDescriptorElementCreating += PivotGridElement_GroupDescriptorElementCreating;

private void PivotGridElement_GroupDescriptorElementCreating(object sender, GroupDescriptorElementCreatingEventArgs e)
{
    e.GroupDescriptorElement.FilterPopup.PopupOpened += FilterPopup_PopupOpened;
}

private void FilterPopup_PopupOpened(object sender, EventArgs args)
{
    PivotGroupFilterPopup filterPopup = (PivotGroupFilterPopup)sender;
    var okButton = filterPopup.Items.Last().Children[0].Children[0] as RadButtonElement;
    okButton.Click -= OkButton_Click;
    okButton.Click += OkButton_Click;

}

private void OkButton_Click(object sender, EventArgs e)
{

}

I hope these solutions are what you are looking for.

Regards,
Dinko | Tech Support Engineer
Progress Telerik
