Rank 1
Iron
I have tried to use <span style="font-family: 'Segoe UI'; color:gray; font-size: 12">Forename</span> but I do not believe the font is being applied. I use this style when the row is selected within a WinForms RadGridView. If the row is not selected (as a test) I have the same HTML markup without the font-family style and a different font is loaded (not sure which).

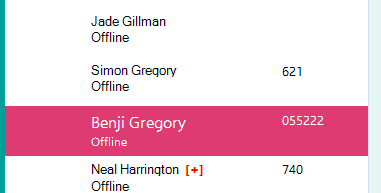

The screenshot shows the highlighted row in purple. Notice the lower curl of the g and y is present - whereas on the unselected rows - these letters have that part missing.
Note: The rendering of the grid take a very long time - as if it is failing to render rows with this font and so falls back to a default
Could you explain the problem?
2 Answers, 1 is accepted
Hi, Paul,
According to the pink color from the screenshot, I assume you have applied the Material Pink theme which uses the Roboto font.
In the string "<span style="font-family: 'Segoe UI'; color:gray; font-size: 12">Forename</span>" the single quotes are breaking the HTML text parse operation and thus the style attribute cannot be correctly parsed. When I remove the single quotes the font name, color and size are correctly parsed.

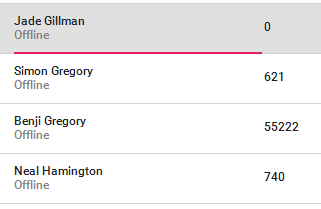

As to the clipped "g" and "j" letters from your screenshot, I have tested it on my side, by removing the font and font-size from the style attribute, and here is the result on my side(no text clipping).
Here is the code I am using to test this case:
public RadForm1()
{
InitializeComponent();
this.radGridView1.DataSource = this.GetData();
this.radGridView1.TableElement.RowHeight = 50;
this.radGridView1.Columns[0].DisableHTMLRendering = false;
this.radGridView1.Columns[1].TextAlignment = ContentAlignment.MiddleLeft;
var theme = new MaterialPinkTheme();
ThemeResolutionService.ApplicationThemeName = theme.ThemeName;
}
private DataTable GetData()
{
DataTable table = new DataTable();
table.Columns.Add("Name", typeof(string));
table.Columns.Add("Number", typeof(int));
//string text = "<html>{0}<br><span style=\"font-family:Segoe UI; color:gray; font-size:12\">Offline</span>";
string text = "<html>{0}<br><span style=\"color:gray;\">Offline</span>";
table.Rows.Add(string.Format(text, "Jade Gillman"), 0);
table.Rows.Add(string.Format(text, "Simon Gregory"), 621);
table.Rows.Add(string.Format(text, "Benji Gregory"), 055222);
table.Rows.Add(string.Format(text, "Neal Hamington"), 740);
return table;
}Can you please modify it in a way to replicate the described problem with text clipping on your side and send it back to me, so I can investigate the case further?
I am looking forward to your reply.
Regards,
Todor Vyagov
Progress Telerik
Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.
Rank 1
Iron
I am glad you managed to solve the problem with clipped text on your side.
For more information about the HTML formatting visit our online documentation: https://docs.telerik.com/devtools/winforms/telerik-presentation-framework/html-like-text-formatting
