How to show two series that are not chronologically aligned?

4 posts, 0 answers
  1. Robert
    Robert avatar
    23 posts
    Member since:
    Jun 2012

    Posted 10 Jun 2013 Link to this post

    I have a line chart that shows datetime-based values in a series. The Json data come gets loaded with an Ajax call. Now I want to show a second series (as a second line) in the same chart. As far as I can see from the examples, in order to get it up and working, the data needs to be present in this way:

    - Date (Datetime)
    - ValueA (Double)
    - ValueB (Double)

    The problem is: the data that I need to show is not synchronized, or, in other words, it is recorded independently at unregular intervals, so I don't have the required neat [Date,ValueA,ValueB] packets.

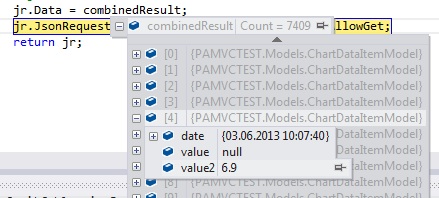

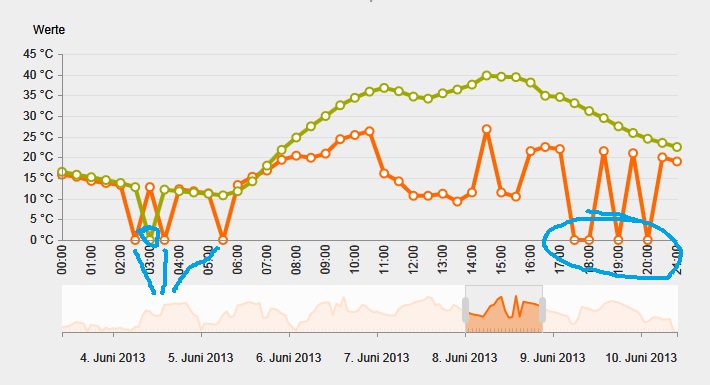

    As a workaround I tried the following: in my controller, I fetch the data independently for each series into an object (DateTime Date,Double? ValueA, Double? ValueB). When fetching data for series A, I fill Date and ValueA, whereas ValueB is set to null (not 0). I do the same for series B (and set ValueA as null there). After that, I do a linq union on both collections and order them by date. Now I have both series in a (Date, ValueA, ValueB) model with a common DateTime-basis, where missing values in ValueA or ValueB are set to null, which can be interpolated in the chart. The problem is: the values do not get interpolated but are set to zero, which gives an awful lot of spikes, as there's almost no (Date, ValueA, ValueB) tripel where both values are set. Please see the attached images for clarification.

    How can I manage to get this done? Is there a better way to do it?

    Below is my JavaScript:

    <script>

        function onSelectEnd(e) {
            var stockchart = $("#chart").data("kendoStockChart");
            var navigatorFrom = stockchart._navigator.options.select.from;
            var navigatorTo = stockchart._navigator.options.select.to;
            $("#txtFrom").text(navigatorFrom);
            $("#txtTo").text(navigatorTo);
        }

        function createChart() {
            $('#chart').kendoStockChart({
                dataSource: {
                    transport: {
                        read: {
                            url: '/Archive/GetChartData?StationId=@ViewBag.StationId&DataPointId=@ViewBag.DataPointId',
                            dataType: 'json'
                        }
                    }
                },
                selectEnd: onSelectEnd,
                title: {
                    text: '@ViewBag.ChartTitle'
                },
                dateField: 'date',
                panes: [{
                    title: 'Werte'
                }
                ],
                chartArea: {
                    background: 'transparent'
                },
                valueAxes: [{
                    name: 'T',
                    visible: true,
                    line: {
                        visible: true
                    },
                    labels: {
                        format: '{0} @ViewBag.Unit'
                    }
                    //,plotBands:
                    //    [
                    //         { from: -100, to: 0, color: "#C9D8FF" },
                    //         //{ from: 0, to: 100, color: "#FFB8B8" }
                    //    ]
                }],
                categoryAxis: {
                    labels:
                        {
                            format: "HH:mm",
                            step: 2,
                            rotation: -90
                        },
                    baseUnit: "fit",
                    maxDateGroups: $("#chart").width() / 10,
                    type: "date"
                },
                series: [
                    {
                        axis: 'T',
                        type: 'line',
                        field: 'value',
                        missingValues: 'interpolate'
                    },
                    {
                        axis: 'T',
                        type: 'line',
                        field: 'value2',
                        missingValues: 'interpolate'
                    }
                ],
                navigator: {
                    series: {
                        type: 'area',
                        field: 'value',
                        missingValues: 'interpolate'
                    },
                    select: {
                        to: '@DateTime.Now.ToString("yyyy")/@DateTime.Now.ToString("MM")/@DateTime.Now.ToString("dd") @DateTime.Now.ToString("HH:mm")',
                        from: '@DateTime.Now.AddDays(-1).ToString("yyyy")/@DateTime.Now.AddDays(-1).ToString("MM")/@DateTime.Now.AddDays(-1).ToString("dd") @DateTime.Now.AddDays(-1).ToString("HH:mm")'
                    },
                    categoryAxis: {
                        labels: {
                            format: 'd. MMMM yyyy',
                            padding: { top: 10 }
                        }
                    }

                }
            });
        }

        $(document).ready(function () {
            kendo.culture('@culture');
            setTimeout(function () {
                createChart();
                $('#chart').bind('kendo:skinChange', function (e) {
                    createChart();
                });
            }, 1);
        });
    </script>

  2. T. Tsonev
    Admin
    T. Tsonev avatar
    2831 posts

    Posted 11 Jun 2013 Link to this post

    Hello,

    You did a great job with the server-side processing of the data. On a side-note, we're looking forward to remove the requirement for matching categories across series.

    I did a quick test and null values seem to be interpolated correctly. My guess is that they get converted to 0 at some point, most likely during serialization.
    Can you please check the network tab in Chrome, IE or FF to see if the JSON actually contains nulls where appropriate?

    Another possibility is that the series aggregate returns 0. Although the default ("max") should ignore null values.

    Regards,
    Tsvetomir Tsonev
    Telerik
