How to Show merge Cell in Grid

[ali]

Hi

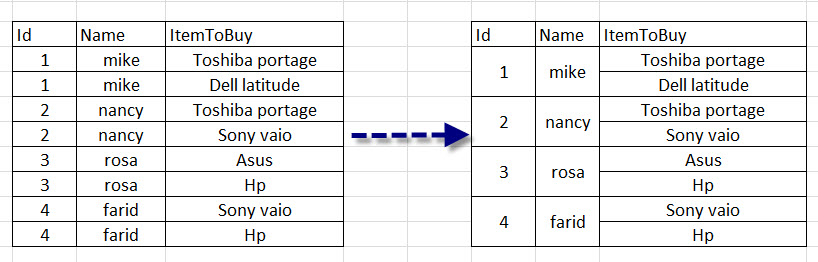

I have some data and i want to group one column or show as merge cell in grid Like bellow
From :

Id	Name	ItemToBuy
1	mike	Toshiba portage
1	mike	Dell Latitude
2	nancy	Toshiba portage
2	nancy	Sony vioa
3	rosa	Asus
3	rosa	Hp
4	farid	Sony vioa

 //------------------------------------------------------Show in grid like bellow

Id	Name	ItemToBuy
1	mike	Toshiba portage
		Dell Latitude
2	nancy	Toshiba portage
		Sony vioa
3	rosa	Asus
		Hp
4	farid	Sony vioa //---------------------------------------- i dont want to use Hierarchical structure

[Anton]

Hi ali,

Thank you for writing.

You can create this functionality by going through all cells and apply your custom style for the cells that you want, for example:

private void MergeCell(RadGridView radGridView1, int[] idx)
{
    GridViewRowInfo Prev = null;
    foreach (GridViewRowInfo item in radGridView1.Rows)
    {
        if (Prev != null)
        {
            string firstCellText = string.Empty;
            string secondCellText = string.Empty;

            foreach (int i in idx)
            {
                GridViewCellInfo firstCell = Prev.Cells[i];
                GridViewCellInfo secondCell = item.Cells[i];

                firstCellText = (firstCell != null && firstCell.Value != null ? firstCell.Value.ToString() : string.Empty);
                secondCellText = (secondCell != null && secondCell.Value != null ? secondCell.Value.ToString() : string.Empty);

                firstCell.Style.CustomizeBorder = true;
                firstCell.Style.BorderBoxStyle = Telerik.WinControls.BorderBoxStyle.FourBorders;
                firstCell.Style.BorderLeftColor = Color.FromArgb(209, 225, 245);
                firstCell.Style.BorderRightColor = Color.FromArgb(209, 225, 245);

                secondCell.Style.CustomizeBorder = true;
                secondCell.Style.BorderBoxStyle = Telerik.WinControls.BorderBoxStyle.FourBorders;
                secondCell.Style.BorderLeftColor = Color.FromArgb(209, 225, 245);
                secondCell.Style.BorderRightColor = Color.FromArgb(209, 225, 245);
                secondCell.Style.BorderTopColor = Color.FromArgb(209, 225, 245);
                secondCell.Style.BorderBottomColor = Color.FromArgb(209, 225, 245);

                if (firstCell.Style.BorderTopColor != Color.Transparent)
                {
                    firstCell.Style.BorderTopColor = Color.FromArgb(209, 225, 245);
                }

                if (firstCellText == secondCellText)
                {
                    firstCell.Style.BorderBottomColor = Color.Transparent;
                    secondCell.Style.BorderTopColor = Color.Transparent;
                    secondCell.Style.ForeColor = Color.Transparent;
                }
                else
                {
                    Prev = item;
                    break;
                }
            }
        }
        else
        {
            Prev = item;
        }
    }
}

Attached is a sample project that contains the code above.

This topic is also discussed in the following forum thread: http://www.telerik.com/community/forums/winforms/gridview/how-to-merge-cell.aspx

I hope this information helps. If you have further questions, feel free to write back

Regards,
Anton
the Telerik team

[ali]

Hi Anton
thank you for answering and I hope you are successful in your life.

[Anton]

Hi Ali,

I am glad to hear that everything is OK. Thank you very much for the nice words.

All the best,
Anton
the Telerik team

[ali]

Hi Anton
i want to use alternative row color in my grid that this method is not work
plz help me

[Anton]

Hi Ali,

Thank you for writing back.

Presently, you can achieve cell merge only by using the Html definition. You can read more about it in the online documentation. All other solutions, including the one provided in my previous post are workaround, and there is no way to make provided workaround to work with alternate row color.

I hope this information helps.

Regards,
Anton
the Telerik team

[ali]

Hi Anton thanks for replay
can you plz change your sample that sent to me with this HTML method?
i want use row number too

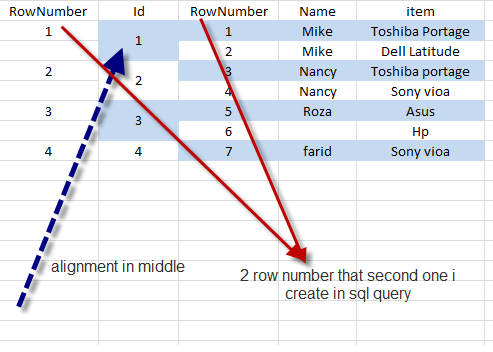

and i want that row number show not in first cell but in middle like this
plz see my attach file

[Anton]

Hi Ali,

Thank you for writing back.

In my last post I meant to say that merging in RadGridView is not possible and the only merge scenario that is supported is the one described in the HTML view definition article - in the first image in the article see how the City and Country are merged when you place the Phone column underneath the ID and Name. This is the only merging scenario supported by RadGridView and your case cannot be achieved with HTML view definition.

At first I created a highly custom solution that seems to be working without further customization, however, alternating row colors, row numbers, will not work it with.

Another thing that I can offer is to merge your data in your data source and modify the cell text. Attached you can find a sample, where I have merged the ItemToBuy for each user, by separating the different records with a semicolon. This way, the cell value is the concatenated string of all these values, and then, I am using CellFormatting to split those values and to set the cell text.

In this case, you can also set row numbers and use alternating row colors.

If this does not work for you, I am afraid that there is nothing else that I can offer.

Let us know if you have any other questions.

All the best,
Anton
the Telerik team
