How to rotate the Chart Diagram ?

[Ampz]

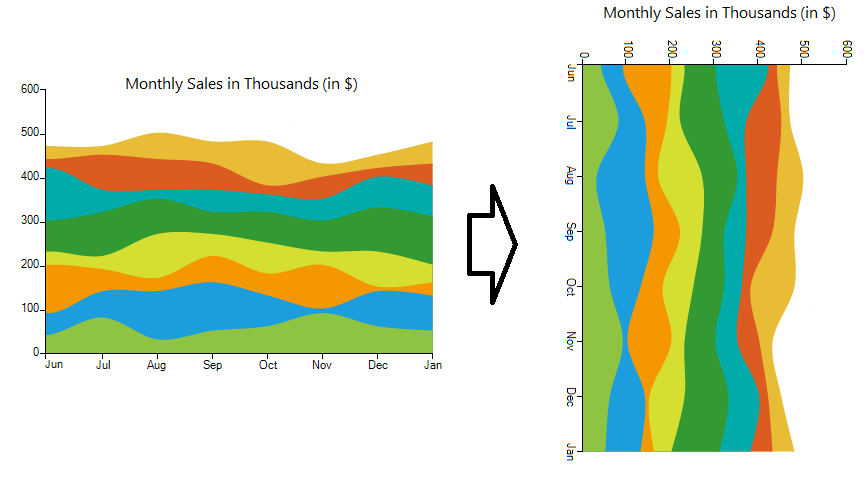

Hello !! There are any way to rotate the X-Y diagram of the chart ? like the attached picture. thx !!

[Dess | Tech Support Engineer, Principal]

Hello, Ferbabdi,

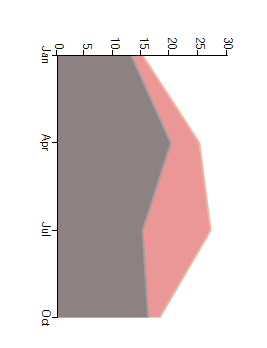

The easiest way to rotate RadChartView is to specify the ChartElement.AngleTransform property:

this.radChartView1.ChartElement.AngleTransform = 90;

Here is the code snippet for populating it with data:

            AreaSeries areaSeries = new AreaSeries();
            areaSeries.DataPoints.Add(new CategoricalDataPoint(13, "Jan"));
            areaSeries.DataPoints.Add(new CategoricalDataPoint(20, "Apr"));
            areaSeries.DataPoints.Add(new CategoricalDataPoint(15, "Jul"));
            areaSeries.DataPoints.Add(new CategoricalDataPoint(16, "Oct"));
            this.radChartView1.Series.Add(areaSeries);
            AreaSeries areaSeries2 = new AreaSeries();
            areaSeries2.DataPoints.Add(new CategoricalDataPoint(15, "Jan"));
            areaSeries2.DataPoints.Add(new CategoricalDataPoint(25, "Apr"));
            areaSeries2.DataPoints.Add(new CategoricalDataPoint(27, "Jul"));
            areaSeries2.DataPoints.Add(new CategoricalDataPoint(18, "Oct"));
            this.radChartView1.Series.Add(areaSeries2);



I hope this information helps. If you need any further assistance please don't hesitate to contact me.

Regards,
Dess | Tech Support Engineer, Sr.
Progress Telerik

[Ampz]

Worked like a charm !! thx !

[Ampz]

Hello Dess, after doing some more indepth devs, i just noticed a weird behavior on the Transformed 90º chart trackball.

There are anyway to solve this problem ??

I am attaching a video, couse i couldnt add a proyect .rar to the attachments due file types limitations.

vid of the weird behavior: https://1drv.ms/u/s!ArRShyhfG26MkC0rfTihE2cGz14t?e=y72lTN



thx for the time.

[Dess | Tech Support Engineer, Principal]

Hello, Fernando,

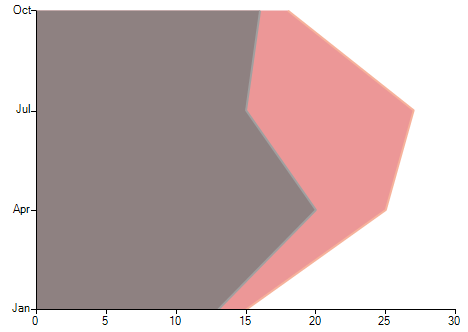

If you intend to use the trackball, indeed, managing the ChartElement.AngleTransform property is not the appropriate solution. In this case I would recommend you to change the orientation of the cartesian area:

            this.radChartView1.GetArea<CartesianArea>().Orientation = Orientation.Horizontal;
            this.radChartView1.ShowTrackBall = true;

I believe that it would fit your scenario. Should you have further questions please let me know.
