How to remove white boxes surrounding Labels on Telerik RadPieChart?
6 Answers 42 Views
This is a migrated thread and some comments may be shown as answers.
matthias
Top achievements
Rank 1
matthias asked on 14 Nov 2017, 02:34 PM

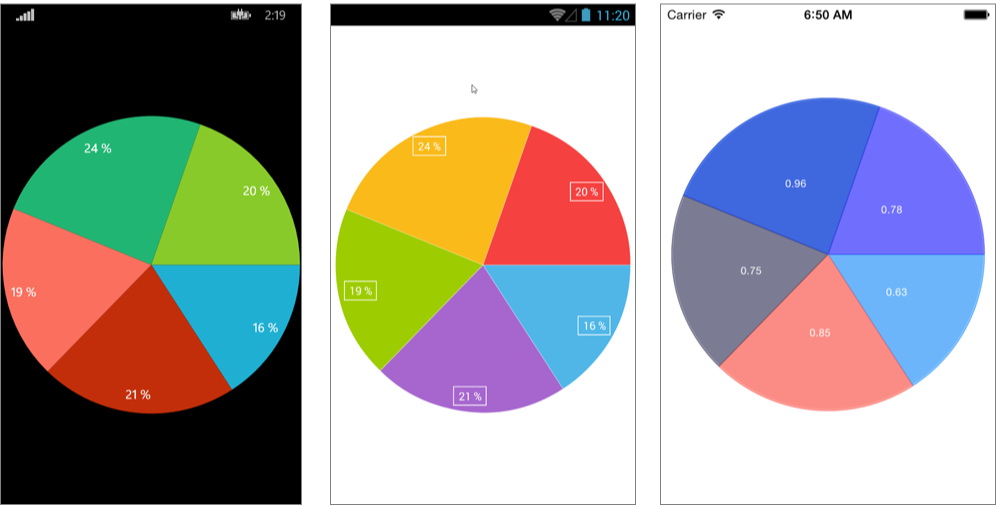

This code shows the labels surrounded by white boxes (central picture), and I can't seem to find a solution to remove them.



<telerikChart:RadPieChart.Series> <telerikChart:PieSeries ItemsSource="{Binding Data}" ShowLabels="True"> <telerikChart:PieSeries.ValueBinding> <telerikChart:PropertyNameDataPointBinding PropertyName="Value"/> </telerikChart:PieSeries.ValueBinding> </telerikChart:PieSeries> </telerikChart:RadPieChart.Series>







6 Answers, 1 is accepted

Sort by
0
Lance | Manager Technical Support
Telerik team
answered on 15 Nov 2017, 11:25 PM
Hi Matthias,

There is currently no option from Xamarin.Forms to set the label template. In this particular case, what you're reporting is only on Android.

To customize this, you'll need to create a custom renderer and access the native Android Chart's properties in the renderer. You can see how to create a customized native label-renderer (different than a Xamarin.Forms renderer) here the native chart's labels here in the native control's documentation.

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
matthias
Top achievements
Rank 1
answered on 16 Nov 2017, 02:44 PM

Hi Lance,

Thanks for your answer.



I am working on a native control, but there is absolutely no example in code of a Pie chart in samples without these white boxes around the labels.

I tried to set the LabelStrokeColor to transparent, but the boxes are still there.

I tried to do a custom renderer, but no example of a LabelRenderer on a Pie Chart.

My code is not working as it doesn't show the labels at all: the dataPoint.LayoutSlot  has value of (0,0,0,0) .

Here is my code:



   public class CustomLabelRenderer : BaseLabelRenderer
    {

        private string labelFormat =  "{0}";
        private TextPaint paint = new TextPaint();
        private Paint strokePaint = new Paint();
        private Paint fillPaint = new Paint();
        private float labelMargin = 10.0f;
        private float labelPadding = 20.0f;

        public CustomLabelRenderer(ChartSeries owner)
            : base(owner)
        {
            this.strokePaint.SetStyle(Paint.Style.Stroke);
            this.strokePaint.Color = Color.White;
            this.strokePaint.StrokeWidth = 2;
            this.fillPaint.Color = Color.ParseColor("#F5413F");
            this.paint.TextSize = 35.0f;
            this.paint.Color = Color.White;
        }

        public override void RenderLabel(Canvas canvas,
            Com.Telerik.Widget.Chart.Engine.ElementTree.ChartNode relatedLabelNode)
        {

            PieDataPoint dataPoint =
                relatedLabelNode.JavaCast<PieDataPoint>();

            RadRect dataPointSlot = dataPoint.LayoutSlot;
            double val = dataPoint.Value;
            string labelText = string.Format(labelFormat, (int)val);

            StaticLayout textInfo = this.CreateTextInfo(labelText, dataPoint);
            this.RenderLabel(canvas, dataPointSlot, labelText, textInfo);
        }

        private StaticLayout CreateTextInfo(string labelText,
            PieDataPoint dataPoint)
        {

            return new StaticLayout(labelText,
                0,
                labelText.Length,
                this.paint,
                (int)Math.Round((float)dataPoint.LayoutSlot.Width),
                Layout.Alignment.AlignCenter,
                1.0f,
                1.0f,
                false);
        }

        private void RenderLabel(Canvas canvas, RadRect dataPointSlot,
            string labelText, StaticLayout textBounds)
        {

            RectF labelBounds = new RectF();
            float height = textBounds.Height + this.labelPadding * 2;
            float top = (float)dataPointSlot.GetY() - this.labelMargin - height;

            labelBounds.Set(
                (float)dataPointSlot.GetX(),
                top,
                (float)dataPointSlot.Right,
                top + height);


            canvas.DrawRect(
                labelBounds.Left,
                labelBounds.Top,
                labelBounds.Right,
                labelBounds.Bottom,
                this.fillPaint);

            canvas.DrawRect(
                labelBounds.Left,
                labelBounds.Top,
                labelBounds.Right,
                labelBounds.Bottom,
                this.strokePaint);

            canvas.DrawText(
               (string) labelText,
                (float)dataPointSlot.GetX() + (float)(dataPointSlot.Width / 2.0) -
                textBounds.GetLineWidth(0) / 2.0f,
                labelBounds.CenterY() + textBounds.GetLineBottom(0) -
                textBounds.GetLineBaseline(0),
                paint);
        }
    }







0
Lance | Manager Technical Support
Telerik team
answered on 17 Nov 2017, 12:07 AM
Hi Matthias,

Try inheriting from a higher-level label renderer. Instead of BaseLabelRenderer, use a PieSeriesLabelRenderer and set the LableStrokePaint.

Also check out some of the available overrides to see what else you might want to access in the lifecycle, I left a few in my code for you to see what I mean.

Example

class CustomPieSeriesLabelRenderer : PieSeriesLabelRenderer
{
    private readonly Paint strokePaint = new Paint();

    protected CustomPieSeriesLabelRenderer(IntPtr javaReference, JniHandleOwnership transfer)
        : base(javaReference, transfer)

    {
    }

    public CustomPieSeriesLabelRenderer(PieSeries p0)
        : base(p0)
    {
    }


    public override void RenderLabel(Canvas canvas, ChartNode node)
    {
        this.strokePaint.Color = Color.Transparent;
        LabelStrokePaint = strokePaint;

        base.RenderLabel(canvas, node);
    }

    protected override void DrawLabelText(Canvas canvas, string text, float p2, float p3)
    {
        base.DrawLabelText(canvas, text, p2, p3);
    }

    protected override void DrawLabelBackground(Canvas canvas, Path path, int p2)
    {
        base.DrawLabelBackground(canvas, path, p2);
    }

    protected override Paint GetLabelFillPaint(int p0)
    {
        return base.GetLabelFillPaint(p0);
    }
}


Then, make sure you're setting the series's LabelRenderer property with an instance of your custom label renderer:

PieSeries pieSeries = new PieSeries();
pieSeries.LabelRenderer = new CustomPieSeriesLabelRenderer(pieSeries);
pieSeries.ShowLabels = true;


Demo

I've attached a demo for you. Note it uses 26.1.0.1, if you don't have it installed just use the code from MainActivity.cs.

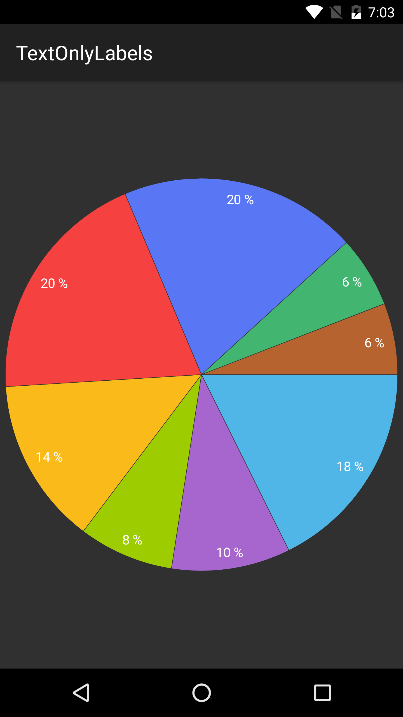

Here's the result at runtime:




I hope this helps get you up and running!

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
matthias
Top achievements
Rank 1
answered on 17 Nov 2017, 04:41 PM

Thanks for your answer.



It works perfectly with the PieSeriesLabelRenderer !



Regards

0
Francis
Top achievements
Rank 1
answered on 03 Apr 2018, 04:51 PM

Hi, I'm trying to do this using xamarin.forms. I can create the CustomPieSeriesLabelRenderer you made in my android project, but how do i set the renderer of my PieSeries in my StandardLib (shared project). While in my Standard Lib, the PieSeries doesn't have a LabelRenderer property. I tried using this line :

[assembly: ExportRenderer(typeof(Telerik.XamarinForms.Chart.PieSeries), typeof(CustomPieSeriesLabelRenderer))]

over my name space in my CustomPieSeriesLabelRenderer class but it doesn't seem to work for now. Do you have some advice?

0
Lance | Manager Technical Support
Telerik team
answered on 03 Apr 2018, 05:19 PM
Hi Francis,

When in a shared project (not PCL or .NET Standard), you need to use ifdefs to differentiate between which platform the shared renderer is being compiled for (see this StackOverflow post).

If you're not seeing a LabelRenderer property, then the PieSeries object is likely incorrectly pointing to Com.Telerik.Widget.Chart.Visualization.PieChart instead of Telerik.XamarinForms.Chart namespace. The PieSeries class name exists in both namespaces.

If you're still having trouble, please open a Support Ticket (you have a Priority Support license) and attach your project (or full code) so that I can investigate directly.

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
