We've got a chart that needs to display a couple different series types. All of values (thresholds, measurements) in a time domain.
First is a series of thresholds. Probably the closest series type that will work for us is a BarSeries. These should go on the chart first and chart in the background (or possibly bring them to front, i.e. if corresponding conditions are being edited, type thing).
Second is a series of measurements. We're currently doing this using LineSeries. The only thing I can say about this is, how are we able to treat X-axis values as values instead of categories? For instance, would be great to show the X-axis time domain as seconds (or divisions of milliseconds) and so on.
Thank you.
Regards,
Michael Powell
16 Answers, 1 is accepted
Thank you for writing.
You can add two series to the same chart as long as they work with the same axes. Or you can have two series sharing a common axis and having their own secondary axis. The third option is to have two series without any common axes. For the first option just add the BarSeries and the LineSeries to the Series collection of RadChartView. For the latter you can see the following help article - Multiple axes support.
I hope this will help. Do not hesitate to write back with further questions.
Greetings,
Ivan Petrov
the Telerik team

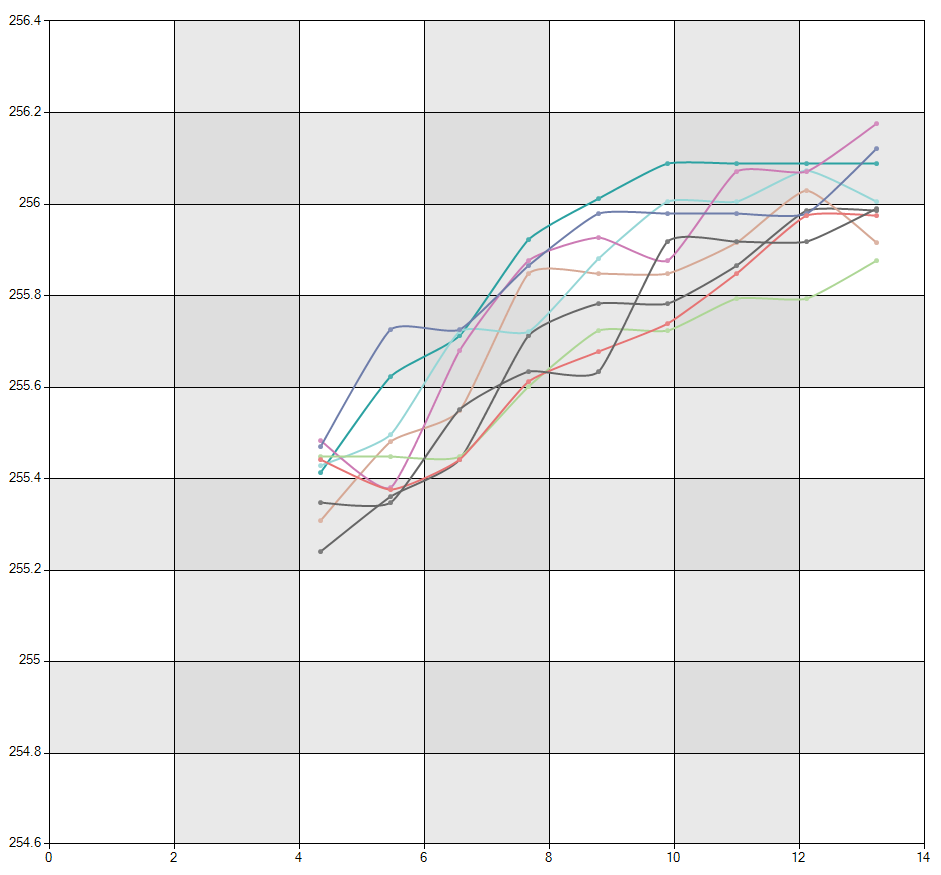

The data values (Y axis) display beautifully in the time domain (X axis) as one might expect.
*EDIT* Actually, the type of series I would like to use is more like to display is more like a candlestick I think, except rotated 90 degrees from the online docs.
Actually, now that I think about it, with control over painting characteristics, I believe we could very likely go with a clever reuse of another (limited) ScatterLineSeries, say of two points, marking begin/end in the time domain, and/or changes in data value thresholds. That could be our threshold series I think...
*EDIT* Edit to the edit. The thought here is only preferred if somehow we can paint the threshold-series' to stand out apart from the data series'.
Now I want to superimpose (or subimpose if you will) a thresholds series. Would like for that to be a BarSeries if possible. Also, the Candlestick series, except rotated 90 degrees would be ideal if we can manage it.
Failing either of those, I would like to put another ScatterLineSeries in the chart. But if we do, I want to be able to control the colors, line weights, etc, of the thing being charted.
Possible in the Telerik framework?
Thank you...
Thank you for writing back.
There is a mechanism allowing custom drawing in the chart area called custom rendering. You can insert your custom draw part to be drawn with the rest of the chart. To be able to adequately and accurately help you I would need to get a clean idea of what you are trying to achieve. Although your description is quite full "an image says a thousand words" as they say. Therefore I would kindly ask you to send me an image or a sketch of what you want to ultimately achieve so I can help you with precise advice and examples.
Looking forward to your reply.
Regards,
Ivan Petrov
Telerik
Both axes must be numeric for best possible representation in the X and Y domains. It's something like a Candlestick, except to have them rotated 90 degrees if you will (see images).
Doesn't need to be that complex, or reinvent any wheels if possible. Another ScatterLine series would even work if we can control the palette and line weight, type thing.
Thank you.
Thank you for your reply.

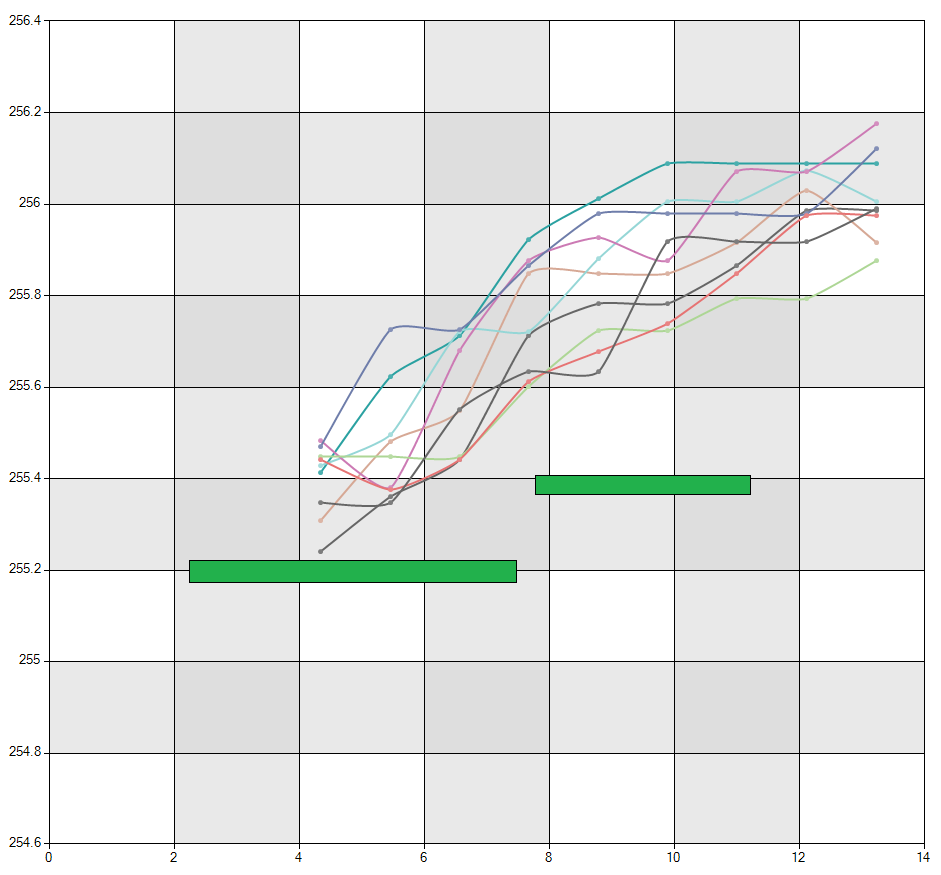

Your suggestion is a good way to approach this scenario. You can add scatter line series for your threshold graphics. You can control the width of the scatter line through the BorderWidth property of the series, the color of the line through the BorderColor and the size of the data points that are plotted through the PointSize property. Here is an example:
ScatterLineSeries series =
new
ScatterLineSeries();
series.BorderWidth = 10;
series.BorderColor = Color.Green;
series.PointSize = SizeF.Empty;
If you have a legend you can remove the threshold series through the IsVisibleInLegend property. Note that you have to use the property after you add the series to the chart Series collection:
this
.radChartView1.Series.Add(series);
series.IsVisibleInLegend =
false
;
I hope this will help. Should you have further questions, I would be glad to help.
Regards,
Ivan Petrov
Telerik
Hello Telerik
Here I have a chart view for showing the model of chart ,That means where I have dropdownlists with chart type names and Chart view for showing the selected chart type of Dropdownlist. Its works successfully.
When I select Scatter Area Chart at first time then it showing successfully ,But Getting Error like that is "CartesianSeries can be attached to CartesianView" if I selected Scatter Area Chart Not at first Time.
Where I am using RadchartView.
I attached the pic of Exception.
How could I Overcome This exception.
Thanks
Jamsheer
Here I have a chart view for showing the model of chart ,That means where I have dropdownlists with chart type names and Chart view for showing the selected chart type of Dropdownlist. Its works successfully.
When I select Scatter Area Chart at first time then it showing successfully ,But Getting Error like that is "CartesianSeries can be attached to CartesianView" if I selected Scatter Area Chart Not at first Time.
I attached the pic of Exception.
How could I Overcome This exception.
Thanks
Jamsheer
Thank you for writing.
The Polar and Cartesian area types are incompatible and you need to explicitly set the AreaType property of the chart whenever you are switching between polar and cartesian series. Please check my code snippet below:
public
partial
class
Form1 : Form
{
public
Form1()
{
InitializeComponent();
}
private
void
radButton1_Click(
object
sender, EventArgs e)
{
this
.radChartView1.Series.Clear();
this
.radChartView1.AreaType = ChartAreaType.Cartesian;
ScatterAreaSeries scatterSeries =
new
ScatterAreaSeries();
scatterSeries.DataPoints.Add(
new
ScatterDataPoint(15, 19));
scatterSeries.DataPoints.Add(
new
ScatterDataPoint(18, 10));
scatterSeries.DataPoints.Add(
new
ScatterDataPoint(13, 15));
scatterSeries.DataPoints.Add(
new
ScatterDataPoint(10, 8));
scatterSeries.DataPoints.Add(
new
ScatterDataPoint(5, 2));
this
.radChartView1.Series.Add(scatterSeries);
}
private
void
radButton2_Click(
object
sender, EventArgs e)
{
this
.radChartView1.Series.Clear();
this
.radChartView1.AreaType = ChartAreaType.Polar;
RadarPointSeries radarPointSeries =
new
RadarPointSeries();
radarPointSeries.DataPoints.Add(
new
CategoricalDataPoint(3.8d,
"Oranges"
));
radarPointSeries.DataPoints.Add(
new
CategoricalDataPoint(4d,
"Bananas"
));
radarPointSeries.DataPoints.Add(
new
CategoricalDataPoint(1.5d,
"Apples"
));
this
.radChartView1.Series.Add(radarPointSeries);
}
}
I hope this helps. Should you have further questions please do not hesitate to write back.
Regards,
Hristo
Progress Telerik
Hello Hristo
It works successfully .
How can I adjust the size of chart view.
Thanks
Jamsheer
I am glad that it is working well on your end.
Regarding your question, you can increase the control`s size. Please also note that we try to keep our threads related to a single topic. In case you have further questions not directly related to the initial one, you can open a ticket or create a forum thread. Thank you for understanding.
I hope this helps.
Regards,
Hristo
Progress Telerik
Hello Hristo
Sorry ,
I mean I want to change the size of an area of my Radchartview ,where the Radchartview size should be stable ,I mean I don't want to change the size of Radchartview ,change the area size only.
Thanks
Jamsheer
You can apply a margin on the chart element object. This way the size of the view holding the series will be changed:
this
.RadChartView1.ChartElement.Margin =
new
Padding(25);
I hope this helps. Please let me know if you have other questions.
Regards,
Hristo
Progress Telerik
Hello Telerik Team,
I have query regarding Polar chart , I want to change color of Polar Line Series for some data points whose values are within some range , As like annotation is showing a line or band of color for that region, instead of that annotation line or band , I want to change color of my polar line series as it is crossing that region.
Waiting for your reply.
Thank you for writing.
You can create a custom renderer and use it with your PolarLineSeries creating special draw parts with custom painting logic. The actual point elements are rendered in the virtual DrawPoints method:
public
partial
class
RadForm1 : Telerik.WinControls.UI.RadForm
{
public
RadForm1()
{
InitializeComponent();
this
.radChartView1.CreateRenderer += RadChartView1_CreateRenderer;
this
.radChartView1.AreaType = ChartAreaType.Polar;
PolarLineSeries polarLineSeries =
new
PolarLineSeries();
polarLineSeries.PointSize =
new
SizeF(16, 16);
PolarDataPoint point =
new
PolarDataPoint();
point.Value = 35;
point.Angle = 50;
polarLineSeries.DataPoints.Add(point);
point =
new
PolarDataPoint();
point.Value = 40;
point.Angle = 200;
polarLineSeries.DataPoints.Add(point);
point =
new
PolarDataPoint();
point.Value = 55;
point.Angle = 320;
polarLineSeries.DataPoints.Add(point);
this
.radChartView1.Series.Add(polarLineSeries);
}
private
void
RadChartView1_CreateRenderer(
object
sender, ChartViewCreateRendererEventArgs e)
{
e.Renderer =
new
CustomPolarRenderer(e.Area
as
PolarArea);
}
}
public
class
CustomPolarRenderer : PolarRenderer
{
public
CustomPolarRenderer(PolarArea area)
:
base
(area)
{ }
protected
override
void
Initialize()
{
base
.Initialize();
for
(
int
i = 0; i <
this
.DrawParts.Count; i++)
{
PolarLineSeriesDrawPart polarPart =
this
.DrawParts[i]
as
PolarLineSeriesDrawPart;
if
(polarPart !=
null
)
{
this
.DrawParts[i] =
new
CustomPolarLineSeriesDrawPart((PolarLineSeries)polarPart.Element,
this
);
}
}
}
}
public
class
CustomPolarLineSeriesDrawPart : PolarLineSeriesDrawPart
{
public
CustomPolarLineSeriesDrawPart(PolarLineSeries series, IChartRenderer renderer)
:
base
(series, renderer)
{
}
protected
override
void
DrawPoints()
{
PointF[] points =
this
.GetPointsPositionsArray();
if
(points ==
null
)
{
return
;
}
RadGdiGraphics radGraphics =
new
RadGdiGraphics(
this
.Renderer.Surface
as
Graphics);
for
(
int
i = 0; i <
this
.Element.Children.Count; i++)
{
DataPointElement childElement =
this
.Element.Children[i]
as
DataPointElement;
if
(childElement ==
null
|| !childElement.IsVisible || childElement.PointSize.Width < 1f || childElement.PointSize.Height < 1f)
{
continue
;
}
SizeF pointSize = childElement.PointSize;
PointF pointLocation = points[i];
RectangleF ptRect =
new
RectangleF(pointLocation, pointSize);
ptRect.Offset(pointSize.Width / -2f, pointSize.Height / -2f);
if
(childElement.BackgroundShape !=
null
)
{
childElement.BackgroundShape.Paint((Graphics)radGraphics.UnderlayGraphics, ptRect);
}
GraphicsPath pointPath =
null
;
if
(childElement.Shape !=
null
)
{
pointPath = childElement.Shape.CreatePath(ptRect);
}
else
{
pointPath =
new
GraphicsPath();
pointPath.AddEllipse(ptRect);
}
if
(pointPath !=
null
)
{
PolarDataPoint dataPoint = childElement.DataPoint
as PolarDataPoint;
if
(dataPoint !=
null
&& dataPoint.Value < 50)
{
childElement.BackColor = Color.Red;
}
FillPrimitiveImpl pointFill =
new
FillPrimitiveImpl(childElement,
null
);
pointFill.PaintFill(radGraphics, pointPath, ptRect);
BorderPrimitiveImpl pointBorder =
new
BorderPrimitiveImpl(childElement,
null
);
pointBorder.PaintBorder(radGraphics,
null
, pointPath, ptRect);
if
(childElement.Image !=
null
)
{
ImagePrimitiveImpl pointImage =
new
ImagePrimitiveImpl(childElement);
pointImage.PaintImage(radGraphics, childElement.Image, ptRect, childElement.ImageLayout, childElement.ImageAlignment, childElement.ImageOpacity,
false
);
}
pointPath.Dispose();
}
}
}
}

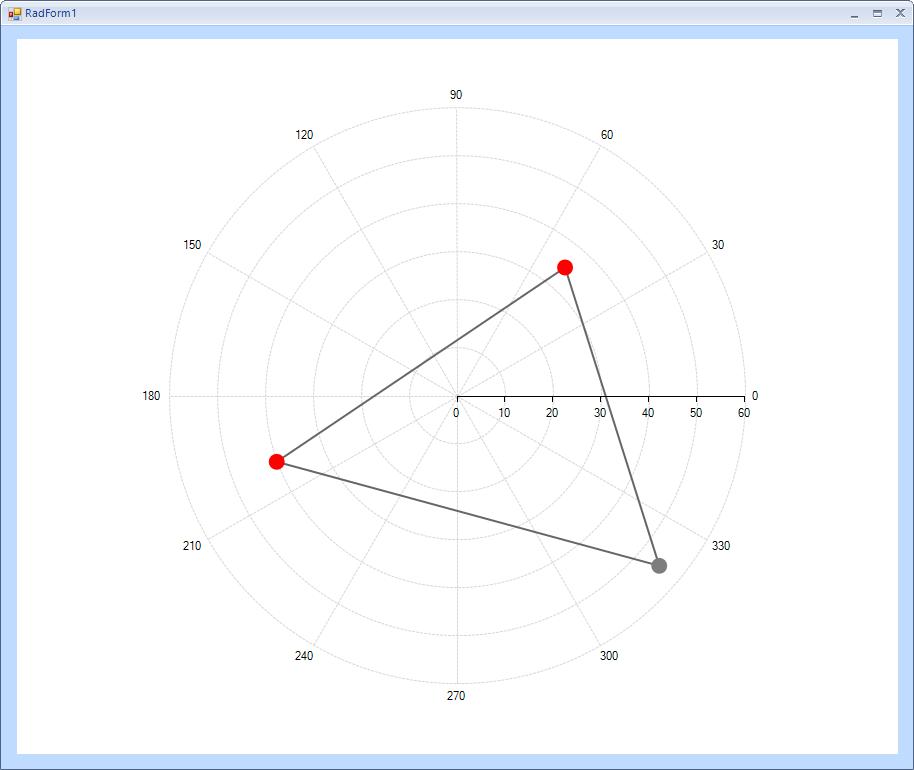

I am also attaching a screenshot showing the result on my end. In case you will need to change the rendering of the connection lines you will need to override and customize the DrawLines and GetLinePath methods.
I hope this helps. Should you have further questions please do not hesitate to write back.
Regards,
Hristo
Progress Telerik
