How to implement Grid with Images for columns for datasource as LIST

3 Answers 2448 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Sourabha
Top achievements
Rank 1
Sourabha asked on 13 Dec 2012, 02:44 PM

I am trying to implement a GRID having columns with different images.

Folloing is the logic for showing 'IsLocked' and 'IsLocked' as a boolean (TRUE/FALSE) on the GRID. Those boolean values we pass through
the LIST 'SeriesValues'.

I have been asked to show different images for BOOLEAN values.
for excample
if 'IsLocked' ==TRUE then
    show image1.ico
else
    show image2.ico

  <div data-bind="kendoGrid: { data:  SeriesValues, columns: [{field: 'IsLocked', title: 'Is Locked', width: 150}, {field: 'IsValid', title: 'Is Valid', width: 150},
   {field: 'PeriodEnd', title: 'Period End', template: '#= moment(new Date(PeriodEnd)).format(\'YYYY-MM-DD HH:mm\') #', width: 250},
   {field: 'Quantity', title: 'Quantity', width: 150},
   {field: 'QualityIndex',title: 'Quality Index'}], scrollable: true, sortable: true}" style="height: 200px"></div>
 </div>

3 Answers, 1 is accepted

Sort by
0
Jayesh Goyani
Top achievements
Rank 2
answered on 15 Dec 2012, 01:02 PM
Hello,

Please check below link/document.

http://docs.kendoui.com/getting-started/using-kendo-with/aspnet-mvc/helpers/grid/faq


Thanks,
Jayesh Goyani
0
Sourabha
Top achievements
Rank 1
answered on 18 Dec 2012, 12:42 PM
I am very sorry but I couldn't make it done.
0
Jayesh Goyani
Top achievements
Rank 2
answered on 19 Dec 2012, 07:47 AM
Hello,

.JS
$(document).ready(function() {
                   $("#grid").kendoGrid({
                       dataSource: {
                           type: "odata",
                           transport: {
                               read: "http://demos.kendoui.com/service/Northwind.svc/Orders"
                           },
                           schema: {
                               model: {
                                   fields: {
                                       OrderID: { type: "number" },
                                       Freight: { type: "number" },
                                       ShipName: { type: "string" },
                                       OrderDate: { type: "date" },
                                       ShipCity: { type: "string" }
                                   }
                               }
                           },
                           pageSize: 10,
                           serverPaging: true,
                           serverFiltering: true,
                           serverSorting: true
                       },
                       height: 250,
                       filterable: true,
                       sortable: true,
                       pageable: true,
                       columns: [{
                               field:"OrderID",
                               filterable: false
                           },
                           "Freight",
                           {
                               field: "OrderDate",
                               title: "Order Date",
                               width: 100,
                               format: "{0:MM/dd/yyyy}"
                           }, {
                               field: "ShipCity",
                               title: "Ship City Name",
                               width: 200
                           }, {
                               field: "ShipCity",
                               title: "Ship City",
                               template:  "<input type='checkbox' " + "# if (ShipCity == 'Lyon') { # " "checked='checked'" + "# } else { #" + "ElseLogicComeHere" + "# }#" + "/>"
                           }
                       ]
                   });
               });


.HTML

<div id="grid"></div>

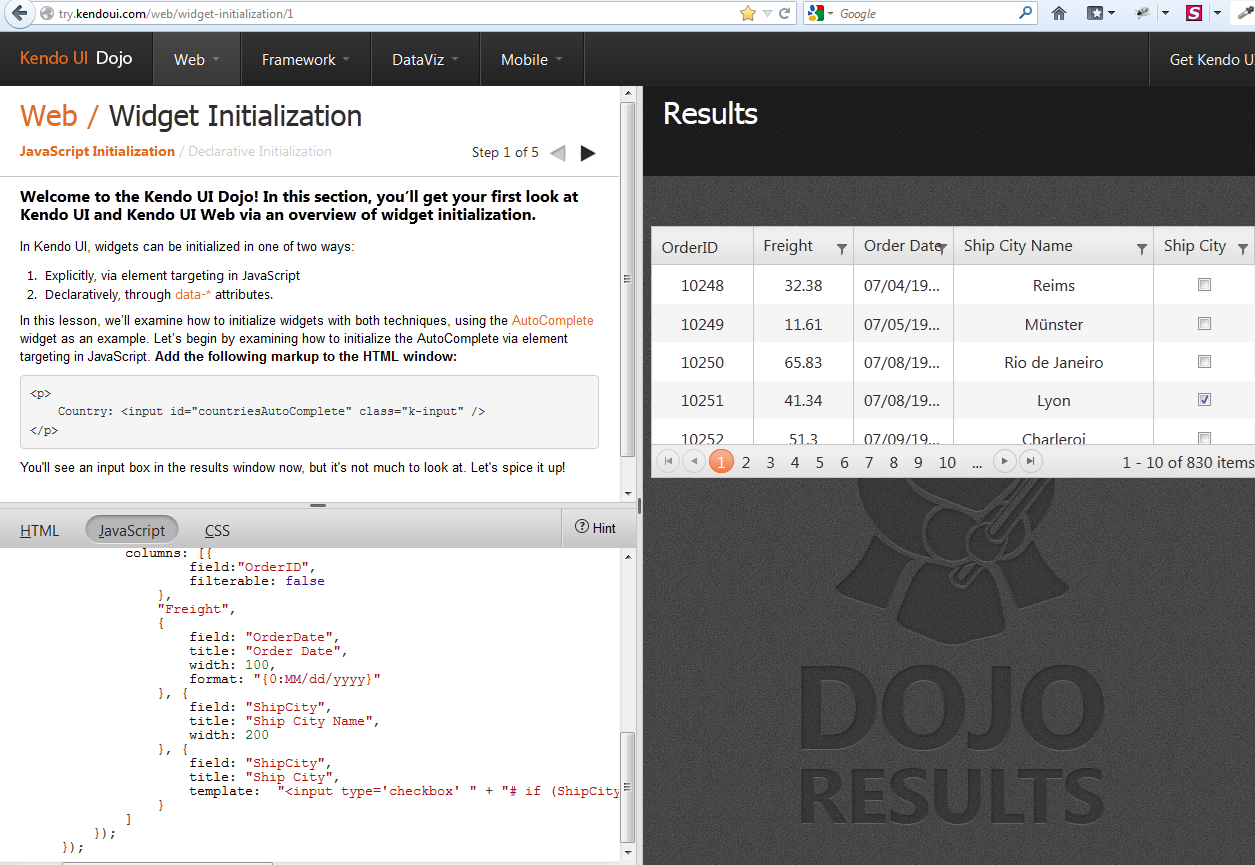

Please check attached screenshot for more info.
When City name is 'Lyon' at that time CheckBox is checked else not.




Thanks,
Jayesh Goyani
