How to get rid of this Error without copy subreport's trdp file in to debug folder ?

4 posts, 0 answers
  1. Omer47
    Omer47 avatar
    3 posts
    Member since:
    Sep 2019

    Posted 11 Sep Link to this post

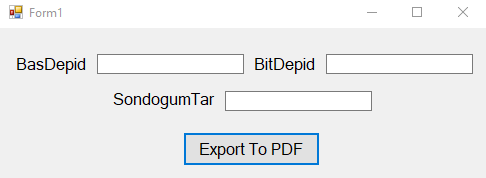

    I successfully make an example Winforms App which is taking parameters from user and then exports report which has a subreport to pdf. But I have an problem which I can solve just by putting the subreport's trdp file in the debug folder which is in the project. But I want to put subreport's trdp file where I want to put without getting the error. How can I do that ? I will attach the error I am getting. The error is written in Turkish. But It basically says I couldn't find the file "C:\Users\OE\source\repos\TelerikReportsDenemeForm\TelerikReportsDenemeForm\bin\Debug\denemereportabv.trdp".

    Here is my code :

    001.namespace TelerikReportsDenemeForm
    002.{
    003.    class ReportConnectionStringManager
    004.    {
    005.        readonly string connectionString;
    006.
    007.        public ReportConnectionStringManager(string connectionString)
    008.        {
    009.            this.connectionString = connectionString;
    010.        }
    011.
    012.        public ReportSource UpdateReportSource(ReportSource sourceReportSource)
    013.        {
    014.            if (sourceReportSource is UriReportSource)
    015.            {
    016.                var uriReportSource = (UriReportSource)sourceReportSource;
    017.                // unpackage TRDP report
    018.                // http://docs.telerik.com/reporting/report-packaging-trdp#unpackaging
    019.                var reportInstance = UnpackageReport(uriReportSource);
    020.                // or deserialize TRDX report(legacy format)
    021.                // http://docs.telerik.com/reporting/programmatic-xml-serialization#deserialize-report-definition-from-xml-file
    022.                // var reportInstance = DeserializeReport(uriReportSource);
    023.                ValidateReportSource(uriReportSource.Uri);
    024.                this.SetConnectionString(reportInstance);
    025.                return CreateInstanceReportSource(reportInstance, uriReportSource);
    026.            }
    027.
    028.            if (sourceReportSource is XmlReportSource)
    029.            {
    030.                var xml = (XmlReportSource)sourceReportSource;
    031.                ValidateReportSource(xml.Xml);
    032.                var reportInstance = this.DeserializeReport(xml);
    033.                this.SetConnectionString(reportInstance);
    034.                return CreateInstanceReportSource(reportInstance, xml);
    035.            }
    036.
    037.            if (sourceReportSource is InstanceReportSource)
    038.            {
    039.                var instanceReportSource = (InstanceReportSource)sourceReportSource;
    040.                this.SetConnectionString((ReportItemBase)instanceReportSource.ReportDocument);
    041.                return instanceReportSource;
    042.            }
    043.
    044.            if (sourceReportSource is TypeReportSource)
    045.            {
    046.                var typeReportSource = (TypeReportSource)sourceReportSource;
    047.                var typeName = typeReportSource.TypeName;
    048.                ValidateReportSource(typeName);
    049.                var reportType = Type.GetType(typeName);
    050.                var reportInstance = (Report)Activator.CreateInstance(reportType);
    051.                this.SetConnectionString((ReportItemBase)reportInstance);
    052.                return CreateInstanceReportSource(reportInstance, typeReportSource);
    053.            }
    054.
    055.            throw new NotImplementedException("Handler for the used ReportSource type is not implemented.");
    056.        }
    057.
    058.        ReportSource CreateInstanceReportSource(IReportDocument report, ReportSource originalReportSource)
    059.        {
    060.            var instanceReportSource = new InstanceReportSource { ReportDocument = report };
    061.            instanceReportSource.Parameters.AddRange(originalReportSource.Parameters);
    062.            return instanceReportSource;
    063.        }
    064.
    065.        void ValidateReportSource(string value)
    066.        {
    067.            if (value.Trim().StartsWith("="))
    068.            {
    069.                throw new InvalidOperationException("Expressions for ReportSource are not supported when changing the connection string dynamically");
    070.            }
    071.        }
    072.
    073.        Report UnpackageReport(UriReportSource uriReportSource)
    074.        {
    075.            var reportPackager = new ReportPackager();
    076.            using (var sourceStream = System.IO.File.OpenRead(uriReportSource.Uri))
    077.            {
    078.                var report = (Report)reportPackager.UnpackageDocument(sourceStream);
    079.                return report;
    080.            }
    081.        }
    082.
    083.        Report DeserializeReport(UriReportSource uriReportSource)
    084.        {
    085.            var settings = new System.Xml.XmlReaderSettings();
    086.            settings.IgnoreWhitespace = true;
    087.            using (var xmlReader = System.Xml.XmlReader.Create(uriReportSource.Uri, settings))
    088.            {
    089.                var xmlSerializer = new Telerik.Reporting.XmlSerialization.ReportXmlSerializer();
    090.                var report = (Telerik.Reporting.Report)xmlSerializer.Deserialize(xmlReader);
    091.                return report;
    092.            }
    093.        }
    094.
    095.        Report DeserializeReport(XmlReportSource xmlReportSource)
    096.        {
    097.            var settings = new System.Xml.XmlReaderSettings();
    098.            settings.IgnoreWhitespace = true;
    099.            var textReader = new System.IO.StringReader(xmlReportSource.Xml);
    100.            using (var xmlReader = System.Xml.XmlReader.Create(textReader, settings))
    101.            {
    102.                var xmlSerializer = new Telerik.Reporting.XmlSerialization.ReportXmlSerializer();
    103.                var report = (Telerik.Reporting.Report)xmlSerializer.Deserialize(xmlReader);
    104.                return report;
    105.            }
    106.        }
    107.
    108.        void SetConnectionString(ReportItemBase reportItemBase)
    109.        {
    110.            if (reportItemBase.Items.Count < 1)
    111.                return;
    112.
    113.            if (reportItemBase is Report)
    114.            {
    115.                var report = (Report)reportItemBase;
    116.
    117.                if (report.DataSource is SqlDataSource)
    118.                {
    119.                    var sqlDataSource = (SqlDataSource)report.DataSource;
    120.                    sqlDataSource.ConnectionString = connectionString;
    121.                }
    122.                foreach (var parameter in report.ReportParameters)
    123.                {
    124.                    if (parameter.AvailableValues.DataSource is SqlDataSource)
    125.                    {
    126.                        var sqlDataSource = (SqlDataSource)parameter.AvailableValues.DataSource;
    127.                        sqlDataSource.ConnectionString = connectionString;
    128.                    }
    129.                }
    130.            }
    131.
    132.            foreach (var item in reportItemBase.Items)
    133.            {
    134.                //recursively set the connection string to the items from the Items collection
    135.                SetConnectionString(item);
    136.
    137.                //set the drillthrough report connection strings
    138.                var drillThroughAction = item.Action as NavigateToReportAction;
    139.                if (null != drillThroughAction)
    140.                {
    141.                    var updatedReportInstance = this.UpdateReportSource(drillThroughAction.ReportSource);
    142.                    drillThroughAction.ReportSource = updatedReportInstance;
    143.                }
    144.
    145.                if (item is SubReport)
    146.                {
    147.                    var subReport = (SubReport)item;
    148.                    subReport.ReportSource = this.UpdateReportSource(subReport.ReportSource);
    149.                    continue;
    150.                }
    151.
    152.                //Covers all data items(Crosstab, Table, List, Graph, Map and Chart)
    153.                if (item is DataItem)
    154.                {
    155.                    var dataItem = (DataItem)item;
    156.                    if (dataItem.DataSource is SqlDataSource)
    157.                    {
    158.                        var sqlDataSource = (SqlDataSource)dataItem.DataSource;
    159.                        sqlDataSource.ConnectionString = connectionString;
    160.                        continue;
    161.                    }
    162.                }
    163.
    164.            }
    165.        }
    166.    }
    167.
    168.    public partial class Form1 : Form
    169.    {
    170.        public Form1()
    171.        {
    172.            InitializeComponent();
    173.        }
    174.
    175.        private void BtnExportPDF_Click(object sender, EventArgs e)
    176.        {
    177.            var reportProcessor = new Telerik.Reporting.Processing.ReportProcessor();
    178.
    179.            // set any deviceInfo settings if necessary
    180.            var deviceInfo = new System.Collections.Hashtable();
    181.
    182.            // Depending on the report definition choose ONE of the following REPORT SOURCES
    183.
    184.
    185.            ////                  -2-
    186.            //// ***Declarative (TRDP/TRDX) report definitions***
    187.            var reportSource = new Telerik.Reporting.UriReportSource();
    188.
    189.            //// reportName is the path to the TRDP/TRDX file
    190.            reportSource.Uri = @"C:\Users\OE\Desktop\TelerikReport\Deneme.trdp";
    191.            ////                  -2-
    192.            ReportConnectionStringManager reportConnection = new ReportConnectionStringManager("Data Source=192.168.6.198:1521/TEST2;User Id=smart;Password=a;");
    193.            ReportSource rs = reportConnection.UpdateReportSource(reportSource);
    194.
    195.
    196.
    197.            ////                  -3-
    198.            //// ***Instance of the report definition***
    199.            //var reportSource = new Telerik.Reporting.InstanceReportSource();
    200.
    201.            //// Report1 is the class of the report. It should inherit Telerik.Reporting.Report class
    202.            //reportSource.ReportDocument = new Report1();
    203.            ////                  -3-
    204.            object parameterValue = txtBasDep.Text;
    205.            rs.Parameters.Add("basdepid", parameterValue);
    206.            object parameterValue1 = txtBitDep.Text;
    207.            rs.Parameters.Add("bitdepid", parameterValue1);
    208.            object parameterValue2 = txtSonDogum.Text;
    209.            rs.Parameters.Add("sondogumtar", parameterValue2);
    210.
    211.            Telerik.Reporting.Processing.RenderingResult result = reportProcessor.RenderReport("PDF", rs, deviceInfo);
    212.
    213.
    214.
    215.            string filePath = @"C:\Users\OE\Desktop\TelerikReport\Deneme.pdf";
    216.
    217.            using (System.IO.FileStream fs = new System.IO.FileStream(filePath, System.IO.FileMode.Create))
    218.            {
    219.                fs.Write(result.DocumentBytes, 0, result.DocumentBytes.Length);
    220.            }
    221.
    222.            MessageBox.Show("The report has been exported!", "Message", MessageBoxButtons.OK, MessageBoxIcon.Information);
    223.        }
    224.    }
    225.}
  2. Silviya
    Admin
    Silviya avatar
    414 posts

    Posted 16 Sep Link to this post

    Hi Ömer,

    The error message states that the subreport cannot be found in the execution folder of the application. As you have a master-detail scenario, main and sub reports must be placed relative to each other as when they were designed. When you add the TRDX|TRDP files to the solution structure set each file's Build Action to Content, and Copy to Output Directory to Copy if Newer or Always. This will assure the report file is copied relative to the execution folder of the application and it will be discovered during the processing.

    Best Regards,
    Silviya
    Progress Telerik

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. Omer47
    Omer47 avatar
    3 posts
    Member since:
    Sep 2019

    Posted 16 Sep in reply to Silviya Link to this post

    I am designing my reports in End-User Report designer. Then I am taking trdp files and I am exporting them to pdf programmatically. I think in this scenario, I must embed subreport in mainreport's trdp file. But I dont know how to do that. Can you explain me how to embed subreport into main report. I cant find any tutorials about this.
  4. Silviya
    Admin
    Silviya avatar
    414 posts

    Posted 18 Sep Link to this post

    Hi Ömer,

    Yes, that's correct. You can set ReportSource property for SubReport item through the Standalone Report Designer by following these steps from Set the Report Source through the Report Designer section.

    As you are using TRDP files, select the URL or file option and in the Select a file or enter a valid URL drop-down choose <Select a file> which will open a File Explorer to choose the subreport file.

    Click Edit Parameters button in case you need to pass a report parameter from the main report to the detail report. In the Parameter Value, type or select the value to pass to the parameter in the detail report.

    Best Regards,
    Silviya
    Progress Telerik

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
