How to control list of columns that are available in Conditional Formatting Rules Manager?

1 Answer 65 Views
GridView
This is a migrated thread and some comments may be shown as answers.
Raymond
Top achievements
Rank 1
Raymond asked on 12 Jul 2011, 03:24 PM

Hi!

By default all properties from row object (databound item) goes to Conditional Formatting Rules Manager.

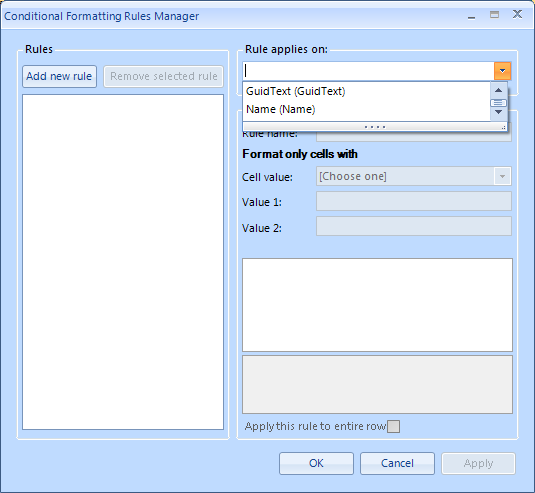

You can take a look at the attachment.

  1. How can I select which columns should be available in this window?
  2. Can I somehow disable conditional formatting for whole grid? How to remove this option from column header context menu?



I have found option for hidding column chooser: radGridView1.AllowColumnChooser but I cannot find similar option for hiding conditional formatting.











Regards

1 Answer, 1 is accepted

Sort by
0
Accepted
Svett
Telerik team
answered on 15 Jul 2011, 09:39 AM
Hi Raymond,

You can achieve the desired behavior by handling the ContextMenuOpening event of RadGridView. In addition, you need to extend the ConditionalFormattingForm form:

private void radGridView1_ContextMenuOpening(object sender, ContextMenuOpeningEventArgs e)
{
    GridHeaderCellElement headerCell = e.ContextMenuProvider as GridHeaderCellElement;

    if (headerCell == null)
    {
        return;
    }

    bool removeMenu = headerCell.ColumnInfo.Name == "ColumnWhichDoesNotSupportConditionalFormatting";
    string name = RadGridLocalizationProvider.CurrentProvider.GetLocalizedString(RadGridStringId.ConditionalFormattingMenuItem);

    for (int i = e.ContextMenu.Items.Count - 1; i >= 0; i--)
    {
        RadMenuItem menuItem = e.ContextMenu.Items[i] as RadMenuItem;

        if (menuItem == null || menuItem.Text != name)
        {
            continue;
        }

        e.ContextMenu.Items.RemoveAt(i);

        if (!removeMenu)
        {
            menuItem = new RadMenuItem(name);
            menuItem.Tag = headerCell;
            menuItem.Click += new EventHandler(menuItem_Click);
            e.ContextMenu.Items.Insert(i, menuItem);
            break;
        }
    }
}

public class MyConditionalFormattingForm : ConditionalFormattingForm
{
    public MyConditionalFormattingForm(GridHeaderCellElement cell)
        : base(cell.ViewTemplate, cell.ColumnInfo as GridViewDataColumn)
    {

    }

    protected override void OnLoad(EventArgs e)
    {
        base.OnLoad(e);

        RadDropDownList list = this.Controls.Find("radComboBoxColumns", true)[0] as RadDropDownList;
        string columnToRemove = "ColumnDoesNotSupportConditionalFormatting";

        for (int i = list.Items.Count - 1; i >= 0; i--)
        {
            RadListDataItem item = list.Items[i];

            if (item.Text.Contains(columnToRemove))
            {
                list.Items.Remove(item);
                break;
            }
        }
    }
}

I hope this helps.

Best wishes,
Svett
the Telerik team
