How to align Image to the centered text in RadLabel

[Pawel]

Hi,

I found how to put into radlabel a image here: https://www.telerik.com/forums/image-for-label and here is my code:

((TextPrimitive)this.lblTitle1.LabelElement.Children[2].Children[1]).Font = new Font("Roboto", 32, FontStyle.Bold);
ImagePrimitive imgPrimitive = new ImagePrimitive();
this.lblTitle1.RootElement.Children[0].Children.Add(imgPrimitive);
imgPrimitive.Image = WSResourceManager.UiImageProvider.InfoYellowIcon.Get(WSConfigurationManager.GetInstance.GetLargeIconSize());

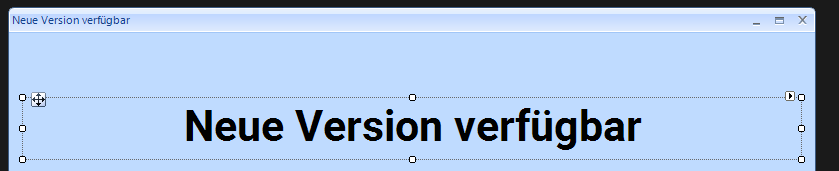

Now I would like to align the image to the text that is centered (designer):

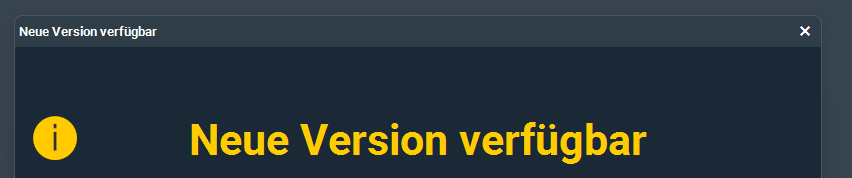

but as a result I get this (result):



How can I align this icon to the text?



[Nadya | Tech Support Engineer]

Hello, Pawel,

Thank you for the provided information.

You are reffering to quite an old forum post. If you want to assign an image in RadLabel you should just set the Image property to desired image. Then, you can specify the TextImageRelation to ImageBeforeText.

As to the setting Font you can use the LabelText property which gives you directly the TextPrimitive. Thus, the code snippet is simplified and looks like this:

this.radLabel1.LabelElement.LabelText.Font = new Font("Roboto", 32, FontStyle.Bold);
this.radLabel1.Image = Resources.temp;
this.radLabel1.TextImageRelation = TextImageRelation.ImageBeforeText;

I hope this information helps. If you have any other questions do not hesitate to contact me.

Regards,
Nadya | Tech Support Engineer
Progress Telerik

[Pawel]

Hi Nadya,

Thank you for your answer, but this doesn't meet my requirements, as I expect the image to appear just before the text when the text is centered. Please see the attached project.

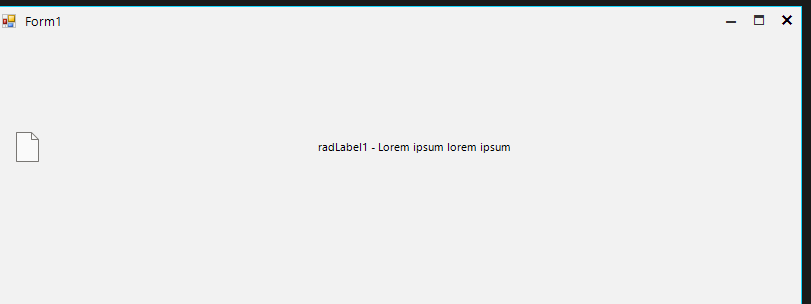

Result:

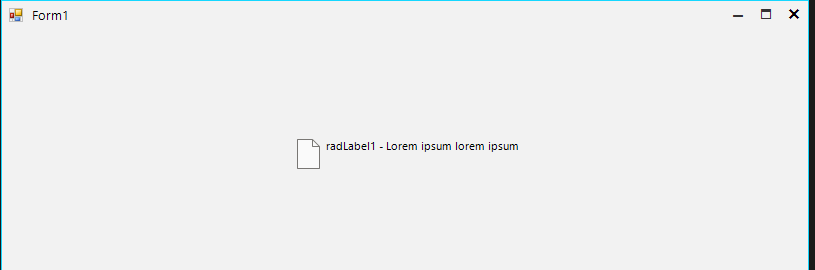

The expected result should look similar to the screenshot:

Thank you

[Nadya | Tech Support Engineer]

Hello, Pawel,

The provided project is greatly appreciated. I receive some build errors when trying to run it because of a missing manifest file. This is why I copied the form files and used them in another project which runs correctly.

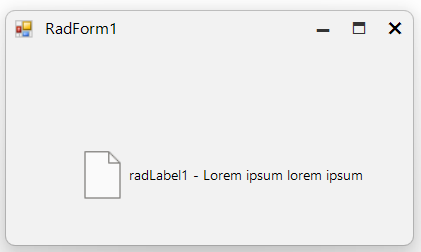

While investigating it, I have noticed that you set the AutoSize property of RadLabel to false. If you leave the AutoSize property with its default value which is true, the label should autosize automatically and the image will be displayed right before the text. Here is the result when AutoSize=true and TextImageRelation.ImageBeforeText:

Another approach, if you want to keep AutoSize = false, is to set the following properties:

this.radLabel1.ImageAlignment = System.Drawing.ContentAlignment.MiddleRight;
this.radLabel1.TextAlignment = System.Drawing.ContentAlignment.MiddleLeft;
this.radLabel1.TextImageRelation = System.Windows.Forms.TextImageRelation.ImageBeforeText;

I hope this helps. If you have any other questions, please let me know.

Regards,
Nadya | Tech Support Engineer
Progress Telerik
