Horizontal Scrolling changes Column Widths

2 Answers 220 Views

GridView

This is a migrated thread and some comments may be shown as answers.

Paul asked on 06 Dec 2011, 10:40 AM



I'm using GridView version 2011.3.1116.40.

<telerik:RadGridView ItemsSource="{Binding Jobs}" AutoGenerateColumns="False" ShowInsertRow="False"

IsReadOnly="False" CanUserDeleteRows="False" CanUserFreezeColumns="True"

CanUserInsertRows="False" CanUserReorderColumns="True" CanUserSelect="True"

RowIndicatorVisibility="Collapsed" Margin="0,0,0,-12" >

<telerik:RadGridView.RowDetailsTemplate>

<DataTemplate>

<telerik:RadTabControl TabStripPlacement="Left" TabOrientation="Vertical">

<telerik:RadTabItem Header="History">

<telerik:RadGridView ItemsSource="{Binding History}" AutoGenerateColumns="False" ShowGroupPanel="False" ShowInsertRow="False" IsReadOnly="True">

<telerik:RadGridView.Columns>

<telerik:GridViewDataColumn Name="ActionDate" DataMemberBinding="{Binding ActionDate}" Header="Date" DataFormatString="{} {0:D}" />

<telerik:GridViewDataColumn Name="ActionTime" DataMemberBinding="{Binding ActionTime}" Header="Time" />

<telerik:GridViewComboBoxColumn ItemsSource="{Binding RelativeSource={RelativeSource AncestorType=Page}, Path=DataContext.Users}"

SelectedValueMemberPath="OID"

DataMemberBinding="{Binding UserInitiator}"

DisplayMemberPath="FullName"

Header="Name"

IsComboBoxEditable="False" />

<telerik:GridViewComboBoxColumn DisplayMemberPath=""

ItemsSource="{Binding Source={StaticResource historyEventType}}"

DataMemberBinding="{Binding HistoryType}"

Header="Action"

IsComboBoxEditable="False" />

<telerik:GridViewDataColumn Name="Reason" DataMemberBinding="{Binding ReasonDescription}" Header="Reason" DataFormatString="{} {0:D}" />

<telerik:GridViewDataColumn DataMemberBinding="{Binding Notes}" Header="Notes"/>

</telerik:RadGridView.Columns>

</telerik:RadGridView>

</telerik:RadTabItem>

</telerik:RadTabControl>

</DataTemplate>

</telerik:RadGridView.RowDetailsTemplate>

<telerik:RadGridView.Columns>

<telerik:GridViewToggleRowDetailsColumn ExpandMode="Single" />

<telerik:GridViewDataColumn DataMemberBinding="{Binding FeederSourceName}" Header="Feeder Source" IsReadOnly="True"/>

<telerik:GridViewDataColumn DataMemberBinding="{Binding NPSOffenceDescription}" Header="Offence Code" IsReadOnly="True"/>

<telerik:GridViewDataColumn DataMemberBinding="{Binding NPSLocation}" Header="Location" IsReadOnly="True"/>

<telerik:GridViewDataColumn DataMemberBinding="{Binding VRM}" Header="VRM" IsReadOnly="True"/>

<telerik:GridViewDataColumn DataMemberBinding="{Binding NPSMakeModel}" Header="Make/Model" IsReadOnly="True"/>

<telerik:GridViewDataColumn DataMemberBinding="{Binding TimeStampDate}" Header="Offence Date" DataFormatString="{} {0:D}" IsReadOnly="True"/>

<telerik:GridViewDataColumn DataMemberBinding="{Binding TimeStampTime}" Header="Offence Time" IsReadOnly="True"/>

<telerik:GridViewDataColumn DataMemberBinding="{Binding ProcessedDatePart}" Header="Input Date" DataFormatString="{} {0:D}" IsReadOnly="True"/>

<telerik:GridViewDataColumn DataMemberBinding="{Binding ProcessedTimePart}" Header="Input Time" IsReadOnly="True" />

<telerik:GridViewDataColumn DataMemberBinding="{Binding Status}" Header="Status" IsReadOnly="True" />

<telerik:GridViewComboBoxColumn ItemsSource="{Binding RelativeSource={RelativeSource AncestorType=Page}, Path=DataContext.Queues}"

SelectedValueMemberPath="OID"

IsReadOnly =

"{Binding RelativeSource={RelativeSource AncestorType=Page}, Path=DataContext.CanChangeJobQueue, Converter={StaticResource NotConverter}}"

DataMemberBinding="{Binding Queue!Key}"

DisplayMemberPath="Name"

Header="Assign To Queue"

IsComboBoxEditable="True"/>

</telerik:RadGridView.Columns>

</telerik:RadGridView>

When a page is initally loaded, my column widths are fine and default to that of the longest value. The grid is too wide for the page so I can scroll it horizontally.

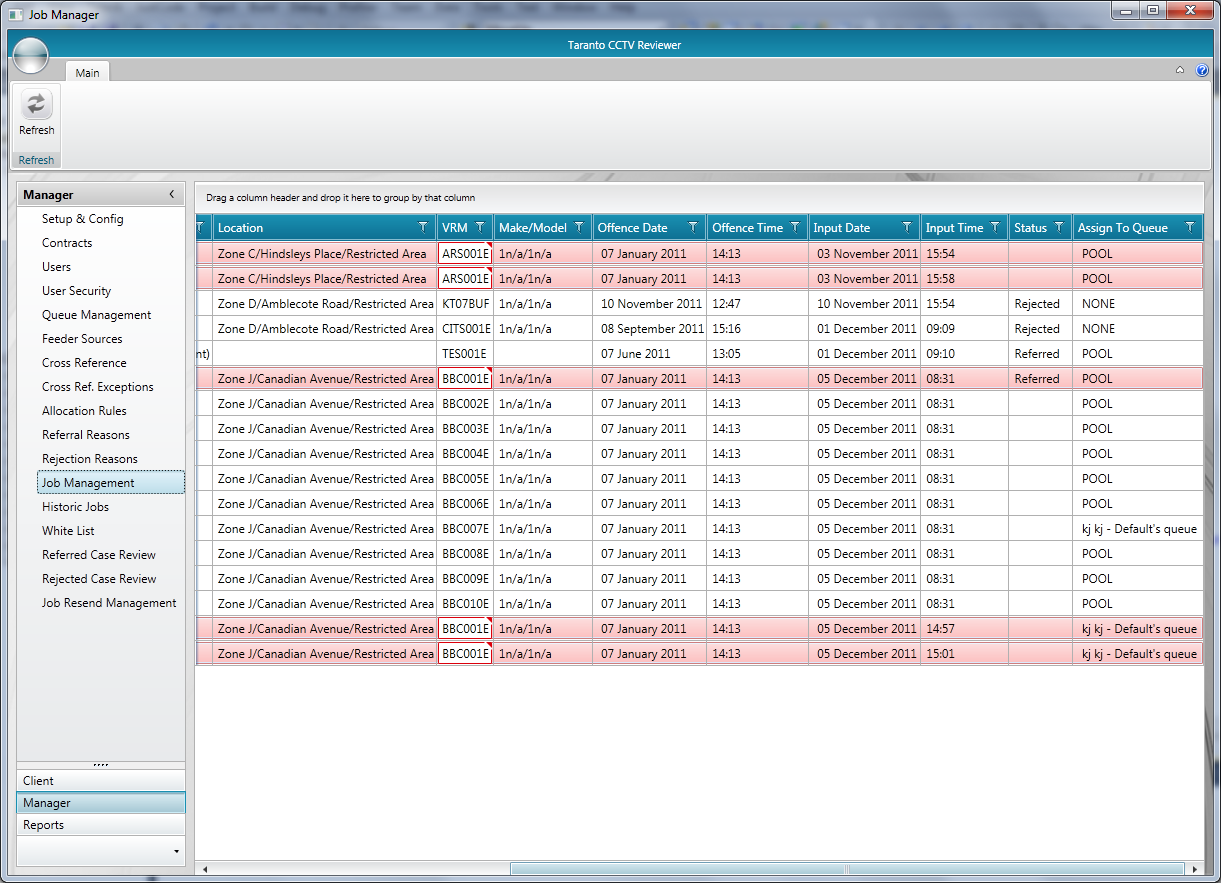

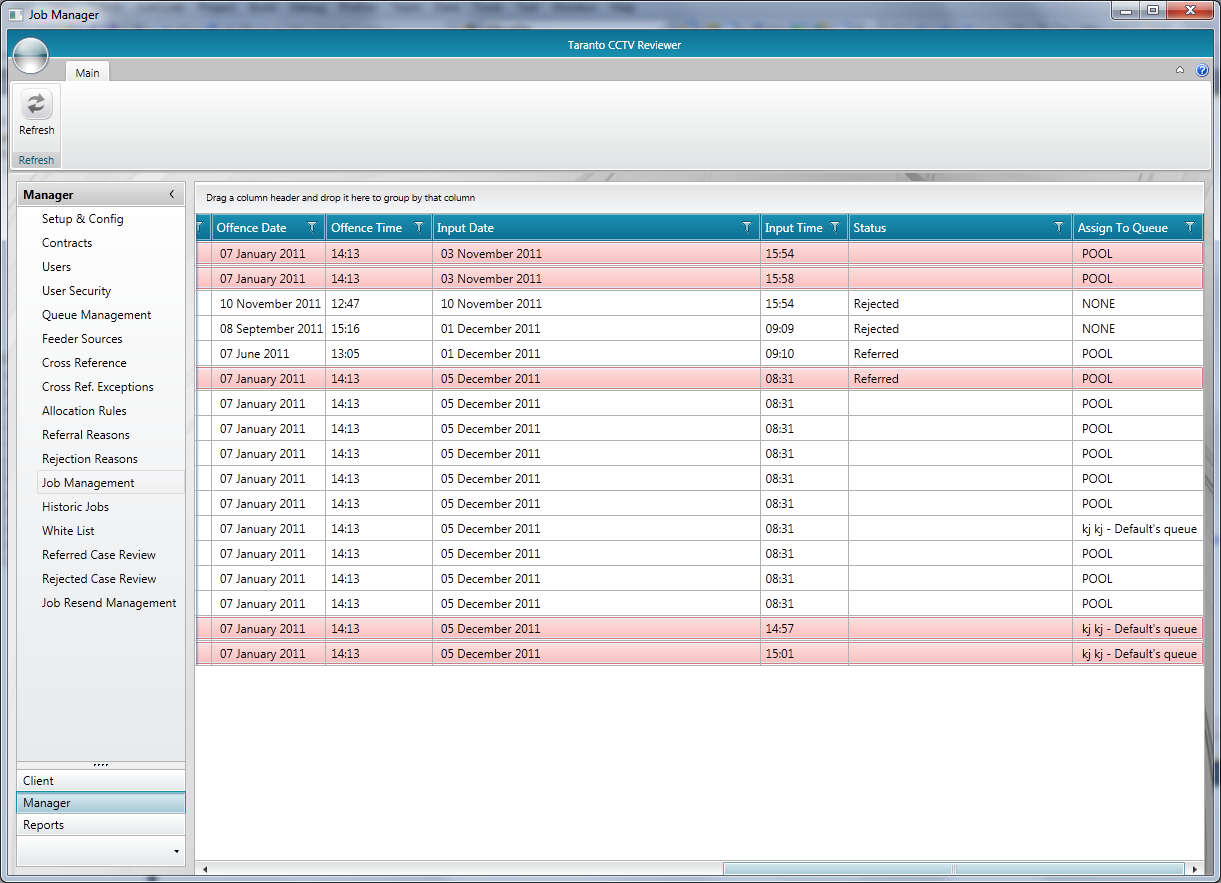

If I use the thumb on the scroll bar to move right 'slowly' then the widths are preserved (see attachment 'small scroll to right'). However, if I scroll to the right more aggresively using the scroll bars 'Large Change' value then the width of the columns on the right all seem to expand to match a common denominator that I don't want (see attachment 'large scroll to right').

Is there a property I can set on the grid or columns to stop this automatic resizing? Thanks for your time!

Paul
