Hierarchy gridview - insert columns before the glyph column

8 posts, 1 answers
  1. Alex
    Alex avatar
    7 posts
    Member since:
    Feb 2013

    Posted 17 Jul 2013 Link to this post

    Hi,
    I wish to insert columns into a hierchy gridview before the glyph column.

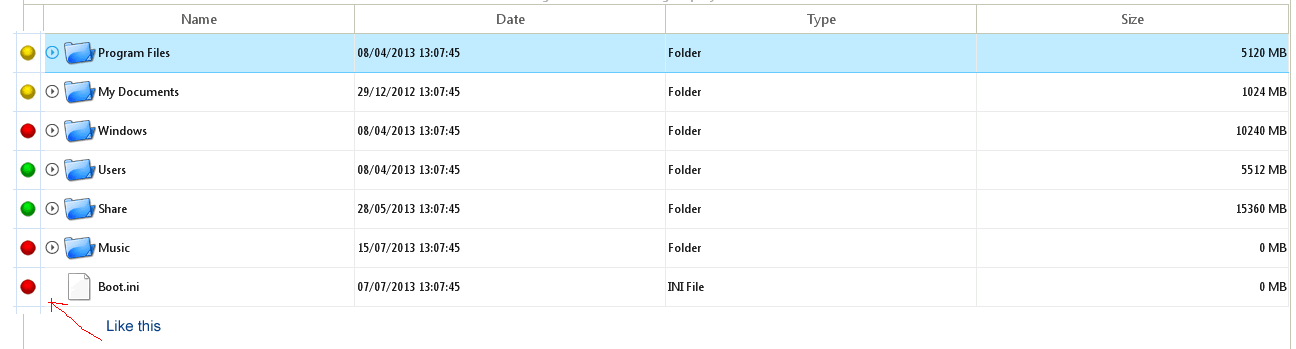

    Is there any way to configure a hierarchy gridvew to look as in the attached screenshot?

    Thanks ahead,
    Uri
  2.
  3. Answer
    Stefan
    Admin
    Stefan avatar
    2911 posts

    Posted 19 Jul 2013 Link to this post

    Hi Uri,

    Thank you for writing.

    If I understand correctly, you want to insert a column before the expander element in RadGridView. If so, this would not be possible. However, if you can use the row header column cells for some kind of indication as you have demonstrates on the attached image. To do that you would have to use the ViewCellFormatting event of RadGridView:
    void radGridView1_ViewCellFormatting(object sender, CellFormattingEventArgs e)
    {
        GridRowHeaderCellElement rowHeaderCell = e.CellElement as GridRowHeaderCellElement;

        if (rowHeaderCell != null)
        {
            rowHeaderCell.DrawFill = true;
            rowHeaderCell.GradientStyle = GradientStyles.Solid;
            if (e.Row.Cells["ID"].Value != null && (int)e.Row.Cells["ID"].Value > 10)
            {
                rowHeaderCell.BackColor = Color.Red;
            }
            else
            {
                rowHeaderCell.BackColor = Color.Green;
            }
        }
    }

    More information about this event can be found here: http://www.telerik.com/help/winforms/gridview-cells-formatting-cells.html.

    I hope that you find this information useful.

    Regards,
    Stefan
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WINFORMS.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  5. Alex
    Alex avatar
    7 posts
    Member since:
    Feb 2013

    Posted 19 Jul 2013 Link to this post

    Thank you Stefan,
    Your tip was pretty helpful, i used this event to set my image on the row header column like this:

    rowHeaderCell.BackgroundImage = img;
    rowHeaderCell.BackgroundImageLayout = ImageLayout.Zoom;

    but it would be much better if there was a way to set the width of the row header column. Is it possible?

    Uri
  7. Stefan
    Admin
    Stefan avatar
    2911 posts

    Posted 23 Jul 2013 Link to this post

    Hello Uri,

    You can change row header width. Please consider the following property:
    radGridView1.TableElement.RowHeaderColumnWidth = 100;

    I hope this helps.

    Regards,
    Stefan
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WINFORMS.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  9. Alex
    Alex avatar
    7 posts
    Member since:
    Feb 2013

    Posted 24 Jul 2013 Link to this post

    Thanks Stefan,
    It works and looks fine, but my customer keeps on insisting to insert a few columns before the expander element, so i'm looking for a workaround. I need to know what are my possibilities with the row header column:
    1-Is it possible to hide the selection arrow on the row header?
    2-Is it possible to insert a control into row header cells or to subclass it?
    3-Is there any chance that Telerik will make it possible to insert columns before the expander in future versions?

    Thanks ahead,
    Uri
  11. George
    Admin
    George avatar
    500 posts

    Posted 29 Jul 2013 Link to this post

    Hi Uri,

    Thank you for writing back.

    1. To hide the arrows on the header cells you can use ViewCellFormatting event and hide the arrow element:
      void radGridView1_ViewCellFormatting(object sender, CellFormattingEventArgs e)
      {
          GridHeaderCellElement headerCell = e.CellElement as GridHeaderCellElement;
          if (headerCell != null)
          {
              headerCell.Arrow.Visibility = ElementVisibility.Collapsed;
          }
      }
    2. We have a great article in our help which should help you to create a custom header cell.  You can read more about it here - http://www.telerik.com/help/winforms/gridview-cells-custom-cells.html
    3. We will consider adding such functionality in future if there is demand for it. We always try to adjust our planning with the needs of our customers.

    Hope this helps, if you have any other questions or comments, please let me know.

    Regards,
    George
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WINFORMS.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  13. Alex
    Alex avatar
    7 posts
    Member since:
    Feb 2013

    Posted 30 Jul 2013 Link to this post

    Hi George,
    Thank you for your reply.

    1-I've tried the code in the ViewCellFormatting event but the error didn't disappear neither when i've set it to Collapsed nor Hidden.
    2-The article explains how to create a custom cell which is great but i couldn't find a way to set it to the row header column. Also, the children of the cell must be subclasses of RadElement and not RadControl, so it would be helpful to sea an example of how to create a custom RadElement.
    3-It would be great.

    Uri
  14.
  15. George
    Admin
    George avatar
    500 posts

    Posted 02 Aug 2013 Link to this post

    Hi Uri,

    Thank you for your reply.

    Below is a simple example of custom header cell with one textbox and three buttons inside:
    public class MyHeaderCellElement : GridHeaderCellElement
        {
            private RadButtonElement sumButton;
            private RadButtonElement divButton;
            private RadButtonElement modButton;
            private RadTextBoxElement textBox;
            private StackLayoutElement mathStack;

            public MyHeaderCellElement(GridViewColumn col, GridRowElement row)
                : base(col, row)
            {
                this.TextAlignment = ContentAlignment.TopCenter;
            }

            public StackLayoutElement ElementsStack
            {
                get { return this.mathStack; }
            }

            public RadTextBoxElement TextBox
            {
                get { return this.textBox; }
            }

            public RadButtonElement SumButton
            {
                get { return this.sumButton; }
            }

            public RadButtonElement DivButton
            {
                get { return this.divButton; }
            }

            public RadButtonElement ModButton
            {
                get { return this.modButton; }
            }

            protected override void CreateChildElements()
            {
                base.CreateChildElements();

                this.mathStack = new StackLayoutElement();
                this.mathStack.Margin = new Padding(2, 25, 20, 2);
                this.mathStack.StretchHorizontally = true;

                this.sumButton = new RadButtonElement();
                this.sumButton.Text = "Sum";
                this.sumButton.StretchHorizontally = false;
                this.mathStack.Children.Add(sumButton);

                this.divButton = new RadButtonElement();
                this.divButton.Text = "Div";
                this.divButton.StretchHorizontally = false;
                this.mathStack.Children.Add(divButton);

                this.modButton = new RadButtonElement();
                this.modButton.Text = "Mod";
                this.modButton.StretchHorizontally = false;
                this.mathStack.Children.Add(modButton);

                this.textBox = new RadTextBoxElement();
                this.textBox.StretchHorizontally = true;
                this.mathStack.Children.Add(textBox);

                this.Children.Add(mathStack);
            }

            protected override Type ThemeEffectiveType
            {
                get
                {
                    return typeof(GridHeaderCellElement);
                }
            }
        }

    And a sample usage:
    void radGridView1_CreateCell(object sender, GridViewCreateCellEventArgs e)
    {
        if (e.Column.Name == "YourColumnName" && e.CellType == typeof(GridHeaderCellElement))
        {
            e.CellType = typeof(MyHeaderCellElement);
        }
    }

    Would you please clarify for me which arrow are you referring to. Please see if it is the one shown on the attached picture (arrow.png).

    I hope this information be of use, looking forward to your reply.

    Regards,
    George
    Telerik
