Hierarchical grid child template

16 posts, 0 answers
  1. Bernhard
    Bernhard avatar
    8 posts
    Member since:
    Jul 2013

    Posted 04 Apr 2017 Link to this post

    Hi.

    I've followed the steps in this how-to to set up a hierarchical grid:

    http://docs.telerik.com/devtools/winforms/gridview/hierarchical-grid/object-relational-hierarchy-mode

    Now I want to generate the columns in the child template myself to avoid displaying internal fields like database IDs etc..
    Even in your example in the 'Manually generating hierarchy mode' section you add columns in the CreateChildTemplate() method, but never turn off the autogenerated columns. So, as in the figure shown, you just add the columns additionally to the autogenerated columns.
    If I set the template.AutoGenerateColumns = False, then the database relation somehow gets broken. However, the subdatasets won't be shown after clicking the expand button.

    Regards,
    Bernhard

  2. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3626 posts

    Posted 05 Apr 2017 Link to this post

    Hello Bernhard,

    Thank you for writing.

    As it is described in the beginning of the article, it is necessary to set the AutoGenerateHierarchy property to true. I have prepared a sample project for your reference.

    I hope this information helps. Should you have further questions I would be glad to help.

    Regards,
    Dess
    Telerik by Progress
    Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  3. Bernhard
    Bernhard avatar
    8 posts
    Member since:
    Jul 2013

    Posted 05 Apr 2017 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Hi Dess.

    I think you misunderstood my problem.
    For example, in the sample you sent, let's say I'd like to display just the ProductName and the Picture in the child grid.

    So the child template would look like something like this:

            private GridViewTemplate CreateChildTemplate()
            {
                GridViewTemplate childTemplate = new GridViewTemplate();
                childTemplate.AutoGenerateColumns = false;
                GridViewDataColumn column = new GridViewDecimalColumn("ProductName");
                childTemplate.Columns.Add(column);
                column = new GridViewDecimalColumn("Picture");
                childTemplate.Columns.Add(column);
                //column = new GridViewDecimalColumn("ProductName");
                //childTemplate.Columns.Add(column);
                //column = new GridViewDecimalColumn("UnitPrice");
                //childTemplate.Columns.Add(column);
                //column = new GridViewDecimalColumn("SupplierID");
                //childTemplate.Columns.Add(column);
                //column = new GridViewDecimalColumn("CategoryID");
                //childTemplate.Columns.Add(column);
                //column = new GridViewDecimalColumn("UnitsInStock");
                //childTemplate.Columns.Add(column);
                childTemplate.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
                this.radGridView1.Templates.Add(childTemplate);
                return childTemplate;
            }

    I set the AutoGenerateColumns property to false and add just the two columns to the template. But this code change doesn't change a thing in the output. The grid would always display all columns. Setting the AutoGenerateHierarchy property to false leads to an empty product list though...

    Regards,
    Bernhard

  4. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3626 posts

    Posted 06 Apr 2017 Link to this post

    Hello Bernhard,

    Thank you for writing back.

    The provided clarification is greatly appreciated. When the RadGridView.AutoGenerateHierarchy property is set to true, the grid automatically will create all columns in order to set up the hierarchy. If you need to display only specific columns in the child template, you have two options:
    1. Set the AutoGenerateHierarchy property to true and hide all redundant columns.
    2. Set the AutoGenerateHierarchy property to false, the child template's AutoGenerateColumns property to false, add the desired columns and set up the relation programmatically. Additional information about setting up the relation is available here: http://docs.telerik.com/devtools/winforms/gridview/hierarchical-grid/binding-to-hierarchical-data-programmatically

    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Telerik by Progress
    Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  5. Bernhard
    Bernhard avatar
    8 posts
    Member since:
    Jul 2013

    Posted 06 Apr 2017 in reply to Dess | Tech Support Engineer, Sr. Link to this post



    Hi Dess.

    1. Set the AutoGenerateHierarchy property to true and hide all redundant columns.

    How do I hide auto generated columns? When setting up the template, the columns collection is empty. So I have to use an event after databinding to set the column's isVisible property to false?

    2. Set the AutoGenerateHierarchy property to false, the child template's AutoGenerateColumns property to false, add the desired columns and set up the relation programmatically.

    Can you please provide working code - in the sample you attached - for this approach?

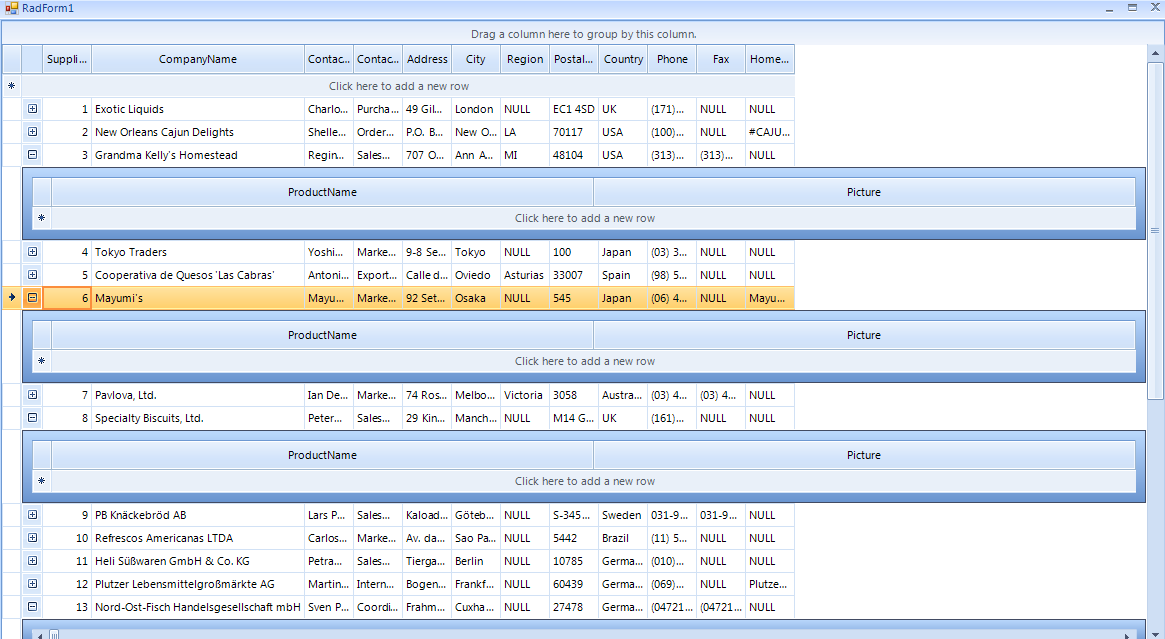

    The following code leads to the attached output. I don't get it why the child rows are not displayed.

            private void RadForm1_Load(object sender, EventArgs e)
            {
                // TODO: This line of code loads data into the 'nwindDataSet.Products' table. You can move, or remove it, as needed.
                this.productsTableAdapter.Fill(this.nwindDataSet.Products);
                // TODO: This line of code loads data into the 'nwindDataSet.Suppliers' table. You can move, or remove it, as needed.
                this.suppliersTableAdapter.Fill(this.nwindDataSet.Suppliers);

                GridViewTemplate childTemplate = CreateChildTemplate();
                GridViewRelation relation = new GridViewRelation(this.radGridView1.MasterTemplate, childTemplate);
                relation.ChildColumnNames.Add("Products");
                this.radGridView1.AutoGenerateHierarchy = false;
                this.radGridView1.DataSource = this.suppliersBindingSource;
                this.radGridView1.Relations.Add(relation);
            }

            private GridViewTemplate CreateChildTemplate()
            {
                GridViewTemplate childTemplate = new GridViewTemplate();
                GridViewDataColumn column = new GridViewDecimalColumn("ProductName");
                childTemplate.AutoGenerateColumns = false;
                childTemplate.Columns.Add(column);
                column = new GridViewDecimalColumn("Picture");
                childTemplate.Columns.Add(column);
                childTemplate.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
                this.radGridView1.Templates.Add(childTemplate);
                return childTemplate;
            }



  6. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3626 posts

    Posted 06 Apr 2017 Link to this post

    Hello Bernhard,

    Thank you for writing back.

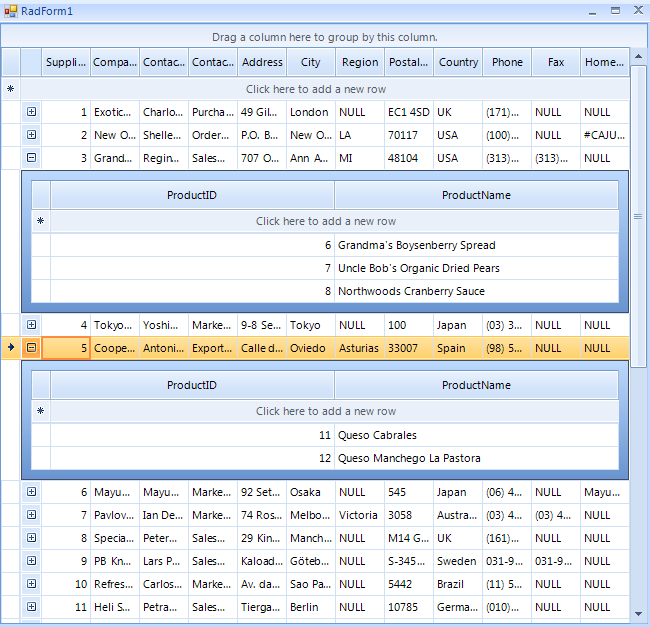

    According to the referred help article, I have modified the sample code in order to set up the relation and bind the child template. Note that it is important that the column which participates in the relation between the parent and child tables is added to the child template. Otherwise, it is not possible to extract the relevant data for each parent row. Here is the code snippet which result is illustrated in the attached screenshot:
    private void RadForm1_Load(object sender, EventArgs e)
    {
        this.productsTableAdapter.Fill(this.nwindDataSet.Products);
        this.suppliersTableAdapter.Fill(this.nwindDataSet.Suppliers);


        this.radGridView1.AutoGenerateHierarchy = false;
        this.radGridView1.DataSource = this.suppliersBindingSource;

        GridViewTemplate childTemplate = CreateChildTemplate();
        childTemplate.DataSource = this.productsBindingSource;
        this.radGridView1.MasterTemplate.Templates.Add(childTemplate);

        GridViewRelation relation = new GridViewRelation(this.radGridView1.MasterTemplate, childTemplate);
        relation.ParentColumnNames.Add("SupplierID");
        relation.ChildColumnNames.Add("SupplierID");
        this.radGridView1.Relations.Add(relation);

    }

    private GridViewTemplate CreateChildTemplate()
    {
        GridViewTemplate childTemplate = new GridViewTemplate();
        childTemplate.AutoGenerateColumns = false;
        GridViewDecimalColumn column1 = new GridViewDecimalColumn("ProductID");
        childTemplate.Columns.Add(column1);
        column1.FieldName = "ProductID";
        GridViewTextBoxColumn column2 = new GridViewTextBoxColumn("ProductName");
        childTemplate.Columns.Add(column2);
        column2.FieldName = "ProductName";
        GridViewDecimalColumn column3 = new GridViewDecimalColumn("SupplierID");
        column3.FieldName = "SupplierID";
        column3.IsVisible = false;
        childTemplate.Columns.Add(column3);

        childTemplate.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
        return childTemplate;
    }

    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Telerik by Progress
    Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  7. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 05 Sep 2018 Link to this post

    Hi Dess,

         I have two issue in my Radgrid

    1. There is borders of columns are not showing when export to Excel, or getting dataonly when export. I need to show both case that with border or without border.
    2. If Hierarchical data Grid : The expanded chilled templates are not showing  when take print preview of grid.

    Regards

    Jamshi







  8. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3626 posts

    Posted 05 Sep 2018 Link to this post

    Hello, Jamshi,

    I am not sure which export exactly you are using but I would recommend you to use the GridViewSpreadExport. It utilizes our RadSpreadProcessing library to export the content of RadGridView to xlsx, csv, pdf and txt formats. The ExportHierarchy property defines whether the exporter will export hierarchical data or not and the ChildViewExportMode property defines which child view of a hierarchy row to be exported.

    The SpreadExporter.CellFormatting is used to format the cells to be exported. Thus you can achieve the custom design that you need. Additional information is available in the following help article: https://docs.telerik.com/devtools/winforms/gridview/exporting-data/spread-export

    I hope this information helps. If you have any additional questions, please let me know.

    Regards,
    Dess
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  9. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 05 Sep 2018 Link to this post

    Hi Dess,
         Thanks for your answer, But

    Where I asked about hierarchy data not in case of export, I am asking in case of print preview of hierarchical grid.

    I take Print Preview of hierarchical grid, Where not showing chilled template.

    Is there any property to show template in print preview.

    Thanks
    Jamshi

  10. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3626 posts

    Posted 06 Sep 2018 Link to this post

    Hello, Jamshi,

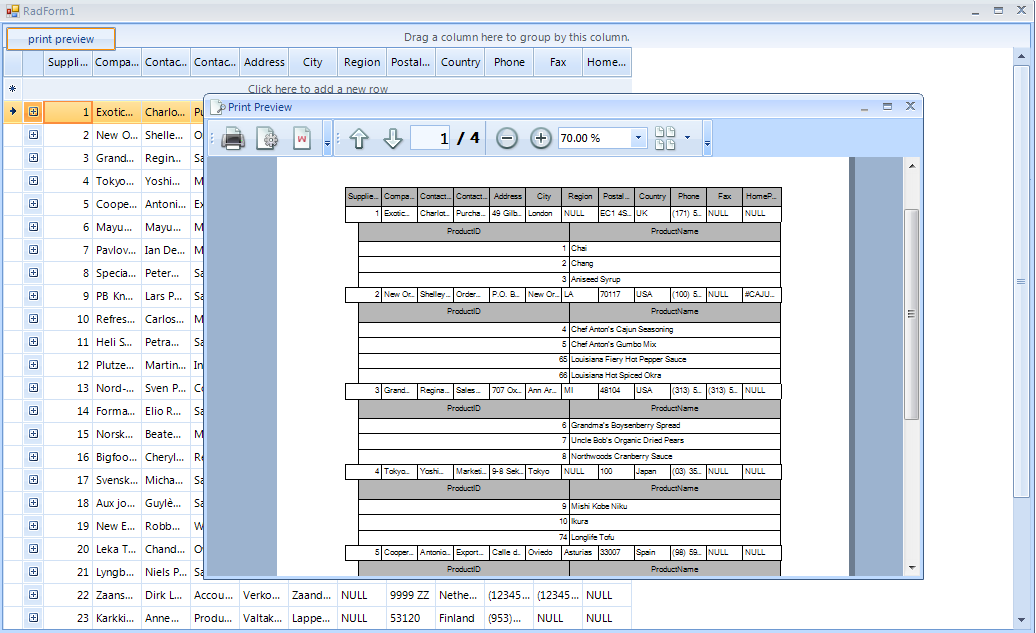

    Please excuse me for the misunderstanding. If you need to print the child rows when calling the PrintPreview method, it is necessary to set the GridPrintStyle.PrintHierarchy property to true:

    GridPrintStyle style = new GridPrintStyle();
    style.PrintHierarchy = true;
    this.radGridView1.PrintStyle = style;
    this.radGridView1.PrintPreview();



    If You need any further assistance please don't hesitate to contact me.

    Regards,
    Dess
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  11. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 06 Sep 2018 Link to this post

    hello Dess,

         Thanks, I got chilled rows in PrintPreview, But

    Still I didn't get the border when export to Excel.

    I tried SpreadExporter.cellformating event, but I am not getting correct output.

    here s my code to export

    GridViewSpreadExport spreadExporter = new GridViewSpreadExport(dgv);
    SpreadExportRenderer exportRenderer = new SpreadExportRenderer();

    spreadExporter.ExportChildRowsGrouped = false;
    spreadExporter.ExportFormat = SpreadExportFormat.Xlsx;
    spreadExporter.ExportHierarchy = true;
    spreadExporter.ExportGroupedColumns = false;
    spreadExporter.ExportViewDefinition = false;

    spreadExporter.FileExportMode = FileExportMode.CreateOrOverrideFile;
    spreadExporter.HiddenColumnOption = HiddenOption.DoNotExport;
    spreadExporter.HiddenRowOption = HiddenOption.DoNotExport;
    spreadExporter.PagingExportOption = PagingExportOption.AllPages;
    spreadExporter.SheetName = "Sheet";
    spreadExporter.SummariesExportOption = SummariesOption.DoNotExport;

    //spreadExporter.CellFormatting += exporter_CellFormatting;

    string filename = commandButton("xlsx");
    if (filename != "")
    {
        spreadExporter.RunExport(filename, exportRenderer);
    }

    Thanks

    Jamshi

  12. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3626 posts

    Posted 07 Sep 2018 Link to this post

    Hello, Jamshi,

    According to the provided code snippet, it seems that the CellFormatting event handler is missing for the GridViewSpreadExport. I have prepared a sample code snippet demonstrating how to assign borders for the exported cells:

    ThemableColor purple = new ThemableColor(System.Windows.Media.Color.FromArgb(255, 155, 89, 182));
    ThemableColor darkBlue = new ThemableColor(System.Windows.Media.Color.FromArgb(255, 44, 62, 80));
    CellBorders border;

    private void exporter_CellFormatting(object sender, Telerik.WinControls.Export.CellFormattingEventArgs e)
    {
        if (border == null)
        {
            border = new Telerik.Windows.Documents.Spreadsheet.Model.CellBorders(
                new CellBorder(CellBorderStyle.Medium, darkBlue),
                new CellBorder(CellBorderStyle.Medium, darkBlue),
                new CellBorder(CellBorderStyle.Medium, darkBlue),
                new CellBorder(CellBorderStyle.Medium, darkBlue),
                new CellBorder(CellBorderStyle.Thin, purple),
                new CellBorder(CellBorderStyle.Thin, purple),
                new CellBorder(CellBorderStyle.None, darkBlue),
                new CellBorder(CellBorderStyle.None, darkBlue));
        }
        e.CellStyleInfo.Borders = border;
    }

    Since the GridViewSpreadExport uses the RadSpreadProcessing library, I would recommend you to have a look at the following help article demonstrating how to customize the cell's style: https://docs.telerik.com/devtools/document-processing/libraries/radspreadprocessing/working-with-cells/get-set-clear-properties#borders-property

    If you need any further assistance please don't hesitate to contact me.

    Regards,
    Dess
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  13. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 28 Sep 2019 Link to this post

    Hi,

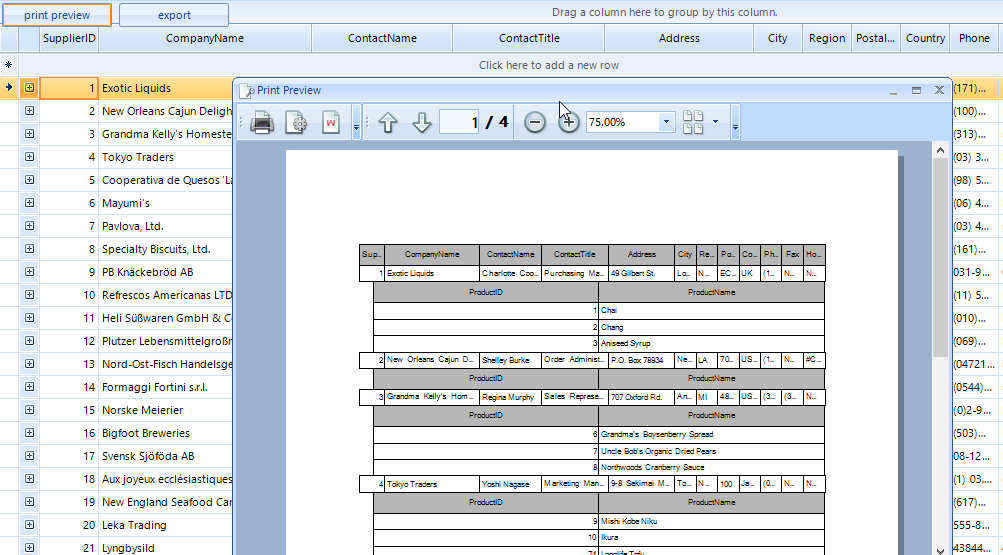

         Here I have a Hierarchical Grid.

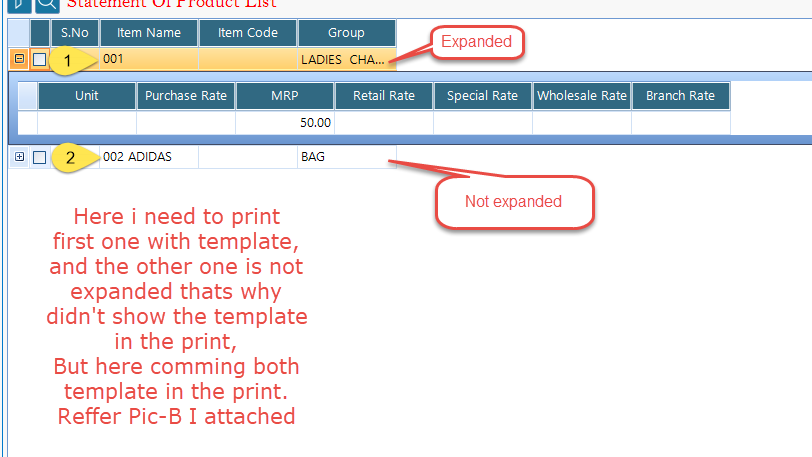

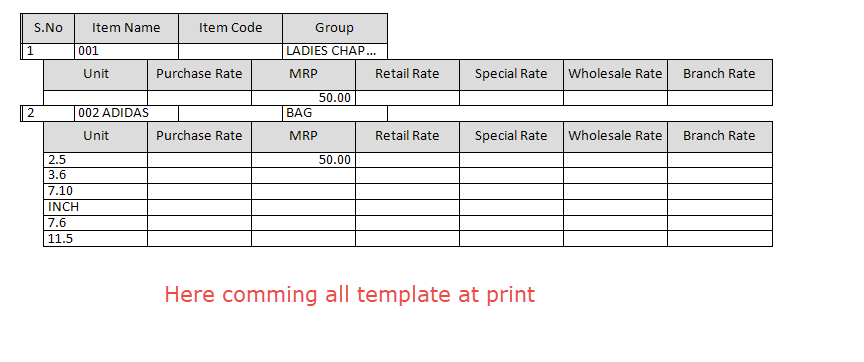

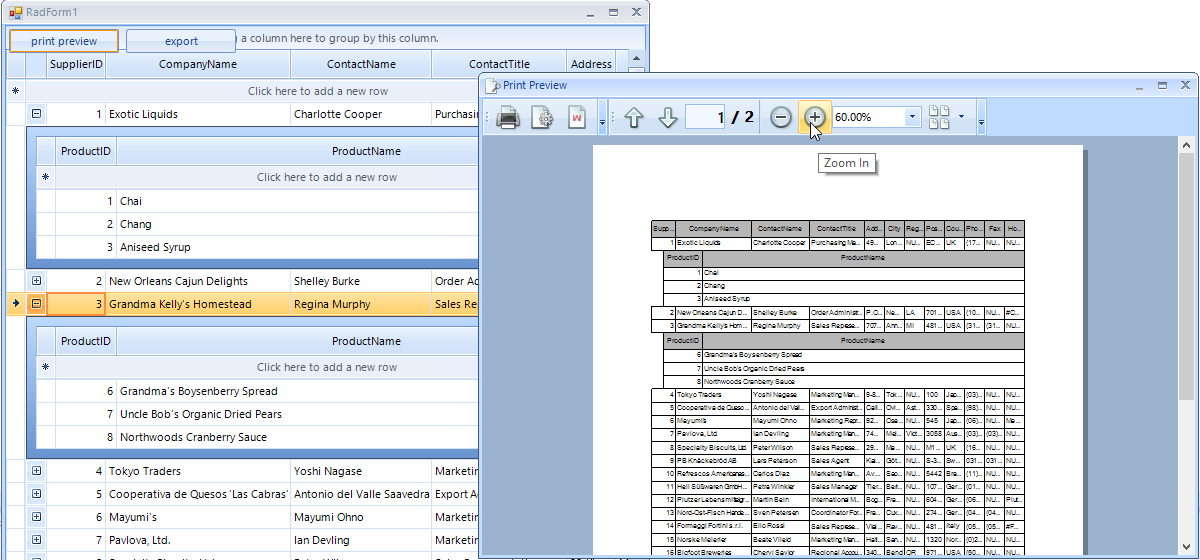

    When printing, all GridViewTemplates are coming  that is expanded and none expanded templates, but

    I need to print expanded GridViewTemplate only as chiled.

    Regards

    Jamshi

  14. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3626 posts

    Posted 01 Oct 2019 Link to this post

    Hello, Jamsheer,

    The purpose of the printing behavior in RadGridView is to print all rows together with their child rows when there is a hierarchical template no matter of the current expanded state of the row.

    If you need to skip printing the child records for a certain parent row, e.g. the second row in the grid, the possible solution that I can suggest is to hide the child rows for this particular parent row before invoking the print logic and restore the rows visibility after it. You can find below a sample code snippet demonstrating how to skip printing the child rows for the parent row at index 1:

            private void radButton1_Click(object sender, EventArgs e)
            {
                foreach (GridViewRowInfo row in this.radGridView1.Rows[1].ChildRows)
                {
                    row.IsVisible = false;
                }
                GridPrintStyle style = new GridPrintStyle();
                style.PrintHierarchy = true;
                this.radGridView1.PrintStyle = style;
                this.radGridView1.PrintPreview();
                foreach (GridViewRowInfo row in this.radGridView1.Rows[1].ChildRows)
                {
                    row.IsVisible = true;
                }
            }



    Should you have further questions please let me know.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik

    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  15. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 03 Oct 2019 Link to this post

    Hi Dess,

          Its working fine but, If the row is not expanded then I don't want to see the template column header also not only the data rows

    I need to show the template grid header column only when parent is expanded.

    How could I hide.

    Regards

    Jamshi

  16. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3626 posts

    Posted 04 Oct 2019 Link to this post

    Hello, Jamsheer,

    In order to achieve your goal, I would suggest you an alternative solution. However, it would require creating a custom PrintGridTraverser. Thus, in its CanStepInHierarchy method you can control whether the child rows will be traversed when printing considering the expanded state of the row. Please refer to the following code snippet:

            private void radButton1_Click(object sender, EventArgs e)
            {
                CustomGridPrintStyle style = new CustomGridPrintStyle();
                style.PrintHierarchy = true;
                this.radGridView1.PrintStyle = style;
                this.radGridView1.PrintPreview();
            }

            public class CustomGridPrintStyle : GridPrintStyle
            {
                public override void Initialize()
                {
                    base.Initialize();
                    FieldInfo fi = typeof(GridPrintStyle).GetField("traverser", BindingFlags.NonPublic | BindingFlags.Instance);
                    fi.SetValue(this, new CustomPrintGridTraverser(this.GridView.MasterView));
                }
            }

            public class CustomPrintGridTraverser : PrintGridTraverser
            {
                public CustomPrintGridTraverser(GridViewInfo viewInfo) : base(viewInfo)
                {
                }

                protected override bool CanStepInHierarchy()
                {
                    GridViewHierarchyRowInfo hierarchyRow = this.Traverser.Current as GridViewHierarchyRowInfo;
                    if (hierarchyRow != null)
                    {
                        return hierarchyRow.IsExpanded;
                    }
                    return base.CanStepInHierarchy();
                }
            }

    Should you have further questions please let me know.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik

    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
Back to Top
