Hide or disable WIN and ALT keys on radVirtualKeyboard

[Chris]

Hi,

How do I hide or disable WIN and ALT keys on  a radVirtualKeyboard?

I'm using the Simplified keybordlayout.



Chris.







[Dess | Tech Support Engineer, Principal]

Hello, Chris,

The following help article demonstrates a sample approach how to access the logical layouts and the virtual keys and then hide those of them that are not needed:

https://docs.telerik.com/devtools/winforms/controls/virtual-keyboard/logical-keyboard-layout

I hope this information helps. If you need any further assistance please don't hesitate to contact me.

Regards,
Dess | Tech Support Engineer, Principal
Progress Telerik

[Chris]

Thank you very much!

Regards,

Chris.

[Chris]


Hi Dess,
I tried this code , but it does not work with LWIN, RWIN or ALT keys.
row returns null.
var allKeys = this.radVirtualKeyboard1.MainLayoutPanel.GetAllKeys();
Key Qkey = allKeys.FirstOrDefault(k => k.VirtualKey == (int)Keys.LWin) as Key;
Row row = this.radVirtualKeyboard1.MainLayoutPanel.FindRowByKey(Qkey);
row.Keys.Remove(Qkey);
this.radVirtualKeyboard1.MainLayoutPanel.ResetLayout(true);

[Dess | Tech Support Engineer, Principal]

Chris,

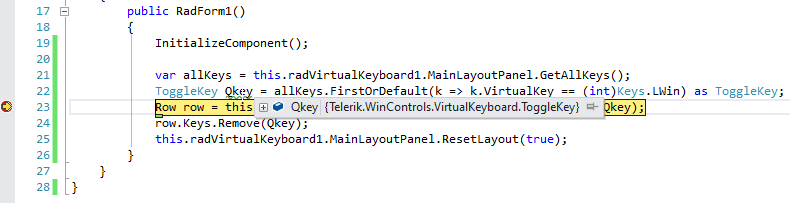

Note that the key you are trying to remove is a ToggleKey, not Key:

I have modified the code as below and the key is successfully removed from the layout:

            var allKeys = this.radVirtualKeyboard1.MainLayoutPanel.GetAllKeys();
            ToggleKey Qkey = allKeys.FirstOrDefault(k => k.VirtualKey == (int)Keys.LWin) as ToggleKey;
            Row row = this.radVirtualKeyboard1.MainLayoutPanel.FindRowByKey(Qkey);
            row.Keys.Remove(Qkey);
            this.radVirtualKeyboard1.MainLayoutPanel.ResetLayout(true);

[Chris]

Hi Dess,

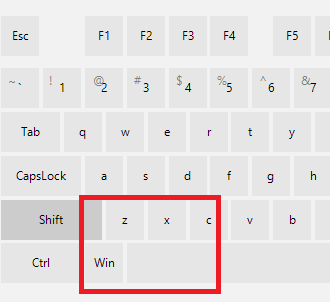

This works fine with LWin and RWin keys, but does not work with the ALT keys, how can I remove those?

Regards,

Chris.



[Dess | Tech Support Engineer, Principal]

Hi, Chris,

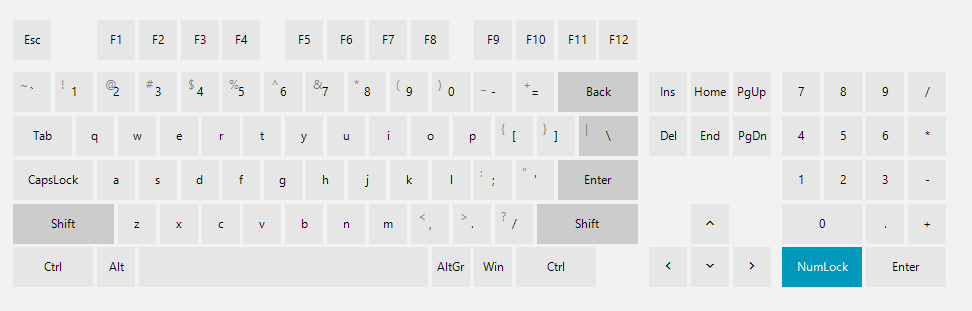

I have prepared a sample code snippet demonstrating how to hide the Alt key at the bottom left side:

        public RadForm1()
        {
            InitializeComponent();

            var allKeys = this.radVirtualKeyboard1.MainLayoutPanel.GetAllKeys();
            IKey Qkey = allKeys.FirstOrDefault(k => k.VirtualKey == (int)Keys.LMenu) as IKey;
            Row row = this.radVirtualKeyboard1.MainLayoutPanel.FindRowByKey(Qkey);
            row.Keys.Remove(Qkey);
            this.radVirtualKeyboard1.MainLayoutPanel.ResetLayout(true);
        }

[Chris]

Hi Dess,

Thanks for your support, this works perfect.

Regards, Chris.
