Heirarchy '+' does not expand and does not show me grid below it

[Sagar]

i am using the code given below to add a grid template .in this controls are
dgrdsubcategory -> RAD GRID
category is the table from database it returns

Please Reply at earliest

dgrdSubCategory.AutoGenerateHierarchy = true;

            SqlDataAdapter sdaCatid = null;

            DataSet dsCatid = new DataSet();

            DataSet dsGrid = DBFunctions.FillRadDataGirdReturnDS("category where parentcatid IN (select catid from category where catname='" + TV1.SelectedNode.Text + "')", dgrdSubCategory);



            for (int i = 0; i < dsGrid.Tables[0].Rows.Count; i++)

            {

                DataRow drow = dsGrid.Tables[0].Rows[i];

                sdaCatid = FillDataset("category where parentcatid='" + drow["catid"] + "'");

                sdaCatid.Fill(dsCatid);



            }





            GridViewTemplate template = new GridViewTemplate();

            template.DataSource = dsCatid.Tables[0];
//i get values in the template variable

            dgrdSubCategory.MasterGridViewTemplate.ChildGridViewTemplates.Add(template);



            GridViewRelation relation = new GridViewRelation(dgrdSubCategory.MasterTemplate);

            relation.ChildTemplate = template;

            relation.RelationName = "SubCategory";

            relation.ParentColumnNames.Add("catid");

            relation.ChildColumnNames.Add("catid");

            dgrdSubCategory.Relations.Add(relation);

            radGrid1.DataSource = template;

///But though i have done this i dont get the corresponding result.

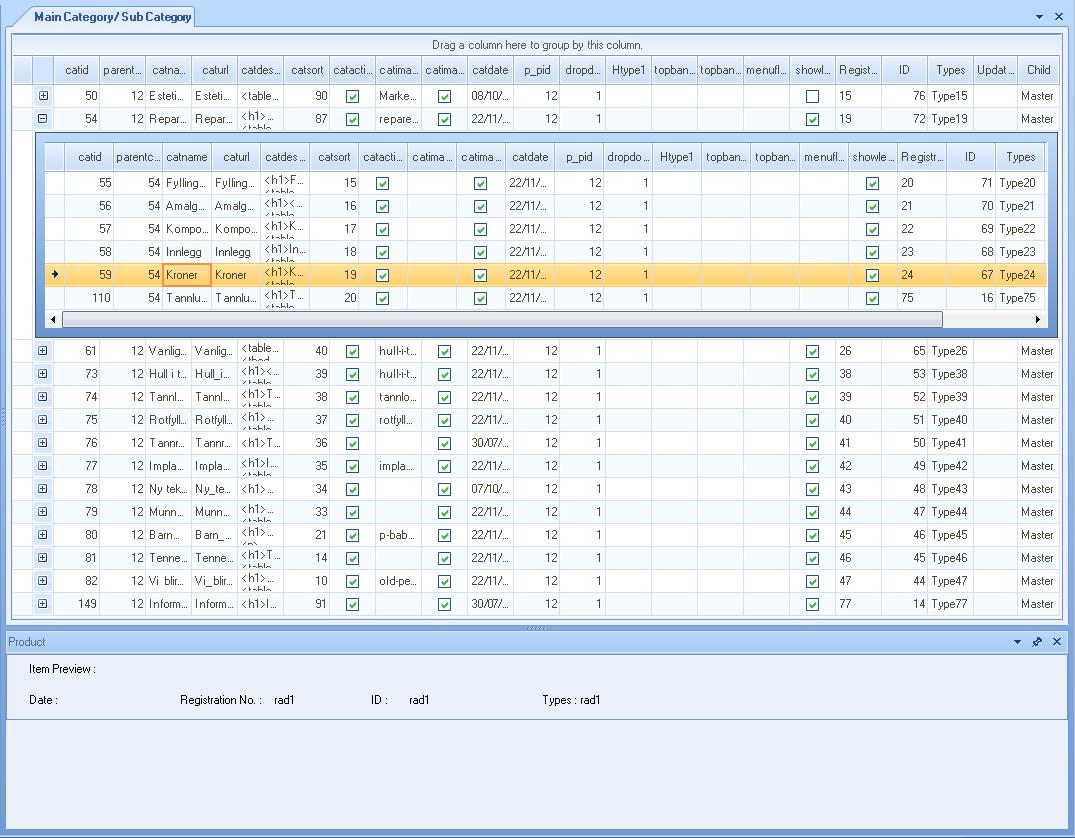

//It shows a "+" sign but nothing comes under it when clicked on "+"

public static SqlDataAdapter FillDataset(string strTableName)  {
ds = new SqlDataAdapter();
sda=new SqlDataAdapter();
 conn = new SqlConnection();
conn.ConnectionString = ConfigurationSettings.AppSettings["conString"];
string strCmd = "select * from " + strTableName;
sqlcommand sqlCmd = new SqlCommand(strCmd, conn);
                sda = new SqlDataAdapter(sqlCmd);
                //sda.Fill(ds);
                //dgrdv.DataSource = ds.Tables[0];
}

            catch (Exception excep)

            {

                MessageBox.Show("" + excep.Message + "  Stack Trace:" + excep.StackTrace, "Error", MessageBoxButtons.OK, MessageBoxIcon.Error);

            }

            return sda;

        }

lic static SqlDataAdapter FillDataset(string strTableName)

        {

            SqlDataAdapter ds = new SqlDataAdapter();

            SqlDataAdapter sda=new SqlDataAdapter();

            try

            {

                SqlConnection conn = new SqlConnection();

                conn.ConnectionString = ConfigurationSettings.AppSettings["conString"];

                string strCmd = "select * from " + strTableName;

                SqlCommand sqlCmd = new SqlCommand(strCmd, conn);

                sda = new SqlDataAdapter(sqlCmd);

                //sda.Fill(ds);

                //dgrdv.DataSource = ds.Tables[0];

            }

            catch (Exception excep)

            {

                MessageBox.Show("" + excep.Message + "  Stack Trace:" + excep.StackTrace, "Error", MessageBoxButtons.OK, MessageBoxIcon.Error);

            }

            return sda;

        }

dgrdSubCategory.AutoGenerateHierarchy = true;

            SqlDataAdapter sdaCatid = null;

            DataSet dsCatid = new DataSet();

            DataSet dsGrid = DBFunctions.FillRadDataGirdReturnDS("category where parentcatid IN (select catid from category where catname='" + TV1.SelectedNode.Text + "')", dgrdSubCategory);

            for (int i = 0; i < dsGrid.Tables[0].Rows.Count; i++)

            {

                DataRow drow = dsGrid.Tables[0].Rows[i];

                sdaCatid = FillDataset("category where parentcatid='" + drow["catid"] + "'");

                sdaCatid.Fill(dsCatid);

            }

            int count = dsCatid.Tables[0].Rows.Count;

            GridViewTemplate template = new GridViewTemplate();

            template.DataSource = dsCatid.Tables[0];

            dgrdSubCategory.MasterGridViewTemplate.ChildGridViewTemplates.Add(template);

            GridViewRelation relation = new GridViewRelation(dgrdSubCategory.MasterTemplate);

            relation.ChildTemplate = template;

            relation.RelationName = "SubCategory";

            relation.ParentColumnNames.Add("catid");

            relation.ChildColumnNames.Add("catid");

            dgrdSubCategory.Relations.Add(relation);

            radGrid1.DataSource = template;

dgrdSubCategory.AutoGenerateHierarchy = true;

            SqlDataAdapter sdaCatid = null;

            DataSet dsCatid = new DataSet();

            DataSet dsGrid = DBFunctions.FillRadDataGirdReturnDS("category where parentcatid IN (select catid from category where catname='" + TV1.SelectedNode.Text + "')", dgrdSubCategory);

            for (int i = 0; i < dsGrid.Tables[0].Rows.Count; i++)

            {

                DataRow drow = dsGrid.Tables[0].Rows[i];

                sdaCatid = FillDataset("category where parentcatid='" + drow["catid"] + "'");

                sdaCatid.Fill(dsCatid);

            }

            int count = dsCatid.Tables[0].Rows.Count;

            GridViewTemplate template = new GridViewTemplate();

            template.DataSource = dsCatid.Tables[0];

            dgrdSubCategory.MasterGridViewTemplate.ChildGridViewTemplates.Add(template);

            GridViewRelation relation = new GridViewRelation(dgrdSubCategory.MasterTemplate);

            relation.ChildTemplate = template;

            relation.RelationName = "SubCategory";

            relation.ParentColumnNames.Add("catid");

            relation.ChildColumnNames.Add("catid");

            dgrdSubCategory.Relations.Add(relation);

            radGrid1.DataSource = template;

 dgrdSubCategory.AutoGenerateHierarchy = true;

            SqlDataAdapter sdaCatid = null;

            DataSet dsCatid = new DataSet();

            DataSet dsGrid = DBFunctions.FillRadDataGirdReturnDS("category where parentcatid IN (select catid from category where catname='" + TV1.SelectedNode.Text + "')", dgrdSubCategory);

            for (int i = 0; i < dsGrid.Tables[0].Rows.Count; i++)

            {

                DataRow drow = dsGrid.Tables[0].Rows[i];

                sdaCatid = FillDataset("category where parentcatid='" + drow["catid"] + "'");

                sdaCatid.Fill(dsCatid);

            }

            int count = dsCatid.Tables[0].Rows.Count;

            GridViewTemplate template = new GridViewTemplate();

            template.DataSource = dsCatid.Tables[0];

            dgrdSubCategory.MasterGridViewTemplate.ChildGridViewTemplates.Add(template);

            GridViewRelation relation = new GridViewRelation(dgrdSubCategory.MasterTemplate);

            relation.ChildTemplate = template;

            relation.RelationName = "SubCategory";

            relation.ParentColumnNames.Add("catid");

            relation.ChildColumnNames.Add("catid");

            dgrdSubCategory.Relations.Add(relation);

            radGrid1.DataSource = template;

dgrdSubCategory.AutoGenerateHierarchy = true;

            SqlDataAdapter sdaCatid = null;

            DataSet dsCatid = new DataSet();

            DataSet dsGrid = DBFunctions.FillRadDataGirdReturnDS("category where parentcatid IN (select catid from category where catname='" + TV1.SelectedNode.Text + "')", dgrdSubCategory);

            for (int i = 0; i < dsGrid.Tables[0].Rows.Count; i++)

            {

                DataRow drow = dsGrid.Tables[0].Rows[i];

                sdaCatid = FillDataset("category where parentcatid='" + drow["catid"] + "'");

                sdaCatid.Fill(dsCatid);

            }

            int count = dsCatid.Tables[0].Rows.Count;

            GridViewTemplate template = new GridViewTemplate();

            template.DataSource = dsCatid.Tables[0];

            dgrdSubCategory.MasterGridViewTemplate.ChildGridViewTemplates.Add(template);

            GridViewRelation relation = new GridViewRelation(dgrdSubCategory.MasterTemplate);

            relation.ChildTemplate = template;

            relation.RelationName = "SubCategory";

            relation.ParentColumnNames.Add("catid");

            relation.ChildColumnNames.Add("catid");

            dgrdSubCategory.Relations.Add(relation);

            radGrid1.DataSource = template;

 dgrdSubCategory.AutoGenerateHierarchy = true;

            SqlDataAdapter sdaCatid = null;

            DataSet dsCatid = new DataSet();

            DataSet dsGrid = DBFunctions.FillRadDataGirdReturnDS("category where parentcatid IN (select catid from category where catname='" + TV1.SelectedNode.Text + "')", dgrdSubCategory);

            for (int i = 0; i < dsGrid.Tables[0].Rows.Count; i++)

            {

                DataRow drow = dsGrid.Tables[0].Rows[i];

                sdaCatid = FillDataset("category where parentcatid='" + drow["catid"] + "'");

                sdaCatid.Fill(dsCatid);

            }

            int count = dsCatid.Tables[0].Rows.Count;

            GridViewTemplate template = new GridViewTemplate();

            template.DataSource = dsCatid.Tables[0];

            dgrdSubCategory.MasterGridViewTemplate.ChildGridViewTemplates.Add(template);

            GridViewRelation relation = new GridViewRelation(dgrdSubCategory.MasterTemplate);

            relation.ChildTemplate = template;

            relation.RelationName = "SubCategory";

            relation.ParentColumnNames.Add("catid");

            relation.ChildColumnNames.Add("catid");

            dgrdSubCategory.Relations.Add(relation);

            radGrid1.DataSource = template;

 dgrdSubCategory.AutoGenerateHierarchy = true;

            SqlDataAdapter sdaCatid = null;

            DataSet dsCatid = new DataSet();

            DataSet dsGrid = DBFunctions.FillRadDataGirdReturnDS("category where parentcatid IN (select catid from category where catname='" + TV1.SelectedNode.Text + "')", dgrdSubCategory);

            for (int i = 0; i < dsGrid.Tables[0].Rows.Count; i++)

            {

                DataRow drow = dsGrid.Tables[0].Rows[i];

                sdaCatid = FillDataset("category where parentcatid='" + drow["catid"] + "'");

                sdaCatid.Fill(dsCatid);

            }

            int count = dsCatid.Tables[0].Rows.Count;

            GridViewTemplate template = new GridViewTemplate();

            template.DataSource = dsCatid.Tables[0];

            dgrdSubCategory.MasterGridViewTemplate.ChildGridViewTemplates.Add(template);

            GridViewRelation relation = new GridViewRelation(dgrdSubCategory.MasterTemplate);

            relation.ChildTemplate = template;

            relation.RelationName = "SubCategory";

            relation.ParentColumnNames.Add("catid");

            relation.ChildColumnNames.Add("catid");

            dgrdSubCategory.Relations.Add(relation);

            radGrid1.DataSource = template;

[Richard Slade]

Hello,

At first look, the problem appears to be that you are assigning the template as the datasource

radGrid1.DataSource = template;

You are doing everything correctly from what I see, but you need to set a valid datasource for both the child template and the RadGridView.

Let me know if this helps or if you need more assistance.

Richard

[Sagar]

Hi Richard,
                 Thanks for replying
.Actually you r correct. But the line "radGrid1.DataSource = template;" was used for testing that the template is getting populated or not(Template gets populated) , i removed that line, but also i cant see the expanded grid. Do i have to turn some static properties on/off....

Thanks & Regards

[Richard Slade]

Hello Sagar,

The hierarchy grid is made up of a MasterTemplate (the main one of the RadGridView) and a child template in its most simple incarnation.

The relation (as you have in your code) specifies the relation of the columns.
The additional template that you are adding should have a datasource as well.

You also don't need the line

dgrdSubCategory.AutoGenerateHierarchy = true;

If once you have set your datasources correctly and removed this line it is still not working, please post me a sample where this can be replicated and I will alter it for you.

Thanks
Richard

[Sagar]

Hey thanks Richard, I found where the problem is, it was in the relation.
Any ways Thanks a lot....

[Richard Slade]

Glad you got thst sorted.
Richard

[Sagar]

Hi , Richard , i have one more problem , now that i have a Parent Grid and a Child Grid, and i want to have the values from the cells of Child Grid on mouse click . So that i can show that value, But i am not able to get it. I have attached the PIC of my datagrid, i want the  value of Kroner.Please Help..

I hope you get the problem.



[Richard Slade]

hello,

You can get the values from any of teh selected rows / cells at any time using SelectedRows / SelectedCells. The example below shows
showing in a messagebox the value from the first selected row, and first selected cell. This will work for both Parent and Child grids.

Is this what you needed?

Private Sub RadGridView1_SelectionChanged(ByVal sender As System.Object, _
    ByVal e As System.EventArgs) Handles RadGridView1.SelectionChanged
    If Me.RadGridView1.SelectedRows.Count > 0 Then
        If Me.RadGridView1.SelectedRows(0).Cells(0).Value IsNot Nothing Then
            MessageBox.Show(Me.RadGridView1.SelectedRows(0).Cells(0).Value.ToString())
        End If
    End If
End Sub

hope that helps
Richard

[Sagar]

Hi, Richard.

It is not working for me, ok please tell me how can I identify which is the grid (parent or child) in the event of radgrid1_cellclick(). Or do i have to check with other event..

Thanks in advance

[Richard Slade]

Hello,

You can see which hierarchy level the current row is in when you click on the cell in this way

Private Sub RadGridView1_CellClick(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.GridViewCellEventArgs) Handles RadGridView1.CellClick
    MessageBox.Show(e.Row.HierarchyLevel.ToString())
    ' Will show 1 for top level
    ' Will show 2 for child level
End Sub

hope that helps, but let me know if you need more information
Richard

[Sagar]

Hi , Richard..

Thanks a Lot again....

[Richard Slade]

No problem. Glad that worked for you.
Richard
