Header toggle button check all/uncheck all

[sarag]

Hi ,

I am using Telerik, Q3 2010, blend 4 vs 2010.
i am using RadGridview, i have 10 columns, in the header i have toggle button for all 10 columns, how can i know which column is checked and on checked i want to select all the cell checkbox in that particular coloumn

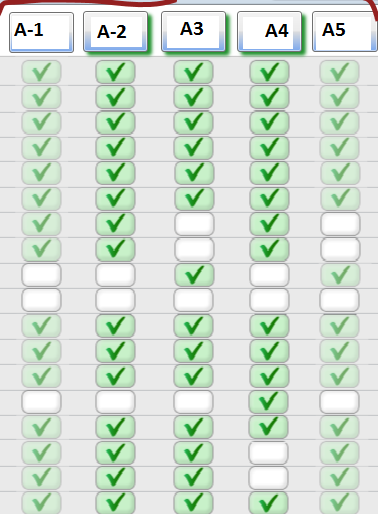

please check the attached image.

thanks
sarag

[Maya]

Hi sarag,

The recommended approach would be to expose boolean properties for each column in your business object and to bing the ToggleButtons' IsChecked properties to those boolean properties. In this way you will be able to retrieve the checked/ unchecked values of each button. Furthermore, you will ensure that even when scrolling, the state of those buttons will still be kept.


All the best,
Maya
the Telerik team

[sarag]

Hi Maya,

Thanks for your quick response, my object is set up as they you said, but my question how can i capture the header click event so that i can set the ischecked property . my header is a toggle button.

thanks
sarag

[Maya]

Hello sarag,

Is it not appropriate for you to handle the Checked event of the RadToggleButton ?


Best wishes,
Maya
the Telerik team

[sarag]

yes i can do that but the problem is columns are generating dynamically at runtime, the below code will work for cell[0], but i need to do for the remaining 10 coloumns. i need to find some way to find what button is click. i need the index of the header coloum where header is toggle button please see the code



<Window x:Class="RadControlsWpfApp1.MainWindow"

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

Title="MainWindow" Height="350" Width="525" xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation">
<Grid>
<telerik:RadGridView HorizontalAlignment="Left" Margin="12,12,0,0"
Name="radGridView1" VerticalAlignment="Top" AutoGenerateColumns="False"
Loaded="radGridView1_Loaded" CanUserSortColumns="False" CanUserResizeColumns="False"
CanUserReorderColumns="False" CanUserFreezeColumns="False" ShowGroupPanel="False"
IsFilteringAllowed="False"
EditTriggers="CellClick"
/>
</Grid>
</Window>

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Data;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Imaging;

using System.Windows.Navigation;

using System.Windows.Shapes;

using Telerik.Windows.Controls;

namespace RadControlsWpfApp1

{

/// <summary>

/// Interaction logic for MainWindow.xaml

/// </summary>

public partial class MainWindow : Window

{

public MainWindow()

{

InitializeComponent();

radGridView1.ItemsSource = WorklistData.GetWorklistData();

}

private void radGridView1_Loaded(object sender, RoutedEventArgs e)

{

int k = 5;

for (int i = 0; i < 50; i++)

{

var column = new GridViewDataColumn();

var toggleButton = new RadToggleButton

{

Width = 80,

Height = 60,

HorizontalContentAlignment = HorizontalAlignment.Center,

VerticalContentAlignment = VerticalAlignment.Center,

//Content = new Image(),

Content = "Test- " + i,

};

toggleButton.Checked += toggleButton_Checked;

toggleButton.Unchecked += toggleButton_Unchecked;

column.Header = toggleButton;

column.DataMemberBinding = new Binding("IsSelected");

this.radGridView1.Columns.Add(column);

k++;

}

}

void toggleButton_Unchecked(object sender, RoutedEventArgs e)

{

// i need to know which header coloumn is selected based on

// i need to set checkbox.checked == false

}

void toggleButton_Checked(object sender, RoutedEventArgs e)

{

// i need to know which header coloumn is selected based on

// i need to set checkbox.checked == true

}

}

}

using System.Collections.ObjectModel;

namespace RadControlsWpfApp1

{

public class WorklistData

{

public static ObservableCollection<WorklistModel> GetWorklistData()

{

var worklistModels = new ObservableCollection<WorklistModel>();

for (int i = 1; i <= 30; i++)

{

var worklistModel = new WorklistModel

{

ReagentTipsLoaded = 0,

SampleTipsRequired = 393,

SampleTipsLoaded = 224,

DeepWellsRequired = 96,

DeepWellsLoaded = 96,

MixingWellsRequired = 10,

MixingWellsLoaded = 10,

LisSamples = i + "25",

KnownPacks = i + 2,

IsSelected = false,

};

worklistModels.Add(worklistModel);

}

return worklistModels;

}

}

}

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

namespace RadControlsWpfApp1

{

public class WorklistModel

{

public int ReagentTipsLoaded

{

get;

set;

}

public int SampleTipsRequired

{

get;

set;

}

public int SampleTipsLoaded

{

get;

set;

}

public int DeepWellsRequired

{

get;

set;

}

public int DeepWellsLoaded

{

get;

set;

}

public int MixingWellsRequired

{

get;

set;

}

public int MixingWellsLoaded

{

get;

set;

}

public string LisSamples

{

get;

set;

}

public int KnownPacks

{

get;

set;

}

public bool IsSelected

{

get;

set;

}

}

}

[Maya]

Hello sarag,

You may handle the Checked event as follows:

private void ToggleButton_Checked(object sender, RoutedEventArgs e)
        {
            var button = sender as ToggleButton;
            var headerCell = button.ParentOfType<GridViewHeaderCell>();
            var displayIndex = headerCell.Column.DisplayIndex;

        }

The displayIndex will give you the information for which column's header has been clicked.


All the best,
Maya
the Telerik team

[sarag]

thanks maya that works for me.
