Grouped row not updating in hierarchy with BindinList

3 posts, 0 answers
  1. Vicent
    Vicent avatar
    9 posts
    Member since:
    Mar 2015

    Posted 03 Mar Link to this post

    When using GridView in Hierarchy mode with a Template and binding to BindingList for Children:



    public class Parent
    {
        public Parent()
        {
            children = new BindingList<Child2>();
        }

        public int Id { get; set; }

        public string Prop1 { get; set; }

        public BindingList<Child2> children { get; set; }
    }


    public class Child2 : INotifyPropertyChanged
    {
        public int Id { get; set; }

        public string Prop1 { get; set; }

        private int _Prop2;
        public int Prop2
        {
            get { return this._Prop2; }
            set
            {
                if (this._Prop2 != value)
                {
                    this._Prop2 = value;
                    if(PropertyChanged != null)
                        PropertyChanged(this, new PropertyChangedEventArgs("Prop2"));
                }
            }
        }

        public string Prop3 { get; set; }

        public event PropertyChangedEventHandler PropertyChanged;
    }



    If there is grouped columns in child template, changing properties is not reflected:

    public partial class Form1 : Form
       {

           BindingList<Parent> data;
           public Form1()
           {
               InitializeComponent();
               InitGrid();

               data = new BindingList<Parent>();

               for (int i = 0; i < 3; i++)
               {
                   Parent parent = new Parent() { Id = i, Prop1 = "testProp" + i };
                   for (int j = 0; j < 4; j++)
                   {
                       Child2 child = new Child2() { Id = i * j, Prop1 = "testProp" + i, Prop2 = j % 2, Prop3 = "another" };
                       parent.children.Add(child);
                   }

                   data.Add(parent);
               }

               this.radGridView1.DataSource = data;
               this.radGridView1.CellDoubleClick += radGridView1_CellDoubleClick;

           }

           void radGridView1_CellDoubleClick(object sender, GridViewCellEventArgs e)
           {
               Child2 child = e.Row.DataBoundItem as Child2;
               MessageBox.Show(child.Prop2.ToString());
           }

           private void InitGrid()
           {
               this.radGridView1.Columns.Add(CreateColumn("Id"));
               this.radGridView1.Columns.Add(CreateColumn("Prop1"));


               GridViewTemplate template = new GridViewTemplate();
               template.AllowAddNewRow = false;
               template.AllowDeleteRow = false;
               template.AllowEditRow = false;
               template.AutoGenerateColumns = false;


               template.Columns.Add(CreateColumn("Id"));
               template.Columns.Add(CreateColumn("Prop1"));
               template.Columns.Add(CreateColumn("Prop2"));
               template.Columns.Add(CreateColumn("Prop3"));


               GridViewRelation r = new GridViewRelation(this.radGridView1.MasterTemplate, template);
               r.ChildColumnNames.Add("children");

               template.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;

               template.EnableFiltering = false;
               template.EnableGrouping = true;
               template.ShowColumnHeaders = true;
               template.ShowRowHeaderColumn = false;


               this.radGridView1.EnableGrouping = false;
               this.radGridView1.EnableCustomGrouping = false;


               GroupDescriptor gd = new GroupDescriptor();
               gd.GroupNames.Add("Prop2", ListSortDirection.Ascending);
               gd.GroupNames.Add("Prop3", ListSortDirection.Ascending);


               template.GroupDescriptors.Add(gd);


               this.radGridView1.Templates.Add(template);

               this.radGridView1.Relations.Add(r);
               this.radGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
           }

           GridViewTextBoxColumn CreateColumn(string Field)
           {
               GridViewTextBoxColumn col = new GridViewTextBoxColumn();
               col.Name = Field;
               col.FieldName = Field;
               col.HeaderText = Field;
               return col;
           }

           private void button1_Click(object sender, EventArgs e)
           {
               this.data.First().children.First().Prop2 = 1;
           }
       }

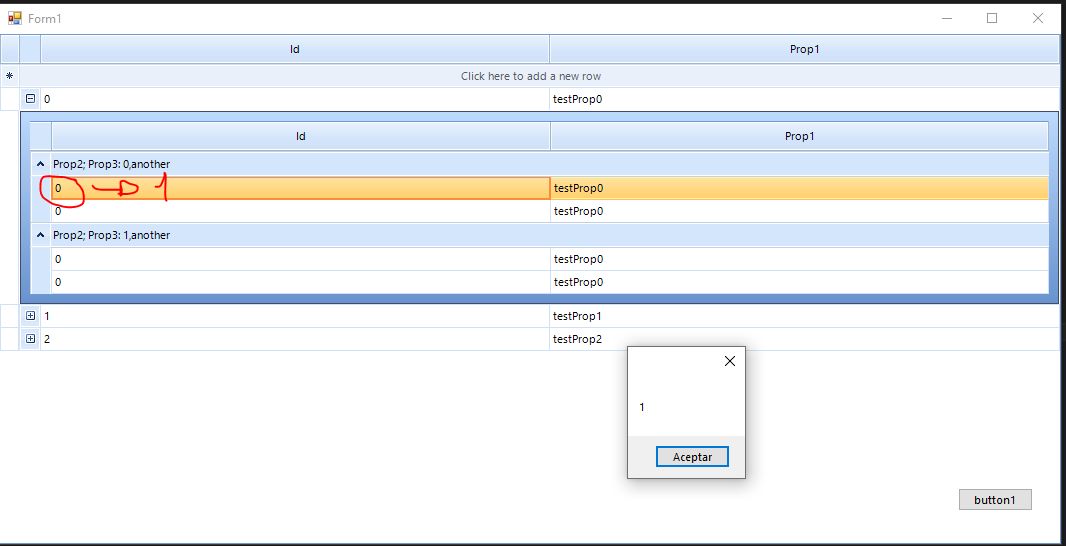

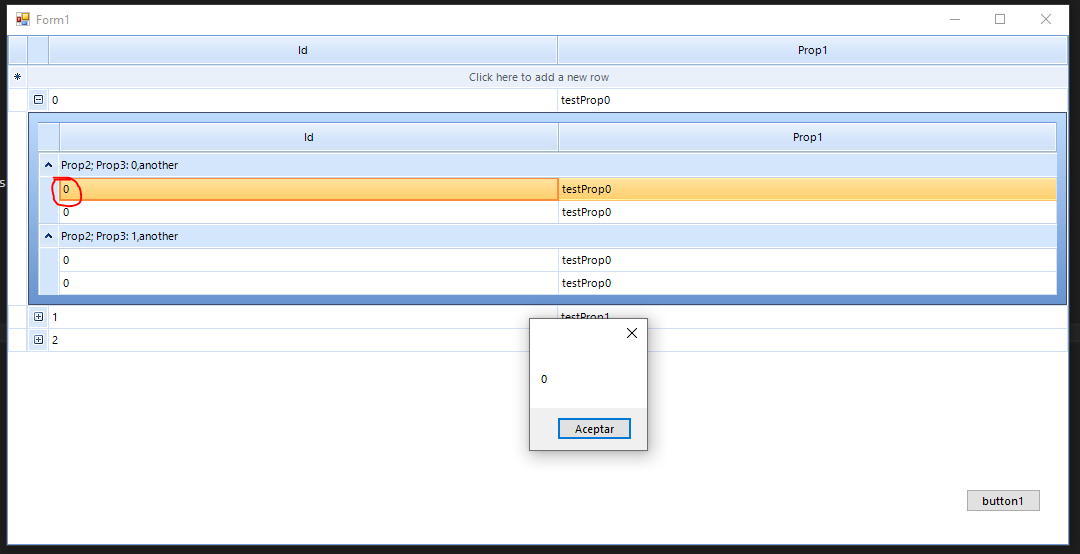

    When I Click Button1 nothing happens

    Is this a bug or am I doing something wrong?











  2. Vicent
    Vicent avatar
    9 posts
    Member since:
    Mar 2015

    Posted 03 Mar in reply to Vicent Link to this post

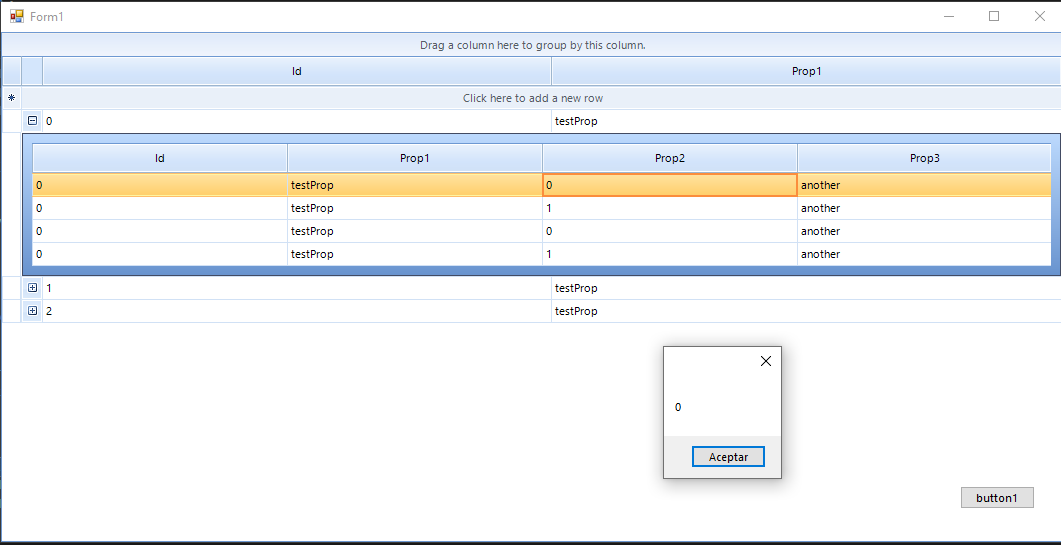

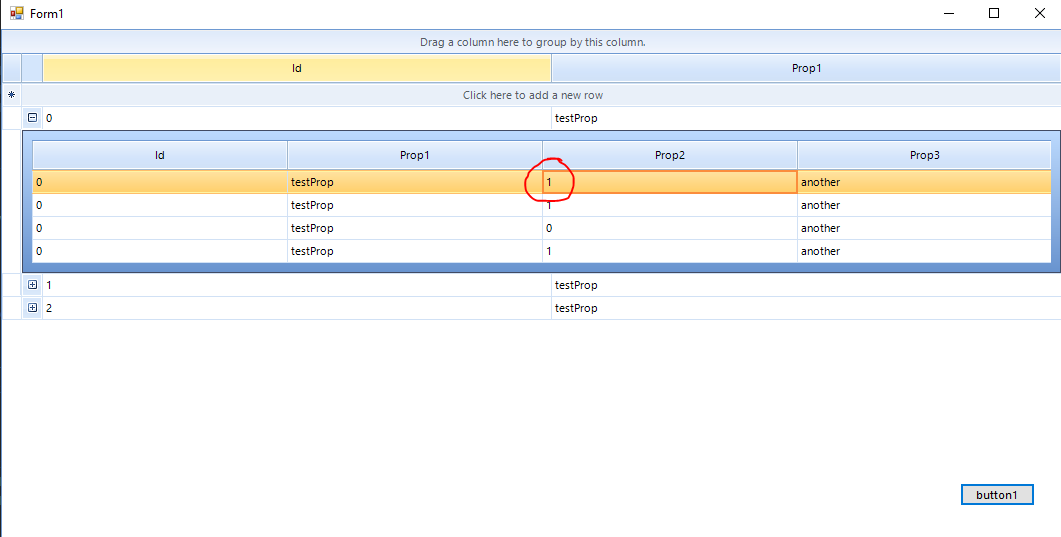

    Same project without adding GroupDescriptor to child template works with no problem



  3. Nadya
    Admin
    Nadya avatar
    307 posts

    Posted 06 Mar Link to this post

    Hello Vicent,

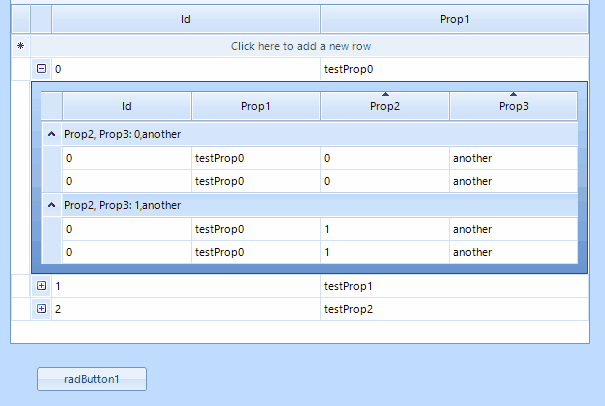

    The provided code snippet is greatly appreciated. When you change the value in a grouped grid the GroupDescriptor is not automatically reevaluated. This is why you need to do it manually. Please refer to the updated Button_Click event:

    private void radButton1_Click(object sender, EventArgs e)
    {
        List<GroupDescriptor> groups = new List<GroupDescriptor>();
        groups.AddRange(this.radGridView1.Templates[0].GroupDescriptors);
        this.radGridView1.Templates[0].GroupDescriptors.Clear();

        this.data.First().children.First().Prop2 = 1;
        if (groups.Count > 0)
        {
            this.radGridView1.Templates[0].GroupDescriptors.AddRange(groups);
        }
    }


    I hope this helps. Do not hesitate to contact us if you have other questions.

    Regards,
    Nadya
