GridViewComboBoxColumn Group By and Filter issues

16 Answers 493 Views

GridView

This is a migrated thread and some comments may be shown as answers.

M asked on 15 Jun 2010, 12:16 PM

Hello,

we have a RadGridView that is bound (in an MVVM scenario) to a property containing the main data for the grid...
Furthermore three columns have an ItemsSourceBinding to three different properties respectively to specify the "SelectedValueMemberPath" and "DisplayMemberPath".

Unfortunately when we want to group these columns (Drag and Drop onto the top of the grid), the grid shows the Id, i.e. "SelectedValueMemberPath" rather than the Name (DisplayMemberPath).

The same problem can be seen when we want to filter the column and the "Filter Window" shows only the SelectedValueMemberPath rather than the desired DisplayMemberPath.

We currently use version 2010.1.603.35 of the telerik controls....

here is some of our current code:


                        <telerik:RadGridView x:Name="radBerthingSlots"

                            AutoGenerateColumns="False"

                            IsEnabled="True"

                            ItemsSource="{Binding BerthingSlots}"

                            SelectedItem="{Binding SelectedBerthingSlot, Mode=TwoWay}"

                            CanUserDeleteRows="False"

                            <telerik:RadGridView.Columns>

                                <telerik:GridViewComboBoxColumn Header="Shipper Name" DataMemberBinding="{Binding ShipperId}"

                                                                SelectedValueMemberPath="Id" DisplayMemberPath="Name"

                                                                ItemsSourceBinding="{Binding RelativeSource={RelativeSource FindAncestor, AncestorType=my:BerthingSlotView, AncestorLevel=1}, Path=ViewModel.Shippers}" />

                            </telerik:RadGridView.Columns>

                        </telerik:RadGridView>

alternatively we tried to set some stuff in the code behind:


                                <telerik:GridViewComboBoxColumn Header="Shipper Name" DataMemberBinding="{Binding ShipperId}"

                                                                SelectedValueMemberPath="Id" DisplayMemberPath="Name"

                                                                Initialized="ShipperComboBox_Initialized"/>


                    private void ShipperComboBox_Initialized(object sender, EventArgs e)

                    {

                        var cbx = sender as GridViewComboBoxColumn;

                        cbx.ItemsSourceBinding = new Binding { Source = this.ViewModel, Path = new PropertyPath("Shippers") };

                    }

Any help would be much appreciated to solve the issues with Grouping and the Filter window....

Many Thanks in Advance

M.

16 Answers, 1 is accepted

answered on 18 Jun 2010, 09:25 AM

Hello M,

Regarding the filtering problem with the combo column - please have a look at my blog post. It provides a descent solution.
About the grouping problem - I need a few more hours to investigate the problem. I am leaving the thread open and will keep you posted about my findings. I will try to prepare a small app according to your scenario and see what is wrong.

Sincerely yours,
Pavel Pavlov
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items

answered on 18 Jun 2010, 04:08 PM

Hi Pavel,

first of all many thanks for your help - very much appreciated.....

Filter issue:
After your first answer I got cracking with your recommended filter solution.... and I got it working, but it has some quirks, where it doesn't reset the filter sometimes.... is there a way to get some of the source code that you guys use for the orginal filter box... instead of us going of and starting to do a lot of detective work to build a similarly behaving control. Also, how do I convince the custom filter control to use the same theme as the main app / grid?

Grouping:
Now to the grouping... I changed the GridViewComboBoxColumn so that it uses the ItemSource now, but the grouping still doesn't work - the SelectedValueMemberPath is still displayed instead of the DisplayMemberPath.... I checked this also for other columns just in case I am doing something wrong, but no luck.....

Looking forward to hear from you again....

Best Regards

M.

answered on 23 Jun 2010, 01:27 PM

Hello M,

Thank you for sharing this info . I have identified the problem in my code and here is the solution :
Please update the Prepare method way:

public void Prepare(Telerik.Windows.Controls.GridViewBoundColumnBase column)

{

if (this.compositeFilterDescriptor != null && this.column.DataControl.FilterDescriptors.Contains(this.compositeFilterDescriptor))

return;

this.compositeFilterDescriptor= new CompositeFilterDescriptor() { LogicalOperator = FilterCompositionLogicalOperator.Or };

this.column = column as GridViewComboBoxColumn;

this.listBoxDistinctValues.ItemsSource = this.column.ItemsSource;

this.listBoxDistinctValues.DisplayMemberPath = this.column.DisplayMemberPath;

this.column.DataControl.FilterDescriptors.Add(compositeFilterDescriptor);

}

the new part is added at the beggining of the method :

if (this.compositeFilterDescriptor != null && this.column.DataControl.FilterDescriptors.Contains(this.compositeFilterDescriptor))

return;

Greetings,
Pavel Pavlov
the Telerik team

answered on 23 Jun 2010, 03:02 PM

filteringcombocolumnexample-wpf.zip

Hello M,

Regarding the grouping problem -
I will gladly help you on that but I am absolutely unable to reproduce the issue here.
Please have a look at the application attached - it has both the issues solved.

Regards,
Pavel Pavlov
the Telerik team

answered on 28 Jun 2010, 06:53 PM


Hi Pavel,

many many thanks for your help....

we managed to track down the issue:

We had the same field bound as GridViewDataColumn for calculations (so one field bound to GridViewDataColumn and the same again bound to GridViewComboBoxColumn) - Now, when grouping, the Grid seems to do FirstOrDefault behind the scenes and it was finding the GridViewDataColumn first - therefore it was displaying its values rather than the one from the GridViewComboBoxColumn.... a bit annoying if you don't know that, since I was dragging and dropping the other column.....

Now there is one issue remaining:

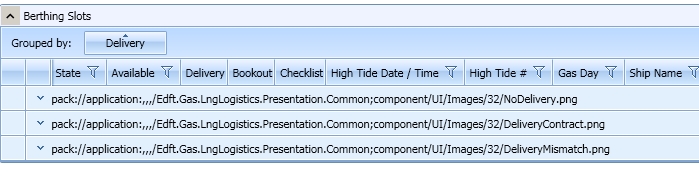

We have an GridViewImageColumn that is bound to a converter. So for each integer value for the column the converter displays an image.... unfortunately when Grouping is applied it shows the path to the image (see Screenshot). Is there a way to make grouping show the actual picture?

Many Thanks in advance

Kind Regards

M.

answered on 01 Jul 2010, 01:27 PM

Hi M,

It is great to hear that you have isolated the issue with grouping. It will be helpful for us to have this situation in mind for the future.
Regarding the problem with grouping on image column :
The solution here would be :
Use the GroupHeaderTemplate property of RadGridView. It is a DataTemplate , sou you can place an Image control inside and bind its source to the Header property .

<DataTemplate x:Key="MyGroupHeaderTemplate">

<Image Source="{Binding Header}" />

</DataTemplate>

In case the Image does not recognize the string you may need to add a IValueConverter to the Binding.

Regards,
Pavel Pavlov
the Telerik team

answered on 05 Jul 2010, 05:16 PM

Pavel,

thanks once again for your help - I integrated the DataTemplate like you suggested and grouping is working now as expected....

Unfortunately, we still have an issue with the custom filter we implemented according to your sample earlier in this thread:

We disable functionality on the screen depending on whether Grouping or Filtering is active. For that we have wired up the "Filtered" and / or "Filtering" event of the RadGridView.

Unfortunately this event is not fired for our custom filters. Can you give us some advise on how we integrate this and / or what we have to amend within the filter, so it fires the Filtering / Filtered of the RadGridView events accordingly?!

Many Thanks in advance

M.

answered on 14 Jan 2011, 03:49 PM

Hi Pavel, I'm facing the challenge of implementing a working filtering tool for a ComboBox column too..
I've followed your great solution, and I've made some changes in order to resolve these issues:
1) working even when the ItemsSource of the combo is not an object list, but data coming from ADO Dataset (so a datatable) (I'm a little bit old style, I know... but for the moment I've too much new things to learn! :-))
2) working even when the lookup table has a string key instead of the usual numeric one
3) localization
4) add a Remove Filter button
5) add a Close button (NOT YET RESOLVED, SEE AT THE END OF THE MESSAGE)
Here the changed code for the SelectionChanged method and the xaml for the USerControl



public ComboColumnFilteringControl()
{
  InitializeComponent();
  this.lblHeader.Content = LocalizationManager.GetString("GridViewFilterComboColumnHeader");
  this.cmdClear.Content = LocalizationManager.GetString("GridViewClearFilter");
}



private void listBoxDistinctValues_SelectionChanged(object sender, SelectionChangedEventArgs e)

{

compositeFilterDescriptor.FilterDescriptors.Clear();

PropertyInfo propertyInfo;

object itemValue;

foreach (var item in this.listBoxDistinctValues.SelectedItems)

{

if (item.GetType() == typeof(System.Data.DataRowView))

{

System.Data.DataRowView rw = (System.Data.DataRowView)item;

propertyInfo = rw.Row.GetType().GetProperty((this.column).SelectedValueMemberPath);

itemValue = propertyInfo.GetValue(rw.Row, null);

}

else

{

propertyInfo = item.GetType().GetProperty((this.column).SelectedValueMemberPath);

itemValue = propertyInfo.GetValue(item, null);

}

FilterDescriptor fd = new FilterDescriptor(this.column.DataMemberBinding.Path.Path, FilterOperator.IsEqualTo, itemValue);

fd.MemberType = itemValue.GetType();

compositeFilterDescriptor.FilterDescriptors.Add(fd);

}

if (this.compositeFilterDescriptor.FilterDescriptors.Count > 0)

this.SetValue(IsActiveProperty, true);

else

this.SetValue(IsActiveProperty, false);

}

private void cmdClear_Click(object sender, RoutedEventArgs e)

{

this.listBoxDistinctValues.SelectedItems.Clear();

compositeFilterDescriptor.FilterDescriptors.Clear();

}

<Grid.RowDefinitions>

<RowDefinition/>

</Grid.RowDefinitions>

<Button Name="cmdClose" Content="X" Grid.Row="0" HorizontalAlignment="Right" Margin="2" Padding="1" Height="20" Width="20" Click="cmdClose_Click" />

<Label Grid.Row="1" Name="lblHeader" Content="Select countries:" />

<ListBox Grid.Row="2" x:Name="listBoxDistinctValues" SelectionChanged="listBoxDistinctValues_SelectionChanged"

SelectionMode="Multiple" Height="Auto" MaxHeight="300" Width="Auto" MinWidth="120" MaxWidth="250" >

</ListBox>

<Button Name="cmdClear" Content="Clear filter" Grid.Row="3" HorizontalAlignment="Right" Margin="5" Padding="3" Click="cmdClear_Click" />

Now I would like to close the filter box clicking on the little X button (cmdClose). I know it will be a very simple thing, but as I'm a real beginner with WPF, I can't figure out how to achieve the goal.
TIA
Ubaldo
