Gridview SummaryItem

[Munish Sharma]

Hi Team,

I have a question to ask.

I have printed the summary totals at the bottom of the grid and also exporting well in ms-excel. I am also trying to print the grid with the print preview and other features(not using telerik reporting). My complete data is showing in the print preview except of the summary totals.

Is there any way to retrieve the SummaryItem values at runtime(in some user defined function)? If yes, can you please help me with
this?

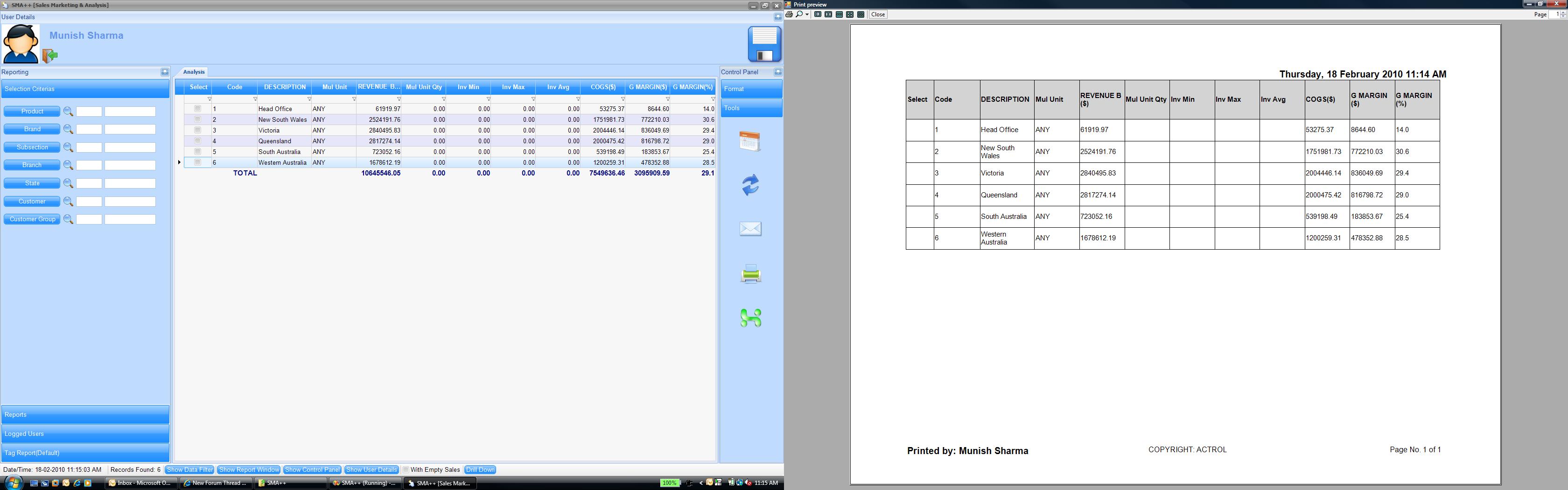

Please find attached screenshot for your reference.

Thanks in advance

Cheers,
Munish Sharma

[Nick]

Hi Munish Sharma,

Thank you for contacting us.

Say you have a SummaryItem:

GridViewSummaryItem item3 = new GridViewSummaryItem("A", "Min: {0:F2}", GridAggregateFunction.Min);

You can evaluate its value for the template by using GetSummayValue function and passing the Root group:

object value =  item3.GetSummaryValue(grid.MasterGridViewTemplate.Root);

Do not hesitate to write me back if you have further questions.

Greetings,
Nick
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[Munish Sharma]

Thanks a lot. I used the code you sent as my logic and it worked. Following is the code to print the summary totals......

========================================================================================================





If



dgv.MasterGridViewTemplate.SummaryRowsBottom.Count = 1 Then

















For Each item As GridViewSummaryItem In dgv.MasterGridViewTemplate.SummaryRowsBottom.Item(0)







If Cel.ColumnInfo.FieldName = item.FieldName AndAlso ColumnTypes(i) Is GetType(GridViewTextBoxColumn) Then

















'MessageBox.Show(item.GetSummaryValue(dgv.MasterGridViewTemplate.Root))

















Try













e.Graphics.DrawString(item.GetSummaryInfo(dgv.MasterGridViewTemplate.Root).ToString,



New Font("Arial", 9.0!, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point, CType(0, Byte)), _







New SolidBrush(Cel.CellElement.ForeColor), _







New RectangleF(ColumnLefts(i), tmpTop, ColumnWidths(i), _



CellHeight), StrFormat)





Catch ex As Exception







End Try



















End If

















Next

















End If









========================================================================================================

Cheers,

Munish Sharma











[Nick]

Hi Munish Sharma,

Thank you for providing a code snippet to the community.

Kind regards,
Nick
