GridView Search Row Focus and Match Case Button

[Kurt Boyer]

Is there any way to set the focus immediately to the Search Row (enabled via AllowSearchRow = true) when a user is shown a form? Additionally, is there a way to hide the "Match case" button on the Search Row?

[Kurt Boyer]

I've found a way to hide the "Match case" button. You can do that by editing the theme applied to the GridView control. Specifically, I loaded the theme into Visual Style Builder and traversed to RadGridView >> RadGridViewElement >> GridTableElement >> GridSearchRowElement >> GridSearchCellElement >> RadToggleButtonElement. On that element, you can set the "Visibility" to hidden.

The question about being able to set focus to the search row text box still remains though. Any thoughts are appreciated.

[Stefan]

Hello Kurt,

Thank you for writing.

I can confirm that modifying the theme is one way to hide the button. As an alternative, one can modify the same cell programmatically. For the purpose, one should derive from the GridSearchCellElement, override the CreateMatchCaseButton and in it, set the button's Visibility:

class MyGridSearchCellElement : GridSearchCellElement
{
    public MyGridSearchCellElement(GridViewColumn column, GridRowElement row)
        :base(column, row)
    {

    }
    protected override RadToggleButtonElement CreateMatchCaseButton()
    {
        RadToggleButtonElement matchCaseButton = base.CreateMatchCaseButton();
        matchCaseButton.Visibility = ElementVisibility.Collapsed;
        return matchCaseButton;
    }
}

To put this cell in action the CreateCell event of RadGridView should be used:

void radGridView1_CreateCell(object sender, GridViewCreateCellEventArgs e)
{
    if (e.CellType == typeof(GridSearchCellElement))
    {
        e.CellType = typeof(MyGridSearchCellElement);
    }
}

To focus the text box when the grid is focused, you can use the GotFocus event of RadGridView as follows:

void radGridView1_GotFocus(object sender, EventArgs e)
{
    GridSearchCellElement searchCell = radGridView1.TableElement.GetCellElement(radGridView1.MasterView.TableSearchRow, null) as GridSearchCellElement;
    if (searchCell != null)
    {
        searchCell.SearchTextBox.Focus();
    }
}

I hope that you find this information useful.

Regards,
Stefan
Telerik





[Brendan]

Since the CreateMatchCaseButton code is obsolete in the current release per this warning:

• "Warning 'Protected Overridable Overloads Function CreateMatchCaseButton() As RadToggleButtonElement' is obsolete: 'This method is obsolete. Use CreateOptionsButton and/or CreateMatchCaseMenuItem methods instead.'

The following code can be used to hide the match case button;

'class to hide Match Case button on grid search row via CreateCell event
Class MyGridSearchCellElement
    Inherits GridSearchCellElement
    Public Sub New(column As GridViewColumn, row As GridRowElement)
        MyBase.New(column, row)
    End Sub
    Protected Overrides Function CreateOptionsButton() As RadDropDownButtonElement
        Dim matchCaseButton As RadDropDownButtonElement = MyBase.CreateOptionsButton()
        matchCaseButton.Visibility = ElementVisibility.Collapsed
        Return matchCaseButton
    End Function
End Class

Private Sub grdMyGrid_CreateCell(sender As Object, e As GridViewCreateCellEventArgs) Handles grdMyGrid.CreateCell
    'finds search cell element and hides Match Case button
    On Error Resume Next
    If e.CellType = GetType(GridSearchCellElement) Then
        e.CellType = GetType(MyGridSearchCellElement)
        e.Row.RowInfo.MinHeight = 30
    End If
End Sub



[Hristo]

Hi Brendan,

Thank you for writing in the thread.

Indeed the CreateMatchCaseButton method is obsolete as of R1 2017 so for any later versions of the controls and in the context of the discussed scenario one should use the new CreateOptionsButton method.

I hope this helps.

Regards,
Hristo
Progress Telerik

[Brendan]

Hi Hristo, when I load the grid I can hide the CreateOptionsbutton (Telerik version 2017.3.912.40) via the CreateCell event.

However, I have a checkbox column in the grid and notice when I click the checkbox, the options button becomes visible again.  Do you know why this happens?  Is there a way to identify the button after the grid has been created and make it invisible again?

Thanks.

[Hristo]

Hello Brendan,

With the version of the controls after R1 2017, there is a separate drop-down button in which the match-case item is located. It is still initialized in a virtual Create method which you can override in the custom search cell element. I have also tested the scenario with the checkbox column the Visibility of the menu item did not change:

public partial class RadForm1 : Telerik.WinControls.UI.RadForm
{
    public RadForm1()
    {
        InitializeComponent();

        this.radGridView1.CreateCell += RadGridView1_CreateCell;

        this.radGridView1.DataSource = this.GetData();
        this.radGridView1.AutoSizeColumnsMode = Telerik.WinControls.UI.GridViewAutoSizeColumnsMode.Fill;
        this.radGridView1.AllowSearchRow = true;

        ((GridViewCheckBoxColumn)this.radGridView1.Columns["Bool"]).EnableHeaderCheckBox = true;
    }

    private void RadGridView1_CreateCell(object sender, Telerik.WinControls.UI.GridViewCreateCellEventArgs e)
    {
        if (e.CellType == typeof(GridSearchCellElement))
        {
            e.CellType = typeof(MyGridSearchCellElement);
        }
    }

    private DataTable GetData()
    {
        DataTable dt = new DataTable();
        dt.Columns.Add("Id", typeof(int));
        dt.Columns.Add("Name", typeof(string));
        dt.Columns.Add("Date", typeof(DateTime));
        dt.Columns.Add("Bool", typeof(bool));
        dt.Columns.Add("Description", typeof(string));

        for (int i = 0; i < 100; i++)
        {
            dt.Rows.Add(i, "Name " + i, DateTime.Now.AddDays(i), i % 2 == 0, "Description " + i);
        }

        return dt;
    }
}

class MyGridSearchCellElement : GridSearchCellElement
{
    public MyGridSearchCellElement(GridViewColumn column, GridRowElement row)
        : base(column, row)
    { }

    protected override RadMenuItem CreateMatchCaseMenuItem()
    {
        RadMenuItem result = base.CreateMatchCaseMenuItem();
        result.Visibility = ElementVisibility.Collapsed;
        return result;
    }
}

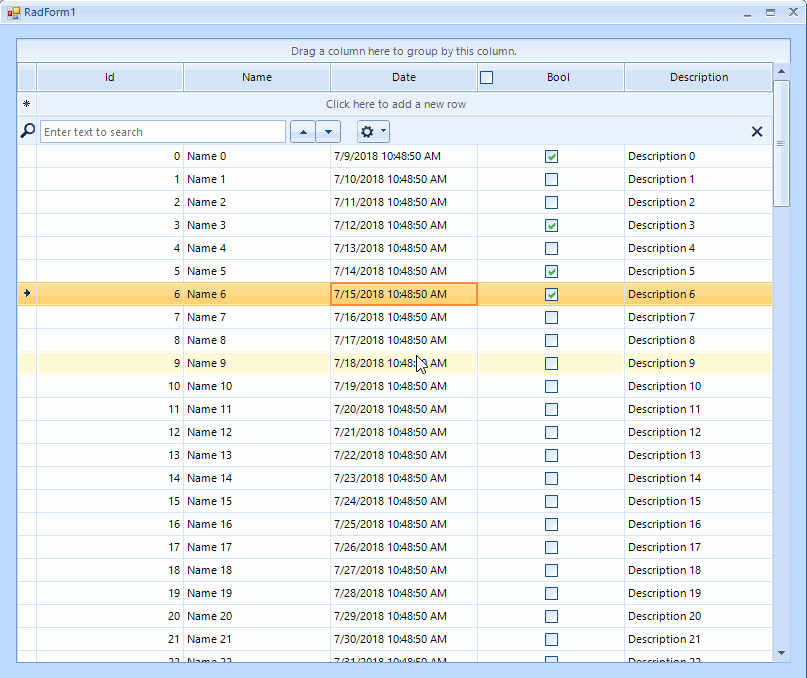

I am also attaching a short video showing the result on my end.

Yet if the visibility property changes at some point during the execution of your application, you can also handle its RadPropertyChanging event and cancel it this way:

class MyGridSearchCellElement : GridSearchCellElement
{
    public MyGridSearchCellElement(GridViewColumn column, GridRowElement row)
        : base(column, row)
    { }

    protected override RadMenuItem CreateMatchCaseMenuItem()
    {
        RadMenuItem result = base.CreateMatchCaseMenuItem();
        result.Visibility = ElementVisibility.Collapsed;
        result.RadPropertyChanging += Result_RadPropertyChanging;
        return result;
    }

    private void Result_RadPropertyChanging(object sender, RadPropertyChangingEventArgs args)
    {
        if (args.Property == LightVisualElement.VisibilityProperty && (ElementVisibility)args.NewValue == ElementVisibility.Visible)
        {
            args.Cancel = true;
        }
    }
}


Regards,
Hristo
Progress Telerik

[Brendan]

Thanks Hristo, that worked perfectly
