Grid Grouping not showing the ClientGroupHeaderColumnTemplate

3 Answers 745 Views
Grid
This is a migrated thread and some comments may be shown as answers.
n/a
Top achievements
Rank 1
n/a asked on 12 Nov 2018, 08:19 AM

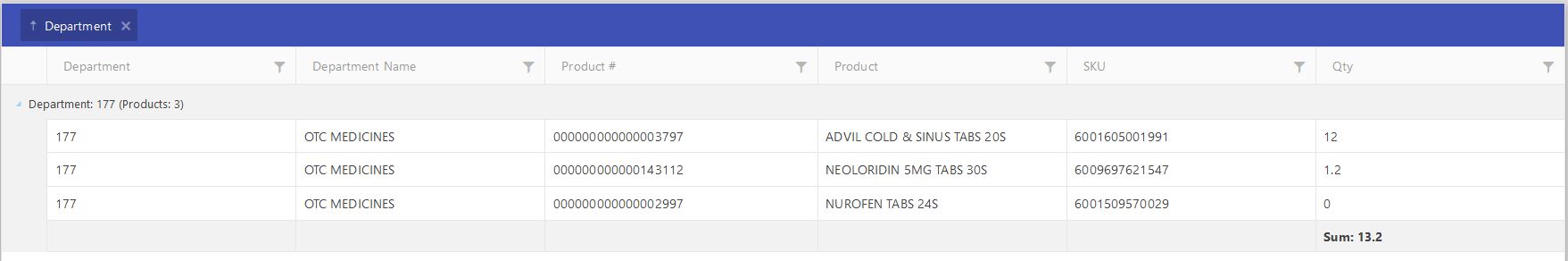

I'm trying the grouping in Grid I want to display the sum of the column as ClientGroupHeaderColumnTemplate  or ClientHeaderTemplate but doesn't  seem to be working, it only shows as a ClientFooterTemplate. :

@(Html.Kendo().Grid<Models.DepartmentSummaryView> ()
        .Name("grid")
        .HtmlAttributes(new { style = " height:700px !important;" })
        .Columns(columns =>
        {
            columns.Bound(p => p.DepartmentNo).Width(150).ClientGroupHeaderTemplate("Department: #= value # (Products: #= count#)");
            columns.Bound(p => p.DepartmentName).Width(150).ClientGroupHeaderTemplate("Department: #= value # (Products: #= count#)");
            columns.Bound(p => p.ProductNo).Width(150).ClientGroupHeaderTemplate("Product: #= value # (Count: #= count #)");
            columns.Bound(p => p.ProductName).Width(150);
            columns.Bound(p => p.SKU).Width(150);
            columns.Bound(p => p.Qty).Width(150).ClientGroupHeaderColumnTemplate("Sum: #= sum #").ClientFooterTemplate("Sum: #= sum #");
        })
        .Filterable(filterable => filterable.Extra(false)
        //.Mode(GridFilterMode.Row)
        .Operators(operators => operators
        .ForString(str => str.Clear()
        .StartsWith("Starts with")
        .EndsWith("Ends with")
        .IsEqualTo("Is equal to")
        .IsNotEqualTo("Is not equal to")
        .Contains("Contains")
        .DoesNotContain("Doesn't contain")
        )))
        //.Pageable()
        .Navigatable()
        .AutoBind(false)
        .Sortable()
        .Groupable()
        .Events(events => events.DataBound("onDataBound"))
        .Reorderable(reorderable => reorderable.Columns(true))
        .DataSource(dataSource => dataSource
        .Custom()
        .Schema(schema =>
        {
            schema.Data("Data");
            schema.Total("Total");
        })
        .Events(events => events.Sync("sync_handler"))
        .Group(groups => groups.Add(p => p.DepartmentNo))
        .Aggregates(aggregates =>
        {
            aggregates.Add(p => p.DepartmentNo).Count();
            aggregates.Add(p => p.DepartmentName).Count();
            aggregates.Add(p => p.ProductNo).Count();
            aggregates.Add(p => p.SKU).Count();
            aggregates.Add(p => p.Qty).Sum();
        })
        .Transport(transport =>
        {

            transport.Read(read =>
                read.Url("/api/enquiries/departmentsummary)
                .DataType("json")

                .Type(HttpVerbs.Get)
                );
                            transport.Create(create =>
                create.Url(Base.APIHostAddress + "/api/enquiries/post")
                .DataType("json")
                .Type(HttpVerbs.Post)
                .ContentType("application/json; charset=utf-8")

                );

                transport.ParameterMap("parameterMap");
        })
        )
)



3 Answers, 1 is accepted

Sort by
0
Konstantin Dikov
Telerik team
answered on 13 Nov 2018, 02:37 PM
Hello Adam,

For displaying the aggregates in the group header you should configure the ClientGroupHeaderColumnTemplate:
Here is a dojo example with the result:
You can also refer to the following online demo, where all options for the aggregates are demonstrated:
Hope this helps.


Regards,
Konstantin Dikov
Progress Telerik
Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
0
n/a
Top achievements
Rank 1
answered on 14 Nov 2018, 07:37 AM

Hey Konstantin

From the above code that i provided how can i make the displaying of aggregates using ASP.NET Core MVC work. i followed This Example

but it not  working as it should be, am i configuring it wrong or am i missing something?

0
Konstantin Dikov
Telerik team
answered on 15 Nov 2018, 01:06 PM
Hi Adam,

The same demo is available for the UI for ASP.NET Core suite:
Could you please open a regular support ticket and attach a sample, runnable project demonstrating the issue that you are facing, so we can test and debug it locally?

Meanwhile, you could inspect the Network tab in the browser's developer tools window to see if the aggregates for the groups are correctly returned by the Read request. You can also check out the browser's console for any JavaScript errors.


Regards,
Konstantin Dikov
Progress Telerik
Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
